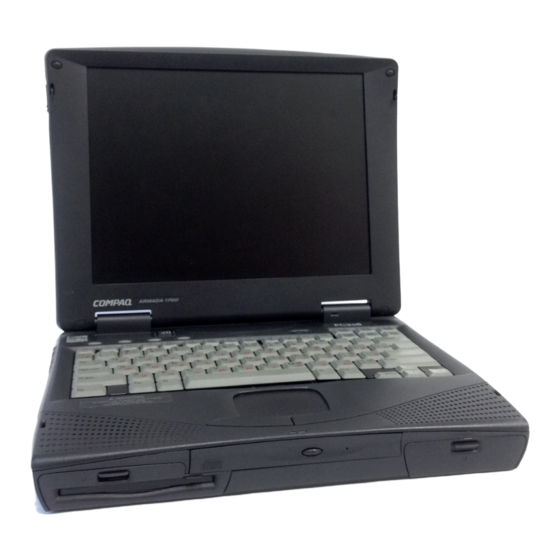

Compaq Armada 1700 Reference Manual

Hp armada 1700: reference guide
Hide thumbs Also See for Armada 1700:
Table of Contents

Advertisement

Quick Links

See also: User Manual
R
G
EFERENCE
UIDE
Compaq Armada 1700 Family of Personal Computers
Compaq Armada SB Family of Personal Computers

Advertisement

Table of Contents
loading

Related Manuals for Compaq Armada 1700

Summary of Contents for Compaq Armada 1700

  • Page 1 EFERENCE UIDE Compaq Armada 1700 Family of Personal Computers Compaq Armada SB Family of Personal Computers...
  • Page 2 EFERENCE UIDE Compaq Armada 1700 Family of Personal Computers Compaq Armada SB Family of Personal Computers...
  • Page 3 Notice The information in this guide is subject to change without notice. COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
  • Page 4 ONTENTS prefaee chapter 1 Unpacking the Computer ...1-1 Setting Up the Computer...1-2 Charging the Battery Pack for the First Time ...1-2 Connecting the Power Cord...1-3 Opening the Computer...1-4 Adjusting the Keyboard ...1-4 Turning On the Computer...1-5 Setting Up the Software ...1-5 Operating the Computer During Setup...1-6 Choosing a Language...1-6 Removing the Operating System ...1-7...
  • Page 5 chapter 3 Keyboard Components ... 3-1 Special Keys... 3-3 Using Hotkeys... 3-5 Embedded Numeric Keypad... 3-7 User Programmable Keys ... 3-8 Assigning the User-Programmable Keys ... 3-9 Unassigning the User-Programmable Keys ... 3-10 Adding Schemes... 3-10 Removing Schemes ... 3-11 Showing the Key Assignments in the System Tray...
  • Page 6 Storing Battery Packs ...4-7 Maximizing Battery Pack Life ...4-8 Recycling Used Battery Packs ...4-9 System Beeps ...4-9 Beeps with a Blinking Battery Charge Light ...4-9 Beeps with a Blinking Power/Suspend Light...4-10 Turning Beeps On or Off ...4-10 chapter 5 Leaving On the Computer...5-1 Turning Off the Computer ...5-1 Restarting the Computer ...5-2 Disconnecting the Computer from External Power...5-3...
  • Page 7 chapter 6 Bay Configuration... 6-1 Caring for Removable Drives ... 6-2 Using the Diskette Drive... 6-3 Selecting Diskettes ... 6-3 Inserting a Diskette... 6-3 Removing a Diskette ... 6-3 Using the CD-ROM Drive... 6-4 Inserting a Compact Disc into the CD-ROM Drive... 6-4 Removing a Compact Disc from the CD-ROM Drive...
  • Page 8 Using AT Commands to Control the Modem...7-10 Guidelines for Using AT Commands...7-11 Using the Attention Code ...7-11 Entering a Command ...7-11 Editing a Command ...7-11 Executing a Command...7-11 Interpreting a Missing Parameter...7-12 Entering an Escape Code Sequence...7-12 Repeating a Command...7-12 Dial Modifiers ...7-15 S Register Default Values ...7-15 Modifying an S Register ...7-16...

  • Page 9: Table Of Contents

    chapter 9 PC Card Types ... 9-1 Inserting a PC Card... 9-1 Removing a PC Card ... 9-3 PC Card Device Drivers ... 9-4 Changing PC Card Settings ... 9-4 Managing PC Card Power ... 9-5 Zoomed Video ... 9-5 Stopping a PC Card...
  • Page 10 chapter 12 Caring for the Computer ...12-1 Caring for the Display...12-2 Traveling with the Computer ...12-2 Shipping the Computer ...12-4 Operating Temperatures...12-4 chapter 13 Types of Security ...13-1 Using the Cable Lock...13-2 Using Passwords Properties ...13-3 Using the Power-On Password...13-3 Establishing the Power-On Password...13-3 Entering the Power-On Password...13-5 Changing the Power-On Password ...13-6...
  • Page 11 chapter 14 Intelligent Manageability Overview... 14-1 Asset Management... 14-2 Changing the Asset Tag Number ... 14-2 Fault Management ... 14-3 Fault Management Alerts ... 14-3 Security Management ... 14-4 Configuration Management ... 14-4 chapter 15 Computer Setup Overview ... 15-1 Running Computer Setup ...
  • Page 12 appendix B ... B-1 appendix C Preventing Electrostatic Discharge ... C-1 When Handling Removable Drives ... C-1 When Installing Internal Components... C-1 Grounding Methods ... C-2 appendix D ... D-1 ...I-1 Contents xiii...
  • Page 13 preface Some or all of the following format conventions are used in this guide to distinguish elements of text: Names of keys are shown in bold type as they appear on the keyboard, for example, Keys that you should press at the same time are represented by the key names and the plus (+) symbol, for example, Commands are presented in lowercase, bold type as shown here:...
  • Page 14 chapter You should have the following items in the packing box: Computer (includes battery pack already installed) Power cord Modem cable (with internal modem models) Items not illustrated vary by model and geographical region: Owner Registration Card Warranty and service information Printed documentation about the computer...
  • Page 15 Before you set up the computer for the first time, ensure that The computer is using AC power. The computer is not docked in a docking station. The battery pack begins to charge when the computer is connected to external power. Although a new battery pack can be used to power the computer after receiving a partial charge, Compaq recommends that a new battery pack be allowed to fully charge before the computer is...
  • Page 16 1. Place the computer on a flat surface near an electrical outlet. 2. Plug the power cord into the power connector on the rear panel of the computer , then into the electrical outlet...
  • Page 17 Slide forward the display release latches on the left and right sides of the display, then raise the display to a comfortable viewing angle. To elevate the back of the keyboard to a more comfortable typing position, open the tilt feet on the bottom of the computer until they lock into place.
  • Page 18 Slide the power switch to turn on the computer. The power/suspend light indicates the computer is on. When you begin software setup, online instructions guide you through the setup process. After you begin software setup, you must complete the entire process, which may require up to 20 minutes. Make sure the computer is plugged in for this process to ensure that software setup is uninterrupted.
  • Page 19 To move around the screen while making selections and entering information: press the key, press the cursor (arrow) keys, or use the touchpad built into the computer keyboard. To save your selections, press the touchpad buttons below the touchpad on the computer keyboard.
  • Page 20 A Microsoft Windows operating system is preinstalled on the computer. Compaq has enhanced the preinstalled version of this operating system to provide you with additional software features and increased computer functionality. Before deleting the operating system preinstalled on the computer, please read the following caution: In addition to the preinstalled operating system, Compaq installs other software to provide additional functionality or...
  • Page 21 Compaq recommends that you: Register the computer. Locate the Compaq online resources, such as the online Reference Guide and the online Safety & Comfort Guide. Be sure to register the computer according to the instructions on the Owner Registration Card included with the computer. For your convenience, all information contained in this Reference Guide is available online.
  • Page 22 chapter ™ Display š Lid switch The computer screen and the hardware in which it is enclosed. Blanks the screen if the display is closed and the computer is still on. Continued...
  • Page 23 Continued › Stereo speakers œ MultiBay  Optical Disc Bay ž Battery bay Ÿ Internal microphone Built-in speakers for high-quality stereo sound and a multimedia sound system. A multifunction device compartment that accepts a diskette drive, LS-120 diskette drive, Zip drive, second battery pack, or second hard drive.
  • Page 24 ™ Cable lock š Speaker/headphone line- out jack › Microphone line-in jack œ Volume control (up)  Volume control (down) ž Base reflex speaker port Accepts an anti-theft cable that secures the computer to a fixed object. Connects stereo speakers, headphones, or headset.
  • Page 25 ™ Base reflex speaker port š PC Card eject button › PC Card slots œ USB connector  RJ11 Allows airflow to and from the internal stereo speakers. Ejects PC Cards from the PC Card slots. Slots that support Type II or Type III PC Cards, such as modem, hard drive, or network cards.
  • Page 26 ™ Parallel connector š Serial connector › Infrared port œ External monitor connector  AC power connector ž Docking connector Ÿ Cooling fan   Keyboard/mouse connector Connects an optional parallel device such as a printer. Connects an optional external serial device such as a mouse or printer.
  • Page 27 ™ Modem compartment š Hard drive compartment › Tilt feet Provides access to the internal modem. The modem is available on selected models and as an option for other models. Provides access to the internal hard drive. A security screw prevents unauthorized access to the hard drive.

  • Page 28: Embedded Numeric Keypad

    There are five lights located above the keyboard which indicate system operations and status. These include: ™ Hard drive/ CD-ROM drive access indicator š Diskette drive access indicator › Num Lock œ Caps Lock  Scroll Lock Turns on when the hard drive, optional CD-ROM drive, or optional DVD drive is accessed.
  • Page 29 chapter ™ Lid switch š Programmable keys Blanks the screen if the display is closed and the computer is still on. Assign and launch frequently used applications and documents. Continued...
  • Page 30 › Suspend button œ Power switch  Keyboard releases ž Touchpad Continued Initiates and exits Suspend. Turns on the computer if it is in Suspend. When used with the Fn key on the computer, the Suspend button initiates Hibernation. Slides to turn the computer on or off. While working in Windows, click Start, Shut Down to exit the operating system and turn off the computer.
  • Page 31 ™ Function keys š Delete key › Num Lock key œ Enter key Enter various commands in a program, depending on the program being used. Deletes characters or selected text. Activates the embedded numeric keypad, a section of the keyboard used for numeric functions, by pressing the Fn + Num Lock keys.
  • Page 32 Continued  Shift keys ž Cursor keys Ÿ Alt keys   Ctrl keys ¡ Fn key ¢ Caps Lock key Tab key Toggle between uppercase character typing and lowercase character typing. The Shift key can also be used in combination with the Function keys for various commands.

  • Page 33: Using The Battery Gauge

    Hotkeys are keys that simplify the performance of special computer operations. The special hotkey functions are activated by pressing the Fn key and the associated function key. The function keys work as normally defined by application software when they are not used in conjunction with the Fn key. Moves the Hotkey popup window location.
  • Page 34 Adjusts display contrast. Not applicable on active matrix displays. Adjusts display brightness. Enables and disables the embedded numeric keypad. See “Embedded Numeric Keypad”, in this chapter. Initiates Hibernation (Windows 95 and Windows NT only). See Chapter 5 for more information on using Hibernation.
  • Page 35 The embedded numeric keypad is a section of the computer keyboard that converts to a numeric keypad when the number lock function is enabled. Press the Enable the embedded numeric keypad (Num Lk light turns on). Disable the embedded numeric keypad (Num Lk light turns off).

  • Page 36: Assigning The User-Programmable Keys

    You can set the four user-programmable keys to bring up a document or emulate the Microsoft Windows and Application Logo Keys. By assigning schemes to the programmable keys, you can create multiple sets of key assignments tailored to your own needs or to accommodate more than one user.
  • Page 37 To assign or reassign a programmable key: 1. Access the Programmable Keys utility by clicking Start Æ Settings Æ Control Panel Æ Keyboard Æ Programmable Keys. 2. Select the current scheme programmable key you wish to assign or reassign by clicking its button in the Key Assignments group box.
  • Page 38 1. To remove a programmable key assignment: 2. Access the Programmable Keys utility by clicking Start Æ Settings Æ Control Panel Æ Keyboard Æ Programmable Keys. 3. Select the programmable key you wish to unassign by clicking the appropriate radio button in the Key Assignments group box.
  • Page 39 To remove a scheme: 1. Access the Programmable Keys utility by clicking Start Æ Settings Æ Control Panel Æ Keyboard Æ Programmable Keys. 2. Ensure that the Show Advanced Options checkbox is checked. 3. Select the scheme in the Scheme box that you want to delete. To view a different scheme, select a scheme from the drop- down list.
  • Page 40 To operate the touchpad, move your finger across the touchpad surface to control cursor movement. Press the left and right buttons below the touchpad to select items, much like using the left and right mouse buttons. You can also single - and double-tap the touchpad to select and activate items, as well as use the touchpad to drag objects across the screen.
  • Page 41 Access the Mouse utility by clicking Start Æ Settings Æ Control Panel Æ double-click Mouse Æ. Then you may: Customize the way the touchpad controls the pointer. Control the pointer motion. To clean the touchpad: 1. Turn off the computer. 2.
  • Page 42 chapter The computer accommodates up to two rechargeable battery packs at one time. Battery packs are supported in the: Battery bay in the computer (primary battery pack) MultiBay in the computer (secondary battery pack) With the computer turned off, each battery pack will recharge in less than two hours.
  • Page 43 You can charge the battery pack in the computer's battery bay or MultiBay while connected to an external power source or while docked in the convenience base. You can also charge up to two battery packs in the optional battery charger. A new battery pack should be fully charged before it is used for the first time.
  • Page 44 The battery charge light is the right light on the front of the computer. It turns on (solid) when a battery pack (in the battery bay or MultiBay) is charging. It turns off when fully charged. It blinks in a low-battery condition. When the battery charge light turns off, the battery packs are fully charged.
  • Page 45 The built-in battery gauge, which displays the amount of charge remaining, is precalibrated for accuracy. To ensure continued battery gauge accuracy and to maximize battery operating time: Fully charge the battery pack before the first time you use it. Allow the battery pack to completely charge before removing external power from the computer, convenience base, or battery charger.
  • Page 46 1. Connect the small end of the power cord to the AC power connector. 2. Insert the wall plug of the power cord into an electrical outlet. Stop working and save your work immediately. Press the Remove the discharged battery pack. Insert a fully charged battery pack.
  • Page 47 To remove the battery pack from the battery bay: Pull down the battery release lever n to release the battery pack. Remove the battery pack from the battery bay.
  • Page 48 Insert a battery pack into the battery bay with the large label on the battery pack facing up and the battery contacts facing in. Push the battery pack into the battery bay until it is firmly seated. When storing the computer for more than two weeks, remove the battery packs and store them separately to reduce the discharge rate and increase battery life.
  • Page 49 The recommended storage temperature range is from 32°F to 104°F (0°C to 40°C). However, batteries can be stored at 32°F to 140°F (0°C to 60°C) for up to 30 days. Battery pack operating time varies depending on the system components, options, and applications used. You can increase battery operating time by as much as 50 percent by controlling the energy used by the computer and the energy stored in the battery pack.

  • Page 50: Worldwide Telephone Numbers

    Store the battery pack in a cool, dry place when it is not in use. High temperatures cause a battery pack to lose its charge more quickly and reduce battery pack life. For more information on storing battery packs, see "Storing Battery Packs" in this chapter.
  • Page 51 When the computer beeps while the Power/Suspend light is blinking, the computer has initiated Suspend. See Chapter 5 for more information on using Suspend. When the computer is in Suspend and a low battery condition occurs, pressing the power button or suspend button will NOT exit Suspend.
  • Page 52 chapter If you are running Windows 98, several power conservation features described in this chapter will be disabled. For more information on power management under Windows 98, refer to the section "Using ACPI Power Control" in this chapter. When the computer is left on for extended periods, such as overnight, you may want to initiate Suspend to conserve power.
  • Page 53 If you use the computer frequently and want "instant-on" convenience, you do not have to turn off the computer. Simply initiate Suspend when the computer is not in use. With a fully charged battery pack, the computer can be left in Suspend up to several days, depending on your hardware configuration.
  • Page 54 When the computer does not contain a charged battery pack, save your work and turn off the computer before disconnecting it from external power. When a charged battery pack is in the computer, you do not need to turn off the computer before disconnecting it from external power.
  • Page 55 Use the following table to view or change power management settings. Show Suspend on the Start menu Show battery gauge on the taskbar Set battery conservation levels; enable/disable warning beeps; set timeouts Select Hibernation settings Enable/disable Energy Saver Set timeouts for drives when using battery power or AC power Turn off power to the PC Card...
  • Page 56 Power Properties allows you to control how AC and battery power are used in the computer. To access Power Properties, click Start Æ Control Panel Æ double-click Power Æ Power Properties. Set battery conservation levels and enable or disable warning beeps Select Hibernation settings Display the status of installed batteries The Battery Status tab is a Compaq application that...
  • Page 57 Setting the Battery Conservation Level with Hotkeys: Choose a preset level of battery conservation by pressing you select None (Drain), it remains in effect until you change Using Power Properties: Change the default levels of battery conservation through the Battery Conservation Settings tab in Power Properties (click Start Æ...
  • Page 58 Hibernation is a safeguard feature that saves your information when the computer reaches a low battery condition while it is left unattended. When your computer hibernates, all the information in system memory is saved to the hard disk and the power to the computer is turned off.
  • Page 59 In Windows 95, you can initiate Hibernation by pressing button at any time and from within any application. System-initiated Hibernation takes place under the following conditions: when the computer is on and unattended, and a critical low battery condition occurs. when the computer is in Suspend, and a critical low battery condition occurs.
  • Page 60 Automatically—when a predefined timeout has been reached. You can define the Suspend timeout period through the Battery Conservation Settings tab in Power Properties (click Start Æ Control Panel Æ double-click Power Æ Power Properties). Manually—by pressing the Suspend button on the computer. Manually—by clicking Suspend from the Windows Start menu.
  • Page 61 When Suspend initiates, the following occurs: the computer beeps twice. the screen blanks. the power/suspend light blinks. If a low battery condition occurs while the computer is in Suspend, the system initiates Hibernation and will not resume until a power source becomes available. Suspend can be initiated either by you or by the system.
  • Page 62 Timeouts are specified periods of system or component inactivity. Timeouts work with battery conservation to conserve power. When a timeout period has expired, battery conservation shuts down the system or components in order to save power. For example, the hard disk idle default timeout is two minutes. Therefore, if an application does not access information on the hard disk in less than two minutes, the hard disk shuts down until it is accessed again.
  • Page 63 In Windows 95, the screen save timeout is the amount of time that the system can be idle before a screen saving utility initiates. For example, if you want the screen saver to initiate after five minutes of computer nonuse, set the screen save timeout value to five minutes.
  • Page 64 chapter The three computer bays support standard as well as optional devices. Some devices can be hot plugged, while others must be inserted after the computer has been turned off. The following is a list of devices supported in all bays, as well as the computer power state required before inserting the device (see Chapter 2 for bay locations): MultiBay...
  • Page 65 Removable drives such as the hard drive, the CD-ROM or DVD drive, diskette drive, LS-120 drive, and Zip Drive are fragile computer components that must be handled with care. Back up the information on a hard drive before removing it. Failure to back up the hard drive can result in loss of information if the drive is handled improperly.
  • Page 66 The diskette drive, which is housed in the computer MultiBay, reads and writes information onto a 3.5-inch diskette. The MultiBay also accommodates an optional LS-120 Drive or Zip Drive. Each drive accepts the following diskettes: Diskette Drive LS-120 Drive Zip Drive Hold the diskette by the edge where the label is affixed.
  • Page 67 1. Turn on the computer. 2. Press the eject button on the bezel of the CD-ROM drive to release the CD loading tray. 3. Slowly pull out the CD loading tray until it is fully extended. 4. Remove the CD from its protective case and place it in the CD loading tray, label side up.
  • Page 68 If a compact disc becomes lodged in the CD-ROM drive, remove it by using the following steps: 1. Insert a paper clip or similar thin metal rod into the manual release hole on the front bezel of the CD-ROM drive. Press firmly.
  • Page 69 The MultiBay supports a diskette drive, LS-120 drive, Zip Drive, second battery pack, or second hard drive. To install a supported device into the computer MultiBay: 1. If your device is not hot-pluggable, turn off the computer. 2. Insert the device into the MultiBay until it locks into place. A second hard drive must be installed into a hard drive adapter before it is inserted into the MultiBay.
  • Page 70 To remove a supported device from the computer MultiBay: 1. If your device is not hot-pluggable, turn off the computer. 2. Press the MultiBay release lever to release the device. A second hard drive must be installed in a hard drive adapter before it is inserted into the MultiBay.
  • Page 71 chapter The internal modem comes built into some models and is an option for other models. It provides data communications and fax functionality for applications running under Windows 95, Windows 98, and Window NT 4.0. Preloaded software drivers are required for modem operation and allow the modem to easily communicate with software applications.
  • Page 72 To connect the modem to a standard telephone wall jack: 1. Connect one end of the modem cable into the RJ-11 jack on the right side of the computer. The internal modem uses a universal DAA (Direct AccessArrangement) that supports multiple countries. However, some countries may require an adapter to connect the modem to the telephone wall jack.
  • Page 73 After setting up your software, you are ready to start using your modem. In most cases, if you are using communications and fax software, the modem will be controlled by the software and you will not need to use the AT command set. Simply select the internal modem as the preferred communication device in your application.
  • Page 74 If you are running Windows NT: 1. Click Start Æ Settings Æ Control Panel Æ double-click the CSA Control Panel 2. Select the country from the List of Countries. 3. If you are traveling, click the Change Country button. While traveling, you will be asked to confirm this setting at each reboot.
  • Page 75 Some data or fax communications software prompts you for specific information about the model of modem you are using. In this case, if the internal modem is not available as a choice, select one of the following modems: Compaq Modem or Hayes Compatible.
  • Page 76 CONNECT RING NO CARRIER ERROR CONNECT 1200 NO DIAL TONE BUSY NO ANSWER DELAYED CONNECT 2400 CONNECT 4800 CONNECT 9600 CONNECT 14400 CONNECT 19200 CONNECT 7200 CONNECT 12000 CONNECT 16800 CONNECT 300 CONNECT 21600 Command line executed Modem connected to line Ring signal detected Carrier signal lost or...
  • Page 77 Continued CONNECT 24000 CONNECT 26400 CONNECT 28800 CONNECT 31200 CONNECT 33600 CONNECT 32000 CONNECT 34000 CONNECT 36000 CONNECT 38000 CONNECT 40000 CONNECT 42000 CONNECT 44000 CONNECT 46000 CONNECT 48000 CONNECT 50000 CONNECT 52000 CONNECT 54000 CONNECT 56000 CONNECT 58000 CONNECT 60000 Connection at 24000 Connection at 26400 Connection at 28800...
  • Page 78 Operating Storage Operating Storage Communications Connector Telephone, central office network 32 to 135 F -40 to 155 F 95% maximum 95% maximum +5.0 VDC (+/-5%@1.5 W max.) Standard RJ-11 Telephone Connector Internal DAA 0 to +60 C -45 to +70 C...
  • Page 79 The internal modem is compatible with the following data and facsimile communications standards: Hayes AT command set (EIA/TIA 602) ITU V.90 (speeds higher than 33600 bps) ITU V.34 Annex (K56flex or 33600 bps) ITU V.34 (28800 bps) ITU V.32 (19200 bps) ITU V.32bis (14400 bps) ITU V.32 (9600 bps) ITU V.23 (1200/75 bps)
  • Page 80 The internal modem can be used in a variety of applications and is designed to interface with a wide range of computer and data communications equipment. Because each device has specific requirements of its own, the modem is equipped with an extensive set of commands and registers that you can set to meet the specific requirements of your system.
  • Page 81 You must follow certain rules when entering or using the AT command set. Read the topics in this section to learn more about these guidelines: You should precede all commands except A/ and +++ with the attention code AT. You can enter commands in uppercase or lowercase letters or a combination of both.
  • Page 82 If you enter a command that normally includes a numeric parameter (such as ATHn) without the numeric parameter, the modem interprets the missing parameter as zero. For example, the Hn (hang-up) command can have a numeric parameter of zero (H0) or of one (H1); however, if the parameter is missing, ATH<cr>...
  • Page 83 Answer Mode Command. Attention Code. Repeat Last Command. Answer Command. Communications Standard Option. Dial Command. Dial Command. Echo Command. Command Echo Option. Online Echo Command. Hook Control. Hook Control Option. Request ID information. Request Identification Option. Monitor Speaker Volume. Speaker Control Option. Modulation Handshake.
  • Page 84 &Cn Data Carrier Detect Options. &Dn Data Terminal Ready Option. &F Load Factory Defaults. &Gn Guard Tone Option. &Kn Local Flow Control Selection. &Mn Asynchronous Communications Mode. &Qn Asynchronous Communications Mode. &Sn Data Set Ready Option. &Tn Test Command Selection. &V View Current Configuration.
  • Page 85 Continued +FTM=n Transmit Data. +FRM=n Receive Data. +FTH=n Transmit Data with HDLC Framing. +FRH=n Receive Data with HDLC Framing. These commands may be used with the ATD command to dial telephone numbers. Redial Last Number. Pulse Dialing. Dial Stored Number. Tone Dialing.
  • Page 86 The correct command format for modifying an S Register is ATSn=r, where n is the register number to be modified and r is the value to which you wish to set the register. For example, to set register 37 to 7, enter: ATS37=7<cr>...
  • Page 87 Sleep Mode Timer. Read-only Local Phone. Synthetic Ring Volume. Synthetic Ring Frequency. The modem alerts the DTE to the presence of tones detected on the phone line. During a voice call, the modem is capable of simultaneously detecting tones other than voice. When such a tone is detected, the modem responds via the communications interface with one of the following response codes: 0-9, A-D,#,*...
  • Page 88 To uninstall the modem software and hardware under Windows NT 4.0, you must log into Windows NT 4.0 with Administrator privileges. To uninstall the modem software and hardware if you are running Windows 95, Windows 98, or Windows NT 4.0: 1.
  • Page 89 chapter To connect an external enhanced keyboard to the computer, connect the keyboard cable to the keyboard/mouse connector on the computer. To connect an external VGA monitor: 1. Turn off the monitor. 2. Plug the monitor signal cable into the external monitor connector on the back of the computer.
  • Page 90 A PS/2 compatible mouse or external touchpad can be connected to the computer. To connect an external pointing device, insert the pointing device cable into the keyboard/mouse connector. External pointing devices need software device drivers to operate. The necessary drivers should be provided by the manufacturer or preinstalled with Microsoft Windows.
  • Page 91 4. Plug the printer power cord into a properly grounded electrical outlet. 5. Turn on the printer and resume your work. Windows should prompt you to set up your printer before printing for the first time. If you are not successful doing this, you may need to consult the printer documentation for printer device driver configuration information and instructions.
  • Page 92 7. Slide the power switch button on the convenience base. The undocking process depends on your operating system. To undock your computer from the optional convenience base: 1. From the Windows 95 or Windows 98 start menu, click Start Æ Eject PC. The computer will initiate Suspend and you can safely undock the computer.
  • Page 93 4. Slide the computer forward from the convenience base to remove. 5. If the computer display is blank, press the computer hotkey combination monitor to the computer display. Infrared-equipped computers are IrDA-compliant. Infrared performance may vary depending on peripherals, distance between infrared devices, and applications used.
  • Page 94 Your computer comes equipped with a port that connects Universal Serial Bus (USB) devices to the computer. Your computer can support certain USB devices without any special drivers. These include hubs and keyboards. For most other USB devices without special drivers provided by the USB device manufacturer, you will need an operating system which has USB support for your device built in, such as Windows 95 OSR2.1 or Windows 98.

  • Page 95: Inserting A Pc Card

    chapter This computer can support two Type II cards or one Type III card. It supports both 16-bit and CardBus (32-bit) PC Cards. Several kinds of PC Cards are supported, such as network cards, hard drive cards, memory cards, and fax/modem cards.
  • Page 96 2. With the label side up, insert the 68-pin connector side of the PC Card into the PC Card slot, pushing gently until firmly seated. If you are running Windows 95 and your computer is on, the computer automatically configures a plug and play card and most other PC Cards.
  • Page 97 1. If you are running Windows 95, you must stop the PC Card before removing it (see “Stopping a PC Card” later in this chapter). You do not need to turn the computer off or initiate Suspend. If you are running Windows NT, you must turn off the computer.
  • Page 98 Device drivers are programs or data files containing information needed to run a specific PC Card. Most of the device drivers you need are preinstalled on the computer. In order to save available memory, some device drivers are not enabled after being installed. Some types of PC Cards, such as network cards, Global Positioning System (GPS) cards, SCSI cards, audio cards, and multifunction cards, require an additional PC Card-specific...
  • Page 99 PC Cards are powered accessories in a small form factor. When PC Cards are installed in your computer, they draw power from the system even when they are not in use. If you are running Windows 95, remove PC Cards when they are not in use to conserve power, or you may turn off power to the PC Card slots through Power Properties.
  • Page 100 chapter The computer provides both internal and external audio capabilities. You can record and play sound, enhance an interactive demonstration with high-quality stereo sound, and take advantage of business programs, presentations, and multimedia educational and entertainment software. The internal microphone supports audio input for spoken comments.
  • Page 101 The computer provides the following internal and external audio capabilities: Stereo speaker/headphone line-out jack icrophone line-in jack Volume control (up) Volume control (down) Stereo speakers Internal microphone Connects stereo speakers, headphones, or a headset. The jack requires 3.5 mm, 3-conductor plug. Connects an external mono microphone.
  • Page 102 With stereo speakers muted, system beeps are still audible unless they have been turned off. The internal microphone is disabled when an electret condenser microphone with a 3.5-mm plug is plugged into the microphone line-in jack. A mono electret condenser microphone in the mono microphone jack is acceptable, but the left channel will be recorded on both the left and right channels.
  • Page 103 Audio volume control affects the stereo speakers, headphones, and external speakers that are connected to the stereo speaker/headphone jack. There are three ways to control the audio volume: Using volume control buttons on the left side of the computer. The rear button turns up the volume. The forward button turns down the volume.
  • Page 104 chapter You can expand memory by installing memory expansion boards. You can easily upgrade memory by lifting the computer keyboard and inserting the memory expansion board. To order a memory expansion board, contact your Compaq authorized reseller. Refer to the instruction card that comes with the option kit for installation procedures.
  • Page 105 For a list of the memory expansion boards available for the computer: Refer to the Accessories flyer that came with the computer. Refer to Compaq Worldwide Telephone Numbers for the nearest Compaq authorized dealer, reseller, or service provider. The computer only supports SDRAM (synchronous DRAM) memory expansion boards.
  • Page 106 4. Insert the memory expansion board into the empty memory expansion slot at a 45-degree angle. Then slide it gently into place until it is seated while tilted. A memory expansion board is asymmetrically keyed (notched) to ensure correct positioning. 5.
  • Page 107 To remove an optional memory expansion board: 1. Shut down and turn off the computer. Disconnect any external cables. 2. Release the keyboard by successively inserting a paper clip or similar instrument into both the keyboard releases 3. Lift the keyboard.
  • Page 108 4. Pull away the retention clips expansion board to release it. The memory expansion board tilts toward you. 5. Lift the edge of the memory expansion board gently out of the memory expansion slot at a 45-degree angle. 6. Place the memory expansion board in an electrostatic-safe container.
  • Page 109 Depending on your computer model, the hard drive can be upgraded to a larger capacity. Contact your Compaq authorized dealer, reseller, or service provider for the optional hard drives available for your computer. For installation procedures, refer to the instruction card that comes with the hard drive option kit. Some models come standard with an internal CD-ROM drive in the Optical Disc Bay.
  • Page 110 chapter Keep the computer in good condition and working properly by following these guidelines: Operate the computer with a battery pack installed, even when using external power. This supplies the battery pack with a charge and ensures a fully charged battery pack the next time the computer is used without external power.
  • Page 111 Avoid exposing the computer to direct sunlight or strong ultraviolet light for extended periods of time. Avoid scratching the surface of the screen and banging it against hard objects. Use a carrying case to store the computer and any external devices when transporting the computer.
  • Page 112 Disconnect external equipment from the computer. Hand-carry the computer in its carrying case or in a briefcase. Do not check it in with your luggage. There are three types of airport security devices: X-ray machines (the conveyor belt device you set your bags on), magnetic detectors (the device you walk through), and security magnetic wands (the hand-held device used by security personnel).
  • Page 113 1. Back up your data. Do not expose your backups to electrical or magnetic impulses while stored or in transit. 2. If there is a diskette, compact disc or digital video disc in a drive, remove it. 3. Turn off the computer and all external devices. 4.
  • Page 114 chapter Security features protect your computer and the information stored on it from unauthorized access. The power-on password prevents unauthorized use of the computer when it is turned on, restarted, or resumed from Suspend or Hibernation. The setup password prevents unauthorized users from changing your computer’s configuration through Computer Setup.
  • Page 115 To help protect your computer from theft, use the cable lock provision to secure the computer to a work area. To attach the cable lock: 1. Loop the cable around a heavy, fixed object to which you want to secure the computer. 2.
  • Page 116 Passwords Properties (Start Æ Settings Æ Control Panel Æ double-click Passwords Æ Passwords Properties) allows you to protect your computer against unauthorized use. If you want to set the power-on password, QuickLock or QuickBlank, click the Computer Security tab. The power-on password is a security feature that prevents use of the computer when it is turned on until a secret word or code is entered.
  • Page 117 To establish your power-on password in Windows 95, do the following: 1. Click the Computer Security tab in Passwords Properties (Start Æ Settings Æ Control Panel Æ double-click Passwords Æ Passwords Properties). 2. Click the Set button. 3. Enter your new password twice, then click OK. Type carefully, because the password is not displayed as you type.
  • Page 118 To establish your power-on password in Windows NT, do the following: 1. Run Computer Setup by turning on or restarting the computer (Start Æ Shut Down ÆRestart). When the blinking cursor appears in the upper-right corner of the screen, press F10. 2.
  • Page 119 Once your power-on password has been established, you can change it using your computer keyboard. Each computer keyboard is designed to meet specific country requirements. The syntax for changing the password varies according to the keyboard purchased with your computer. When you wish to change or delete your password, you may have to substitute another key character for the slash mark (/).
  • Page 120 To change your power-on password: 1. Turn on the computer. 2. When the password prompt is displayed, enter your current password, then enter the new password twice, typing the appropriate syntax for your computer keyboard between the passwords. For example, if you have a Belgian keyboard, type the following: current password=new password=new password Type carefully.
  • Page 121 You cannot use the computer if you forget your power-on password. Therefore, Compaq recommends that you record your password and put it in a safe place. If you forget your power-on password, the computer must be disassembled and memory cleared. Contact your Compaq authorized dealer, reseller, or service provider for assistance.
  • Page 122 The Quick Controls establish security measures on your computer when it is on but not in use. After setting the power-on password in Passwords Properties, the following Quick Controls can be enabled or disabled: To enable the Quick Controls: 1. Click the Computer Security tab in Passwords Properties (Start Æ...
  • Page 123 The setup password prevents unauthorized users from changing your computer configuration through Computer Setup. Setup passwords can also be used by the network administrator to protect and access the configuration of computers in a network. After you establish the setup password, you must enter it each time you want to change the computer configuration.
  • Page 124 After you establish the setup password, you must enter it each time you want to change the computer configuration. 1. Turn on or restart the computer. 2. When the cursor moves to the upper right corner of the screen, press 3.
  • Page 125 To change your setup password, do the following: 1. Save your work, restart your computer, then press as the cursor moves to the top-right corner of the screen. 2. The password prompt is displayed. 3. Enter your current password, then enter the new password twice, typing the appropriate syntax for your computer keyboard between the passwords.
  • Page 126 Several devices can be disabled to prevent the unauthorized transfer of data using these devices: Diskette drive Diskette drive boot ability Serial port Infrared port Parallel port PC Card slots To disable or enable a device: 1. Run Computer Setup by turning on or restarting the computer (Start Æ...
  • Page 127 The user password is the password primarily used when turning on the computer. It prevents unauthorized users from gaining access to your removable hard drive. The owner of the user password should be the day-to-day user of the hard drive, not a system administrator.
  • Page 128 To establish DriveLock protection: 1. Run Computer Setup by turning on or restarting the computer (Start Æ Shut Down ÆRestart). When the blinking cursor appears in the upper-right corner of the screen, press F10. 2. Click the System Features icon Æ Security Management box Æ...
  • Page 129 If you forget your user password, you can access your removable hard drive with the master password. Make note of the user password. Record the master password and put it in a safe place physically separate from the computer. Once you create a user password, you can only change the password after the computer has restarted and the protected hard drive has been unlocked.
  • Page 130 Once you create a user password, you can only delete the passwords after the computer has restarted and the protected hard drive has been unlocked. Removing DriveLock protection deletes both the user password and the master password. 1. Turn on or restart the computer and enter your current user password.
  • Page 131 Once you create a master password, you can only change the password after the computer has restarted and the protected hard drive has been unlocked. To change your master password, follow these instructions after you have restarted your computer and entered the current user password: 1.

  • Page 132: Asset Management

    chapter Intelligent Manageability consists of software tools for the computer and Compaq servers that assist in tracking, troubleshooting, protecting, and maintaining the computer. It provides the following functions: Asset Management—provides detailed configuration and diagnostic information. Fault Management—prevents, predicts, and alerts of impending hardware problems.
  • Page 133 Asset Control enables the network administrator to remotely retrieve information from any Compaq computer connected to the network. This information can be used to assist in tracking and maintaining the computer and its components. It provides the following information: Inventory information—A network administrator can retrieve information about the computer via the network by using Compaq Insight Manager or any PC management tool provided by Compaq Solution Partners.
  • Page 134 The Fault Management utilities minimize downtime and data loss by monitoring system performance and generating the following alerts: Hard drive alert—warns you up to 72 hours in advance of impending hard drive problems and can automatically start optional backup software. System temperature alert—reports overheating.
  • Page 135 The Security Management utilities customize system security. Power-On and Setup Passwords—prevent unauthorized access to your information and computer configuration. DriveLock—denies access to drives, or limits read-only access. Device disabling—prevents unauthorized data transfer through modems, serial ports, parallel ports, and infrared ports on the computer.
  • Page 136 chapter Computer Setup contains utilities that give you an overall picture of the computer hardware configuration and aid in troubleshooting. These utilities also allow you to set custom features, such as security options, power conservation levels, and startup preferences. If you are running Windows 95, the computer automatically recognizes and configures the system for new devices.
  • Page 137 Computer Setup provides two methods of viewing the computer configuration—by type (factory setting) or connection. Categories by type: System Features—security, power, boot management Communication—port, modem, and other communication devices Storage—storage-related devices such as hard drive, CD-ROM drive, diskette drive Input Devices—keyboard, mouse, and other input devices Network—network adapter or other network-related devices Audio—sound properties and audio device settings Video—monitor timeouts and video device resources...
  • Page 138 1. Click Exit. 2. Select one of the following Exit options: Save—Saves the new settings and exits Computer Setup. Some settings may not take effect until the computer is restarted. Ignore—Exits Computer Setup and restores previous settings. Cancel—Returns to Computer Setup. Compaq Utilities contain several functions that Determine if various computer devices are recognized by the system and are operating properly.
  • Page 139 Compaq Diagnostics is a utility that inspects computer hardware, internal system temperature, and the SMART hard drive, then displays a prefailure warning message upon detecting a system temperature or hard drive fault. If you are running Windows 95, access Compaq Diagnostics for Windows as follows: 1.
  • Page 140 Computer Checkup (TEST) determines whether the various computer components and devices are recognized by the computer and are functioning properly. You can display, print, or save the information generated by Computer Checkup. 1. Plug the computer into an external power source. (A low battery condition could interrupt the program.) 2.
  • Page 141 The View System Information (INSPECT) utility provides information about the computer and installed or connected devices. You can display, print, or save the information. To run INSPECT, do the following: 1. Connect a printer if you want to print the INSPECT information.
  • Page 142 It is recommended that you use a backup program to create a backup of the preinstalled software. However, for an additional cost, you can order a backup of the preinstalled software on a CD- ROM or on diskettes. If an order form is included with your computer, complete the form and return it, or call one of the numbers listed on the order form.
  • Page 143 chapter If you encounter a minor problem with the computer or software applications, go through the following checklist for possible solutions: Is the computer connected to an external power source or does it have a fully charged battery pack installed? Is the computer turned on and is the power light on? Are all cables connected properly and securely? Did the diskette drive contain a nonbootable diskette when...
  • Page 144 While your computer is configured just for you, problems you encounter while working may not be unique. Eliminating the typical problems described in these troubleshooting sections may save you time and money. If you have a problem with your computer, consider the problems and possible solutions in the troubleshooting section.
  • Page 145 External microphone You are using the does not work wrong type of microphone or microphone plug for the computer. The microphone may not be connected properly. Sound source not selected. No sound is coming Audio settings are not from the game set correctly.
  • Page 146 Computer is beeping The computer has and battery charge entered a low battery light is blinking condition. Troubleshooting Save your information, exit all applications, and turn off the computer. If available, immediately connect the computer to an external power source. If an external power source is not available, in Windows 95, initiate...
  • Page 147 Battery charge light Computer entered a is blinking but low battery condition computer does not while low battery beep warning beeps and/or system beeps are turned down or off. Immediately connect the computer to an external power source. If an external power source is not available and you are running Windows 95, be...
  • Page 148 Battery pack will not Battery pack was fast charge exposed to tempera- ture extremes. Battery pack has exceeded its useful life. Battery pack is already fully charged. Computer shut down You removed a and information was battery from the lost when replacing computer when the a battery pack computer had no...
  • Page 149 CD-ROM drive The CD is not cannot read a properly seated in compact disc the drive. The CD has been loaded upside down. The CD may be dirty or scratched. Cannot eject CD is not properly compact disc loaded in the drive. Diskette drive light Diskette is damaged.
  • Page 150 Diskette is damaged. If you are running Windows Diskette drive light stays on Diskette is incorrectly inserted. Diskette drive cannot Diskette is not write to a diskette formatted. Diskette is write- protected. Computer is writing to the wrong drive. Not enough space is left on the diskette.
  • Page 151 Diskette drive cannot Diskette is not read a diskette formatted or is formatted incorrectly. You are using the wrong type of diskette for the drive. Error message Diskette was appears while removed while drive information is writing light was on. to diskette drive Continued If you are running...
  • Page 152 Reading the hard Computer entered drive takes an Hibernation due to a unusually long time low battery condition after restarting the and is now exiting computer from it. Hard drive error Hard drive has bad occurs sectors or has failed. Troubleshooting Give the computer time to restore the previously...
  • Page 153 Hardware devices The system did not are not working automatically properly configure the new device. Cable(s) of the new external device may be loose or the power cable may be unplugged. The power switch of the new external device is not turned on or was turned on after the computer was turned on.
  • Page 154 Embedded numeric Num Lock function is keypad on the off. computer keyboard is disabled Screen is on and You initiated keyboard is locked QuickLock. External keyboard You connected the does not work external keyboard while the computer was still turned on. Memory counting Memory board is during Power-On...
  • Page 155 Modem loses The connection from connection the phone line to the modem is loose. Call Waiting has not been disabled. Hibernation was initiated or a low- battery condition occurred. Disconnect, then reconnect the phone cable. Reestablish connection. To disable Call Waiting: 1.
  • Page 156 No dial tone Phone service is not connected to the telephone wall jack. Phone is connected to a digital PBX jack. Troubleshooting Continued Verify service from the local phone company by the following steps: 1. Unplug the 2. Connect a telephone Plugging the modem into a digital line will result in no dial tone.
  • Page 157 The modem is not responding to commands from the computer keyboard. Verify the modem and computer are connected: 1. Click Start Æ Programs Æ Accessories Æ HyperTerminal. 2. Go to Terminal Mode, then type AT and press the Enter key. 3.

  • Page 158: Changing The Country Selection

    Garbled or missing Noisy phone line. characters, or slow data transfer speed Recurring prompt to Current modem confirm country country section does selection not match initial default. Unable to connect The site called does the internal modem not support 56K or at speeds above supports an 33.6Kbps...

  • Page 159: Pc Card Device Drivers

    Computer does not Card is not fully beep when a PC inserted into the slot Card is inserted or is upside down. PC Card beeps are disabled. The PC Card device drivers for your card are not installed. Card design or card driver may not be compatible with the PCMCIA software.
  • Page 160 Card is not fully Computer beeps inserted into the slot only once when a or is upside down. PC Card is inserted Card is not recognized by the system. Card did not configure because of a conflict with another device in the computer.
  • Page 161 PC Card drivers The PC Card is not fail with error configured correctly. messages during system restart Modem/fax PC The modem/fax card Card does not conflicts with a system work board serial device (e.g., mouse). Card design or card driver may not be compatible with the PCMCIA software.
  • Page 162 Storage PC Card Flash memory cards does not work require the Microsoft Flash File System to be loaded. The card is not formatted. The card is not supported by the computer. Computer turned off The system initiated while it was left Hibernation due to a unattended and low battery condition.
  • Page 163 Printer will not turn The cables may not be connected properly or the printer is unplugged. Printer will not print Printer is not turned Printer is not online. The printer drivers for the application are not installed. Printer is offline Paper tray is empty.
  • Page 164 Characters on The brightness and/or computer display are contrast controls are not properly set. Screen is blank and A screen blanking the power/suspend utility is initiated. light is on Brightness and contrast need adjusting. Screen save was initiated. Screen is blank and Suspend is initiated.
  • Page 165 Screen is blank and The computer has no lights are on either entered Hibernation or, if Hibernation is disabled, the battery pack has discharged without saving your information. Screen is blank and QuickLock and keyboard is locked QuickBlank were initiated. These security features lock the keyboard and pointing device and...
  • Page 166 Most software application or installation problems occur as a result of one or more of the following: The application was not installed correctly. Memory was not allocated correctly. A conflict exists between applications. Insufficient memory There is not enough to run application memory for the application.
  • Page 167 External pointing The external pointing device is not working device was connected to the computer while the computer was on. Touchpad is not Incorrect or no device working driver is installed. Device driver is The wrong mouse is loaded but pointing selected.
  • Page 168 Cannot The required software communicate with is not running on both another computer computers. One computer does not have an IrDA- compliant infrared port. The pathway between the infrared ports is obstructed, one port is more than 30 degrees (plus or minus 15 degrees off the center line) from the other, or the ports are more...
  • Page 169 Cannot transmit data Direct sunlight, fluorescent light, or flashing incandescent light is close to the infrared connections. There is interference from other wireless devices. A physical obstruction is in the way. One of the devices was moved during data transmission. The orientation of the units is incorrect.
  • Page 170 External device The operating system connected to a USB limits external devices connector does not connected by USB to work two tiers which can include no more than two hubs on the first tier and no more than one keyboard and one pointing device on the first or second tier.
  • Page 171 appendix If you cannot solve a problem using the troubleshooting tips in this guide, you may need to call technical support. To receive the fastest possible solution when you call, run the Compaq diagnostics utilities and have the following available when you call: The computer Serial number on the bottom of the computer...
  • Page 172 Locate your geographical area in the following table and use one of the telephone numbers for Compaq assistance. If the number listed in your geographical region is not valid, refer to the Compaq website at www.compaq.com for the most current support telephone numbers. General Information Numbers—Product information, technical assistance, and the location of your nearest Compaq authorized dealer, reseller, or service provider.
  • Page 173 Austria General Information* Technical Support* Order Software Backup Belgium / Luxembourg Compaq Care Center General Fax Infoline (resellers, brochures) QuickLine (BBS) Order Software Backup Order Software Backup by Fax Brazil General Information Canada General Information Technical Support* Customer Support* Order Software Backup* Battery Pack Recycling* Caribbean General Information...
  • Page 174 Czech Republic General Information Technical Support Denmark General Information Technical Support Finland General Information Technical Support* QuickLine (BBS) France General Information Technical Support Germany Hotline Hotline Fax Infoline Infoline Fax QuickLine FaxPaq Order Software Backup* Hong Kong General Information Technical Support PaqFax Hungary General Information...
  • Page 175 Israel General Information Technical Support PaqFax Italy Information Software Backup Technical Support Fax Support BBS Service Japan General Information* Technical Support* Windows 95 Support* Order Software Backup * FaxStation Korea Product Information Customer Support Malaysia General Information Technical Support Mexico General Information Technical Support PaqFax...
  • Page 176 Netherlands General Information Customer Support* Fax* QuickLine Bulletin Board New Zealand General Information Norway General Information Technical Support Poland General Information Technical Support Portugal General Information Technical Support Russia General Information Technical Support PaqFax Singapore General Information Customer Support Center PaqFax South Africa General Information...
  • Page 177 Sweden General Information Technical Support PaqFax (hämtfax) QuickLine (BBS) Switzerland General Information Technical Support QuickLine Bulletin Board Order Software Backup Taiwan General Information Technical Support Thailand General Information United Arab Emirates (Dubai) General Information United Kingdom General Information FaxPaq QuickLine Bulletin Board United States Product Information* Technical Support*...
  • Page 178 appendix Throughout these regulatory notices, Compaq products are referred to by their regulatory agency series numbers. Regulatory agencies worldwide use agency series numbers for product identification. Each approved product displays the assigned agency series number. To ensure continued safe and reliable operation, use your portable computer only with the products listed below:...
  • Page 179 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 180 For questions regarding this declaration, write Compaq Computer Corporation P. O. Box 692000, Mail Stop 510101 Houston TX 77269-2000 or call 281-514-3333 To identify your product, refer to the part, series, or model number found on the product. If you have questions about your product that are not related to this declaration, please write Compaq Computer Corporation P.
  • Page 181 “GS” approval mark. The Series PP2000 of COMPAQ laptop computers in a standalone mode are not intended for continuous use in an office environment. Use of electronic equipment aboard commercial aircraft is at the discretion of the airline.
  • Page 182 In North America, dispose of nickel metal hydride or lithium ion batteries by taking advantage of the Compaq battery recycling program. You will be provided with a postage-paid battery pack mailer preaddressed to a reclamation facility where the metals are recycled. Call the telephone number listed for your location in Appendix A for more information.
  • Page 183 The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States. Laser Type: Wave Length: Divergence Angle:...

  • Page 184: When Installing Internal Components

    appendix A discharge of static electricity from fingers or other electrostatic conductors may damage electronic components. Before handling electrostatic-sensitive components, discharge static electricity by one of the methods described in this appendix. To prevent electrostatic damage to removable drives, observe these precautions: Before handling a removable drive, discharge static electricity by touching the unpainted metal surface or lug nuts on the...

  • Page 185: Grounding Methods

    Before touching an electronic component, discharge static electricity by one of the grounding methods described later in this appendix. If you must leave the area during installation, remember to reground yourself before resuming installation. Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
  • Page 186 appendix Temperature Operating Nonoperating Relative Humidity (noncondensing) Operating Nonoperating = 38.7°C max) Altitude Operating Nonoperating Applicable product safety standards specify thermal limits for plastic surfaces. This computer operates well within this range of temperatures. 5 to 104°F -22 to 40°F 10 to 90% across the operating range 5 to 90% RH, 38.7°C...

  • Page 187: Audio Components Overview

    NDEX AC power connector, 2-5 adjusting keyboard using tilt feet. See keyboard alerts system. See Intelligent Manageability, Fault Management Alt keys, 3-4 applications. See software arrow keys location of the. See keyboard AT commands. See internal modem audio components overview, 10-1 controlling volume, 10-4 identifying components, 10-2 problems.

  • Page 188: Bay Configuration

    computer care, 12-1 opening for first time, 1-4 serial number, A-1 computer power. See power computer setup completing, 1-8 exiting, 15-3 operating the computer during, 1-6 overview, 15-1 running, 15-2 configuration hardware. See Computer Setup connecting the power cord, 1-3 connecting external devices.

  • Page 189: Connecting A Serial Printer

    display caring for the, 12-2 location of the. See components, front problems. See troubleshooting docking connector location of the. See components, rear DOS. See MS-DOS DriveLock changing the master password, 13-18 changing the user password, 13-16 overview, 13-13 user and master passwords overview, 13-14 drivers.

  • Page 190: Inserting A Memory Expansion Board

    INSPECT View System Information. See utilities Intelligent Manageability Asset Management, 14-2 changing the Asset Tag number, 14-2 Configuration Management, 14-4 Fault Management, 14-3 Fault Management Alerts, 14-3 overview, 14-1 Security Management, 14-4 internal microphone location of the. See components, front internal modem AT command set, 7-13 audio response codes, 7-17...

  • Page 191: Leaving On The Computer

    monitor connecting an external. See external devices mouse connecting an external. See external devices MultiBay inserting devices into the, 6-6 location of the. See components, front removing devices from the, 6-7 supported devices, 6-6 using a second hard drive in the, 6-7 num lock key, 3-3 number, serial, A-1 numeric keypad.

  • Page 192: Using The Cable Lock

    power managment, 5-3 Power Properties. See power management power switch location of the. See components, keyboard power-on password. See passwords printer connecting a parallel. See external devices connecting a serial. See external devices problems. See troubleshooting problem solving. See troubleshooting problems solving.

  • Page 193: Unpacking The Computer

    speakers location of the. See components, front speakers and headphones. See audio special keys. See keyboard specifications modem. See internal modem static electricity. See electrostatic discharge status indicator lights, 2-7 support, Compaq, A-1 Suspend exiting, 5-10 identifying a Suspend condition, 5-10 initiating, 5-10 using, 5-8 Suspend button...
  • Page 194 video utility. See utilities volume. See audio volume controls location of the. See components, left side worldwide phone numbers, A-2 Zoomed Video. See PC Cards Index...
