Summary of Contents for HAMPTON BAY AG524PR-BN

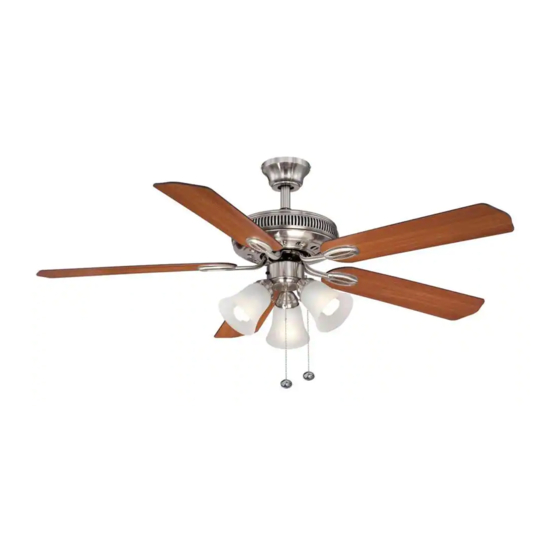

- Page 1 Item #1000031042 Model # AG524PR-BN USE AND CARE GUIDE GLENDALE 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU THANK YOU...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions .......... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-Installation .............. Troubleshooting ............Service Parts ............... Tools Required ................. Hardware Included ..............Package Contentd .............. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has WARNING: To reduce the risk of electrical shock or fire, do been turned off at the circuit breaker or fuse box before not use this fan with any solid-state fan speed control device. beginning. -
Page 4: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Blade attachment screw and fiber washer Plastic wire nut Light holder thumbscrew (preassembled) Mounting bracket screw (preassembled) Clevis pin (preassembled) Cotter pin (preassembled) Collar setscrew (preassembled) -
Page 6: Package Contentd
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Quantity Quantity Mounting bracket (preassembled) Blade arm Canopy Light kit Canopy bottom cover Glass shade Hanger ball/downrod assembly 13 watt compact fluorescent bulb Fan motor assembly Pull chain and fob Blade... -
Page 7: Dual Mounting Instruction
Pre-Installation (continued) DUAL MOUNTING INSTRUCTIONS DUAL MOUNTING INSTRUCTIONS This ceiling fan is supplied with two types of hanging assemblies: the standard ceiling installation using the downrod with ball and socket mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling" mounting is recommended in rooms with less than 8 ft. ceilings or in areas where additional space is desired from the floor to the fan blades. -
Page 8: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: WARNING: You may need a longer downrod to maintain proper To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 9: Assembly
Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the clevis pin (EE), and cotter pin (FF), and Remove the two non-slotted mounting bracket screws loosen the two collar setscrews (GG) from the motor (DD) from the canopy (B), and loosen the slotted collar. -
Page 10: Close-To-Ceiling Mounting
Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove three of the six collar mounting screws with Remove the mounting bracket (A) from the canopy (B) by loosening the four mounting bracket screws (DD) lock washers (HH) (every other one) from the collar on the top of the canopy (B). -
Page 11: Hanging The Fan
Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box. - Page 12 Assembly — Hanging the Fan (continued) Making the electrical connections WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
- Page 13 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Locking slots of the canopy (B) are provided WARNING: Make sure the tab on the mounting bracket (A) only as an aid to mounting. Do not leave the fan assembly properly sits in the groove in the hanger ball (D) before unattended until all four canopy screws (DD) are engaged and attaching the canopy (B) to the mounting bracket (A) by...
-
Page 14: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Removing the rubber Attaching the blades to the packing mounts blade arms □ □ The fan motor assembly (E) is shipped with rubber Attach the blades (F) to the blade arms (G) using the three blade attachment screws and fiber washers packing mounts (TT) to prevent movement during (AA). -
Page 15: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit to Mounting the glass shades and the switch housing installing the light bulbs □ Mount the glass shades (I) to the light sockets by CAUTION: Before starting the installation, disconnect the partially unscrewing the three light holder power by turning off the circuit breaker or removing the fuse thumbscrews (CC) on each glass holder, inserting the... -
Page 16: Operation
Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (K) onto the pull chains located in the switch housing and light kit (H). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off. -
Page 17: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □... - Page 18 Troubleshooting (continued) Problem Problem Solution Solution □ □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
-
Page 19: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Blade attachment screw and fiber washer Canopy Plastic wire nut Canopy bottom cover Light holder thumbscrew (preassembled) Hanger ball/downrod assembly Mounting bracket screw (preassembled) Fan motor assembly Clevis pin (preassembled) 5 blades Cotter pin (preassembled) - Page 20 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. AG524PR000001-A...
