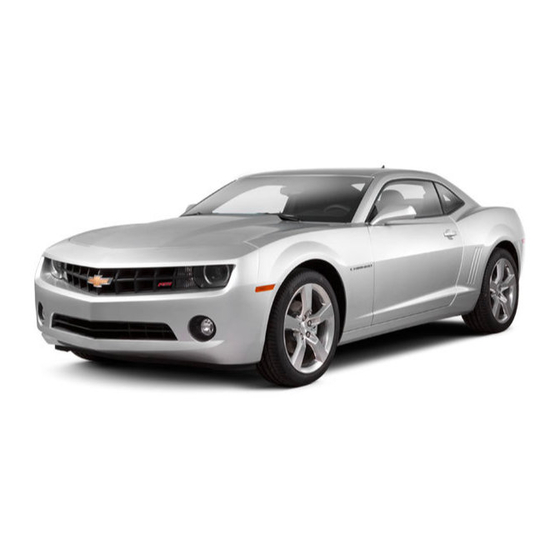

Chevrolet 2010 camaro automobile owner's manual
Hide thumbs Also See for 2010 Camaro:

Advertisement

Advertisement

Table of Contents
loading

Summary of Contents for Chevrolet 2010 Camaro

  • Page 139: Table Of Contents

    Infotainment System Introduction Introduction ....6-1 Theft-Deterrent Feature ..6-1 Overview ..... . 6-2 Operation .
  • Page 140: Overview

    Infotainment System Overview /VOL Press: Turns the system on or off. Turn: Adjusts the volume. B. INFO Radio: Shows available information about the current station. CD/MP3: Shows available information about the current track. Buttons 1 6 Radio: Saves and selects favorite stations.
  • Page 141: Operation

    H. CD/AUX Selects between the CD player or a connected external audio source. PHONE Opens the phone main menu. Mutes the audio system. SEEK Radio: Seeks the previous station. CD: Selects the previous track or rewinds within a track. K. CD Slot Insert a CD.
  • Page 142 Infotainment System Volume Control VOL (Power/Volume): Turn to adjust the volume. PHONE: For vehicles with ® OnStar , press and hold PHONE to mute the infotainment system. Press and hold PHONE again, or turn the VOL to cancel mute. ® For vehicles without OnStar , press PHONE to mute the infotainment...
  • Page 143 Activating a Setting 1. Turn the MENU/SELECT knob to highlight the setting. 2. Press the MENU/SELECT knob to activate the setting. Setting a Value 1. Turn the MENU/SELECT knob to change the current value of the setting. 2. Press the MENU/SELECT knob to confirm the setting.
  • Page 144 Infotainment System Adjusting the Treble, Midrange, and Bass 1. Select Treble, Midrange, or Bass. 2. Select the value. Adjusting the Fader and Balance 1. Select Fader or Balance. 2. Select the value. Adjusting the EQ (Equalizer) For vehicles that have an equalizer: 1.
  • Page 145: Radio

    1. Press the CONFIG button. 2. Select Radio Settings. 3. Select Auto Volume. 4. Select the setting 5. Press the BACK button to go back to the System Configuration menu. Maximum Startup Volume The maximum volume played when the radio is first turned on can be set.
  • Page 146 Infotainment System RDS (Radio Data System) The radio may have RDS. The RDS feature is available for use only on FM stations that broadcast RDS information. This feature only works when the information from the radio station is available. In rare cases, a radio station could broadcast incorrect information that causes the radio features to work improperly.
  • Page 147: Satellite Radio

    Updating Station & Category Lists If stations stored in the station list can no longer be received. 1. Press the MENU/SELECT knob. 2. Select Update AM or FM Station List, if the stations stored in the station list are no longer received.
  • Page 148 6-10 Infotainment System XM Satellite Radio Service XM is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM Satellite Radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound.
  • Page 149 To select an XM station using the MENU/SELECT knob: 1. Turn the MENU/SELECT knob to highlight an XM station. 2. Press the MENU/SELECT knob to select the station, or leave the station highlighted. To select a station using the menu: 1.
  • Page 150: Radio Reception

    6-12 Infotainment System No CAT Info: No category information is available. No Information: No text or informational messages are available. No XM Signal: The vehicle may be in a location that where the XM signal is being blocked. When the vehicle is moved, the signal should return.
  • Page 151: Backglass Antenna

    Satellite Radio Service XM Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out.
  • Page 152: Audio Players

    6-14 Infotainment System Audio Players CD Player The CD player can play audio CDs and MP3 CDs. The CD player will not play 8 cm (3 inches) CDs. Care of CDs Sound quality can be reduced due to disc quality, recording method, quality of the music recorded, and how the disc has been handled.
  • Page 153 Removing a CD Press the button. The disc is pushed out of the CD slot. If the disc is not removed after it is ejected, it is pulled back in after a few seconds. Playing a CD or MP3 CD Press the CD/AUX button if there is a disc in the player, it begins playing.
  • Page 154: Auxiliary Devices

    6-16 Infotainment System To search for tracks: 1. Press the MENU/SELECT knob. 2. Select Search. 3. Select: Playlists, Artists, Albums, Song Titles, Genres, or Folder View. 4. Select the track. Auxiliary Devices The AUX Input allows portable devices to connect to the vehicle using the 3.5mm (1/8 in) input jack, the USB port, if equipped, ®...
  • Page 155 Searching For a Track Tracks can be searched for by: Playlists Artists Albums Song Titles Podcasts Genres Audiobooks Composers To search for tracks: 1. Press the MENU/SELECT knob. 2. Select Search. 3. Select: Playlists, Artists, Albums, Song Titles, Podcasts, Genres, Audiobooks, or Composers.
  • Page 156 6-18 Infotainment System Shuffle Functionality Press the MENU/SELECT knob and set Shuffle Songs (Random) to On or Off. On: Plays current tracks in random order. Off: Plays current tracks in sequential order. Repeat Functionality Press the MENU/SELECT knob and set Repeat to On or Off. Repeat On: Repeats the current track.
  • Page 157 Shuffle Functionality Press the MENU/SELECT knob and set Shuffle Songs (Random) to On or Off. On: Plays current tracks in random order. Off: Plays current tracks in sequential order. Repeat Functionality Press the MENU/SELECT knob and set Repeat to On or Off. Repeat On: Repeats the current track.
  • Page 158 6-20 Infotainment System To select the Bluetooth Music Setup menu when a Bluetooth device is connected and active: 1. Press the MENU/SELECT knob. 2. Select Bluetooth Music Setup. Pairing a Device 1. Select Connect To New Device from the Bluetooth Music Setup menu.
  • Page 159: Phone

    Changing the Default PIN To change the default PIN: 1. Select Change Default PIN from the Bluetooth Music Setup menu. 2. Select one of the pre defined PIN numbers, or select Other to create a PIN. To create a PIN: 1.
  • Page 160: Bluetooth

    6-22 Infotainment System Steering Wheel Controls (Push To Talk): Press to answer incoming calls, to confirm system information, and to start voice recognition. (End Call / Mute): Press to end a call, reject a call, or to cancel an operation. Infotainment System Controls MENU/SELECT: Press and turn to navigate the menu screens.
  • Page 161 A Bluetooth phone with MP3 capability can not be connected to the vehicle as a phone and an MP3 player at the same time. The pairing process can be started by using the voice recognition system or the controls on the infotainment system.
  • Page 162 6-24 Infotainment System Listing All Paired and Connected Phones 1. Press the CONFIG button. 2. Select Phone Settings. 3. Select the Bluetooth submenu. 4. Select Device List submenu. Deleting a Paired Phone 1. Press the CONFIG button. 2. Select Phone Settings. 3.
  • Page 163: Bluetooth

    Conference Calling Conference calling must be supported on the Bluetooth phone and enabled by the wireless service carrier to work. To start a conference while in a current call: 1. Press the MENU/SELECT knob and select Enter Number. 2. Enter the character sequence then select call.
  • Page 164 6-26 Infotainment System Pairing Information: Up to five cell phones can be paired to the Bluetooth system. The pairing process is disabled when the vehicle is moving. The Bluetooth system links with the first available paired cell phone in the order the phone was paired.
  • Page 165 Deleting a Paired Phone 1. Press . The system responds Ready followed by a tone. 2. Say Bluetooth . The system responds Bluetooth ready followed by a tone. 3. Say Delete . The system asks which phone to delete followed by a tone.
  • Page 166 6-28 Infotainment System 3. Say the complete phone number to be stored at once with no pauses. If the system recognizes the number the response is OK, Storing . If the system does not recognizes the phone number, the response is Store <Phone number>...
  • Page 167 5. Say a name tag for the phone number. The name tag is recorded and the system responds About to store <name tag>. Does that sound OK? . If the name tag does not sound correct, say No and repeat Step 5. If the name tag sounds correct, say Yes and the name tag is stored.
  • Page 168 6-30 Infotainment System Using the Delete All Name Tags Command The delete all name tags command deletes all stored phone book name tags and route name tags for OnStar if stored. To delete all name tags: 1. Press . The system responds Ready followed by a tone.
  • Page 169 Using the Digit Dial Command 1. Press . The system responds Ready followed by a tone. 2. Say Digit Dial . The system responds Digit dial using <phone name>, please say the first digit to dial followed by a tone. 3.
  • Page 170 6-32 Infotainment System Call Waiting Call waiting must be supported on the Bluetooth phone and enabled by the wireless service carrier to work. Press to answer an incoming call when another call is active. The original call is placed on hold. Press again to return to the original call.
  • Page 171 Transferring a Call Audio can be transferred between the in vehicle Bluetooth system and the cell phone. To Transfer Audio to the Cell Phone During a call with the audio in the vehicle: 1. Press . The system responds Ready followed by a tone.
  • Page 172 6-34 Infotainment System Sending a Number During a Call 1. Press . The system responds Ready followed by a tone. 2. Say Dial . The system responds Say a number to send tones followed by a tone. 3. Say the number to send. If the system recognizes the number it responds OK, Sending Number and...
  • Page 233 General Information ... 9-3 California Proposition 65 Warning ....9-3 California Perchlorate Materials Requirements .
  • Page 234 Electrical System Overload ....9-41 Fuses and Circuit Breakers ....9-42 Engine Compartment Fuse Block .
  • Page 235 For service and parts needs, visit your dealer. You will receive genuine GM parts and GM-trained and supported service people. Genuine GM parts have one of these marks: Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Page 236 Adding non dealer accessories to the vehicle can affect vehicle performance and safety, including such things as airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like antilock brakes, traction control, and stability control. Some of these accessories could even cause malfunction or damage not covered by the vehicle warranty.
  • Page 237 If doing some of your own service work, use the proper service manual. It tells you much more about how to service the vehicle than this manual can. To order the proper service manual, see This vehicle has an airbag system. Before attempting to do your own service work, see Keep a record with all parts receipts...
  • Page 239 A. Underhood Electrical Center. B. Engine Coolant Recovery Bottle and Cap. See D. Engine Cooling Fans (Out of View). See E. Radiator Fill Cap (Out of View). Power Steering Reservoir and Cap (Out of View). See G. Engine Oil Fill Cap. See H.
  • Page 241 A. Underhood Electrical Center. B. Engine Coolant Recovery Bottle and Cap. See C. Engine Oil Dipstick. See D. Engine Oil Fill Cap (Out of View). See Engine Cooling Fans (Out of View). See G. Power Steering Reservoir and Cap (Under Engine Cover). H.
  • Page 242 To remove: 1. Remove the engine oil fill cap (A). 2. Lift the engine cover (B) to disengage two front attachment points. 3. Pull engine cover forward to disengage from horizontal rear attachments. 4. Reverse Steps 1 through 3 to reinstall engine cover.
  • Page 243 Add enough oil to put the level somewhere in the proper operating range. Push the dipstick all the way back in when through. Look for three things: GM6094M Use only an oil that meets GM Standard GM6094M. SAE 5W-30 SAE 5W-30 is best for the vehicle.
  • Page 244 Look for three things: GM4718M This vehicle's engine requires a special oil meeting GM Standard GM4718M. Oils meeting this standard may be identified as synthetic. However, not all synthetic oils will meet this GM standard. Use only an oil that meets GM Standard GM4718M.
  • Page 245 This vehicle has a computer system that indicates when to change the engine oil and filter. This is based on engine revolutions and engine temperature, and not on mileage. Based on driving conditions, the mileage at which an oil change is indicated can vary considerably.
  • Page 246 Used engine oil contains elements that can be unhealthy for your skin and could even cause cancer. Do not let used oil stay on your skin. Clean your skin and nails with soap and water, or a good hand cleaner. Wash or properly dispose of clothing or rags.
  • Page 247 It is not necessary to regularly check brake/clutch fluid unless you suspect there is a leak in the system. Adding fluid will not correct a leak. A fluid loss in this system could indicate a problem. Have the system inspected and repaired. The brake/hydraulic clutch fluid reservoir cap has this symbol on it.
  • Page 248 3. Loosen the clamp at the duct of the air cleaner/filter housing. 4. Unlatch the retaining clips on the air cleaner/filter housing. 5. Lift cover at retaining clip location high enough to clear retaining clips and pull cover outward to remove cover from the air cleaner/filter housing hinges.
  • Page 249 When it is safe to lift the hood: A. Coolant Recovery Bottle B. Electric Cooling Fans C. Radiator Cap (under engine cover) A. Coolant Recovery Bottle B. Electric Cooling Fans C. Radiator Cap An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury.
  • Page 250 The coolant level should be between the MIN and MAX lines. If it is not, you may have a leak at the radiator hoses, heater hoses, radiator, water pump, or somewhere else in the cooling system. Heater and radiator hoses, and other engine parts, can be very hot.
  • Page 251 Use a 50/50 mixture of clean, ® drinkable water and DEX-COOL coolant. If using this mixture, nothing else needs to be added. This mixture: Gives freezing protection down to 37°C ( 34°F), outside temperature. Gives boiling protection up to 129°C (265°F), engine temperature.
  • Page 252 You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. Add coolant as follows: 1. Turn the coolant overflow bottle dipstick cap counterclockwise and slowly pull out the dipstick.
  • Page 253 An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan. Steam and scalding liquids from a hot cooling system can blow out and burn you badly.
  • Page 254 8. With the engine still running, raise the engine to 2500 RPM for 30 40 seconds. 9. Turn the engine OFF. 10. Repeat steps 2 7 then turn the engine off. 11. Allow engine to cool for 45 minutes. Top off coolant through the radiator cap opening and re-install the radiator cap.
  • Page 255 3. If there is no coolant visible or the level is low, slowly fill the system through the radiator cap opening with a 50/50 mixture of clean, drinkable water and a ® DEX-COOL coolant until full. Wait 30 seconds for coolant to settle and top off if the level drops.
  • Page 256 Then check to see if the engine cooling fans are running. If the engine is overheating, both fans should be running. If they are not, do not continue to run the engine and have the vehicle serviced. Steam from an overheated engine can burn you badly, even if you just open the hood.
  • Page 257 If the temperature overheat gauge is no longer in the overheat zone or an overheat warning no longer displays, the vehicle can be driven. Continue to drive the vehicle slow for about 10 minutes. Keep a safe vehicle distance from the car in front of you.
  • Page 258 6. Replace the cap and completely tighten it. 7. Remove the cap again and look at the fluid level on the dipstick. When the engine is hot, the level should be at the hot MAX level. When the engine is cold, the fluid level should be between MIN and MAX on the dipstick.
  • Page 259 This vehicle has disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time the vehicle is moving, except when applying the brake pedal firmly.
  • Page 260 The brake/clutch master cylinder reservoir is filled with DOT 3 brake fluid as indicated on the reservoir cap. See for the location of the reservoir. There are only two reasons why the fluid level in the reservoir might go down: The fluid level goes down because of normal brake lining wear.
  • Page 261 Refer to the replacement number shown on the original battery label when a new battery is needed. for battery location. Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm.
  • Page 262 A. Fill Plug Hole B. Drain Plug Hole To get an accurate reading, the vehicle should be on a level surface. If the level is below the bottom of the filler plug hole, add some lubricant. Add enough lubricant to raise the level to the bottom of the filler plug hole.
  • Page 263 When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before starting this check, be sure there is enough room around the vehicle. 2. Firmly apply both the parking brake and the regular brake.
  • Page 264 3. With the engine off, turn the ignition to ON/RUN, but do not start the engine. Without applying the regular brake, try to move the shift lever out of P (Park) with normal effort. If the shift lever moves out of P (Park), contact your dealer for service.
  • Page 265 To replace the windshield wiper blade: 1. Pull the windshield wiper assembly away from the windshield. 2. Lift up on the latch in the middle of the wiper blade where the wiper arm attaches. 3. With the latch open, pull the wiper blade down towards the windshield far enough to release it from the J-hooked end of the...
  • Page 266 The vehicle should be properly prepared as follows: The vehicle should be placed so the headlamps are 7.6 m (25 ft) from a light colored wall. The vehicle must have all four tires on a level surface which is level all the way to the wall. The vehicle should be placed so it is perpendicular to the wall or other flat surface.
  • Page 267 4. At the wall measure from the ground upward (A) to the recorded distance from Step 3 and mark it. 5. Draw or tape a horizontal line (B) on the wall the width of the vehicle at the height of the mark in Step 4.
  • Page 268 9. Make sure that the light from the headlamp is positioned at the bottom edge of the horizontal tape line. The lamp on the left (A) shows the correct headlamp aim. The lamp on the right (B) shows the incorrect headlamp aim.
  • Page 269 The base model vehicle has a halogen headlamp and a turn signal/parking lamp on the headlamp assembly. To replace one of these bulbs: 1. Open the hood. See 2. Press in on the tabs located on the sides of the duct and then push the duct rearward into the air cleaner/filter housing.
  • Page 270 5. Push the new bulb into the socket and reinstall the socket into the headlamp assembly by turning it clockwise. 6. Reconnect the electrical connector. 7. Pull the duct back out of the air cleaner/filter housing until the tabs snap the duct back into position.
  • Page 271 5. Push the new bulb into the socket and reinstall the socket into the headlamp assembly by turning it clockwise. 6. Reconnect the electrical connector. 7. Pull the duct back out of the air cleaner/filter housing until the tabs snap the duct back into position.
  • Page 272 The base model vehicle may have fog lamps which would be located on the fascia. To replace one of these bulbs: 1. Locate the bulb assembly under the front fascia. 2. Disconnect the electrical connector from the bulb assembly and pull out the bulb assembly.
  • Page 273 To replace one of these bulbs: 1. Unclip the license plate lamp from the facia opening. 2. Pull the license plate lamp down through the facia opening. 3. Turn the bulb socket counterclockwise and pull the bulb straight out of the lamp socket.
  • Page 274 An electrical overload may cause the lamps to go on and off, or in some cases to remain off. Have the headlamp wiring checked right away if the lamps go on and off or remain off. If the wiper motor overheats due to heavy snow or ice, the windshield wipers will stop until the motor cools and will then restart.
  • Page 275 Wiper Starter Brake Vacuum Pump Power Windows Rear Power Windows Front Rear Defog Cooling Fan High Front Heater, Ventilation and Air Conditioning Antilock Brake System Pump Cooling Fan Low...
  • Page 276 Air Conditioning Compressor Clutch Transmission Control Module Engine Control Module Main Pre-Catalytic Converter Oxygen Sensor Post-Catalytic Converter Oxygen Sensor Fuel Injectors Even Fuel Injectors Cooling Fan Relay Manifold Air Flow/ Chassis Control Ignition Run/Crank IP Sensing Diagnostic Module/Ignition Run/Crank Body Transmission Control Module/ Ignition...
  • Page 277 HID Headlamp Right Front Fog Lamps Horn Spare High Beam Headlamp Right Front High Beam Headlamp Left Front Heated Mirror Powertrain Run / Crank Rear Defog K612 Cooling Fan High K614 Cooling Fan Control Starter Wiper Control K613 Cooling Fan Low Air Conditioning K617 Compressor Clutch...
  • Page 278 Discrete Logic Ignition Switch Diagnostic Link Connector Airbag Cluster Heating Ventilation Air Conditioning Controller Body Control Module Battery Spare Spare Not Used Spare Display ® OnStar Universal Hands Free Phone Body Control Module 3 Body Control Module 4 Power Outlet 1 Power Outlet 2 Steering Wheel Controls Backlight...
  • Page 279 Automatic Occupant Sensing Body Control Module 1 Body Control Module 8 Spare Body Control Module 5 Body Control Module 7 Passenger Seat CB26 Driver Seat Retained Accessory Power K605 Not Used K609 Trunk The rear compartment fuse block is located on the right side of the trunk behind a cover.
  • Page 280 Universal Garage Door Opener/ Ultra sonic Reverse Parking Aid Amplifier Radio Spare Convertible Top 1 Convertible Top 2 Spare Spare Spare Spare Spare Spare Engine Control Module/Battery Regulated Voltage Control Fuel System Control Module Spare...
  • Page 281: Winter Tires

    Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. For additional information refer to the tire manufacturer.
  • Page 282 If you choose to use winter tires: Use tires of the same brand and tread type on all four wheel positions. Use only radial ply tires of the same size, load range, and speed rating as the original equipment tires. Winter tires with the same speed rating as your original equipment tires may not be available for H, V,...
  • Page 283 The letters and numbers following the DOT (Department of Transportation) code is the Tire Identification Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured. The TIN is molded onto both sides of the tire, although only one side may have the date of manufacture.
  • Page 284 Maximum load that can be carried and the maximum pressure needed to support that load. temporary use tire or compact spare tire should be inflated to 420 kPa (60 psi). For more information on tire pressure and inflation see A combination of letters and numbers define a tire's width, height, aspect ratio, construction type, and service...
  • Page 285 These characters represent the load index and speed rating of the tire. The load index represents the load carrying capacity a tire is certified to carry. The speed rating is the maximum speed a tire is certified to carry a load. The amount of air inside the tire pressing outward on each square inch...
  • Page 286 A code molded into the sidewall of a tire signifying that the tire is in compliance with the U.S. Department of Transportation (DOT) motor vehicle safety standards. The DOT code includes the Tire Identification Number (TIN), an alphanumeric designator which can also identify the tire manufacturer, production plant, brand, and date of production.
  • Page 287 A tire used on passenger cars and some light duty trucks and multipurpose vehicles. Vehicle manufacturer's recommended tire inflation pressure as shown on the tire placard. See A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread.
  • Page 288 The number of designated seating positions multiplied by 68 kg (150 lbs) plus the rated cargo load. See Load on an individual tire due to curb weight, accessory weight, occupant weight, and cargo weight. A label permanently attached to a vehicle showing the vehicle's capacity weight and the original equipment tire size...
  • Page 289 For additional information regarding how much weight your vehicle can carry, and an example of the Tire and Loading Information label, . How you load your vehicle affects vehicle handling and ride comfort. Never load your vehicle with more weight than it was designed to carry.
  • Page 290 Driving at high speeds, 160 km/h (100 mph) or higher, puts an additional strain on tires. Sustained high-speed driving causes excessive heat build up and can cause sudden tire failure. You could have a crash and you or others could be killed. Some high-speed rated tires require inflation pressure adjustment for high speed operation.
  • Page 291: Tire Pressure

    As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is significantly under inflated. Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inflate them...
  • Page 292 This vehicle may have a Tire Pressure Monitor System (TPMS). The TPMS is designed to warn the driver when a low tire pressure condition exists. TPMS sensors are mounted onto each tire and wheel assembly, excluding the spare tire and wheel assembly, if the vehicle has one.
  • Page 293 Factory-installed Tire Inflator Kits use a GM approved liquid tire sealant. Using non-approved tire sealants could damage the TPMS sensors. See information regarding the inflator kit materials and instructions. The TPMS will not function properly if one or more of the TPMS sensors are missing or inoperable.
  • Page 294 Operating electronic devices or being near facilities using radio wave frequencies similar to the TPMS could cause the TPMS sensors to malfunction. If the TPMS is not functioning it cannot detect or signal a low tire condition. See your dealer for service if the TPMS malfunction light and DIC message comes on and stays on.
  • Page 295: Tire Rotation

    7. Proceed to the passenger side rear tire, and repeat the procedure in Step 5. 8. Proceed to the driver side rear tire, and repeat the procedure in Step 5. 9. After hearing the confirming horn chirp, for the driver side rear tire, the horn sounds two more times to signal the tire learning mode is no longer active.
  • Page 296 When rotating the vehicle's tires, always use the correct rotation pattern shown here. The compact spare tire, if the vehicle has one, is not included in the tire rotation. After the tires have been rotated, adjust the front and rear inflation pressures as shown on the Tire and Loading Information label.
  • Page 297: Tires

    The vehicle needs new tires if any of the following statements are true: You can see the indicators at three or more places around the tire. You can see cord or fabric showing through the tire's rubber. The tread or sidewall is cracked, cut, or snagged deep enough to show cord or fabric.
  • Page 298 for information on proper tire rotation. Mixing tires could cause you to lose control while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash.
  • Page 299 If you add wheels or tires that are a different size than your original equipment wheels and tires, this could affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover. Additionally, if your vehicle has electronic systems such as anti lock brakes, rollover airbags, traction control, and electronic stability...
  • Page 300: Grading

    The Uniform Tire Quality Grading (UTQG) system does not apply to deep tread, winter-type snow tires, space-saver, or temporary use spare tires, tires with nominal rim diameters of 10 to 12 inches (25 to 30 cm), or to some limited-production tires. While the tires available on General Motors passenger cars and light trucks may vary...
  • Page 301 The temperature grades are A (the highest), B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can...
  • Page 302 If you need to replace any of the wheels, wheel bolts, wheel nuts, or Tire Pressure Monitor System (TPMS) sensors, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts, wheel nuts, and TPMS sensors for the vehicle.
  • Page 303: Tire Chains

    Do not use tire chains. There is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts. The area damaged by the tire chains could cause you to lose control of the vehicle and you or others may be injured in a crash.
  • Page 304: If A Tire Goes Flat

    If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level place. Turn on the hazard warning flashers. See Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
  • Page 305: Tire Sealant And Compressor Kit

    Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled. It can cause unconsciousness and even death. Never run the engine in an enclosed area that has no fresh air ventilation.
  • Page 306 The kit includes: A. On/Off Button B. Selector Switch (Sealant/Air or Air Only) C. Pressure Relief Button D. Pressure Gauge E. Air Only Hose (Black) Sealant/Air Hose (Clear) G. Power Plug Read and follow the safe handling instructions on the label adhered to the compressor.
  • Page 307 Always do a safety check first. . Do not remove any objects that have penetrated the tire. 1. Remove the tire sealant and compressor kit from its storage location. See 2. Unwrap the sealant/air hose (F) and the power plug (G). 3.
  • Page 308 10. Inflate the tire to the recommended inflation pressure using the pressure gauge (D). The recommended inflation pressure can be found on the Tire and Loading Information label. See The pressure gauge (D) may read higher than the actual tire pressure while the compressor is on.
  • Page 309 17. Return the equipment to its original storage location in the vehicle. 18. Immediately drive the vehicle 8 km (5 miles) to distribute the sealant in the tire. 19. Stop at a safe location and check the tire pressure. Refer to Steps 1 through 11 under Using the Tire Sealant and Compressor Kit without Sealant to Inflate a Tire (Not...
  • Page 310 2. Unwrap the air only hose (E) and the power plug (G). 3. Place the kit on the ground. Make sure the tire valve stem is positioned close to the ground so the hose will reach it. 4. Remove the tire valve stem cap from the flat tire by turning it counterclockwise.
  • Page 311 To remove the sealant canister: 1. Remove the plastic cover. 2. Unscrew the connector (B) from the canister (A). 3. Pull up on the canister (A) to remove it. 4. Replace with a new canister which is available from your dealer.
  • Page 312 A. Wheel Wrench B. Jack Handle Extension C. Jack 1. The jack and tools are stored below the spare tire. Remove the jack from the retaining bracket. 2. Remove the tool container. 3. Remove the tools from the tool container. 4.
  • Page 313 3. Position the jack lift head at the jack location nearest the flat tire. The location is indicated by a mark on the bottom edge of the vehicle. The jack must not be used in any other position. Raise the jack until it engages with the jacking point.
  • Page 314 6. Insert the other end of the jack handle into the wrench. 7. Raise the vehicle by turning the jack handle extension clockwise until the vehicle is far enough off the ground to allow enough room for the compact spare tire to fit under the vehicle.
  • Page 315 Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When changing a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
  • Page 316 13. Tighten the wheel nuts firmly in a crisscross sequence, as shown. Wheel nuts that are improperly or incorrectly tightened can cause the wheels to become loose or come off. The wheel nuts should be tightened with a torque wrench to the proper torque specification (Continued) after replacing.
  • Page 317: Compact Spare Tire

    6. Route the strap provided, as shown, to secure the flat tire. The compact spare tire is for temporary use only. Replace the compact spare with a full-size tire as soon as possible. Driving with more than one compact spare tire at a time could result in loss of braking and handling.
  • Page 318 The spare tire will last longer and be in good shape in case it is needed again. Do not use the compact spare on other vehicles. Do not mix the compact spare tire or wheel with other wheels or tires. They will not fit.
  • Page 319 The jump start positive (A) and negative (B) posts are located in the engine compartment on the driver side of the vehicle. These posts are used instead of a direct connection to the battery. The positive jump start connection is covered by a red cap. Remove to expose the terminal.
  • Page 320 An electric fan can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan. Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded.
  • Page 321 9. Start the engine in the vehicle with the good battery and run the engine at idle speed for at least four minutes. 10. Try to start the vehicle that had the dead battery. If it will not start after a few tries, it probably needs service.
  • Page 322 To avoid damage, the disabled vehicle should be towed with all four wheels off the ground. Consult your dealer or a professional towing service if the disabled vehicle needs to be towed. See If the vehicle has lost battery power, the shift lever needs to be manually released to neutral for towing.
  • Page 323 If the vehicle has a basecoat/ clearcoat paint finish, the clearcoat gives more depth and gloss to the colored basecoat. Always use waxes and polishes that are non-abrasive and made for a basecoat/clearcoat paint finish. Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from...
  • Page 324 Approved cleaning products can be obtained from your dealer. Follow all manufacturer directions regarding correct product usage, necessary safety precautions, and appropriate disposal of any vehicle care product. Rinse the vehicle well, before washing and after, to remove all cleaning agents completely. If they are allowed to dry on the surface, they could stain.
  • Page 325 The surface of these wheels is similar to the painted surface of the vehicle. Do not use strong soaps, chemicals, abrasive polishes, abrasive cleaners, cleaners with acid, or abrasive cleaning brushes on them because the surface could be damaged. Do not use chrome polish on aluminum wheels.
  • Page 326 Use a stiff brush with tire cleaner to clean the tires. If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body repair shop applies anti-corrosion material to parts repaired or replaced to restore corrosion protection.
  • Page 327 The vehicle's interior will continue to look its best if it is cleaned often. Dust and dirt can accumulate on the upholstery and cause damage to the carpet, fabric, leather, and plastic surfaces. Stains should be removed quickly as extreme heat could cause them to set rapidly.
  • Page 328 Do not heavily saturate the upholstery while cleaning. Damage to the vehicle's interior may result from the use of many organic solvents such as naptha, alcohol, etc. Use a vacuum cleaner with a soft brush attachment to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on floor carpet and carpeted floor mats.
  • Page 329 To remove dust, a soft cloth dampened with water can be used. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt. Never use spot lifters or removers on plastic surfaces.
