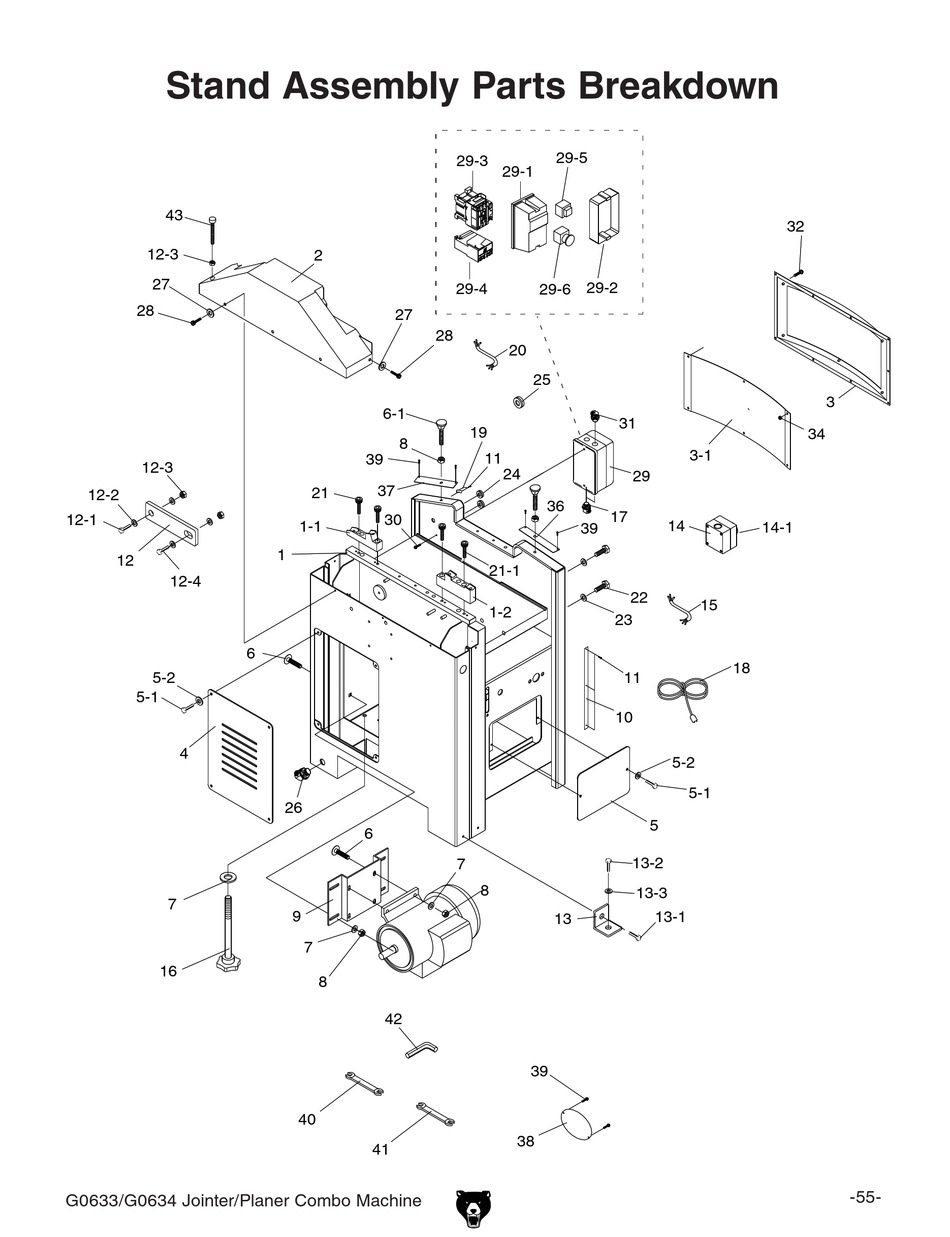

Stand Assembly Parts Breakdown

��

��

��

��

��

��

��

��

��

��

��

�

�

��

G0633/G0634 Jointer/Planer Combo Machine

�

��

��

�

��

��

��

��

��

�

�

��

�

�

�

�

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

�

�

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

�

��

��

��

�

��

-55-

Table of Contents

Advertisement

Summary of Contents for Grizzly G0634

Page 1: Stand Assembly Parts Breakdown
�� G0633/G0634 Jointer/Planer Combo Machine �� ...
Page 2: Stand Parts List
PN05 P0633036 P0633037 G8588 PHTEK24 PWR1214 PWR810 PAW03M P0633043 G0633/G0634 Jointer/Planer Combo Machine DESCRIPTION POWER CORD DEPTH SCALE LIMIT SWITCH CORD CAP SCREW 3/8-16 X 1 CAP SCREW 3/8-16 X 1-1/2 HEX BOLT 1/4-20 X 5/8 FLAT WASHER 1/4 GROMMET...
Page 3 P0633111 INFEED LOCK LEVER P0633112 OUTFEED LOCK LEVER P0633113 PLASTIC KNOB PR03M EXT RETAINING RING 12MM P0633115 CUTTERHEAD GUARD BRACKET PW06 FLAT WASHER 1/4 G0633/G0634 Jointer/Planer Combo Machine �� ...
Page 4 �� G0633/G0634 Jointer/Planer Combo Machine �� ...
Page 5 P0633201 CUTTERHEAD (G0633) P0634201 12" SPIRAL CUTTERHEAD (G0634) 201-1 P0634201-1 INDEXABLE CUTTER (G0634) 201-2 PFH35M FLAT HD TORX T20 M6-1 X 15 (G0634) 201-3 P0634201-3 TORX T-HANDLE WRENCH 6MM (G0634) 201-4 P0634201-4 TORX BIT T-20 (G0634) P0633202 KNIFE (G0633) P0633203...
Page 6 PW02 PSB100 P0633324 PSS02 PSS12 PN05 PSB70 P0633329 PN02 PW01 PN01 P0633333 PSB05 PSB17 PSB07 PLN01 PSB12 G0633/G0634 Jointer/Planer Combo Machine �� DESCRIPTION INT RETAINING RING 22MM STUD...
Page 7 P0633413 HANDWHEEL PN02 HEX NUT 5/16-18 P0633415 UNIVERSAL LOCK LEVER P0633417 ROLL PIN P0633418 THRUST BEARING NTB1528 +2AS PR79M INT RETAINING RING 19MM G0633/G0634 Jointer/Planer Combo Machine �� ...
Page 8 REF PART # PW07 PB03 PB09 PN02 PSB101 PSB06 P0633514 P0633515 G0633/G0634 Jointer/Planer Combo Machine �� DESCRIPTION FLAT WASHER 5/16 HEX BOLT 5/16-18 X 1 HEX BOLT 5/16-18 X 1/2 HEX NUT 5/16-18 CAP SCREW 10-24 X 1-1/4 CAP SCREW 1/4-20 X 1...
Page 9 �� G0633/G0634 Jointer/Planer Combo Machine �� ...
Page 10 PSS29 P0633701 P0633702 P0633703 P0633704 P0633705 PR48M P0633710 G0633/G0634 Jointer/Planer Combo Machine DESCRIPTION POINTER FLAT WASHER 1/4 PHLP HD SCR 1/4-20 X 3/8 SET SCREW 1/4-20 X 3/8 PHLP HD SCR 10-24 X 5/8 HEX BOLT 5/16-18 X 1-1/4 SET SCREW 5/16-18 X 1...
Page 11: Safety Labels And Cosmetic Parts
MUST maintain the original location and readability of the labels on the machine. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact Grizzly at (800) 523-4777 or www.grizzly.com to order new labels. G0633/G0634 Jointer/Planer Combo Machine...
