IVE EASY STEPS TO INSTALL THE
The HT488 is designed for easy configuration and easy installation. Detailed configuration instructions
are located in the

CONFIGURATION

1. Connect a standard touch-tone analog telephone to the PHONE port.
2. Insert a standard RJ11 telephone cable into the LINE port and connect the other end of the
telephone cable to a wall jack.
3. Insert the Ethernet cable into the WAN port of HT488 and connect the other end of the Ethernet
cable to an uplink port (a router or a modem, etc).
4. Connect a PC to the LAN port of HT488 if HT488 is used as a router.
5. Insert the power adapter into the HT488 and connect it to a wall outlet.
F 2: I
IGURE NTERCONNECTION
PSTN
Cloud
HandyTone488 has one FXS port and one FXO port. The PHONE port next to the LAN port is an FXS
port. The LINE port on the side of the HandyTone488 is a FXO port. Both the FXS port and the FXO port
can have a separate SIP account. This is a key feature of HandyTone488 as it supports simultaneous
call on both FXS port and FXO port. Telephone calls can be originated from or terminated on the PSTN
network via FXO port remotely.
Grandstream Networks, Inc.

HT488

section.

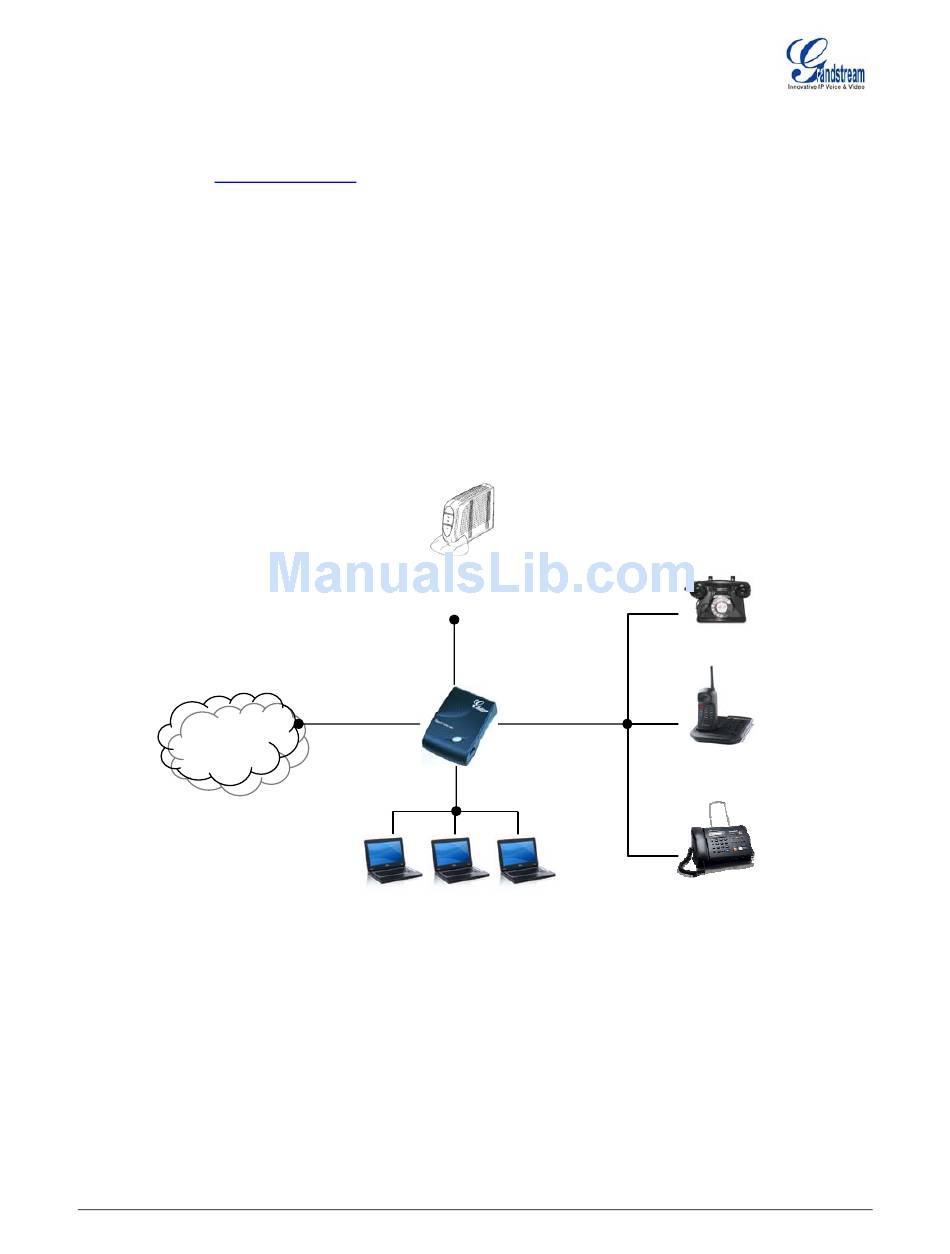

D HT488
