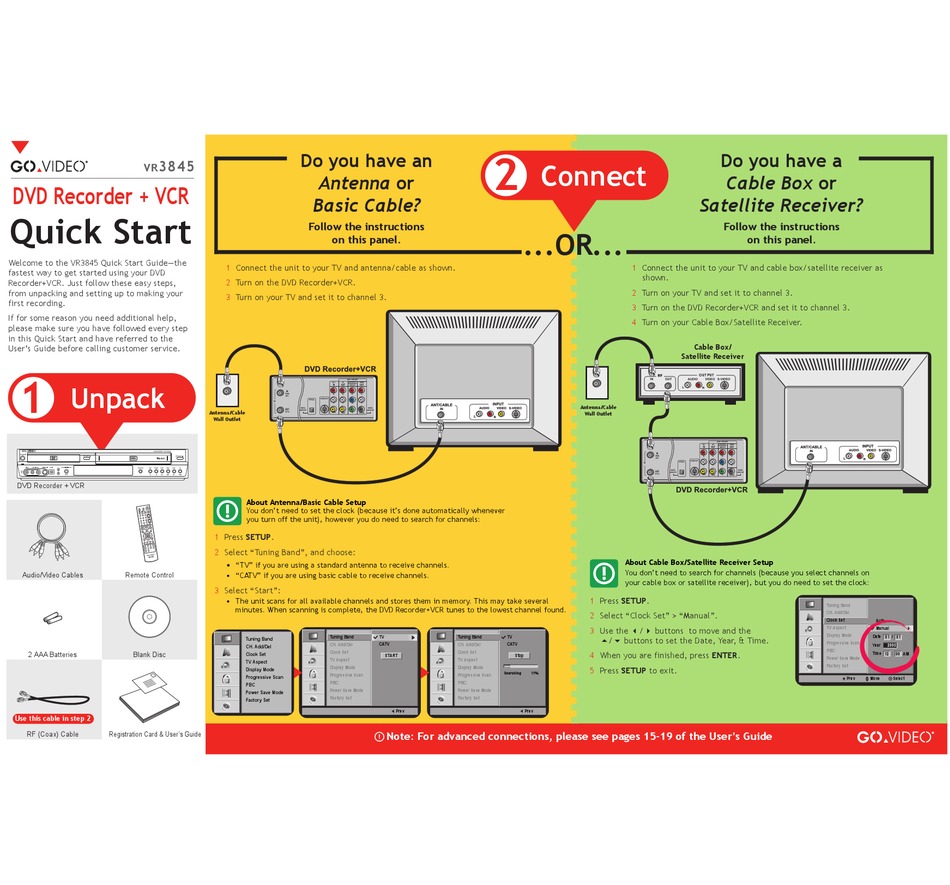

GoVideo VR3845 Quick Start

3845
VR
DVD Recorder + VCR

Quick Start

Welcome to the VR3845 Quick Start Guide—the
fastest way to get started using your DVD
Recorder+VCR. Just follow these easy steps,
from unpacking and setting up to making your
first recording.
If for some reason you need additional help,
please make sure you have followed every step
in this Quick Start and have referred to the
User's Guide before calling customer service.
1
Unpack
DVD Recorder + VCR
Audio/Video Cables Remote Control
2 AAA Batteries Blank Disc
Use this cable in step 2
RF (Coax) Cable Registration Card & User's Guide
Do you have an
Antenna or
Basic Cable?
Follow the instructions
on this panel.
1 Connect the unit to your TV and antenna/cable as shown.
2 Turn on the DVD Recorder+VCR.
3 Turn on your TV and set it to channel 3.
DVD + VCR OUT
AV 1 AV COMPONENT/ AUDIO
IN OUT PROGRESSIVE OUT
VIDEO OUT
IN
(FROM R R Pr R
ANT.)
S-VIDEO OUT
OPTICAL
RF
L L Pb L
OUT DIGITAL DIGITAL
Antenna/Cable AUDIO OUT AUDIO OUT
(TO TV)
VIDEO VIDEO Y COAXIAL
Wall Outlet
About Antenna/Basic Cable Setup
You don't need to set the clock (because it's done automatically whenever
you turn off the unit), however you do need to search for channels:
1 Press SETUP.
2 Select "Tuning Band", and choose:
• " TV" if you are using a standard antenna to receive channels.
• "CATV" if you are using basic cable to receive channels.
3 Select "Start":
• The unit scans for all available channels and stores them in memory. This may take several
minutes. When scanning is complete, the DVD Recorder+VCR tunes to the lowest channel found.
Tuning Band TV
Tuning Band
CH. Add/Del CATV
CH. Add/Del
Clock Set
Clock Set
START
TV Aspect
TV Aspect
Display Mode
Display Mode
Progressive Scan
Progressive Scan
PBC
PBC
Power Save Mode
Power Save Mode
Factory Set
Factory Set
Note: For advanced connections, please see pages 15-19 of the User's Guide
2
Connect
...OR...
Tuning Band TV
CH. Add/Del CATV
Clock Set
Stop
TV Aspect
Display Mode
Searching 11%
Progressive Scan
PBC
Power Save Mode
Factory Set
Prev Prev
Do you have a
Cable Box or
Satellite Receiver?
Follow the instructions
on this panel.
1 Connect the unit to your TV and cable box/satellite receiver as
shown.
2 Turn on your TV and set it to channel 3.
3 Turn on the DVD Recorder+VCR and set it to channel 3.
4 Turn on your Cable Box/Satellite Receiver.
Cable Box/
Satellite Receiver
OUTPUT
RF
IN OUT AUDIO VIDEO S-VIDEO
L
R
Antenna/Cable
Wall Outlet
DVD + VCR OUT
AV 1 AV COMPONENT/ AUDIO
PROGRESSIVE
IN OUT OUT
VIDEO OUT
IN
(FROM
R R Pr R
ANT.)
S-VIDEO OUT
OPTICAL
RF
L L Pb L
OUT DIGITAL DIGITAL
AUDIO OUT AUDIO OUT
(TO TV)
VIDEO VIDEO Y COAXIAL
About Cable Box/Satellite Receiver Setup
You don't need to search for channels (because you select channels on
your cable box or satellite receiver), but you do need to set the clock:
Press SETUP.
1
2 Select "Clock Set" > "Manual".
3 Use the / buttons to move and the
/ buttons to set the Date, Year, & Time.
4 When you are finished, press ENTER.
Press SETUP to exit.
5
Tuning Band
CH. Add/Del
Clock Set
Auto
TV Aspect Manual
Display Mode
Date 01 /
01
Progressive Scan
Year 2005
PBC
Time 12 : 00 AM
Power Save Mode
Factory Set
Prev Move Select
