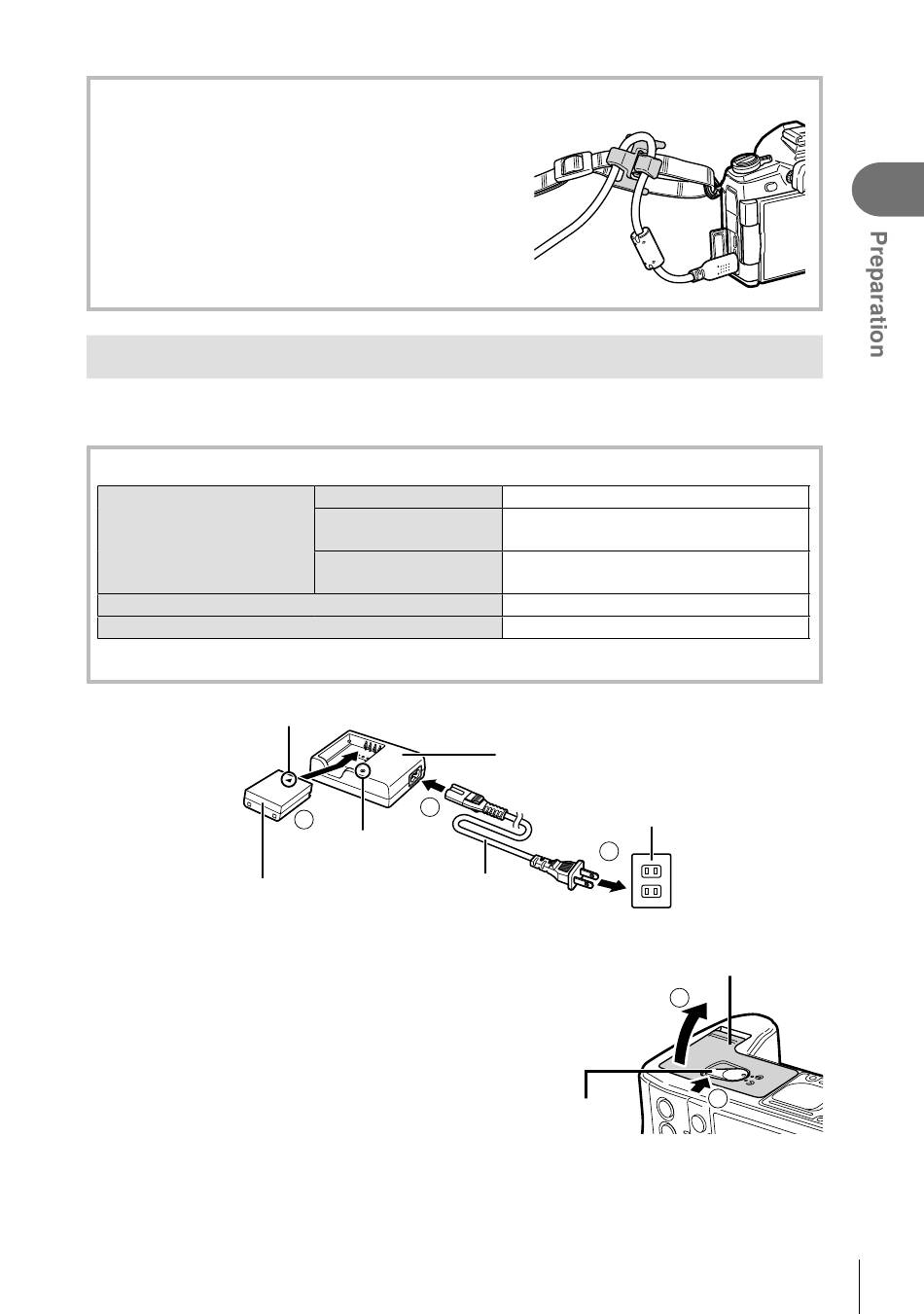

Charging And Inserting The Battery - Olympus IM002 Instruction Manual

Attaching the cable clip
Use the cable clip to secure the cable, then attach
it to the strap.
The cable clip can also be attached to the strap
eyelet.

Charging and inserting the battery

1
Charge the battery.
Charging indicator
Charging in progress
Charging complete
Charging error
(Charging time: Approximately 2 hours)
Direction indicating mark (▲)
Lithium-ion
battery
• Unplug the charger when charging is complete.
2 Open the battery compartment cover.
Less than 50%
50% or more
Less than 80%
80% or more
Less than 100%
1
3
Charging indicator
AC cable
Blinks in orange 1 time/second
Blinks in orange 2 times/second
Blinks in orange 3 times/second
Lights up in green
Blinks in green 5 times/second
Lithium-ion
charger
AC wall outlet
2
Battery compartment cover
Battery compartment
lock
2
1
EN
1
13
