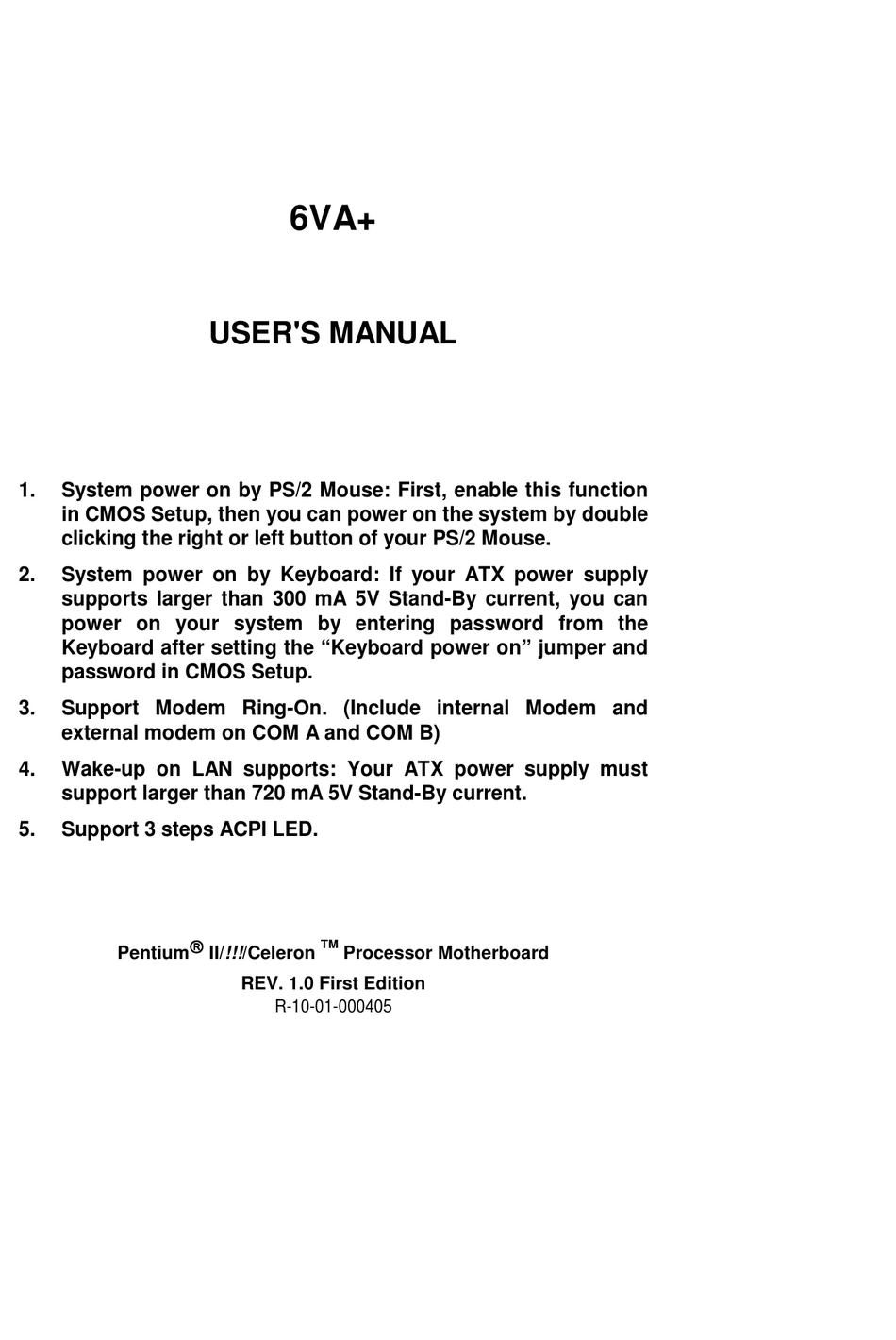

USER'S MANUAL
1.
System power on by PS/2 Mouse: First, enable this function
in CMOS Setup, then you can power on the system by double
clicking the right or left button of your PS/2 Mouse.
2.
System power on by Keyboard: If your ATX power supply
supports larger than 300 mA 5V Stand-By current, you can
power on your system by entering password from the
Keyboard after setting the "Keyboard power on" jumper and
password in CMOS Setup.
3.
Support Modem Ring-On. (Include internal Modem and
external modem on COM A and COM B)
4.
Wake-up on LAN supports: Your ATX power supply must
support larger than 720 mA 5V Stand-By current.
5.
Support 3 steps ACPI LED.
Pentium     II/!!!/Celeron
6VA+
TM
Processor Motherboard
REV. 1.0 First Edition
R-10-01-000405
