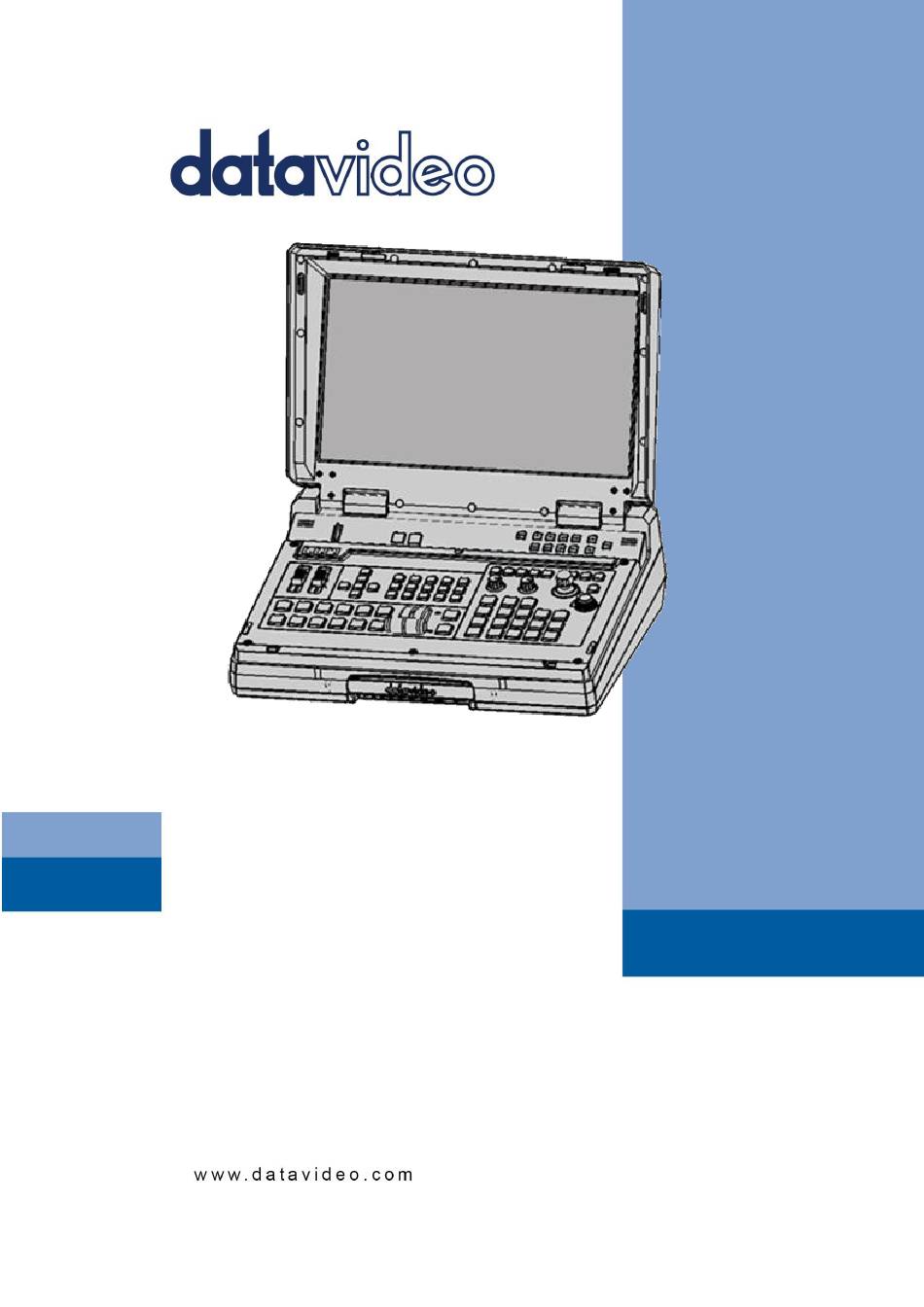

- Page 1 4 CHANNEL HD/SD HDBaseT PORTABLE VIDEO STREAMING STUDIO HS-1600T Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents FCC COMPLIANCE STATEMENT ......................5 WARNINGS AND PRECAUTIONS ......................5 WARRANTY ............................6 ..........................6 TANDARD ARRANTY ..........................6 HREE ARRANTY DISPOSAL ............................7 CHAPTER 1 INTRODUCTION ......................8 ............................8 EATURES ..........................9 YSTEM IAGRAM CHAPTER 2 CONNECTIONS AND CONTROLS ................... 10 .......................... - Page 3 3.5.2 HDMI Input ..........................27 3.5.3 HDMI Group ........................... 27 3.5.4 Level ............................27 3.5.5 Tally Mode ..........................28 ..........................28 3.6.1 Load Memory ......................... 28 3.6.2 Save Memory ......................... 28 ............................28 ETUP 3.7.1 PGM Out Res.......................... 29 3.7.2 MV Out Res.
- Page 4 SERVICE AND SUPPORT ........................63 Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.
-
Page 5: Fcc Compliance Statement
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. -
Page 6: Warranty
Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year. The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. -
Page 7: Disposal
Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 8: Chapter 1 Introduction

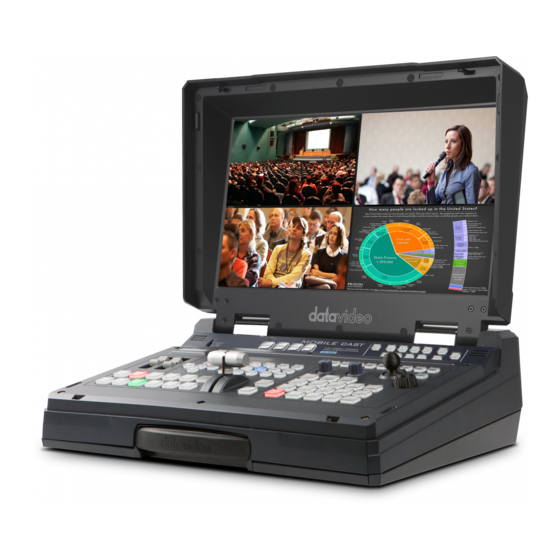

Chapter 1 Introduction Datavideo’s HS-1600T Hand-carry Mobile Switcher, the cutting-edge technology that supports Full HD 1080P, is designed for broadcast of live events and TV programs with a need for mixing a wide variety of video and audio sources. The HS-1600T is a highly valuable solution for religion, education and AV markets. -
Page 9: System Diagram
1.2 System Diagram... -
Page 10: Chapter 2 Connections And Controls
Chapter 2 Connections and Controls 2.1 Rear Panel HDBaseT Port x 3 MIC IN – CH1/CH2 HDMI Video IN Audio Input – Stereo RCA (Left/Right) HDMI Video OUT x 3 DC IN USB F/W Upgrade Port Power Switch TALLY Output Port Stream Port 1. - Page 11 Sends Red and Green tally signals to each channel. Red indicates On-Air, and Green indicates next camera source. Tally output port can connect other Datavideo peripheral devices such as ITC-100, ITC-200, AM-100 or other monitor models, allowing the peripheral device to communicate with the HS-1600T or send tally signal to be displayed on the monitor.
-
Page 12: Switcher Keyboard Panel
10. Stream Port The stream port allows the user to establish direct connection between the notebook computer and the HS- 1600T in order to access the built-in NVS-31 or connect the NVS-31 to any local area network. Note: See the chapter on Video Streaming for device configuration. - Page 13 CUT button Joystick – PAN/TILT AUTO transition button VR Knob – ZOOM Program/Preview LOCK Button Program row Camera MENU Control Preview row MENU Button ENTER Button Switcher Settings Menu browsing buttons Press the MENU button to gain access to the menu; use the up/down/left/right arrow buttons to browse through the menu and press ENTER button to select an option or MENU button again to exit.
- Page 14 Transition Effects WIPE Transition Effect Selection Each Wipe button consists of black and white colors. The white represents the current Program image and the black represents the WIPE-IN image. The HS-1600T provides 3 WIPE presets with the Horizontal and Vertical WIPEs selectable on the control panel. The Center WIPE can be selected from the menu (Start).
- Page 15 Luma Keyer Enable/Disable Buttons Luma Key PGM: Shows the luma key source on the PGM output and enables the luma key effect, however, the luma key effect cannot be previewed on the QUAD split view display. Luma Key PVW: Enables luma key source for the PGM output on the next transition.
- Page 16 Program Output Program Source Row Pressing the number buttons along the PROGRAM row selects a video source for the PGM view. BKG button: Pressing the BKG button will switch the background to a Matte background. The BKG color can be configured on the OSD MENU and the available color options are listed as follows: ...
- Page 17 Volume Control Volume Adjustment Sliders Sliders to control audio levels for the Main audio mixer. Headphone Volume: Audio volume of the connected headphone. Master: Main audio output volume. Headphone Jack Headphone jack accepts the mini jack plug of the stereo headphone type. The headphone volume is controlled by the Headphone volume adjustment slider.
- Page 18 STR Button Pressing this button enters the HS-1600T into STORE MODE. When activated, this allows the current camera position to be stored in a chosen Channel Preset Button. Press again to exit STORE MODE. FOCUS / IRIS / White Balance Focus Adjustment To manually control the FOCUS setting, first press the MANUAL button to enter the manual mode.
- Page 19 Joystick – PAN / TILT PAN – Move the joystick left or right to pan the selected PTZ camera from left to right or vice versa. TILT – Move the joystick up or down to tilt the selected PTZ camera up or down. Note: Before attempting to use the joystick to PAN or TILT a selected camera, first make sure the LOCK button is not enabled.
-
Page 20: Monitor Control Panel
2.3 Monitor Control Panel Power Switches the HS-1600T Monitor Power ON / OFF BLUE Press this button to eliminate the red and green component of input signals. Only the blue component of an input is displayed on the screen. This allows adjustments of chroma and phase. (Phase adjustment is effective with NTSC signals). -
Page 21: Streaming Control Panel
Aspect Ratio Button Sets the Aspect Ratio to 16:9 / 4:3 Volume Control Adjusts the speaker / headphone volume up / down. MUTE Mutes the audio from the internal speakers or headphone socket. 2.4 Streaming Control Panel RECORD Button Press RECORD button to start recording. STREAM Button Press STREAM button to start streaming. -
Page 22: Chapter 3 Switcher Osd Menu
Chapter 3 Switcher OSD Menu The switcher’s OSD menu allows the user to perform several configurations of video effects, such as picture-in-picture, luma key and etc. The user can also configure the audio settings in the Audio option. In addition, in the setup option, the user is allowed to set video output resolution, reset to factory default, and selects the interface language. -
Page 23: Wipe Effect
Note: Pressing the left or right arrow button on the control panel allows the user to either decrement or increment Position X by 1. To change the parameter value at an accelerated rate, simply press and hold the left or right arrow button. 3.1.3 Wipe Effect On the HS-1600T, there are three wipe effects available for the user to choose. -
Page 24: Pip Source
Input 1 Input 2 Input 3 Input 4* Background Color Bar PIP Size 1-100% Position X -50% - +50% Position Y -50% - +50% Black Input 2 Input 1 Input 2 Split Source Input 3 Input 4* Background Color Bar Small Small Border Size... -
Page 25: Position X
3.2.3 Position X Adjusting Position X parameter moves the PIP window horizontally. Pressing the left or right arrow button on the control panel allows the user to either decrement or increment Position X by 1. To change the parameter value at an accelerated rate, simply press and hold the left or right arrow button. -
Page 26: Lumakey
Option Parameters Parameter Value or Range Default Value Size 0 – 100% Left 0 – 100% PIP Crop Right 0 – 100% 0 – 100% Bottom 0 – 100% The effects of all parameters are described below: Left – Adjusts the position of the left edge of the PIP window. ... -
Page 27: Mode
3.4.2 Mode There are two modes available on the Luma Keyer. Select Black if the image is on a black background and white if the image is on a white background. 3.4.3 Cleanup Level The Cleanup Level allows the user to fine tune the effect of the luma key. The default value is 20. 3.4.4 Transparency In this option, you will be able to adjust the transparency of the overall foreground key image. -
Page 28: Tally Mode
3.5.5 Tally Mode Tally output port generally sends two tally signals to each channel. In Datavideo products, Red indicates On-Air, and Green indicates next camera source. The HS-1600T provides two tally modes: Normal: If in normal mode, tally lights of all camera sources displayed on the PGM monitor will be turned ON (Red). -
Page 29: Pgm Out Res
1080i/60 1080i/59.94 1080i/50 720p/60 720p/59.94 720p/50 576i 480i 1080p/60 1080p/59.94 1080p/50 1080i/60 MV Out Res. 1080i/59.94 1080i/50 720p/60 720p/59.94 720p/50 Save Setup [Save] Factory Default [Reset] Language English Simplified Chinese Traditional Chinese MB Software Version KBD Software Version 3.7.1 PGM Out Res. In PGM Out RES., the user is allowed to select an appropriate PROGRAM output resolution. -
Page 30: Save Setup
1080p/60 1080p/59.94 1080p/50 1080i/60 1080i/59.94 1080i/50 720p/60 720p/59.94 720p/50 Once done, simply go to “Save Setup” to confirm the selected output resolution. Note: The new resolution will be effective once selected. If you have selected a resolution that is not supported by the monitor, you will not be able to view the OSD menu. -
Page 31: Camera Ch. Setup
720p/50 1080p/59.94 1080p/50 Mirror Mode Joystick Pan Normal Reverse Joystick Tilt Normal Reverse Memory Speed 1-16 Operator Power On/Off R-Gain 0-255 B-Gain 0-255 Tally LED Green 3.8.1 Camera CH. Setup By selecting this sub-option, you will be able to enable/disable the camera setup. 3.8.2 PTC-150T-01/02/03 The PTC-150T-01/02/03 options will allow you to configure basic settings of the respective cameras. -
Page 32: Operator
H+V: Horizontal and Vertical mirroring In Joystick Pan/Tilt, you can either select the normal PAN/TILT direction or reverse the PAN/TILT direction. The PAN/TILT speed can be configured in Memory Speed, which ranges from 1-16. Operator The Operator sub-option offers the user basic camera operation functions. Parameters of this sub- option are described below: “Power”... -
Page 33: Chapter 4 Monitor
Chapter 4 Monitor The HS-1600T Monitor can be configured via an on screen menu. When the MENU button is pressed the Main Menu list is displayed on the monitor. This section covers the Menu options in the order that they appear on the monitor. -
Page 34: Main Adjust
FRAME RATIO 80 / 90 / 0FF 4:3 MARK LINE ON / OFF CENTRAL MARK ON / OFF CINEMA ZONE MARK ON / OFF AUDIO CHANNEL L* AUDIO CHANNEL R* EXIT FACTORY RESET EXIT * Selectable on PGM only; external HDMI and MV are allowed on 1 and 2 ONLY. 4.1.1 MAIN ADJUST After pressing the MENU button on the monitor control panel, the first menu option highlighted is the MAIN ADJUST option. -
Page 35: Factory Reset
4.2 Firmware Update Procedure (Monitor) From time to time Datavideo may release new firmware to either add new features or to fix reported bugs in the current HS-1600T Monitor firmware. Customers can update the firmware themselves if they wish or they can contact their local dealer or reseller for assistance should they prefer this method. -
Page 36: Chapter 5 Applications
Chapter 5 Applications 5.1 Placing a logo on the video using the lumakey function The HS-1600T allows the user to place a logo on the video using the lumakey function. First of all, create a 1920x1080 (16:9) logo against a black or white background on a laptop. Once the logo is created, please follow the steps outlined as follows to insert the logo layer. - Page 37 6: CAMERA SET (ADVANCE) 7: RESET P/T/Z 8: ESCAPE 5. Select “SET DVIP” to configure the DVIP port [REMOTE CONTROL] 1: PAN/TILT REVERSE: P+T 2: REMOTE SOURCE: DVIP, SW 3: SET RS422 SET DVIP 5: SET IR 6: PTZ INFO. OUTPUT: OFF 7: ESCAPE 6.
-
Page 38: Chapter 6 Video Streaming
From any HDMI input source, the Datavideo NVS-31 generates an H.264 encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bit rates appropriate for live streaming, the Datavideo NVS-31 concurrently records a high-quality MP4 file to an SD card. -
Page 39: Web User Interface
There are basically two ways to establish connection between the NVS-31 and your computer: Connect an Ethernet cable from the NVS-31’s LAN port directly to your computer’s Ethernet port. Connect an Ethernet cable from the NVS-31’s LAN port to the same network switch as your computer. -
Page 40: Source
Source The video source is fixed onto PGM View only. In the Video Source column, you will be allowed to adjust video properties such as Brightness, Contrast, Hue, Saturation and Sharpness. These parameters range from 0 to 255. The Audio Source column currently indicates that the audio is embedded into HDMI video and is NOT reserved for future development. -
Page 41: Encoder
Encoder An NVS-31 video encoder enables video compression for digital video which will then be used for streaming and recording. However, when choosing your encoding settings for streaming, you should first check your available upload bandwidth. A good rule of thumb is for the bitrate of your stream to use no more than 50% of your available upload bandwidth capacity on a DEDICATED line. - Page 42 Available resolutions on the NVS-31 are listed in the table below. 1920 x 1080 1280 x 720 960 x 540 720 x 576 720 x 480 640 x 480 320 x 240 160 x 128 Frame Rate Select the Frame Rate after the resolution is selected.
- Page 43 1 M 512 K 256 K Usually high bitrate means good image quality; however, there are also exceptions. For example, SD video may appear acceptable at 1000 Kbps (1M) but HD video is unacceptable at 1000 Kbps. Therefore we recommend the following settings for your video bitrate: ...
-
Page 44: Record
30 25 20 15 10 5 3 2 1 Cropping The cropping feature allows the user to select a confined area of the camera video. X and Y parameters select the center of the video crop. After that, the user can then set W and H values to select the size of the crop. -
Page 45: Storage Information Column
File Size Select the maximum record file size Loop Recording Loop recording allows the user record continuously to the disk. Select YES to enable loop recording and NO to disable. Recording File This text box displays the recording file name. Storage Information Column In this column, the user will be able to view the USB drive information such as the Vendor Name, Product Type, Disk Capacity and Disk Format Type. - Page 46 As soon as the stream is started successfully, you will be able to see the RTSP view link (Play URL) displayed as shown in the diagram below. To view the stream, open the Play URL in VLC Video Player.
-
Page 47: Rtmp Mode
Open VLC Media Player and click “Open Network Stream.” On the Open Media window, enter the Play URL “rtsp://192.168.1.151:8000/live” and then click the Play button to open the view window. RTMP Mode In RTMP mode, the NVS-31 can only send one data stream to one CDN or media server that supports the RTMP streaming protocol. -
Page 48: Ts Mode
enter the respective RTMP stream information. To start streaming, simply click the “Start Stream” button after the RTMP mode is configured. TS Mode In MPEG transport stream mode, the NVS-31 can send stream data directly to the viewer. On the streaming setup page, select the Encoder Source first and then enter the TS IP address and the TS port number. -
Page 49: System
System The NVS-31 also allows the user to configure the system’s network settings, set account login credentials, update the device firmware, select the time, restore the factory defaults and reboot the system. Network Setting You are allowed to connect the NVS-31 to a network in DHCP or Static IP mode. Disable DHCP server if you want to connect to the NVS-31 on a fixed IP. -
Page 50: Account Setup
Change the password in the Account Setup. Firmware Update From time to time Datavideo may release new firmware to either add new features or to fix reported bugs in the current NVS-31 firmware. To update the firmware, you must first click the Browse button to search for the firmware file on the disk. -
Page 51: Time Setting
You will see the message shown below after the file upload is complete. Once the file is uploaded successfully, click the Update button to start the update. The device will reboot itself after the firmware is successfully updated. Time Setting Enter the device’s time setting for recording purpose. -
Page 52: System Related
System Related Click the Restore to Default button to reset the NVS-31 to factory defaults. To reboot the NVS-31, simply click the System Reboot button. -
Page 53: Chapter 7 Appendices
The HS-1600T has a D-sub 15 pin female tally output port. These connections provide bi-colour tally information to a number of other Datavideo products, such as the ITC-100 eight channel talkback system and the TLM range of LCD Monitors. The ports are open collector ports and as such do not provide power to tally light circuits. -
Page 54: Appendix 2 Firmware Upgrade (Keyboard / Mainboard)
Appendix 2 Firmware Upgrade (Keyboard / Mainboard) Datavideo usually releases new firmware containing new features or reported bug fixes from time to time. Customers can either download the HS-1600T firmware as they wish or contact their local dealer or reseller for assistance. - Page 55 again, the firmware update is complete. The HS-1600T automatically reboots itself after the keyboard firmware is updated. 5. The Mainboard firmware is automatically updated after the Step 4 is executed and the update status will be indicated by the LED color (green) of the preview row buttons. Approximately 5 seconds after the HS-1600T is rebooted, you will see a startup screen on the monitor with old mainboard version (V1.5) displayed at the bottom right corner.
-
Page 56: Appendix 3 Frequently-Asked Questions
Appendix 3 Frequently-Asked Questions This section describes problems that you may encounter while using HS-1600T. If you have any questions, please refer to related sections and follow all suggested solutions. If problem still exists, please contact your distributor or the service center. Problems Solutions Audio is switched only after the transition... -
Page 57: Appendix 4 Tips For Establishing An Hdbaset Compliance Environment And Ethernet Cable Selection
Appendix 4 Tips for Establishing an HDBaseT Compliance Environment and Ethernet Cable Selection Tips for Establishing an HDBaseT Compliance Environment HDBaseT alliance defines the maximum number of cables in a bundle use case to be six cables per bundle. Table below defines the maximum number of cables in a bundle as a function of cable type & the overlapping length. - Page 58 Tips for Establishing an HDBaseT Compliance Environment Outdoors/for the Strong Interference Environment 1. If customers want to establish an HDBaseT compliance environment outdoors, it is recommended that customers can use the UV resistant Ethernet cable to make sure that the Ethernet cable achieves its best connection quality.
- Page 59 3. Please visit the website “http://hdbaset.org/hdbaset-recommended-cables/” for the ethernet cable providers that are verified by the HDBaseT alliance. 4. For more information about how to establish the HDBaseT environment and details of usage, please visit and register on the website “http://hdbaset.org/installers/”...
-
Page 60: Appendix 5 Dimensions
Appendix 5 Dimensions All measurements in millimeters (mm) -
Page 61: Appendix 6 Specifications
Appendix 6 Specifications Model Name HS-1600T Product Name 4-Channel HD/SD HDBaseT Portable Video Streaming Studio Video Standard HD & SD 1080p 50/59.94/60Hz 1080i 50/59.94/60Hz Video Format 720p 50/59.94/60Hz 576i/p 50Hz 480i/p 59.94Hz Input Routable / Crosspoint 3 x HDBaseT Video Input 1 x HDMI Computer Graphical Interface 1 via HDMI... - Page 62 AAC-LC Streaming Audio Encode Configurable bit rate ranging from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit TS over TCP/UDP (unicast & multicast) Streaming Protocol RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP (Publish) Streaming Control Web browser UI for configuration and control Socket commands Recording File System FAT, exFAT, NTFS Recording File Format...
-
Page 63: Service And Support
Sep-26.2018 Version E1...
