REMOVING & REPLACING THE LOWER OVEN DRAWER
WARNING
• Turn POWER OFF before removing the
Lower Oven Drawer.
- Failure to do so can result in severe personal
injury, death, or electrical shock.
Most cleaning can be done with the drawer in place.
However, the drawer may be removed if further
cleaning is needed. Use warm water to thoroughly
clean.
To remove the drawer:
Open the drawer to the fully opened position.
Remove the 2 screws (right and left sides).
(refer to the illustration)
Locate glide lever on each side of drawer, push
down on the left glide lever and pull up on the right
glide lever.
Pull the Lower Oven away from the range.
To replace the drawer:
Replace shield on the right glide of the drawer
body.
Pull the bearing glides to the front of the chassis
glide.
Align the glide on each side of the drawer with the
glide slots on the range.
Push the drawer into the range until levers "click "
(approximately 2 inch).Pull the drawer open again
to seat bearing glides into position.
If you do not hear the levers "click" or the
bearing glides do not feel seated remove the
drawer and repeat steps 2-4.
This will minimize possible damage to the bearing
glides.
Replace the two screws.
M A I N T E N A N C E

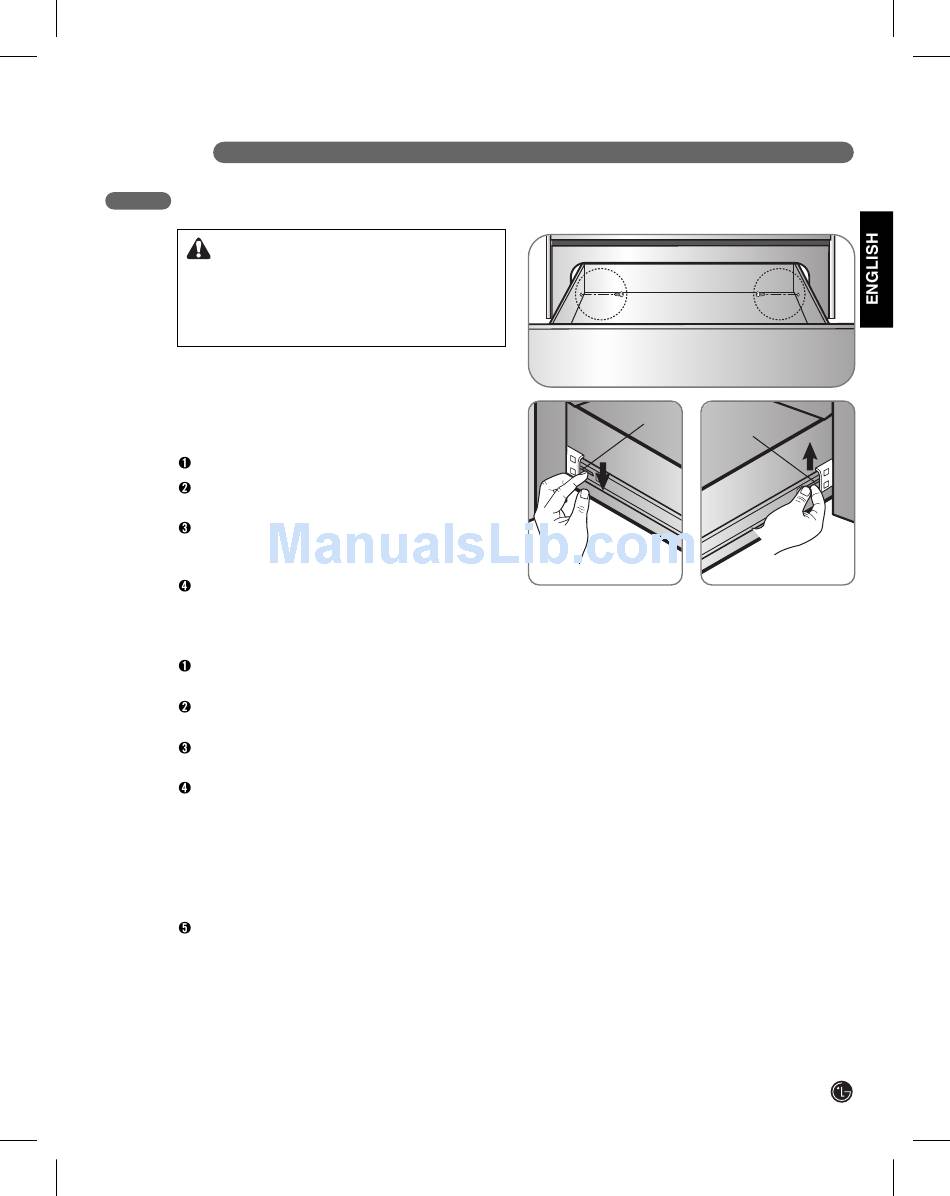

Remove screw
Lever
Lever
Push down with finger Pull up with finger
45
