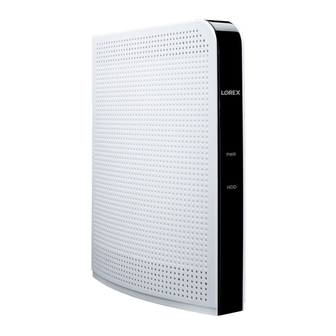

Lorex L222A8D Series Quick Reference Manual

HD Wire-Free Security System
2 / 2
L222A8D Series
English Version 1.0
Before You Start
• Upgrade your recorder firmware and mobile app to the latest versions.
• Please note that an upload speed of 3.5Mbps is required for remote
video streaming. Up to 3 devices may connect to the system at the same
time.
• Ensure you have completed initial setup of the Lorex Cirrus app and the
recorder as detailed in the Quick Connection Guide.
Lorex Cirrus: App Overview
Cast to your
Main menu
Date and time
stamp
Save a snapshot
of the current live
view
Tap to start manual
recording; tap again
to stop
HD video quality
Quick Reference Guide
www.lorex.com
AirPlay
to your
Configure settings for
monitor
selected channels
monitor
Select channels for
live viewing from all
connected devices
Battery strength
indicator
Wireless signal
strength indicator
Tap to activate
white light
Tap to activate siren
Device - Channel name
Split-screen options
Tap to enable the
camera's intercom; tap
again to stop
Tap to switch between
muted and unmuted
Set to full
Lorex Cirrus: Playback
Play back recorded video using the Lorex Cirrus app.
To play back recorded video:
1. Launch the Lorex Cirrus app.
2. Tap , then tap Playback.
3. Set search options for playback:
a. Tap a recorder to reveal available
channels.
b. Tap channels to include in search.
c. Tap a date from the calendar to seach for
recordings from. Dates with recordings
available are marked with a red dot.
NOTE: Tap to filter recordings by type
and resolution.
4. Tap Play to begin playback.
Playback Controls:
You can use playback mode in portrait or landscape mode. Landscape mode is
shown below:
Playback
03/11/2020
date
Video
playback
Slower Play / Pause Faster Next Frame
Lorex Cirrus: Camera Settings
Change camera settings using the Lorex Cirrus app.
To change camera settings:
1. Launch the Lorex Cirrus app.
2. Tap a channel in Live View to select it.
3. Tap to open settings for the selected channel.
4. Configure the following as needed:
a. Channel Name: Enter a name of your choice
for the channel (e.g., Porch Camera).
b. Record Length: Set the recording length
when motion is detected.
c. Video Resolution: Set 720p or 1080p
recording.
d. Motion Settings: Configure the motion
detection settings per channel.
e. Recording Schedule: Set a schedule for
video recording at certain times throughout
the week.
f. Audio: Tap to mute / unmute.
5. Tap SAVE to save settings.
Lorex Cirrus: Device Settings
Change recorder name and format storage using the Lorex Cirrus app.
To change device settings:
1. Launch the Lorex Cirrus app.
2. Tap a channel on the device you want to
edit from Live View.
3. Tap , then tap Settings.
4. Configure the following as needed:
a. Device Name: Enter a name of your choice
for the recorder (e.g., Wire-Free System).
b. Format: Tap to select a storage device
(hard drive or microSD card) to format. Tap
Format to confirm the selected device and
begin formatting.
IMPORTANT: Formatting a storage device
will erase all recordings and snapshots.
This step cannot be undone.
NOTE: Only the admin user can format
memory.
5. Tap Save to save settings.
c
a
b
Playback time
Video timeline:
Tap to start
playback from
the selected
time. Pinch or
spread fingers
to change the
time period.
Stop Snapshot Manual Mute / Unmute
Recording
a
b
c
d
e
f
a
b
L222A8_QRG_EN_R1
