Lorex U222AA-Z Quick Connection Manual

HD Wire-Free Security System
1 / 2
English Version 1.0
Scan for
Lorex Cirrus APP
Package Contents
(Model Number:
HDD
Rechargeable
(Model Number: ) Power Pack*
Recorder Power
Adapter
Camera Mounting Kit*
Dimensions
HDD
2.5"
64mm

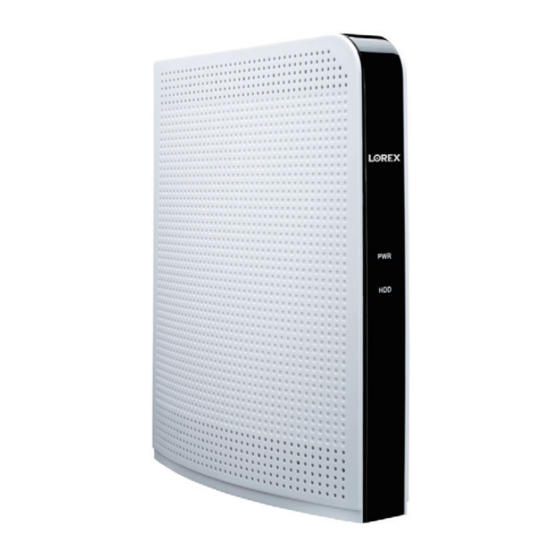

U222A Series
4.7"
121mm
2.9"
73mm
Need Help?
Visit us online for up-to-date software and complete instruction manuals
1
Visit lorex.com
Search for the model number
2
of your product
Click on your product in the
3
search results
4
Click on the Downloads tab
Copyright © 2020 Lorex Corporation
and prices, without notice and without incurring any obligation. E&OE. All rights reserved.
L222A8D_QCG_EN_R1.indd 1 L222A8D_QCG_EN_R1.indd 1
Quick Connection Guide
lorex.com
* Per camera in multi-camera packs
)
Camera Antenna* USB Mouse Toolkit
Power Pack
Ethernet Cable HDMI Cable
Adapter
8.6"
219mm
6.6"
169mm
5.2"
131mm
L222A8D_QCG_EN_R1
STEP 1: Initial Setup
Before you begin, you will need to prepare the wire-free cameras and Power Packs.
NOTE: Power Packs come fully charged.
To prepare the cameras:
1. Twist the adjustment ring near the
camera base counterclockwise to
loosen and reposition each camera as
shown to the right. Connect one of the
white antennas to each camera.
2. Peel off the PLEASE REMOVE label
covering the contacts on each Power
Pack. Insert the charged Power Packs
into each camera base. Push up until
NOTE: The camera will 'beep' when the
Power Pack is properly inserted. If you do not
hear this alert, remove the Power Pack by
pushing on the release tabs* then re-insert.
*
STEP 2: Setting Up the Recorder
Next, you must set up the recorder and connect it to your network.
To set up the recorder:
1. Connect the recorder to your router
using the included Ethernet cable.
OPTIONAL: Full Recorder Setup
• This guide describes basic setup of the recorder only.
This installation is intended for users who wish to monitor
their system using the free Lorex Cirrus app on their
smartphone or tablet.
• You may choose to use the recorder interface to control
your wire-free security system. Connect the included USB
mouse to one of the USB ports labelled Mouse / Backup,
and connect a monitor using the included HDMI cable.
See the included Quick Reference Guide for details.
STEP 3: Connecting with Lorex Cirrus
Connect to your system using the free Lorex Cirrus app for smartphones and tablets
(iOS and Android).
To connect with Lorex Cirrus:
1. Download and install the free Lorex Cirrus app from the App Store
or Google Play Store (Or scan QR code on the front page).
2. Tap the Lorex Cirrus icon to launch the app.
3. Tap to open the menu. Tap Devices, then tap Add.
4. Enter the following:
F
A
B
C
D
E
5. Enter a new, secure 8-15 character password. This password will be used to connect
to your system from now on.
Record your password below and store in a secure place:
U222A Series
Adjustment ring
*
2. Connect the included power adapter to
the recorder.
A Ensure Device ID is selected.
Tap to scan the QR code on the bottom
B
of your recorder using the camera on
your mobile device.
C Ensure the Client Port reads 35000.
Enter the username (default: admin).
D
Enter the password (temporary: 00000000).
E
F Tap Save.
