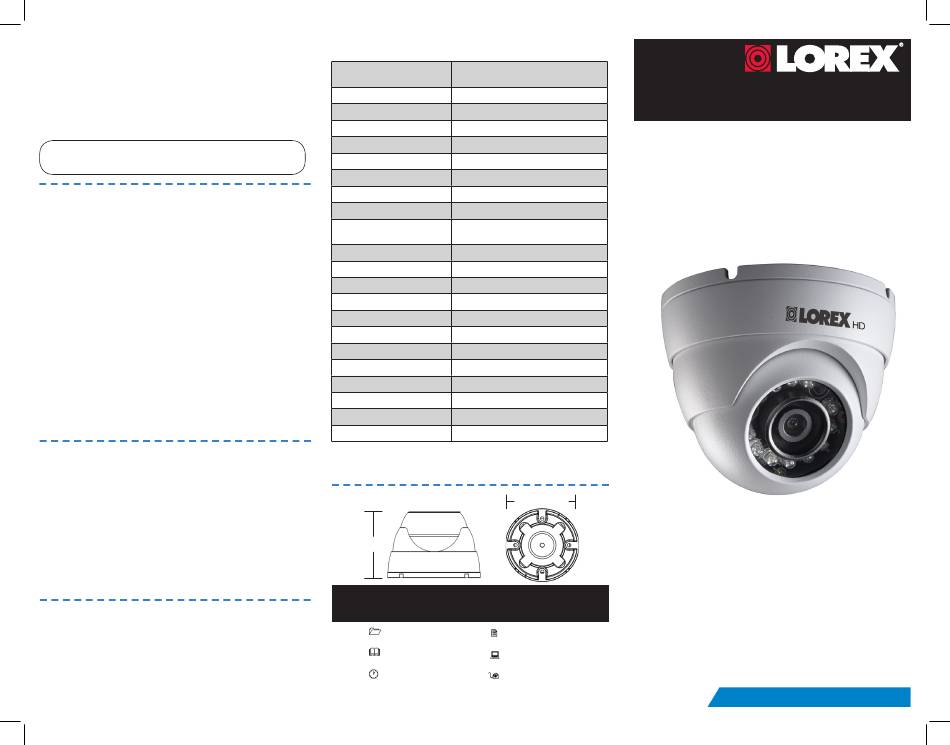

Lorex LEV2522 Series Quick Start Manual

Contents
• Weatherproof HD dome camera*
• Mounting kit*
• Allen key (x1)*
• 60ft BNC / power extension cable*
• Power adapter**
*Model LEV2522PK4B is a 4-pack that includes four of the listed items.
** A "4-in-1" Power Adapter that provides power to four cameras or individual power adapters
may be provided, depending on product configuration.
WARNING - A REGULATED UL / CSA APPROVED 12V DC power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Features
• True HD 1080p Image Sensor*
• Crystal clear video with outstanding detail, day or night
• Infrared cut filter ensures accurate color representation
• Night vision range up to 130ft (40m) in ambient lighting & 90ft
(28m) in total darkness**
• Close up recognition in the dark with SmartIR
• ClearNight imaging for superior low light performance, improving
recording efficiency
• Extreme temperature performance (-22°F ~ 140°F / -30° ~ 60°C)
• Weatherproof for outdoor & indoor installation (IP66 Rated)***
• Wide angle 90° field of view
• Residential and business friendly compact design
• 3-axis design for wall / ceiling mounting
Disclaimers:
* Compatible with Lorex HD DVR LHV2000 series only.
** Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and in total darkness. Actual range and image clarity depends on installation location, viewing
area and light reflection / absorption level of object.
*** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity, and voltage levels
noted in 'Camera Specifications'.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense
light.
• Use only the supplied regulated power supply. Use of a non-regulated, non-
conforming power supply can damage this product and voids the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners.
• The supplied extension cable is rated for surface mounting only.
• Cables for in-wall / floor-to-floor installations are sold separately.
Installation Tips
• Point the camera where there is the least amount of obstructions
(i.e. tree branches).
• Install the camera in a location that is difficult for vandals to reach.
• Secure cabling so that it is not exposed or easily cut.
• Camera rated for outdoor use. Installation in a sheltered location
recommended.
Camera Specifications
Image Sensor* 1/2.7" 1080p, 2 Megapixel Image
Sensor
Video Format NTSC (LEV2522) / PAL (LEV2522P)
Effective Pixels H: 1930 V: 1088
Resolution 1080p @ 30FPS / 25FPS
Scan System Progressive
Sync System Internal
S / N Ratio 50dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 (1/50) ~ 1/100,000 sec.
Min. Illumination 0.01 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 3.6mm F1.2 / Fixed
FOV (Horizontal) 90°
Termination BNC Type
IR LED Qty. / Type 12 IR LEDs / 850nm
Night Vision Range** 90ft (28m) / 130ft (40m)
Power Requirement 12V DC ±10%
Power Consumption Max. 200mA (w/IR)
Operating Temp. Range –22° ~ 140°F / –30° ~ 60°C
Operating Humidity Range < 95% RH
Indoor / Outdoor*** Both (IP66)
Weight (including stand) 0.75lbs / 0.34kg
* Compatible with Lorex MPX Series DVRs only.
** Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and total darkness. Actual range and image clarity depends on installation location, viewing
area, and light reflection / absorption level of object.
*** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
98mm / 3.9"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
Specification Sheets
User Manuals
Software Upgrades
Quick Start Guides
Firmware Upgrades
Copyright © 2015 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
Quick Start Guide
English Version 1.0
94mm / 3.7"
HD WEATHERPROOF
IR DOME CAMERA
LEV2522 / LEV2522P SERIES
