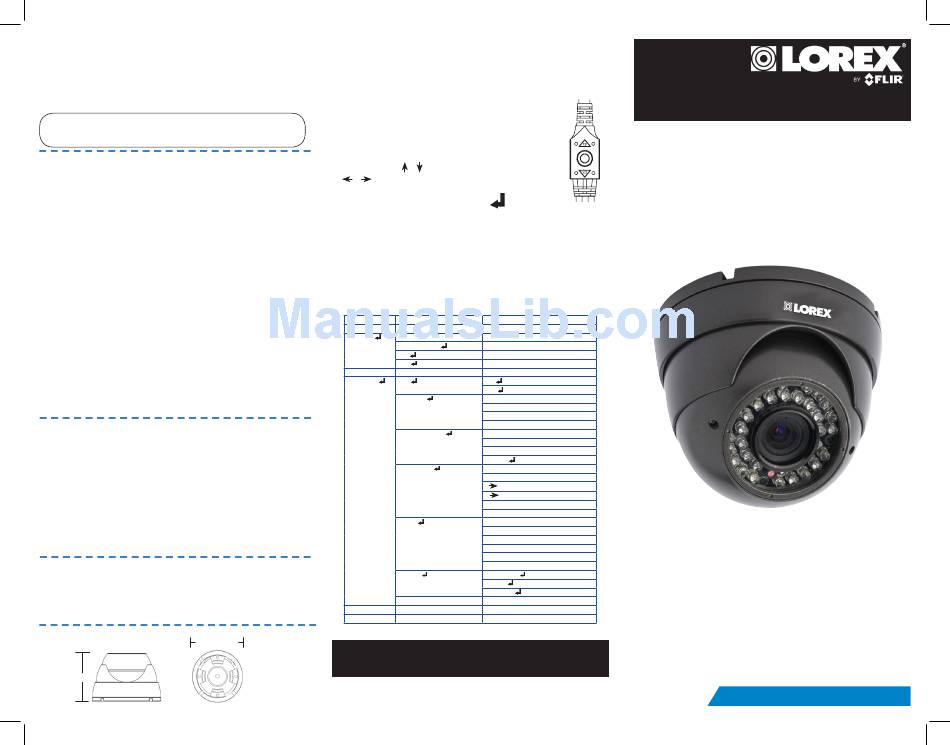

Lorex LEV2724 SERIES Quick Start Manual

Contents
• Weatherproof HD dome camera
• Mounting kit
• Allen key
• 60ft UL (CM type) Rated BNC / power extension cable
• Power adapter
WARNING
- A REGULATED 12V DC power supply is REQUIRED for use
with this camera. Use of a non-regulated, non-conforming power supply can
damage this product and voids the warranty.
Features
• High Performance 1080p Sony Exmor™ Image Sensor*
• Quick and easy camera view adjustment from your DVR or mobile device with
3x optical zoom lens**
• 960H analog video output for convenient set up or connecting to legacy 960H
DVRs
• Night vision range up to 150ft (46m) in ambient lighting & 100ft (31m) in total
darkness***
• Close up recognition in the dark with SmartIR
• High Dynamic Range ("WDR" in menu) for viewing in extremely challenging
lighting scenarios
• ClearNight imaging for superior low light performance, improving recording
efficiency
• Weatherproof for outdoor & indoor installation (IP66 Rated)****
• Extreme temperature performance (–22° ~ 140°F / –30° ~ 60°C)
• 34-90° remotely adjustable field of view (Horizontal)**
• 3-axis design for wall / ceiling mounting
Disclaimers:
* 1080p cameras are compatible with 1080p HD DVR recorders. 720p cameras are compatible
with 720p & 1080p HD DVR recorders. This product is also compatible with 960H analog DVRs
using the analog BNC connector.
** Camera control is only compatible with Lorex HD LHV Series DVRs. To control a camera on an
analog/960H DVR, use the OSD controller on the camera cable.
*** Stated IR illumination range is based on ideal conditions in typical outdoor night time
ambient lighting and in total darkness. Actual range and image clarity depends on installation
location, viewing area and light reflection / absorption level of object.
**** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity, and voltage levels noted in
'Camera Specifications'.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense light.
• Use only the supplied regulated power supply. Use of a non-regulated, non-
conforming power supply can damage this product and voids the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use harsh
cleaners or aerosol cleaners.
• UL or ETL (CM type) cable is provided with the camera for in-wall installation.
For between-floor installations, a UL or ETL (CMR type) cable is required which is
available at www.lorextechnology.com. Not for Plenum area installation.

Installation Tips

• Point the camera where there is the least amount of obstructions
(i.e. tree branches).
• Install the camera in a location that is difficult for vandals to reach.
• Secure cabling so that it is not exposed or easily cut.
• Camera rated for outdoor use. Installation in a sheltered location recommended.
Dimensions
120mm / 4.7"
86mm / 3.4"
On-Screen Display (OSD) Menu
MPX / HD Video Output
To use the OSD menu, access the PTZ menu of your DVR. See your
DVR's instruction manual for more details.
Analog Video Output
Configure OSD menu options using the integrated control
stick on the camera cable (see image to the right).
• OPTIONAL: Connect a test monitor to the camera's
analog (yellow) BNC connector.
• Push the middle of the joystick to open the OSD menu.
• Move the joystick / to select a setting, then
/ to change the setting value.
• Push the middle of the joystick to confirm selection.
• Arrows beside settings indicate a submenu ( ). Select the setting
and push the joystick to enter.
• Select RETURN and push the joystick to return to the previous menu,
or EXIT from the main menu to exit.
NOTE: Camera control through the DVR is only compatible with Lorex
HD LHV Series DVRs. To control a camera on an analog/960H DVR,
use the OSD controller on the camera cable.
Language
Video Format
Backlight OFF
WDR / HDR (HD only)
BLC
HLC
DNR
Advanced Lens ELC
ALC
Exposure Brightness
Shutter
Sens-Up
AGC
White Balance Auto
ATW
Preset
Manual
Day&Night Mode
Delay
D N Level
N D Level
Smart IR
Smart IR Level
Image Sharpness
Color Gain
Freeze
Flip
D-Zoom
Defog
Special Black Level
Privacy
DP Comp
Reset
Version
Exit
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Copyright © 2015 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
HD 1080P WEATHERPROOF
MOTORIZED VARIFOCAL SECURITY CAMERA

Quick Start Guide

English Version 2.0
LEV2724 SERIES
