- Page 1 CTR432NB Ceramic Glass Hob user manual imagine the possibilities Thank you for purchasing this Samsung product. CTR432NB02_XSM_DG68-00315A-04_EN.indd 1 2016-11-04 2:58:17...
-
Page 2: Table Of Contents
contents USING THIS MANUAL Important safety symbols and precautions. SAFETY INSTRUCTIONS Safety instructions INSTALLING THE HOB Safety instructions for the installer Connecting to the outlet Installing into the countertop PARTS AND FEATURES Cooking zones Control panel Components The key features of your appliance Safety shutoff Residual heat indicator BEFORE YOU BEGIN... - Page 3 CLEANING AND CARE To avoid damaging your appliance WARRANTY AND SERVICE FAQs and troubleshooting Service TECHNICAL DATA Technical data Cooking rings APPENDIX Model name & serial number contents _3 CTR432NB02_XSM_DG68-00315A-04_EN.indd 3 2016-11-04 2:58:17...
- Page 4 using this manual Please take the time to read this owner’s manual, paying particular attention to the safety information contained in the following section, before using your appliance. Keep this manual for future reference. If transferring ownership of the appliance, please remember to pass the manual on to the new owner.
-
Page 5: Safety Instructions
safety instructions The safety aspects of this appliance comply with all accepted technical and safety standards. However, as manufacturers we also believe it is our responsibility to familiarize you with the following safety instructions. ELECTRICAL SAFETY WARNING Be sure the appliance is properly installed and grounded by a qualified technician. The appliance should be serviced only by qualified service personnel. - Page 6 SAFETY DURING USE WARNING This appliance is to be used only for normal cooking and frying in the home. It is not designed for commercial or industrial use. Never use the hob for heating the room. Take care when plugging electrical appliances into mains sockets near the hob. Mains leads must not come into contact with the hob.
- Page 7 SEVERE WARNING SIGNS FOR INSTALLATION WARNING The installation of this appliance must be performed by a qualified hob service technician trained by the manufacturer. Please see the section “Installing the hob”. Plug the power cord into the proper wall socket or higher and use the socket for this appliance only.
- Page 8 Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord or loose wall socket. - This may result in electric shock or fire. Do not pull or excessively bend the power cord. Do not twist or tie the power cord.
- Page 9 The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 10 Do not attempt to repair, disassemble, or modify the appliance yourself. - Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse. - When repairing or reinstalling the appliance is required, contact your nearest service centre. - Failure to do so may result in electric shock, fire, problems with the product, or injury.
- Page 11 - Damage to the cord may cause short-circuit, fire and/or electric shock Appliances are not intended to be operated by means of an external timer or separate remote- control system. Do not stare at the hob elements (Model which was installed halogen lamp only). After use, switch off the hob element by its control and do not rely on the pan detector (Model which was installed pan detector only).
-
Page 12: Installing The Hob
installing the hob Be sure the new appliance is installed and grounded only by qualified personnel. Please observe this instruction. The warranty will not cover any damage that may WARNING occur as a result of improper installation. Technical data is provided at the end of this manual. SAFETY INSTRUCTIONS FOR ThE INSTALLER •... -
Page 13: Connecting To The Outlet
CONNECTING TO ThE OUTLET Before connecting, check that the nominal voltage of the appliance, that is, the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob. The heating element voltage is AC 240 V~. -
Page 14: Parts And Features

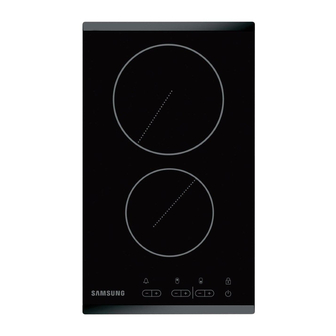

parts and features COOKING ZONES Single cooking zone 1950 W Single cooking zone 1300 W Control panel CONTROL PANEL Indicators for heat settings and residual heat “Lock” control sensor Timer indicator and control Heat setting selectors “On/Off” control sensor sensors 14_ parts and features CTR432NB02_XSM_DG68-00315A-04_EN.indd 14 2016-11-04... -
Page 15: Components
COMPONENTS Ceramic Glass hob Installation Brackets Screws ThE KEY FEATURES OF YOUR APPLIANCE • Ceramic glass cooking surface: The appliance has a ceramic glass cooking surface and four rapid - response cooking zones. The hob’s powerful radiant heater elements significantly shorten the amount of time required for the zones to heat up. •... -
Page 16: Safety Shutoff
SAFETY ShUTOFF If one of the cooking zones is not switched off or the heat setting is not adjusted after an extended period of time, that particular cooking zone will automatically switch itself off. Any residual warmth will be indicated with (for “hot”) in the digital displays corresponding to the particular cooking zones. -
Page 17: Before You Begin
before you begin INITIAL CLEANING Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass cleaner. Do not use caustic or abrasive cleaners. The surface could be damaged. WARNING hob use USING SUITABLE COOKWARE Better pans produce better results. •... -
Page 18: Using The Touch Control Sensors
Energy saving tips You can save valuable energy by observing the following points. • Always position pots and pans before switching on the cooking Right! zone. • Dirty cooking zones and pan bases increase power consumption. Wrong! • When possible, position the lids firmly on the pots and pans to cover completely. -
Page 19: Switching The Appliance On
SWITChING ThE APPLIANCE ON Touch the “Lock ” sensor for approximately 3 seconds. The appliance is switched on using the “On/Off ” control sensor. Touch the “On/Off ” sensor. The digital displays will show After the “On/Off ” sensor has been actuated to switch on your appliance, a heat setting must be selected within approximately 10 seconds. -
Page 20: Switching The Appliance Off
SWITChING ThE APPLIANCE OFF To completely switch off the appliance, use the On/Off control sensor. Touch the On/Off control sensor. After switching off a single cooking zone or the entire cooking surface, the presence of residual heat will be indicated in the digital displays of the corresponding cooking zones in the form of an (for “hot”). -
Page 21: Using The Child Safety Lock
USING ThE ChILD SAFETY LOCK You can use the child safety lock to safeguard against unintentionally turning on a cooking zone and activating the cooking surface. The lock control sensor can be used only when the power is on. Switching the child safety lock on 1. -
Page 22: Locking And Unlocking The Control Panel
LOCKING AND UNLOCKING ThE CONTROL PANEL At any stage during the cooking process, the control panel, with the exception of the “On/Off ” control sensor, can be locked in order to prevent the settings from being changed unintentionally, for example, by wiping over the panel with a cloth. 1. -
Page 23: Setting The Safety Shutoff
SETTING ThE SAFETY ShUTOFF The cooking zone(s) for which you want to apply the safety shutoff must be switched on. 1. Using the timer’s control sensor , select the cooking zone for which the safety shutoff time is to be set. After the first active cooking zone is selected, touching the timer’s control sensor will cause the corresponding indicator to flash slowly. -
Page 24: Countdown Timer
COUNTDOWN TIMER For the countdown timer to be used, the appliance must be switched on but all the cooking zones must be switched off. 1. Touch the timer’s control sensor will appear in the timer display. 2. Set the desired period of time using the timer setting control sensors. -
Page 25: Hob
cleaning and care Cleaning agents must not come into contact with a heated ceramic glass surface: All cleaning agents must be removed with adequate amounts of clean water after WARNING cleaning because they can have a caustic effect when the surface becomes hot. Do not use any aggressive cleaners such as grill or oven sprays, scouring pads or abrasive pan cleaners. -
Page 26: To Avoid Damaging Your Appliance
Problem Dirt 1. Remove burnt-on sugar, melted plastic, aluminium foil or other materials with a glass scraper immediately and while still hot. There is a risk of burning yourself when the glass scraper is used on a hot cooking zone: WARNING 2. -
Page 27: Faqs And Troubleshooting
warranty and service FAQS AND TROUBLEShOOTING A fault may result from a minor error that you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case. Repairs to the appliance are to be performed only by a qualified service technician. -
Page 28: Service
What should I do if the display is illuminated? Check for the following: • The control panel is partially covered by a damp cloth or liquid. To reset, press the “On/Off” control sensor. What does it mean when the burner does not glow red? •... -
Page 29: Technical Data
technical data TEChNICAL DATA Appliance dimensions Width 288 mm Depth 505 mm Height 50 mm Worktop cut - out dimensions Width 273 mm Depth 490 mm Corner radius 3 mm Connection voltage 240 V ~ 50 Hz Maximum connected load power 3.25 kW Weight 4.3 kg... -
Page 30: Appendix
appendix MODEL NAME & SERIAL NUMBER Both the model name and the serial number are labeled underneath the cooktop base. For later use, write down the information or attach the additional product label (located on the top of the product) onto the current page. Model Name Serial Number 30_ appendix... - Page 31 note CTR432NB02_XSM_DG68-00315A-04_EN.indd 31 2016-11-04 2:58:23...
