Page 1

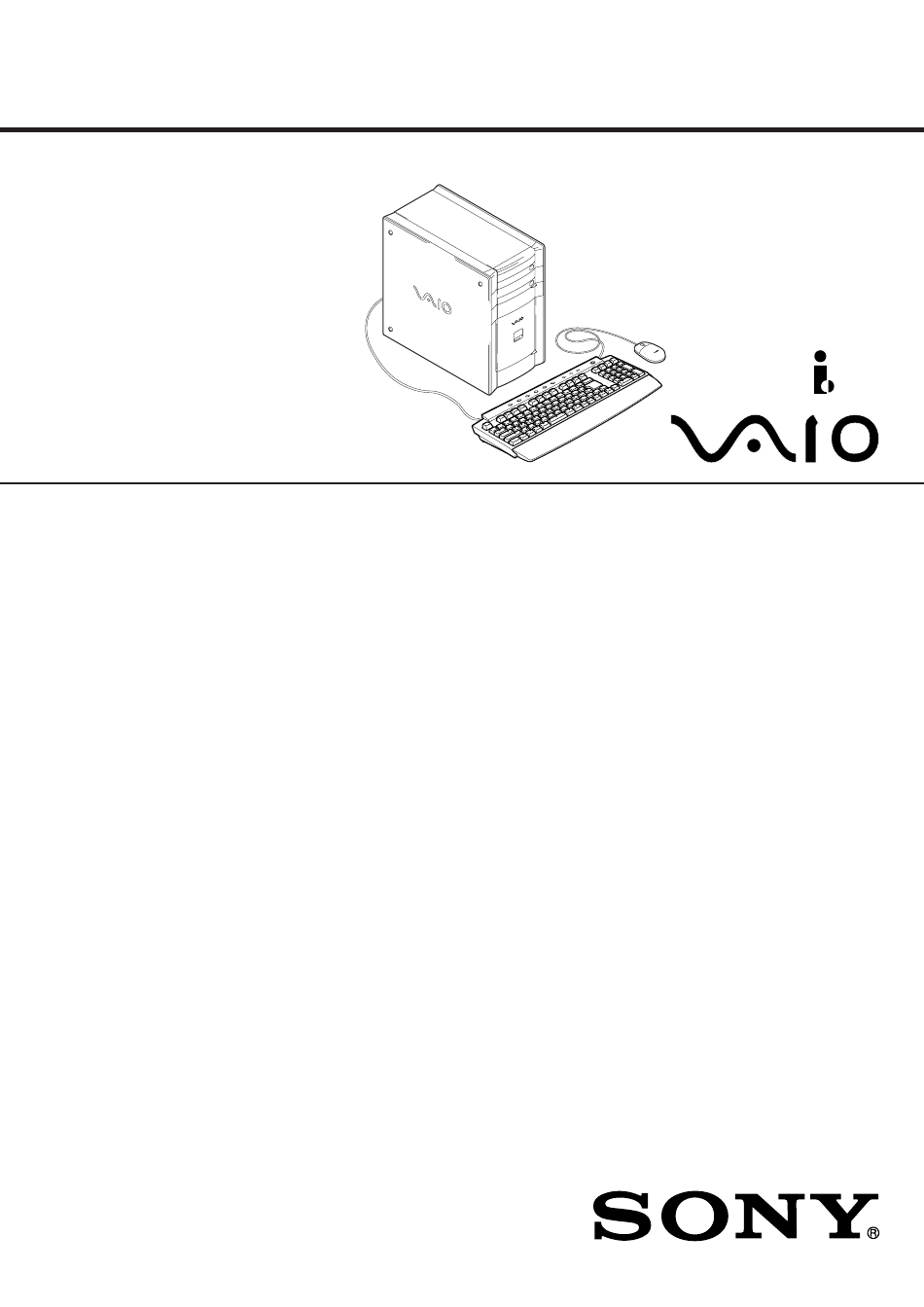

PCV-RX360DS/RX370DS/RX380DS SERVICE MANUAL US Model Canadian Model S400 Specifications PERSONAL COMPUTER VAIO 9-928-395-11...
Page 2
CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Confidential – 2 – PCV-RX360DS/RX370DS/RX380DS (UC)
Page 3
PLEASE NOTE : U.S. CUSTOMERS ONLY! IMPORTANT NOTICE! Mother Board Part Numbers Model Number Part Number PCV-RX360DS T-9986-077-3 PCV-RX370DS T-9986-077-2 PCV-RX380DS T-9986-077-1...
Page 9
✍ i.LINK is a trademark of Sony used only to designate that a product contains an IEEE1394 connection. The i.LINK connection may vary, depending on the software applications, operating system and i.LINK-compatible devices. All products with an i.LINK connection may not communicate with each other.
Page 10
Internet. ❑ Sony audio and video quality — Take advantage of today’s advanced multimedia applications, games, and entertainment software with Sony’s high-fidelity audio system, high-powered 3D graphics, and “Sony-Tuned” MPEG digital video playback.
Page 11
Unpacking Your Computer Unpacking Your Computer Computer and Supplied Accessories Computer and accessories Manuals ❑ VAIO Digital Studio™ QuickStart — Contains information on unpacking and setting up your computer, supplementary updates, and software information. ❑ VAIO Digital Studio™ User Guide — Contains features and specifications of your computer.
Page 12
System Recovery CD(s) — Allows you to restore the software titles that shipped with your computer if they become corrupted or are erased. SRCDs can only be used to restore the hard disk of the Sony computer you purchased. ❑...
Page 13
Setting Up Your Computer Setting Up Your Computer This section illustrates how to set up and install your computer and peripheral devices. Connecting a CRT Display Plug the display cable into the MONITOR port. If necessary, plug the display cord into the rear of the display. Connecting a CRT display ✍...
Page 14
VAIO Digital Studio™ QuickStart Connecting the Speakers Plug the cable attached to the left speaker into the L OUT jack on the back of the right speaker. Plug the cable attached to the right speaker into the HEADPHONES jack. Plug the jack end of the speaker power cord into the DC IN jack on the back of the right speaker and plug the other end into a grounded AC wall outlet or power strip.
Page 15
Setting Up Your Computer Connecting the keyboard and mouse ® Plug the keyboard cable into the PS/2 KEYBOARD port on the back of the computer. Plug the mouse cable into the MOUSE port. Connecting the keyboard and mouse KEYBOARD MOUSE USB NETWORK LINK SERIAL...
Page 16
VAIO Digital Studio™ QuickStart Connecting the modem cable and power cords Unplug your phone from the wall jack, and plug it into the TELEPHONE jack on the computer. Plug the modem cable (supplied) into the LINE jack on the computer, and then plug the other end of the cable into the wall jack.
Page 17
When you start your system for the first time, your computer may redetect new equipment and display a dialog box that asks you to restart your computer. Please respond to this request immediately. Turning on your computer ✍ You may sign up for Internet access with a Sony preferred Internet service provider.
Page 18
In the Buttons tab, select Left-Handed under the Button Configuration options. Click Apply, then OK. Registering Your Computer Take advantage of Sony’s commitment to quality customer support and receive these benefits by registering your computer: ❑ Sony Customer Support — Talk to a Support Representative to troubleshoot problems you may be having with your computer.
Page 19
✍ You may sign up for Internet access with a Sony-preferred Internet Service Provider. Shutting Down Your Computer When you are ready to turn off your computer for an extended period of time, use this procedure.
Page 20
VAIO Digital Studio™ QuickStart Using the Standby Function When you plan to stop using your computer for a short period of time, you can put it in standby mode instead of turning it off completely. Putting the computer in standby mode saves energy and allows a quick return to normal computer use. You can use any of the following three methods for activating the standby mode.
Page 21
Using the Standby Function Click Control Panel. Click Power Options. On the Power Schemes tab, select an option from the Power schemes drop-down list. Choose settings for the power scheme you have selected. ✍ To save the settings under a name that is not offered in the Power schemes drop-down menu, choose your settings and then click Save As.
Page 22
VAIO Digital Studio™ QuickStart About the Software on Your Computer ® Your VAIO computer is ready to help you work, play, learn, and communicate as soon as you turn it on. This section provides an overview of the software titles included with your computer. ®...
Page 23
MovieShaker™ Sony Electronics, Inc. Sony’s original MovieShaker software creates personal movies that have transitions, background music, and text. Just import your video clips and “shake” with a click of the mouse. Your personal movies are easy to create and fun to share with family and friends.
Page 24
This image management software displays images from your hard drive, a Sony digital still camera, or a Sony Mavica® camera. The images appear in a convenient light-table format, so that you can easily view the contents of an entire folder.
Page 25
VisualFlow™ Sony Electronics, Inc. VisualFlow is a state-of-the-art Sony multimedia browser designed specifically for Memory Stick media. It displays any still picture, movie or sound files stored in a Memory Stick media in a visually pleasing, artistic manner. VisualFlow not only plays a selected movie or sound file, but also enables playback of files by other applications like PictureGear, Memory Stick Slideshow and Windows Explorer.
Page 29
✍ i.LINK is a trademark of Sony used only to designate that a product contains an IEEE1394 connection. The i.LINK connection may vary, depending on the software applications, operating system and i.LINK-compatible devices. All products with an i.LINK connection may not communicate with each other.
Page 30
Internet. ❑ Sony audio and video quality — Take advantage of today’s advanced multimedia applications, games, and entertainment software with Sony’s high-fidelity audio system, high-powered 3D graphics, and “Sony-Tuned” MPEG digital video playback.
Page 31
Unpacking Your Computer Unpacking Your Computer Computer and Supplied Accessories Computer and accessories (PCV-RX370DS/PCV-RX380DS) Manuals ❑ VAIO Digital Studio™ QuickStart — Contains information on unpacking and setting up your computer, supplementary updates, and software information. ❑ VAIO Digital Studio™ User Guide — Contains features and specifications of your computer.
Page 32
System Recovery CD(s) — Allows you to restore the software titles that shipped with your computer if they become corrupted or are erased. SRCDs can only be used to restore the hard disk of the Sony computer you purchased. ❑...
Page 33
Setting Up Your Computer Setting Up Your Computer This section illustrates how to set up and install your computer and peripheral devices. Connecting a CRT Display Plug the display cable into the MONITOR port. If necessary, plug the display cord into the rear of the display. Connecting a CRT display (PCV-RX370DS/PCV-RX380DS)
Page 34
If necessary, plug the display cord into the rear of the display. ✍ You can use the optional Sony LCD monitor (PCVA-15XD2) with this computer. See the manual that came with your LCD monitor for more information on installation and use.
Page 35
Setting Up Your Computer Connecting the Speakers Plug the cable attached to the left speaker into the L OUT jack on the back of the right speaker. Plug the cable attached to the right speaker into the HEADPHONES jack. Plug the jack end of the speaker power cord into the DC IN jack on the back of the right speaker and plug the other end into a grounded AC wall outlet or power strip.
Page 36
VAIO Digital Studio™ QuickStart Connecting the keyboard and mouse Plug the keyboard cable into the PS/2® KEYBOARD port on the back of the computer. Plug the mouse cable into the MOUSE port. Connecting the keyboard and mouse (PCV-RX370DS/PCV-RX380DS) KEYBOARD MOUSE USB NETWORK LINK SERIAL...
Page 37
Setting Up Your Computer Connecting the modem cable and power cords Unplug your phone from the wall jack, and plug it into the TELEPHONE jack on the computer. Plug the modem cable (supplied) into the LINE jack on the computer, and then plug the other end of the cable into the wall jack.
Page 38
When you start your system for the first time, your computer may redetect new equipment and display a dialog box that asks you to restart your computer. Please respond to this request immediately. Turning on your computer (PCV-RX370DS/PCV-RX380DS) ✍ You may sign up for Internet access with a Sony preferred Internet service provider.
Page 39
In the Buttons tab, select Left-Handed under the Button Configuration options. Click Apply, then OK. Registering Your Computer Take advantage of Sony’s commitment to quality customer support and receive these benefits by registering your computer: ❑ Sony Customer Support — Talk to a Support Representative to troubleshoot problems you may be having with your computer.
Page 40
✍ You may sign up for Internet access with a Sony-preferred Internet Service Provider. Shutting Down Your Computer When you are ready to turn off your computer for an extended period of time, use this procedure.
Page 41
Using the Standby Function Using the Standby Function When you plan to stop using your computer for a short period of time, you can put it in standby mode instead of turning it off completely. Putting the computer in standby mode saves energy and allows a quick return to normal computer use. You can use any of the following three methods for activating the standby mode.
Page 42
VAIO Digital Studio™ QuickStart Click Control Panel. Click Power Options. On the Power Schemes tab, select an option in the Power schemes drop-down list. Choose settings for the power scheme you have selected. ✍ To save the settings under a name that is not offered in the Power schemes pulldown menu, choose your settings and then click Save As.
Page 43
About the Software on Your Computer About the Software on Your Computer ® Your VAIO computer is ready to help you work, play, learn, and communicate as soon as you turn it on. This section provides an overview of the software titles included with your computer. ®...
Page 44
Sony Electronics, Inc. Media Bar is your all-in-one solution for audio/video playback. Media Bar software handles all common computer multimedia formats, and controls selected Sony devices. Media Bar software encompasses audio/video library cataloging and playlist management, in addition to digital video quality control and effects features. Media Bar seamlessly...
Page 45
MovieShaker™ Sony Electronics, Inc. Sony’s original MovieShaker software creates personal movies that have transitions, background music, and text. Just import your video clips and “shake” with a click of the mouse. Your personal movies are easy to create and fun to share with family and friends.
Page 46
This image management software displays images from your hard drive, a Sony digital still camera, or a Sony Mavica® camera. The images appear in a convenient light-table format, so that you can easily view the contents of an entire folder.
Page 47
VisualFlow™ Sony Electronics, Inc. VisualFlow is a state-of-the-art Sony multimedia browser designed specifically for Memory Stick media. It displays any still picture, movie or sound files stored in a Memory Stick media in a visually pleasing, artistic manner. VisualFlow not only plays a selected movie or sound file, but also enables playback of files by other applications like PictureGear, Memory Stick Slideshow and Windows Explorer.
2-2. TOP PANEL SECTION 2 Remove the top panel section in the direction of arrow A . 1 two claws 2-3. LEFT PANEL SECTION 1 Pull thelever. 9 Remove the left panel section in the direction of arrow A . Confidential PCV-RX360DS/RX370DS/RX380DS (UC)
2-4. DVD-ROM, CD-RW 2 harness (IDE CD/DVD) 3 harness (CD/DVD AUDIO) 1 power connector 6 Remove the CD holder ass’y in the direction of arrow A . 5 harness (IDE CD/DVD) 8 DVD-ROM 4 power connector 9 Remove the escutcheon (P) in the direction of arrow B .
2-5. SWITCHING POWER (PCV-RX360DS) 2 Push the lever 7 Remove the PS fan duct in the direction of arrow A . 3 bracket power supply ass’y 5 three screws (No.6-32UNC) 1 screw (No.6-32UNC) 4 Disconnect respective power connectors on the 6 switching power mother board, DVD-ROM, CD-RW, FDD and HDD .
2-10. PANEL ASS’Y (UPPER) (FOR 2 BAY) 3 two claws 4 panel ass’y (upper) (for 2 bay) 2 two claws 1 Open the door (FDD) ass’y. 2-11. FRONT PANEL ASS’Y (LOWER) (US) 3 two claws 4 Remove the front panel ass’y (lower) (US) in the direction of arrow A .
2-12. RIGHT PANEL 2 Remove the right panel in the direction of arrow A . 1 two claws 2-13. CNX-138 BOARD 4 two screws (SW) (No.6-32UNC) 2 harness (USB/LU) 1 harness 5 CNX-138 board (1394) 3 Remove the bracket AV ass’y to direction of arrow A .
2-14. SWX-66 BOARD 1 harness (SW/LED) 4 LED shield 2 screws (SW) (No.6-32UNC) 3 SWX-66 board 2-15. FDD 2 Push the lever. 3 Remove the FDD bracket ass’y in the direction of arrow A . 1 harness (FDD) 4 two screws (PWH3 ×...
2-16. MEMORY, CRIMM (PCV-RX360DS) 1 Open two clips. 2 memory (DIMM) Note 1: In opening the clips, hold lightly the top of the memories with your fingers to prevent a drop. Note 2: In removing the memories, always start from the one having largest bank number.
2-17. CPU (PCV-RX360DS) 3 Elect the lever in the direction of arrow A . 1 heat sink holder 4 CPU 2 heat sink Precaution on mounting the heat sink holder: Check that the angle B shown in figure does not exceed 90 degrees, when the heat sink was removed or if the heat sink mounting failed.
SECTION 4 PROGRAM FOR SERVICE 4-1. General FIXED DISK TEST HDD is tested. The Diagnostic Programs for Service are available with the DISKETTE TEST following three kinds. FDD is tested. As the read/write operation is performed to the floppy disk, 1.
4-5. nVIDIA Geforce Video Diag Starting Method (For PCV-RX380DS) As the Diag. disc is a bootable CD, set the CD in the CD/DVD- ROM drive and turn the system power on. The menu will be displayed, then select the following: 4.
SECTION 5 SERVICE INFORMATION 5-1. JUMPER SETTING ON HARD DISK DRIVE The hard disk drive of service parts can be used without changing factory jumper setting, when it was replaced for service. Capacity Model Part No. Maker Code (formatted) PCV-RX380DS 1-796-089-11 Maxtor 98196H8...
Page 71
Capacity Model Part No. Maker Code (formatted) PCV-RX360DS 1-772-938-12 Seagate ST340823A 40 GB Master/Slave selection Jumper setting Factory setting Master or single drive Drive is a slave Master with a non-ATA compatible slave Enable cable select Confidential PCV-RX360DS/RX370DS/RX380DS (UC)
5-2. JUMPER SETTING OF MOTHER BOARD The Mother board of service parts can be used without changing factory jumper setting, when it was replaced for service. (for PCV-RX360DS) SOFA PS/2 USB/Ethernet Parallel Monitor Power (For PCV-RX370DS) Supply i.LINK Serial Line Out Sec IDE Line In Pri IDE...
Page 73
(for PCV-RX370DS/RX380DS) PS/2 ATX12V USB/Ethernet ATXPWR Serial Parallel i.LINK MIDI/GAME Line Out Line In Microphone Floppy PCI1 Aux IN Pri IDE Sec IDE PCI2 VIDEO USB Front Battery CD IN Front Pane l /O Wake On LAN CMOS CLR 1-2: Clear 2-3: Normal Confidential PCV-RX360DS/RX370DS/RX380DS (UC)
Page 74
SECTION 6 FRAME HARNESS 6-1. CONNECTOR LIST CUSL-LV MOTHER BOARD (for PCV-RX360DS) 1-1 Internal connector 168pin DIMM socket x2 2 slot DIMM connector, 3.3V Unbuffered SDRAM Power supply Connector location on MB See the frame harness diagram 20pin ATX type connector. Connector location on MB See the frame harness diagram PGA370 socket...
Page 75
LOTES B6615BP5L or equivalent Video_R Holder location on MB See the frame harness diagram Battery vender Sony CR2032 or equivalent SPDIFOUT (not installed*) SOFA header (not installed*) 3 pin standard 2mm single line header for S/P DIFoutput Connector location on MB See the frame harness diagram This SOFA header is not same one Callisto has.
Page 76
COM/Line Out/Line In/Microphone Connector location on MB Rear side, see the frame harness diagram Connector location on MB Rear side, see the frame harness diagram Pin assignments: Signal Name Game port pin assignments: COM1 , CO M2 RI# o utpu t co n Signal Name nect ed t o ICH in put for Wak e Serial In #...
Page 77
WMT-LX MOTHER BOARD (for PCV-RX370DS/RX380DS) Internal connector FLOPPY ATXPWR Connector location on MB See the frame harness diagram 20pin ATX type c onnector. Pin assignments: Connector location on MB See the frame harness diagram Signal Name Signal Name Pin assignments: Ground HDsel Ground...
Page 78
Ground Holder location on MB See the frame harness diagram Right Line In Battery vender Sony CR2032 or equivalent Video (not installed*) External connector 4 pin standard 2mm single line header for Video Audio s ignal input Parallel Connector location on MB...
Page 79
IEEE1394 Rear connector Game/Line Out/Line In/Microphone Jack 6 pin standard IEEE1394 Rear connector. Connector location on MB Rear side, See the frame harness diagram Connector location on MB See the frame harness diagram Game port pin assignments: Pin assignments: Signal Name Signal Name GAMEVCC VP (Power )
(for PCV-RX370DS/RX380DS) Connectors mentioned (not installed) are not used even they are mounted on MB. i.LINK S400 VGA CARD 1394HEAD3 4 pin USB Rear Harness (1394) PCV-RX370DS: 16MB (SDRAM) MONITOR Rear Panel PCV-RX380DS: 32MB (SDRAM) CNX-138 BOARD 1394HEAD2 (Not Installed*) (Front Connector) MOTHER BOARD MOUSE...
Page 82
SECTION 7 REPAIR PARTS LIST Ref. No. Part No. Description Remark See IMPORTANT NOTICE NOTE: 1 4-648-912-12 PANEL, LEFT inside front cover for United • The parts listed here are for service, and therefore they may be different 2 X-4623-012-1 LEFT CHASSIS ASSY The components identified by from the parts shown in circuit diagrams or used in the set.
Page 83
See IMPORTANT NOTICE Ref. Ref. 7-2. EXPLODED VIEWS AND PARTS LIST inside front cover for United No. Part No. Description Remark No. Part No. Description Remark (PCV-RX370DS) States Mother Board Assy 1 4-648-912-12 PANEL, LEFT 6 1-673-675-11 FAN, DC (WITH HEAT SINK) ♦...
Page 84
See IMPORTANT NOTICE inside front cover for United 7-3. EXPLODED VIEWS AND PARTS LIST Ref. Ref. No. Part No. Description Remark States Mother Board Assy No. Part No. Description Remark (PCV-RX380DS) 6 1-763-675-11 FAN, DC (WITH HEAT SINK) 1 4-648-912-12 PANEL, LEFT part number.
