Names Of Parts - Sharp MD-R2H Service Manual

MD-R2H

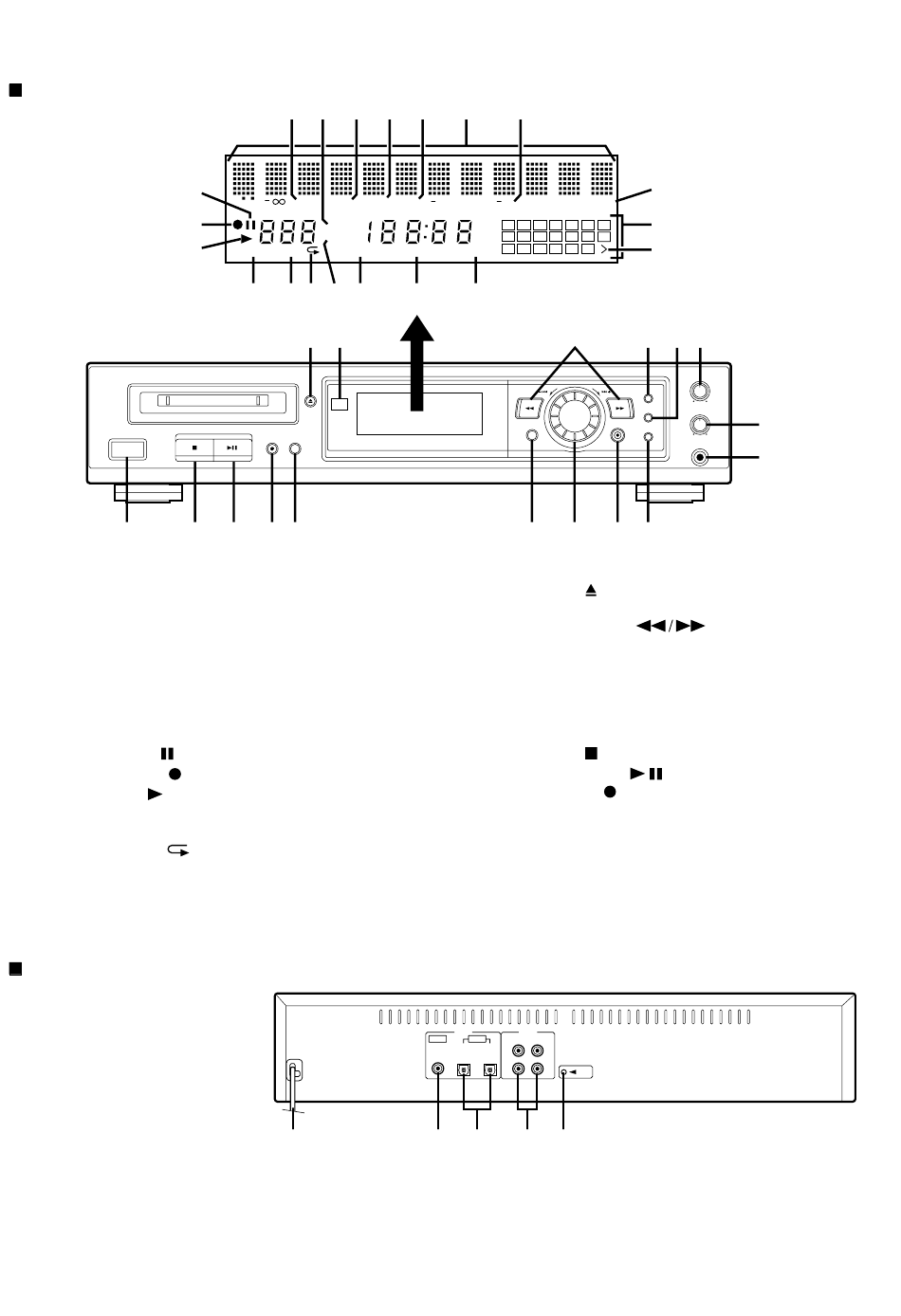

Front panel
11
12
13
29
1. TOC Indicator: TOC
2. Total Time Indicator
3. Disc Name Indicator
4. Track Name Indicator
5. Data Indicator
6. Level Meter/Character Information Display
7. Recording Level indicator
8. Recording Level Too High Indicator
9. Music Calender
10. More Tracks Indcator
11. Pause Indicator:
12. Record Indicator:
13. Play Indicator:
14. Monaural Long-Play Mode Indicator
15. Programme Indicator
16. Repeat Indicator:
17. Remaining Time Indicator
18. Random Play Indivator
19. Timer Playback/Timer recording Indicator
Rear panel
1. AC Power Lead
2. Coaxial Input Socket
(Digiral)
3. Optical Input/Output Sockets
(Digital)
4. Line Input/Output Sockets
(Analogue)
5. Reset Button
NAME OF PARTS
1 2 3
TOC DISC TRACK DATE
TOTAL
REMAIN
MONO LP PRGM RANDOM
14 1516 17 18
21 22
30 31 32 33
1
4 5 6 7
12 4
1 2 3 4 5 6 7
AM
8 9 10 11 12 13
PM
15 16 17 18 19 20
TIMER REC CLOCK
19 20
34
20. Clock Indicator
21. Eject Button:
22. Remote Sensor
23. Cue/Review Button:
24. Display/Character Button
25. Name/TOC Edit Button
26. Record Level Control
27. Headphone Level Control
28. Headphone Socket
29. On/Stand-by Button
30. Stop Button:
31. Play/Pause Button:
32. Record Button:
33. Input Select Button
34. Programme Button
35. Jog Dial (Next/Previous)
36. Enter Button
37. Delete/Clear/Timer Button
2 3 4
– 4 –
8
0dB OVER
9
14
10
23 24 25 26
35 36 37
5
27
28
