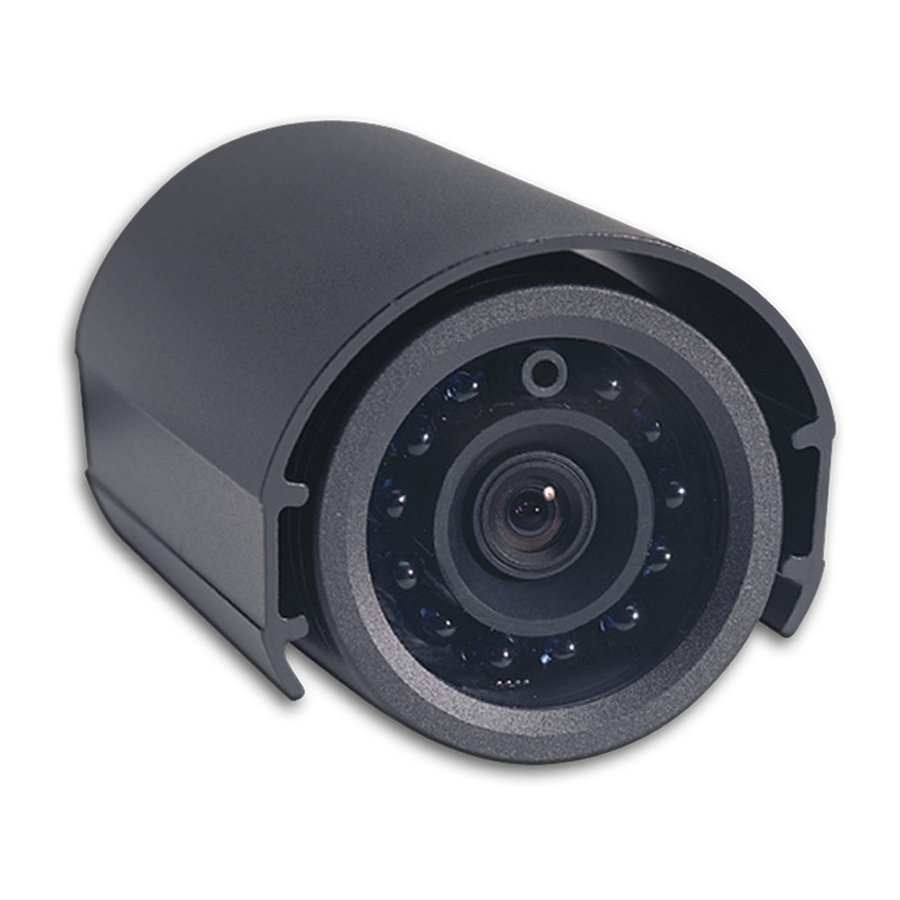

American Dynamics ADC720D Operating Instructions

Color cctv camera

Hide thumbs Also See for ADC720D:

Download this manual

1. Please use a regulated 12VDC power adaptor to operate this unit. The power tolerance of this

unit is 12VDC

this unit.

2. The video output (BNC connector) of this unit should only be connected to a non-powered

device. Please check the wiring of the video output before applying power to this unit. If the

power is applied through the video output cable, the unit will be damaged.

Note:

All ADC520/ADC720 Series cameras ship with a 120VAC to 12VDC UL listed power supply with a

6-foot (1.8m) cord. 12VDC cameras will not line-lock and are not recommended for use in a matrix

switcher environment.

8200-0206-04 Rev. A

ADC720D

COLOR CCTV CAMERA

OPERATING INSTRUCTIONS

10% (10.8VDC~13.2VDC); a power input of more than 13.2VDC will damage

CAUTION

Page 1: Operating Instructions
All ADC520/ADC720 Series cameras ship with a 120VAC to 12VDC UL listed power supply with a 6-foot (1.8m) cord. 12VDC cameras will not line-lock and are not recommended for use in a matrix switcher environment. 8200-0206-04 Rev. A ADC720D OPERATING INSTRUCTIONS CAUTION...
Page 2 Thank you for choosing this high quality camera. Before connecting or operating this product, please read all of these instructions. Specifications Pick-up Element Number of Pixels Resolution Minimum Illumination S/N Ratio Electronic Shutter Gamma Correction White Balance Standard Board Lens Lens Angle (Diagonal) Video Output Power Source...
Page 3 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. American Dynamics Tyco Safety Products 6600 Congress Ave.
