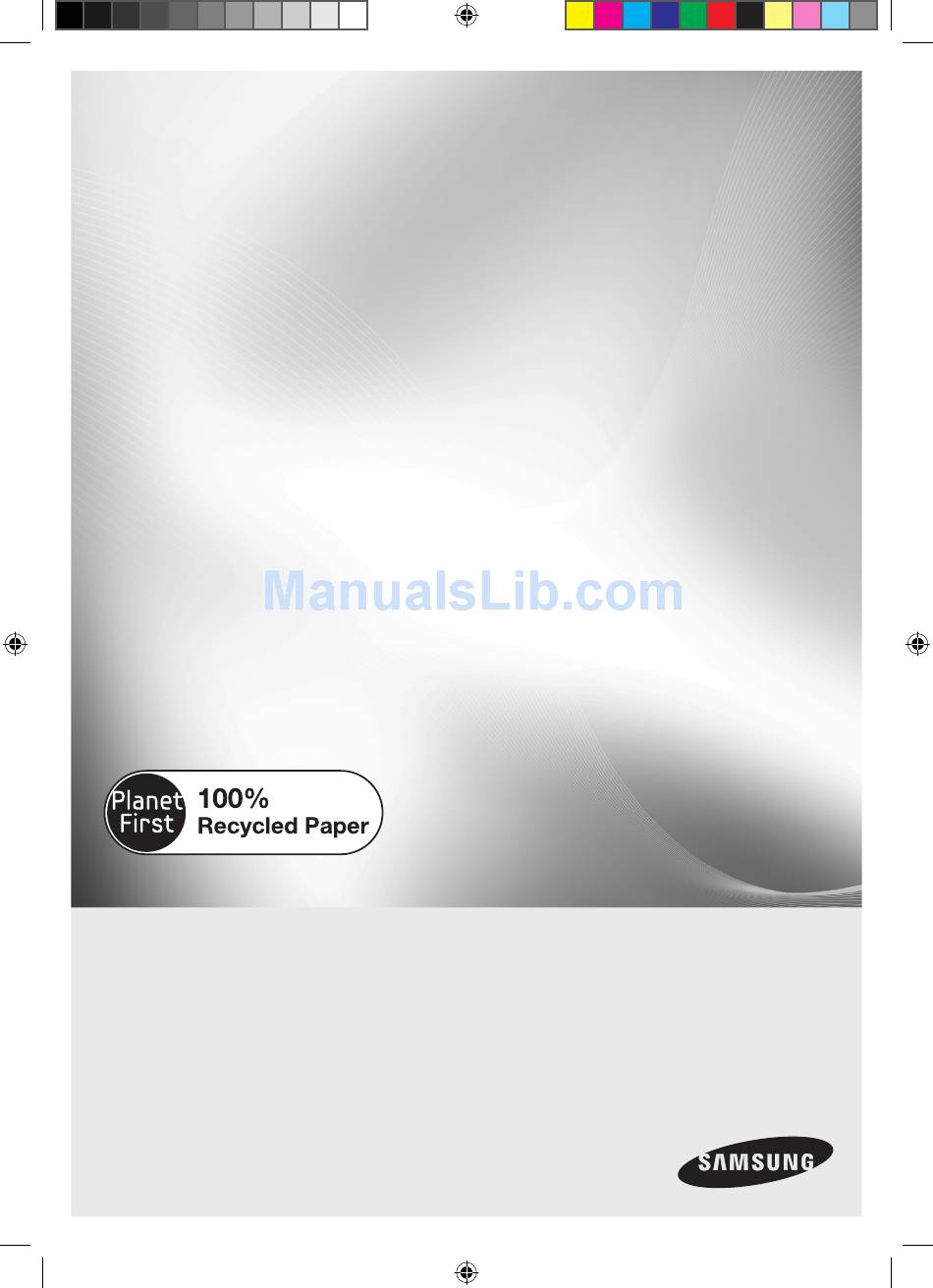

FX710BGS_FX510BGS_DG68-00356A-01.indd 1
Range

user manual

imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
1-800-SAMSUNG (726-7864)
FX710BGS
FX510BGS
ENGLISH
2011-08-19
4:25:40

Advertisement

Table of Contents
loading

Related Manuals for Samsung FX510BGS/XAA

Summary of Contents for Samsung FX510BGS/XAA

  • Page 1: User Manual

    Free-Standing Gas This manual is made with 100% recycled paper. imagine Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register 1-800-SAMSUNG (726-7864) FX710BGS_FX510BGS_DG68-00356A-01.indd 1 Range user manual the possibilities FX710BGS FX510BGS...
  • Page 2 features of your new range Enhanced convenience. Better cooking. Easy maintenance. Your new gas range has been designed to bring you these benefits and more. • Bigger is better With a capacity of 5.8 cubic feet, your new range has more space than many leading competitors in the United States and Canadian markets.

  • Page 3: Important Safety

    important safety instructions READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE All electrical and gas equipment with moving parts can be dangerous. Please read the important safety instructions for this appliance in this manual. The instructions must be followed to minimize the risk of injury, death, or property damage. Save this manual / Please Do Not Discard SAFETy SymBOLS What the icons and signs in this user manual mean:...
  • Page 4 If the instructions in this manual is not followed exactly, a fire or explosion may result, causing death, personal injury, or property damage. WARNING – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. –...
  • Page 5 ImPORTANT SAFETy PRECAUTIONS Follow basic precautions when installing and using this range to reduce the risk of fire, electrical shock, injury, or death to persons, including: WARNING installation and service This range must be properly located and installed in accordance with the installation instructions before it is used.
  • Page 6 Danger to children Do not store any object of interest to children on the cooktop or backguard of the range. Children climbing on the range to reach items could be killed or seriously injured. The inner rack of the Split Rack can be dropped if it is not assembled properly. Place the Inner rack in the proper place on the Outer rack.
  • Page 7 Never use your range for any purposes but cooking. Doing so could result in carbon monoxide poisoning and/or overheating of the oven. Loose-fitting or hanging garments should not be worn while using this appliance. DO NOT STORE OR USE combustible materials, gasoline, or other flammable vapors or liquids in the vicinity of this appliance.
  • Page 8 surface Burner Warnings – The burner spreader can be blocked by food or dust. Clean the spreader if it appears blocked. If you clean the spreader with water, assemble it only after it is completely dry. If the spreader is wet, it might prevent the burners from igniting.
  • Page 9 GAS WARNINGS If the instructions in this manual are not followed exactly, a fire or explosion may result, causing death, personal injury, or property damage. WARNING 1. Close the valve and do not use the range. 2. DO NOT light a match, candle, or cigarette. 3.
  • Page 10 CALIFORNIA SAFE DRINKING WATER AND TOxIC ENFORCEmENT ACT The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.
  • Page 11 ELECTRICAL WARNINGS WARNING Comply with the following electrical instructions and requirements to avoid death, personal injury from electric shock, and/or property damage from fire: 1. Plug into a grounded 3-prong outlet. 2. DO NOT remove ground prong. 3. DO NOT use an adapter. 4.

  • Page 12: Grounding Instructions

    GROUNDING INSTRUCTIONS Grounding a range with a cord connection: This appliance must be Earth grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path for the electric current. This appliance is equipped with a cord having a grounding plug.
  • Page 13 Locate the range out of kitchen traffic paths and drafty locations to prevent poor air circulation. This appliance should be positioned so that the power plug is easily accessible. Do not install in an area exposed to dripping water or outside weather conditions.
  • Page 14 SURFACE BURNER WARNINGS Follow basic precautions when installing and using this range to reduce the risk of fire, electrical shock, injury, or death to persons, including. WARNING Use proper pan sizes. Avoid pans that are unstable or warped. Select cookware having flat bottoms large enough to cover the burner grates. To avoid spillovers, make sure cookware is large enough to contain your food.
  • Page 15 Always heat frying oils slowly, and watch as they heat. If you are frying foods at high heat, carefully watch during the cooking process. If a combination of fats or oils are to be used during frying, they need to be stirred together before heating.
  • Page 16 OvEN WARNINGS NEVER cover any holes or passages in the bottom oven cover. NEVER cover an entire oven rack with aluminum foil or like material. Covering the bottom WARNING cover and/or racks blocks airflow through the oven and could cause carbon monoxide poisoning.

  • Page 17: Electric Warming Drawer

    ELECTRIC WARmING DRAWER OR LOWER STORAGE DRAWER WARNINGS The warming drawer is designed to keep hot cooked foods at a serving temperature. Always start with hot food. Cold or room-temperature foods cannot be heated, warmed, or cooked in the warming drawer. Do not touch the interior drawer surface or heating element.
  • Page 18 SELF-CLEANING OvEN WARNINGS Follow basic precautions when installing and using this range to reduce the risk of fire, electrical shock, injury, or death to persons, including: WARNING Do not leave children unattended near the range during a self-cleaning cycle. The outside surfaces of the range get hot enough to burn if touched. Stand away from the range when opening the oven door after a self-cleaning cycle.

  • Page 19: Table Of Contents

    contents INTRODUCING yOUR NEW SURFACE COOKING OPERATING THE OvEN USING THE WARmING DRAWER mAINTAINING yOUR APPLIANCE TROUBLESHOOTING FX710BGS_FX510BGS_DG68-00356A-01.indd 19 Overview RANGE Lighting a gas surface burner Manually lighting a gas surface burner Flame size selection Gas surface burners and control knobs Cookware usage Center burner grate Oven control panels and displays...

  • Page 20: Introducing Your New

    introducing your new range oVerVieW moDeL fX710BGs cooKtop components Heavy duty, continuous cast grates - Left burner grate - Center burner grate - Right burner grate note: the left and right grates can be used interchangeably. cooktop burner caps cooktop burners cooktop burner heads (5) Cooktop burner cups (5) (not shown under burners) electrodes (5) (not shown under burners) cooktop burner control knobs (5)
  • Page 21 moDeL fX510BGs cooKtop components Heavy-duty continuous cast grates - Left burner grate - Center burner grate - Right burner grate cooktop burner caps cooktop burners cooktop burner heads (5) Cooktop burner cups (5) (not shown under burners) electrodes (5) (not shown under burners) cooktop burner control knobs (5) - Left-front burner control - Left-rear burner control - Center burner control - Right-rear burner control - Right-front burner control...

  • Page 22: Surface Cooking

    surface cooking BEFORE USING THE SURFACE BURNERS, make sure to follow all the safety warnings and precautions listed on page 8. Failure to do so could result in product WARNING damage, personal injury, and/or death. LiGHtinG A GAs surfAce Burner Make sure all surface burners are positioned and assembled properly.

  • Page 23: Gas Surface Burners And Control Knobs

    GAS SURFACE BURNERS AND CONTROL KNOBS Your gas range cooktop has five gas burners. All sealed cooktop burners are of an open-port design to provide you easy assembly and accurate and dependable operation. The different burner sizes ensure you have the proper heat source for the desired cooking job.

  • Page 24: Cookware Usage

    Only use cookware where it is designated to be used. center Burner GrAte Samsung gas ranges come with a center burner grate. This grate fits over the center oval burner. The center burner grate should not be used over any other burners and no other center stovetop grates should be used with this range.

  • Page 25: Operating The Oven

    operating the oven oVen controL pAneLs AnD DispLAys moDeL fX710BGs moDeL fX510BGs All oven operations are controlled with electronic touch pads. Use the following pads to program and operate all oven cooking, cleaning, and timing functions. All programmed settings and cooking status will show on the digital display. FX710BGS_FX510BGS_DG68-00356A-01.indd 25 operating the oven _25 2011-08-19...
  • Page 26 special feature, oven, and time controls EASy COOK CONvECTION BAKE CONvECTION ROAST BAKE BROIL START/SET CLEAR/OFF HOLD 3 SEC NUmBER PADS WARm SELF CLEAN CUSTOm COOK WARmING DRAWER (mODEL Fx710BGS) CONv.CONvERT 26_ operating the oven FX710BGS_FX510BGS_DG68-00356A-01.indd 26 Press to recall the Easy cook recipe setting of the upper oven.
  • Page 27 COOKING TImE TImER ON/OFF DELAy START CLOCK OvEN LIGHT minimum AnD mAXimum settinGs All the features listed in the following chart have minimum and maximum temperature or time settings. FEATURE BAKe BroiL seLf-cLeAn conVection BAKe conVection roAst WArm WArminG DrAWer * PROOF * Model FX710BGS only. FX710BGS_FX510BGS_DG68-00356A-01.indd 27 Touch this pad, and then the desired amount of time you want your food to cook.

  • Page 28: Setting The Clock

    settinG tHe cLocK The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The clock can be displayed to show a 12-hour or 24-hour operation. The 12-hour display is the default setting. The time of day cannot be changed during a timed cooking, a delay start, a self-clean, or a Sabbath function operation.

  • Page 29: Setting The Timer On/Off

    settinG tHe timer on/off The kitchen timer serves as an extra timer that beeps when the set time has elapsed. It does not start or stop cooking functions. The feature can be used during any of the other oven functions. The timer can be set for any amount of time between 1 minute and 9 hours and 99 minutes.

  • Page 30: Positioning The Oven Racks

    positioninG tHe oVen rAcKs The oven racks are removable and can be positioned in any of the seven oven rack positions. Each oven rack has a built-in stop to prevent it from accidentally being pulled completely out. Proper positioning of the oven racks will provide the best cooking results. The diagram to the right • Do not cover an oven rack with aluminum foil.

  • Page 31: Oven Vent

    to remove an oven rack: 1. Pull the rack straight out until it stops. 2. Lift the front of the oven rack and pull to remove it from the oven. to replace an oven rack: 1. Place back edge of rack on the desired rack supports. 2. Lift front of rack and slide it into the oven. oVen Vent The oven vent is located under the oven control panel.

  • Page 32: Baking

    BAKinG The Bake function lets you program the oven to bake at any temperature between 150°F (66°C) and 550°F (288°C). How to set the oven temperature 1. Position the oven rack in the desired location. 2. Press the BAKE pad. The oven will beep every time a pad is pressed.
  • Page 33 if your baking results are not what you are used to, the preset oven baking temperature can be adjusted ±30°f (±17°c) as follows: 1. Press and hold the BAKE and 0 pads for 3 seconds. The display will show AdJ and 0. 2. Press the BAKE pad to toggle between + or – temperature adjustments. 3. Press the number pads for the desired temperature adjustment (1, 0).

  • Page 34: Convection Baking And Roasting

    conVection BAKinG AnD roAstinG The Convection Bake function lets you program the oven to bake at any temperature between 175°F (79°C) and 550°F (288°C). The Convection Roast function lets you program the oven to roast at any temperature between 175°F (79°C) and 550°F (288°C). Three convection fans in the back of the oven cavity circulate the hot air evenly throughout the oven cavity.
  • Page 35 How to set the oven for convection baking or roasting 1. Position the oven rack in the desired location. 2. Press the CONvECTION BAKE or CONvECTION ROAST pad. The oven will beep every time a pad is pressed. The default temperature, 150°, will blink on the display. If the default temperature is the desired cooking temperature, skip to step 4.

  • Page 36: Recommended Convection Roasting Guide

    recommended convection roasting guide The size, weight, thickness, roasting temperature setting, and your preference of doneness will affect the roasting time. The following guide is based on foods starting at refrigerator temperature. Food Rib Roast (3 to 5 lb) Beef Tenderloin Roast (2 to 3 lb) (Bone-in or Boneless) pork Chops...

  • Page 37: Timed Cooking

    timeD cooKinG The Cook Time function lets you program the oven to cook food at a set temperature for a desired length of time. At the end of the set time, the oven will automatically shut off. Use caution when using the Cook Time or Delay Start functions. These functions are best used when cooking cured or frozen meats and most fruits and vegetables.
  • Page 38 6. Press the START pad. The oven will automatically light and start preheating. The display will show a blinking •along with the default or selected temperature, Bake, and the bake element icon, until the oven reaches that temperature. When the oven reaches the desired temperature, it will beep 6 times. The oven will start cooking for the set amount of time, and the remaining cooking time will be displayed.

  • Page 39: Delay Timed Cooking

    DeLAy timeD cooKinG The Delay Start function lets you use the kitchen timer to automatically start and stop another cooking program (Bake, Convection Bake, or Convection Roast). Delay Start can be set before other cooking operations for up to 12 hours. The clock must be set to the correct time of day for Delay Start to work properly.
  • Page 40 6. Press the DELAy START pad. The display will show Delay, and --:-- will blink. 7. Press the number pads for the time you want the oven to turn on, e.g., 4, 3, 0. The Start indicator will blink under Delay and the selected start time.

  • Page 41: Broiling

    BroiLinG The Broil function allows you to cook and brown foods using only a top heat source. The oven door must remain closed during broiling. The meat or fish should always be placed on a broiling grid in a broiling pan. If a fire occurs during broiling, leave the oven door closed and turn off the oven.
  • Page 42 recommended broiling guide The size, weight, thickness, broiling temperature setting, and your preference of doneness will affect the broiling time. The following guide is based on meats and/ or fish starting at refrigerator temperature. food Quantity and/ or thickness Ground Beef Well Done 1 lb (4 patties) 0.5- to 0.75-in Beef steaks Medium...

  • Page 43: Warm

    WArm The Keep Warm function allows you to keep cooked foods warm at a low baking temperature. The Keep Warm feature keeps cooked food warm for serving up to 3 hours after cooking has finished. After 3 hours, the feature automatically shuts off the oven. How to use the warm feature 1.

  • Page 44: Using The Easy Cook Feature

    usinG tHe eAsy cooK feAture pizza This pizza function is designed to produce a crisp and browned bottom while keeping the topping moist. How to set the pizza function. 1. Press the PIZZA pad. 2. Press the START/SET pad to begin pizza cooking. • Use only 1 rack and place the rack in position 3 or 4 for the best results when using the pizza feature. • The default temperature is 400’F. You may adjust the oven temperature to fit your needs.
  • Page 45 chicken nuggets Use this function is to cook convenience style frozen chicken nuggets. How to set the chicken nuggets function. 1. Press the CHICKEN NUGGETS pad once for HI or twice for LO. Use LO to cook thick style foods. 2. Press the SET/START pad to begin chicken nuggets cooking.

  • Page 46: Custom Cooking

    custom cooKinG The Custom Cook function allows you to preprogram up to 3 different cooking functions or favorite recipe settings so they can be recalled and started at a touch of a button. You can use only Bake, Bake Convection, or Roast Convection as a Custom Cook selection. You can not use any Delay Start functions as a Custom Cook selection.
  • Page 47 How to use or recall a custom cook selection 1. Position the oven rack in the desired location. 2. Press the CUSTOm COOK pad the number of times that corresponds to where the recipe setting is stored: 1 time for recipe 1, 2 times for recipe 2, 3 times for recipe 3. The Custom Cook and Start indicators will blink under the selected Custom Cook setting for that recipe on the display.

  • Page 48: Sabbath Function

    sABBAtH function (for use on the Jewish sabbath and Holidays) The Sabbath function can only be used with the Bake and Cook Time settings. The oven will operate at the set temperature and stay on until the Sabbath function is cancelled or the set Cook Time has elapsed. When Sabbath is selected, it overrides the preset factory energy-saving features.
  • Page 49 7. Press and hold the CLOCK and TImER ON/OFF pad at the same time for 3 seconds. The display will show SAb. The oven signals, display LEDs, and all oven controls except the number, BAKE, COOK TImE, START, and CLEAR/OFF pads will be deactivated.

  • Page 50: Extra Features

    eXtrA feAtures 12-Hour/3-Hour energy-saving With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function. How to turn 12-hour energy-saving feature on or off. 1.
  • Page 51 convection Auto conversion feature When using convection bake, the convection auto conversion feature will automatically convert entered regular baking temperatures to convection baking temperatures. This feature is activated so that the display will show the actual converted (reduced) temperature. For example, if you enter a regular recipe temperature of 350°...

  • Page 52: Using The Warming Drawer

    using the warming drawer ABout tHe WArminG DrAWer (moDeL fX710BGs onLy) The Warming Drawer lets you keep hot, cooked foods warm. Always start with hot food. Do not use the warming drawer to heat or reheat cold food. Allow approximately 25 minutes for the warming drawer to preheat. Do not use plastic containers or plastic wrap in the warming drawer.

  • Page 53: Turning The Warming Drawer On Or Off

    turninG tHe WArminG DrAWer on or off 1. Press the WARmING DRAWER pad once for low warming temperature, twice for medium warming temperature, three times for high warming temperature, or four times to shut off the warming drawer. Drawer and the selected temperature light will show in the display, and the warming drawer will start to heat.

  • Page 54: Maintaining Your Appliance

    maintaining your appliance • Always make sure the controls are OFF and all surfaces are cool before removing and/or cleaning any of the range parts. This will prevent any possibility WARNING of burning. • If the range is pulled out from the wall for any reason, make sure the anti-tip device is reengaged after the range has been pushed back into place. Failure to take this precaution could result in the range tipping and personal injury. cAre AnD cLeAninG of tHe oVen The oven and surface burner control panels can be easily cleaned with a damp cloth and/or glass cleaner.
  • Page 55 3. To unlock the controls and the door, press and hold the CONTROL/DOOR LOCK pad for 3 seconds. To unlock just the controls, hold the door slightly open while pressing and holding the CONTROL/DOOR LOCK pad for 3 seconds. The oven will beep, and Loc and the Lock icon will disappear from the display.
  • Page 56 oven racks To keep racks shiny and looking like new, remove racks from oven and clean by hand in hot, soapy water with a plastic or soap-filled scouring pad. Do not leave the oven racks in the oven during a self-cleaning cycle. CAUTION The extreme heat in the self-cleaning cycle will permanently discolor the...

  • Page 57: Care And Cleaning Of The Cooktop

    cAre AnD cLeAninG of tHe cooKtop surface burner controls 1. Make sure all surface burner knobs are in the OFF position. 2. Pull the control knobs straight off the surface burner control valve stems. Do not clean the control knobs in a dishwasher. They are not dishwasher-safe. CAUTION 3.
  • Page 58 surface burner grates and assemblies 1. Turn off all controls and make sure all parts have cooled. 2. Lift off and remove the burner grates from the cooktop. Make note of the burner sizes and locations of all the surface burners. 3. Lift off burner caps from top of burner heads.
  • Page 59 Precise simmer burner(RR)cap should be set on top of the Right-rear burner. Check the cap type before placing the cap on the Precise simmer burner(RR). Dual Burner -inside (rf) 9. Replace burner grates on top of the range cooktop. 10. Push in and turn each surface burner control knob to the LITE position, then back to a burner setting to make sure they operate properly.
  • Page 60 cooktop surface The cooktop surface is a porcelain-enamel surface. To prevent this surface from becoming dull, wipe up and clean spills as they happen. Foods with a lot of acid (tomatoes, sauerkraut, fruit juices, etc.) or foods with high sugar content can cause dull spots if allowed to set.

  • Page 61: Changing The Oven Light

    cHAnGinG tHe oVen LiGHt The oven light is a standard 40-watt appliance bulb. It will automatically come on when the oven door is opened. It can also be turned on and off when the oven door is closed by pressing the OVEN LIGHT pad on the oven control panel. The oven light will not work during a self-cleaning cycle.

  • Page 62: Removing And Replacing The Oven Door

    remoVinG AnD repLAcinG tHe oVen Door • The oven door is very heavy. Do not lift by the handle and be careful not to drop the door during removal. Improper handling could result in personal injury. WARNING • Disconnect the electrical power to the range before removing the oven door. This prevents the oven from accidentally being turned on while the door is removed. to remove the door 1. Completely open the oven door. 2. Unlock the two hinge locks. Pull each hinge lock down towards the door frame to unlock them so they look like the illustration to the right.
  • Page 63 to replace the door 1. Make sure hinge arms are unlocked and in the removal position. 2. Firmly grasp both sides of the door. 3. While supporting the oven door, insert both door hinge arms into the slots in the bottom sides of the door frame.

  • Page 64: Removing And Replacing The Warming Drawer

    remoVinG AnD repLAcinG tHe WArminG DrAWer (moDeL fX710BGs) to remove and clean the warming drawer 1. Pull out the drawer until it stops. 2. Locate the locking clips near the back of each full-extension roller guide rail. Using two hands, push down on the left clip and lift up on the right clip to release the clips. Pull the drawer the rest of the way out.

  • Page 65: Removing And Replacing The Storage Drawer

    remoVinG AnD repLAcinG tHe storAGe DrAWer (moDeL fX510BGs) to remove the storage drawer 1. Pull out the drawer and remove any stored content. 2. While supporting the drawer, pull it out until the top of the drawer sides come out of the two nylon drawer guides. Then, lift to remove the drawer. 3.

  • Page 66: Self-Cleaning Oven

    seLf-cLeAninG oVen The self-cleaning oven uses high temperatures (well above cooking temperatures) to burn off left over grease and residue completely or reduce them to a finely powdered ash that can be wiped away with a damp cloth. Failure to follow these precautions could result in damage to the oven, fire, and/or personal injury.
  • Page 67 Before a self-cleaning cycle Remove the racks. Leaving the oven racks in the oven during a self-cleaning cycle will discolor the oven racks and make them difficult to slide in and out of position. • Make sure the control lockout feature is turned off and the oven is cool.
  • Page 68 How to set the oven for self-cleaning 1. Make sure the oven door is completely closed. 2. Press the SELF CLEAN pad on the oven control panel. Press the pad once for a 2-hour cleaning cycle, twice for a 3-hour cleaning cycle, or three times for a 4-hour cleaning cycle.
  • Page 69 How to delay the start of self-cleaning 1. Make sure the oven door is completely closed. 2. Press the SELF CLEAN pad on the oven control panel. Press the pad once for a 2-hour cleaning cycle, twice for a 3-hour cleaning cycle, or three times for a 4-hour cleaning cycle.
  • Page 70 How to cancel self-cleaning You may find it necessary to stop or interrupt the self-cleaning cycle due to excessive smoke or fire in the oven. • Press the CLEAR/OFF pad. The oven will turn off. The Lock icon will blink under the current time of day on the display. When the oven temperature falls below 350°F (177°C), the oven door unlocks and the Lock icon turns off.

  • Page 71: Troubleshooting

    Samsung works hard to ensure that you don’t have problems with your new gas range. If you experience a problem, look first for a solution in the table below. If, after trying the suggested solution, you’re still having trouble, call Samsung at 1-800-SAMSUNG (1- 800-726-7864). PROBLEm you smell gas. the range is not level. the oven control beeps and displays an error code. All burners do not light. FX710BGS_FX510BGS_DG68-00356A-01.indd 71 POSSIBLE CAUSE There is a gas leak. The surface burner knob is not in the ‘off’ position, yet the burner...
  • Page 72 surface burners do not light. surface burner clicks during operation. the burners do not burn evenly. Very large or yellow surface burner flames. surface burners light but oven burners do not light. Display goes blank. Very large or yellow oven burner flames. food does not bake or roast properly in the oven. 72_ troubleshooting FX710BGS_FX510BGS_DG68-00356A-01.indd 72 The control knob is not set properly. Burner caps not in place Burner base misaligned The control knob has been left in the LITE position.
  • Page 73 food does not broil properly in the oven. oven temperature is too hot or cold. oven burner will not shut off. oven light will not turn oven smokes excessively during broiling. FX710BGS_FX510BGS_DG68-00356A-01.indd 73 Oven controls not set properly. Oven door was not closed during broiling. The rack has not been properly positioned. Oven thermostat needs adjustment. The oven control lockout is turned on.
  • Page 74 oven will not self-clean. crackling or popping sound. excessive smoking during a self-cleaning cycle. oven door will not open after a self-cleaning cycle. oven not clean after a self-cleaning cycle. 74_ troubleshooting FX710BGS_FX510BGS_DG68-00356A-01.indd 74 The oven control lockout is turned on. The warming drawer is being used. The oven is too hot. The self-cleaning oven controls are not properly set. This is normal.
  • Page 75 steam or smoke coming from under the control panel. Burning or oily odor emitting from the vent. strong odor. oven racks are difficult to slide. fan noise (model fX710BGs). convection fan is not working (model fX710BGs). Warming drawer will not work (model fX710BGs). Warming drawer doesn’t keep food warm or dries out food (model fX710BGs). excessive condensation in the warming drawer (model fX710BGs). FX710BGS_FX510BGS_DG68-00356A-01.indd 75 This is normal. This is normal for a new oven and will disappear within 1/2 hour of the first bake cycle.

  • Page 76: Troubleshooting And Information Codes

    Oven heating error. Oven overheating. Door locking error. For any codes not listed above, or if the suggested solution does not fix the problem, call 1-800-SAMSUNG (1-800-726-7864). 76_ troubleshooting FX710BGS_FX510BGS_DG68-00356A-01.indd 76 The drawer is not properly aligned with the full-extension roller guide rails or nylon drawer guides.
  • Page 77 SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
  • Page 78 1-800-sAmsunG (726-7864) and www.samsung.com samsung electronics canada inc., customer service 55 standish court mississauga, ontario L5r 4B2 canada 1-800-sAmsunG (726-7864) and www.samsung.com/ca reGistrAtion Please register your product online at www.samsung.com/register. Questions For questions about features, operation/performance, parts, accessories, or service, call 1-800-726-7864, or visit our Web site at www.samsung.com, www.samsung.com/ca. model #____________________ serial #____________________ please attach your receipt (or a copy) to this manual. you may need it, along with your model and serial number, when calling for assistance. FX710BGS_FX510BGS_DG68-00356A-01.indd 78 2011-08-19...
