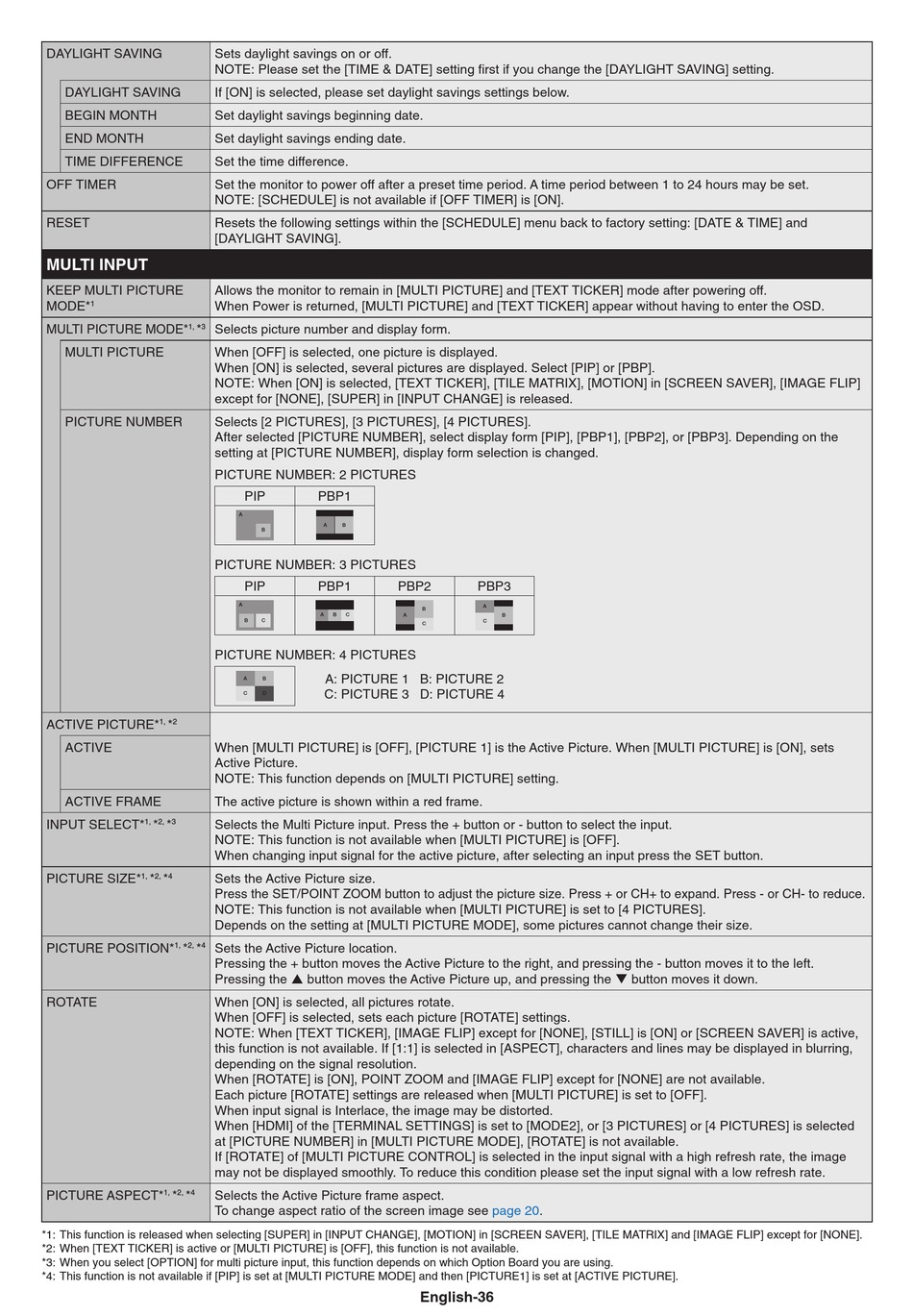

DAYLIGHT SAVING
DAYLIGHT SAVING
BEGIN MONTH
END MONTH
TIME DIFFERENCE
OFF TIMER
RESET
MULTI INPUT
KEEP MULTI PICTURE
MODE*
1
MULTI PICTURE MODE*
1,
*
3
MULTI PICTURE
PICTURE NUMBER
ACTIVE PICTURE*
1,
*
2
ACTIVE
ACTIVE FRAME
INPUT SELECT*
*
*
1,
2,
3
PICTURE SIZE*
*
*
1,
2,
4
PICTURE POSITION*
*
*
1,
2,
4
ROTATE
PICTURE ASPECT*
*
*
1,
2,
4
*1: This function is released when selecting [SUPER] in [INPUT CHANGE], [MOTION] in [SCREEN SAVER], [TILE MATRIX] and [IMAGE FLIP] except for [NONE].
*2: When [TEXT TICKER] is active or [MULTI PICTURE] is [OFF], this function is not available.
*3: When you select [OPTION] for multi picture input, this function depends on which Option Board you are using.
*4: This function is not available if [PIP] is set at [MULTI PICTURE MODE] and then [PICTURE1] is set at [ACTIVE PICTURE].
Sets daylight savings on or off.
NOTE: Please set the [TIME & DATE] setting first if you change the [DAYLIGHT SAVING] setting.
If [ON] is selected, please set daylight savings settings below.
Set daylight savings beginning date.
Set daylight savings ending date.
Set the time difference.
Set the monitor to power off after a preset time period. A time period between 1 to 24 hours may be set.
NOTE: [SCHEDULE] is not available if [OFF TIMER] is [ON].
Resets the following settings within the [SCHEDULE] menu back to factory setting: [DATE & TIME] and
[DAYLIGHT SAVING].
Allows the monitor to remain in [MULTI PICTURE] and [TEXT TICKER] mode after powering off.
When Power is returned, [MULTI PICTURE] and [TEXT TICKER] appear without having to enter the OSD.
Selects picture number and display form.
When [OFF] is selected, one picture is displayed.
When [ON] is selected, several pictures are displayed. Select [PIP] or [PBP].
NOTE: When [ON] is selected, [TEXT TICKER], [TILE MATRIX], [MOTION] in [SCREEN SAVER], [IMAGE FLIP]
except for [NONE], [SUPER] in [INPUT CHANGE] is released.
Selects [2 PICTURES], [3 PICTURES], [4 PICTURES].
After selected [PICTURE NUMBER], select display form [PIP], [PBP1], [PBP2], or [PBP3]. Depending on the
setting at [PICTURE NUMBER], display form selection is changed.
PICTURE NUMBER: 2 PICTURES
PIP
PBP1
A
A
B
B
PICTURE NUMBER: 3 PICTURES
PIP
PBP1
A
A
B
C
B
C
PICTURE NUMBER: 4 PICTURES
A: PICTURE 1 B: PICTURE 2
A
B
C: PICTURE 3 D: PICTURE 4
C
D
When [MULTI PICTURE] is [OFF], [PICTURE 1] is the Active Picture. When [MULTI PICTURE] is [ON], sets
Active Picture.
NOTE: This function depends on [MULTI PICTURE] setting.
The active picture is shown within a red frame.
Selects the Multi Picture input. Press the + button or - button to select the input.
NOTE: This function is not available when [MULTI PICTURE] is [OFF].
When changing input signal for the active picture, after selecting an input press the SET button.
Sets the Active Picture size.
Press the SET/POINT ZOOM button to adjust the picture size. Press + or CH+ to expand. Press - or CH- to reduce.
NOTE: This function is not available when [MULTI PICTURE] is set to [4 PICTURES].
Depends on the setting at [MULTI PICTURE MODE], some pictures cannot change their size.
Sets the Active Picture location.
Pressing the + button moves the Active Picture to the right, and pressing the - button moves it to the left.
Pressing the p button moves the Active Picture up, and pressing the q button moves it down.
When [ON] is selected, all pictures rotate.
When [OFF] is selected, sets each picture [ROTATE] settings.
NOTE: When [TEXT TICKER], [IMAGE FLIP] except for [NONE], [STILL] is [ON] or [SCREEN SAVER] is active,
this function is not available. If [1:1] is selected in [ASPECT], characters and lines may be displayed in blurring,
depending on the signal resolution.
When [ROTATE] is [ON], POINT ZOOM and [IMAGE FLIP] except for [NONE] are not available.
Each picture [ROTATE] settings are released when [MULTI PICTURE] is set to [OFF].
When input signal is Interlace, the image may be distorted.
When [HDMI] of the [TERMINAL SETTINGS] is set to [MODE2], or [3 PICTURES] or [4 PICTURES] is selected
at [PICTURE NUMBER] in [MULTI PICTURE MODE], [ROTATE] is not available.
If [ROTATE] of [MULTI PICTURE CONTROL] is selected in the input signal with a high refresh rate, the image
may not be displayed smoothly. To reduce this condition please set the input signal with a low refresh rate.
Selects the Active Picture frame aspect.
To change aspect ratio of the screen image see
PBP2
PBP3
A
B
A
B
C
C
page
20.
English-36
