Power Indicator

LED indicator
status and Condition
lighting pattern
Glowing blue Normal
Blinking green* Under any of the conditions
1
below, no input signal has been
detected by the monitor during
the period of time you set:
• The monitor is using an
Option Board.
• [INPUT DETECT] is set to a
setting except for [NONE].
• [USB POWER] is set to [ON].
• [DisplayPort] in the
[TERMINAL SETTINGS] is set
to [MST].
Glowing amber No AV signal input has been
detected by the monitor during
the period of time you set.
(with network signal input)
Blinking amber No AV signal input has been
detected by the monitor during
the period of time you set.
(no network signal input)
Glowing red Turn off the monitor by the
remote control or the monitor
button.
*1: Time setting for [AUTO POWER SAVE] is available at [POWER SAVE]
(See page 40).
NOTE: If the indicator is blinking red in a combination
of long and short, a certain failure might have
occurred, please contact your supplier.

Using Power Management

This monitor follows the VESA approved DPM (Display
Power Management) function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the monitor when the keyboard or the mouse has not been
used for a fixed period.
This allows your monitor to enter a Power Management
mode if the monitor's [POWER SAVE] function is set to
[ENABLE], and a certain amount of time has passed since
the monitor recognized "no signal input". It will increase the
life and decrease the power consumption of the monitor.
NOTE: Depending on the computer and display card
used, this function may not operate.
After the video signal was lost, the monitor
automatically goes into OFF at a preset time
period.

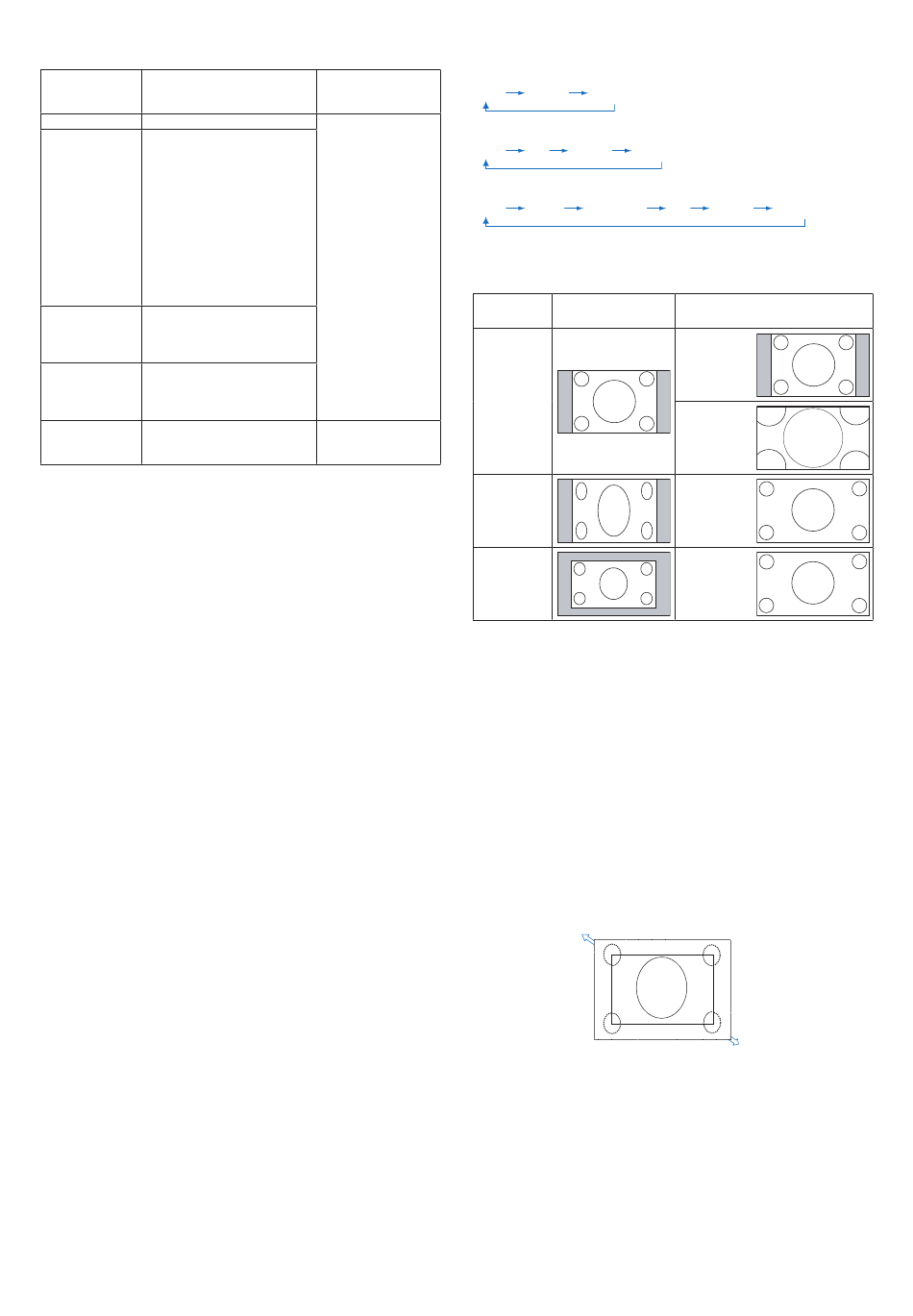

Aspect

For [MP] (Media Player)
Recovery
FULL
For [DisplayPort1], [DisplayPort2], [OPTION]*
FULL
For [HDMI1], [HDMI2], [HDMI3]
FULL
1. Turn on the monitor
by the remote
control or the
*1: This function depends on which Option Board you are using.
monitor button.
2. Send an AV signal
Aspect ratio
input to the monitor.
of image
Turn on the monitor by
the remote control or
the monitor button.
Squeeze
Letterbox
NORMAL: Reproduces the aspect ratio that is sent from the
source.
FULL: Fills the entire screen.
WIDE: Expands a 16:9 letterbox signal to fill the entire
screen.
DYNAMIC: Expands a 4:3 pictures to fill the entire screen
with non-linearity. Some of the outside image area will be cut
off due to expansion.
1:1: Shows the image in a 1 by 1 pixel format.
ZOOM
The image can be expanded beyond the active screen area.
The parts of the image outside the active screen area are not
shown.
English-20
ZOOM NORMAL
1:1 ZOOM NORMAL
WIDE DYNAMIC 1:1
Unchanged view* 3
4:3
* Grey areas indicate unused portions of the screen.
3
ZOOM
1
ZOOM NORMAL
Recommended selection
for picture aspect*
3
NORMAL
DYNAMIC
FULL
WIDE
ZOOM
