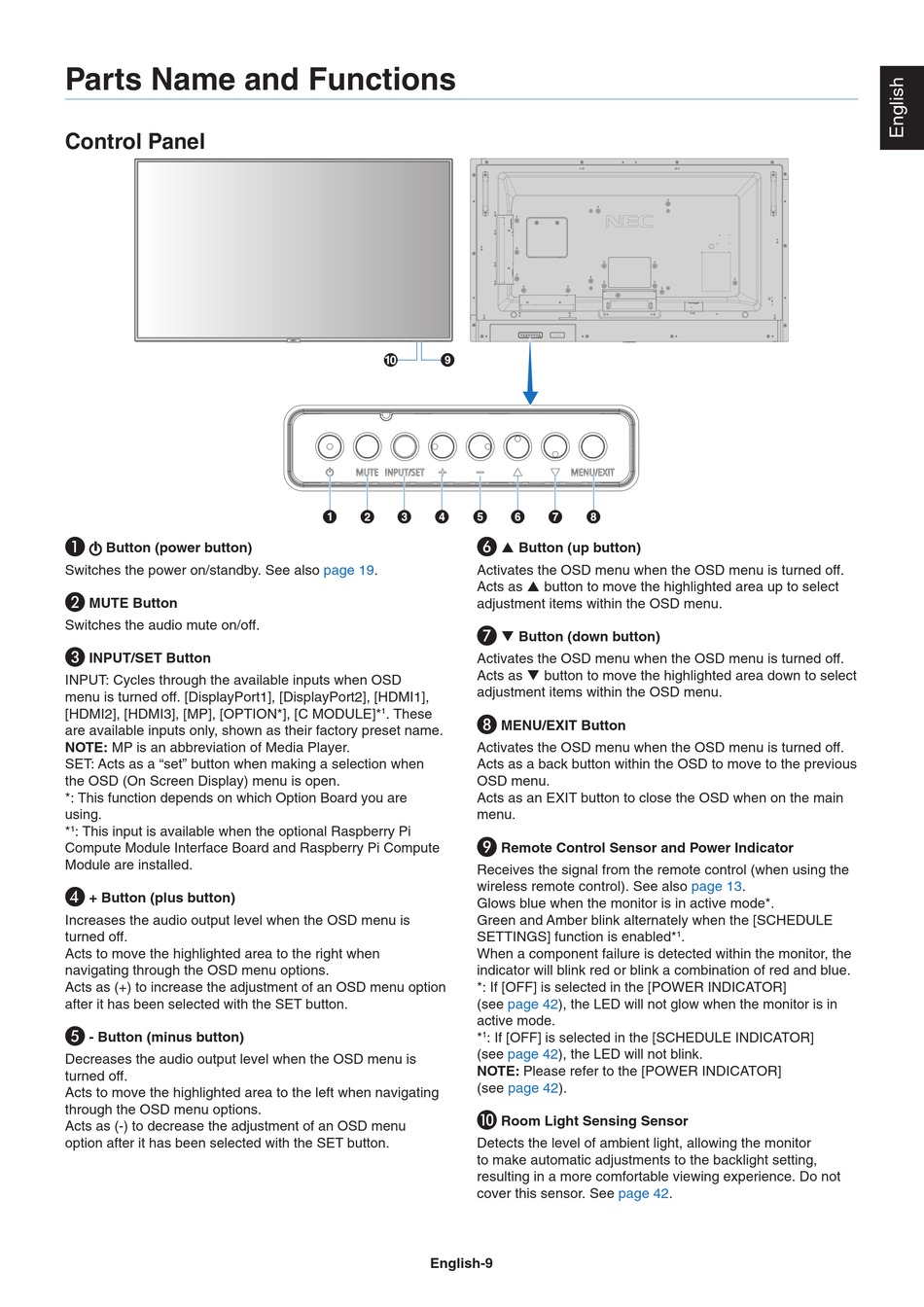

Parts Name and Functions
Control Panel
A
Button (power button)
Switches the power on/standby. See also
B
MUTE Button
Switches the audio mute on/off.
C
INPUT/SET Button
INPUT: Cycles through the available inputs when OSD
menu is turned off. [DisplayPort1], [DisplayPort2], [HDMI1],
[HDMI2], [HDMI3], [MP], [OPTION*], [C MODULE]*
are available inputs only, shown as their factory preset name.
NOTE: MP is an abbreviation of Media Player.
SET: Acts as a "set" button when making a selection when
the OSD (On Screen Display) menu is open.
*: This function depends on which Option Board you are
using.
*
: This input is available when the optional Raspberry Pi
1
Compute Module Interface Board and Raspberry Pi Compute
Module are installed.
D
+ Button (plus button)
Increases the audio output level when the OSD menu is
turned off.
Acts to move the highlighted area to the right when
navigating through the OSD menu options.
Acts as (+) to increase the adjustment of an OSD menu option
after it has been selected with the SET button.
E
- Button (minus button)
Decreases the audio output level when the OSD menu is
turned off.
Acts to move the highlighted area to the left when navigating
through the OSD menu options.
Acts as (-) to decrease the adjustment of an OSD menu
option after it has been selected with the SET button.
F
page
19.
Activates the OSD menu when the OSD menu is turned off.
Acts as p button to move the highlighted area up to select
adjustment items within the OSD menu.
G
Activates the OSD menu when the OSD menu is turned off.
Acts as q button to move the highlighted area down to select
adjustment items within the OSD menu.
. These
1
H
Activates the OSD menu when the OSD menu is turned off.
Acts as a back button within the OSD to move to the previous
OSD menu.
Acts as an EXIT button to close the OSD when on the main
menu.
I
Receives the signal from the remote control (when using the
wireless remote control). See also
Glows blue when the monitor is in active mode*.
Green and Amber blink alternately when the [SCHEDULE
SETTINGS] function is enabled*
When a component failure is detected within the monitor, the
indicator will blink red or blink a combination of red and blue.
*: If [OFF] is selected in the [POWER INDICATOR]
(see
active mode.
*
: If [OFF] is selected in the [SCHEDULE INDICATOR]
1
(see
NOTE: Please refer to the [POWER INDICATOR]
(see
J
Detects the level of ambient light, allowing the monitor
to make automatic adjustments to the backlight setting,
resulting in a more comfortable viewing experience. Do not
cover this sensor. See
English-9
p Button (up button)
q Button (down button)
MENU/EXIT Button
Remote Control Sensor and Power Indicator
page
42), the LED will not glow when the monitor is in
page
42), the LED will not blink.
page
42).
Room Light Sensing Sensor
page
42.
page
13.
.
