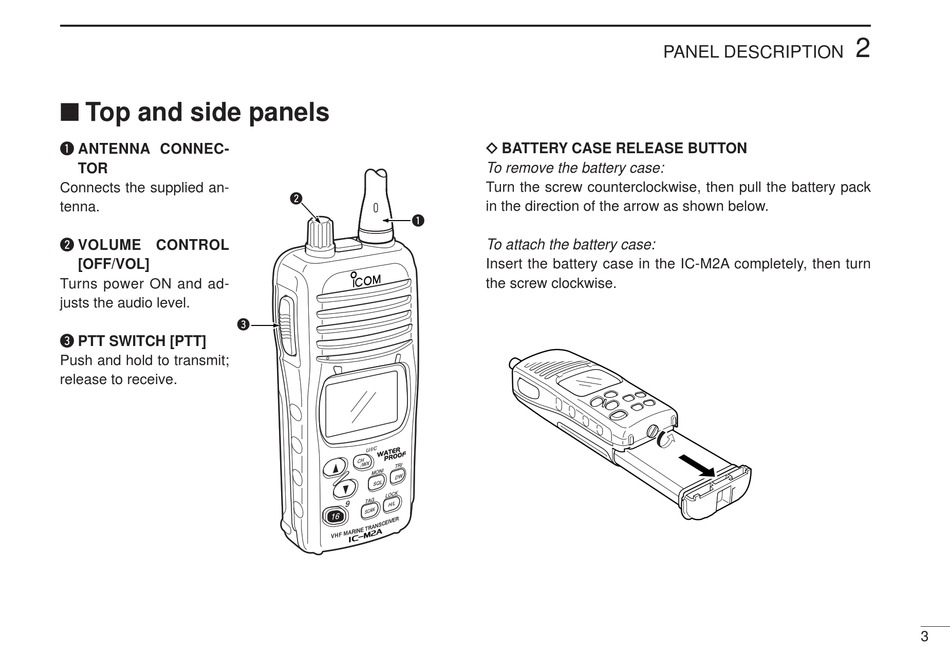

Top and side panels

q ANTENNA CONNEC-
TOR
Connects the supplied an-
tenna.
w VOLUME CONTROL
[OFF/VOL]
Turns power ON and ad-
justs the audio level.
e
e PTT SWITCH [PTT]
Push and hold to transmit;
release to receive.
w
q
PANEL DESCRIPTION
ï BATTERY CASE RELEASE BUTTON
To remove the battery case:
Turn the screw counterclockwise, then pull the battery pack
in the direction of the arrow as shown below.
To attach the battery case:
Insert the battery case in the IC-M2A completely, then turn
the screw clockwise.
