Summary of Contents for Midland GB1
- Page 1 ” User manual P M R 446 T R A N S C E I V E R |...
-
Page 3: Table Of Contents

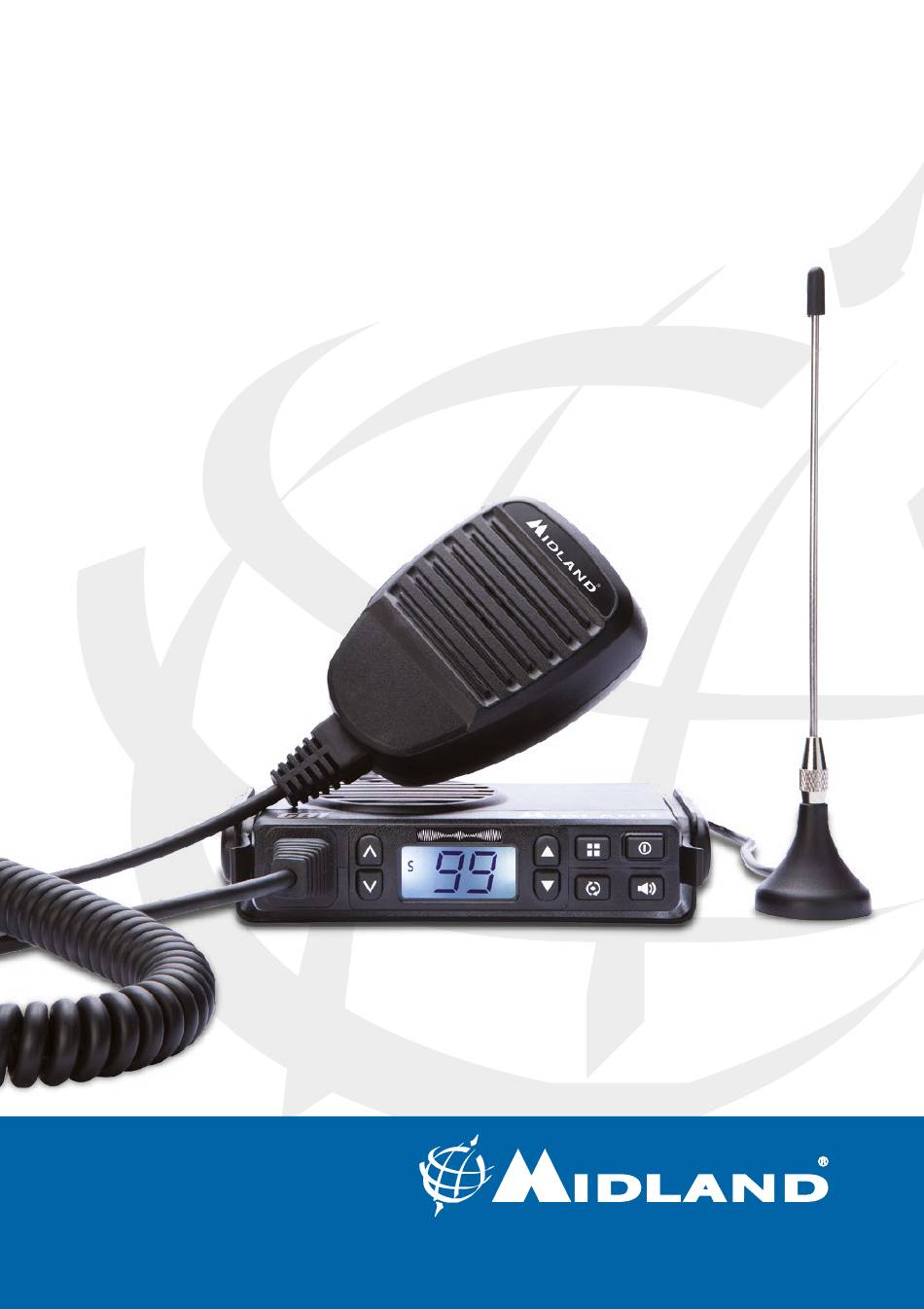

Content of the packaging Coverage/range Warnings Main features Programming software (optional) Description of the controls Display Radio (Front side) Rear side Microphone Functions Turning on/off Channel selection Transmission and reception ‘FLIP’ function Monitor Reset Technical specifications RTTE GB1 instruction guide... - Page 4 MIDLAND GB1 is an extremely compact PMR446 mobile transceiver desi- gned for mounting in modern vehicles with limited space. GB1 is free use in almost all European countries. GB1 instruction guide...
-
Page 5: Content Of The Packaging
Content of the packaging • MIDLAND GB1 transceiver • Mounting bracket • Antenna with cable • Microphone • Microphone holder • Screws • Cigarette lighter power cable Coverage/range The maximum range depends on terrain condition and is obtained du- ring use in an open space. -
Page 6: Main Features
• SCAN function Programming software (optional) Thanks to the programming software PRG-GB1, it is possible to increase the performance of your radio or to reduce its functionality by disabling some of the default features (CTCSS, TOT...). For further information, please consult the Programming software ma- nual. -
Page 7: Description Of The Controls
To enable/disable some channels to the scan list, see para- graph “Scan”. Keypad lock; only / buttons are active. These digits show the selected channel; This icon appears when the radio receives a signal or when it’s transmitting; Transmission mode. GB1 instruction guide... -
Page 8: Radio (Front Side)
4 seconds if the signal disappears. LCD display RJ mike connector: connect the microphone or the optional pro- gramming cable to this jack. GB1 instruction guide... -
Page 9: Rear Side
Rear side Power supply connector Antenna cable EXT SPK jack: you can connect an external speaker to this jack (3.5mm). In this case the internal speaker is automatically excluded. Microphone PTT: press to transmit GB1 instruction guide... -
Page 10: Functions
To activate this function, keep pressed ▼ while turning on the radio: the LCD display will flip by 180°. Hold down ▲ while turning on the radio to restore to normal position. GB1 instruction guide... -
Page 11: Monitor
This function allows to temporarily open the squelch so as to listen to signals that are too weak to be received. Briefly press to open the squelch. This key also excludes the CTCSS and DCS tones programmed on that channel. GB1 instruction guide... - Page 12 Scan key for 2 seconds. icon will disappear from the display. To add again the channel to the scan list, hold down the Scan key for 2 seconds; the display will show again the icon. 10 | GB1 instruction guide...
- Page 13 146.2 179.9 218.1 77.0 107.2 151.4 183.5 225.7 79.7 110.9 156.7 186.2 229.1 82.5 114.8 159.8 189.9 233.6 85.4 118.8 162.2 192.8 241.8 88.5 123.0 165.5 196.6 250.3 91.5 127.3 167.9 199.5 254.1 DCS CODES GB1 instruction guide | 11...
-
Page 14: Reset
Reset With this function all settings will return to the default settings. Keep pressed and turn on the radio; release the button after you hear the beep tones. 12 | GB1 instruction guide... -
Page 15: Technical Specifications
<0.5μV@20 dB SINAD Audio distortion ≤3% Audio response 300Hz ÷ 3KHz Adjacent channel selectivity Within European legal terms Intermodulation rejection Within European legal terms Spurious response Within European legal terms Blocking Within European legal terms GB1 instruction guide | 13... - Page 16 Specifications are subject to change without notice. A readily accessible disconnect device shall be incorporated in the instal- lation wiring. The disconnect device shall disconnect both poles simulta- neously. 14 | GB1 instruction guide...
- Page 17 Here, the various materials will be divided by characteristics and recycles, thus making an important contribution to environmental protection. GB1 instruction guide | 15...
- Page 18 τη συσκευασία ή το εγχειρίδιο χρήσης τους, δεν πρέπει να εναποθέτονται στους κοινούς κάδους απορριμάτων αλλά να προσκομίζονται στα ειδικά κέντρα αποκομιδής. Εκεί, τα διάφορα υλικά θα πρέπει να διαχωρίζονται ανάλογα με τα χαρακτηριστικά και τα ανακυκλούμενα υκλικά, συμμετέχοντας έτσι ουσιαστικά στην προστασία του περιβάλλοντος. 16 | GB1 instruction guide...
-
Page 19: Rtte
1999/5/EG. De verklaring van conformiteit is beschikbaar op de website www.midlandeurope.com CTE INTERNATIONAL Srl verklaart dat het product overeenstemt met de voorschriften en andere bepalingen van de richtlijn 1999/5 EC. GB1 instruction guide | 17... - Page 20 Propisa 1999/5/EC. Ova Izjava o suglasnosti je dostupna na web stranici www.midlandeurope.com. Käesolevaga kinnitab International selle mudeli vastavust direktiivi 1999/5/EC olulistele nõuetele ja teistele asjakohastele sätetele. Vastavusdeklaratsioon on kättesaadav veebilehel www.midlandeurope.com CTE International patvirtina, kad šis modelis atitinka visus esminius 18 | GB1 instruction guide...
- Page 21 1999/5 / ES. Prohlášení o shodě je k dispozici na webových stránkách www.midlandeurope.com Mi, a CTE International Srl. saját felelősségre kijelentjük, hogy ezen elnevezésű termék megfelel az 1999/5/EC alapvető követelményeinek és egyéb releváns előírásoknak. A megfelelőségi nyilatkozat elérhető weboldalunkon a www.midlandeurope.com címen. GB1 instruction guide | 19...
- Page 22 C/Cobalt, 48 - 08940 Cornellà de Llobregat (Barcelona - España) Tel: +34 902 384878 Fax: +34 933 779155 www.midland.es El uso de este equipo puede estar sujeto a la obtención de la correspondiente autoriza- ción administrativa. Lea atentamente las instrucciones antes de usar el equipo.
