Summary of Contents for Midland G8E-BT

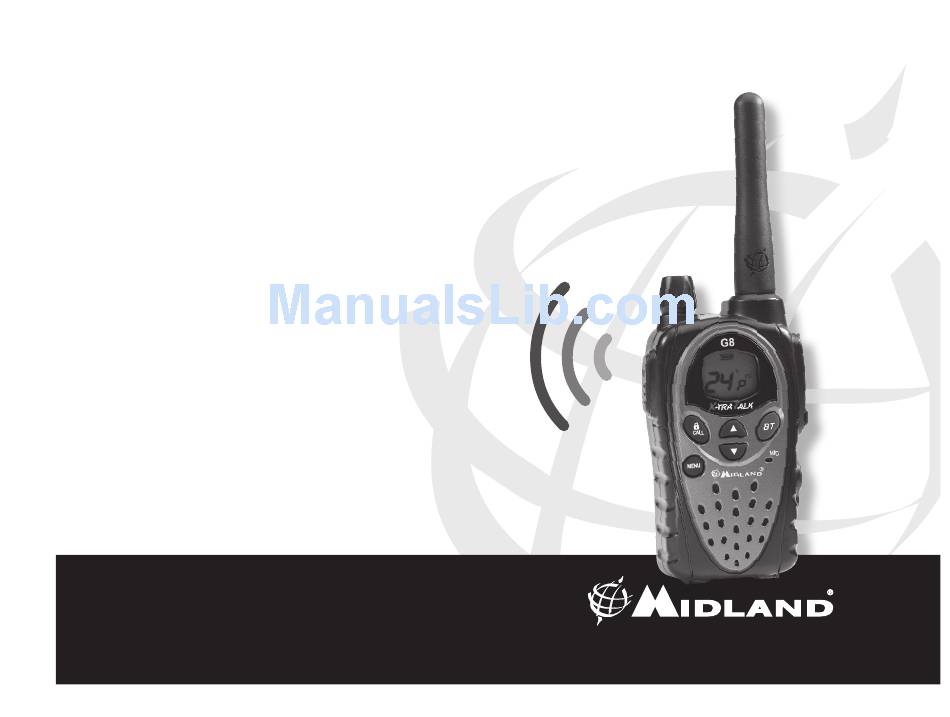

  • Page 1 PMR446 Transceiver Midland G8E-BT ” I N S T R U C T I O N G U I D E Mi d lan d | PM R446 Tra nsce ive r...
  • Page 2 Coverage/range The.maximum.range.depends.on.terrain.condition.and.is.obtained.during.use. User’s manual in.an.open.space. Thanks for choosing Midland! The Midland G8E-BT is a portable transcei- The.only.limitation.to.maximum.possible.range.are.environmental.factors.such. ver that is free use in almost all European countries. For further information, as.blockage.caused.by.trees,.buildings,.or.other.obstructions..Inside.a.car.or.a. we suggest you look at the “Restrictions on the use” chart.
  • Page 3 . › Power:.500mW. . › Built-in.Bluetooth.technology . › Thanks. to. the. built-in Bluetooth module,. you. can. connect. without. any. . › 8.PMR446.+.16.pre-set.channels. wires,. a. Bluetooth. headset. or. an. Intercom. system. to. G8E-BT.. It. is. also. possible.to.mount.the.radio.and.external.PTT.key.on.the.motor.bike:.this. . › 38.CTCSS.tones/104.DCS.codes ensures.a.better.communication.range,.since.the.radio.is.no.more.operated.

  • Page 4: Description Of The Controls And Functions

    DESCRIPTION OF THE CONTROLS Radio AND FUNCTIONS Refer.to.this.picture.to.identify.the.various.parts.of.the.device: Display Your.MIDLAND G8E-BT.keeps.you.constantly.updated.about.its.operational. status.through.a.Liquid.Crystal.Display.(LCD)..The.symbols.and.their.corre- sponding.parameters.that.may.appear,.according.to.the.operational.status.of. the.device,.are.described.as.follows: DCS CTC CHANNEL These.two.large.digits.indicate.the.selected.chan- ROGER VOX.function.activated CALL This.symbol.appears.when.the.keypad.lock.is.ac- tivated MENU Bluetooth.function.activated Dual.Watch.activated Indicates.the.battery.status Vibra-Call.function.activated Indicates.if.the.Automatic.Out.of.Range.function. loses.contact.with.the.other.radios. Reception.mode 10. TX Indicates.the.transmission(PTT.pressed) 15. Built-in speaker 11. H(High) / L(Low) High.or.low.power.selection...
  • Page 5 When MOn is active, you will probably hear a constant background noi- display.. Press. the. scroll. buttons. ▲▼. till. you. select. the. desired. channel.. You. can. choose.amongst.8.PMR446.+.16.pre-set.channels..Press.the.PTT.button.to. Scanning all the channels confirm,.or.wait.for.5.seconds. DCS CTC DCS CTC MIDLAND G8E-BT.can.automatically.search.for.signals.throughout.the.bands. Displaying the channel/sub audio tone ROGER ROGER by.scanning.the.channels.in.rapid.sequence..This.function.is.useful.to.find.out. DCS CTC ROGER any.active.channel..

  • Page 6: Bluetooth Functionality

    Devices with different PIN codes cannot be paired to G8E-BT. To.activate.it,.press.the.‘BT’.button.of.the.radio.for.4.seconds.. Sometimes.you.can’t.pair.the.devices.at.the.first.trial;.try.till.you.succeed.and. always.follow.the.above.listed.steps.. Vox or manual PTT Operation? Talk connection on/off G8E-BT. can. work. in. VOX. or. manual. PTT.. You. can. choose. one. of. the. two. options.also.when.you.operate.in.Bluetooth.mode.. When.the.radio.is.switched.on,.the.built-in.Bluetooth.module.is.disabled.(‘BT’. Since.we.do.not.recommend.to.use.VOX.operation.on.the.motor.bike,.owing. is.not.displayed).. To.activate.the.Bluetooth.communication.press.the.‘BT’.button.for.4.seconds:.

  • Page 7: Vox Function

    When.the.batteries.are.fully.charged,.the.high.power.is.500.mW.(ERP),.while. the.low.is.10mW.(ERP). CTCSS/DCS tone setting If.your.radio.has.to.operate.within.a.short.range,.you.can.select.the.low.power. CTCSS.and.DCS.tones.are.similar.to.access.codes.and.enable.the.radio.to. and.therefore.extend.the.battery.life.. communicate. only. with. the. users. that. are. tuned. on. the. same. channel. and. have.set.the.same.code..For.each.channel,.you.can.set.up.to.38.CTCSS.and. VOX function 104.DCS.tones.. MIDLAND G8E-BT.enables.hands.free.conversations.through.the.VOX.fun- These.tones.can.be.set.only.on.the.8.main.PMR446.channels.(from.P1.to.P8).. ction:.just.speak.in.the.direction.of.the.microphone.and.the.communication.will. The.pre-set.channels.from.9p.to.24p.cannot.be.modified. be.automatically.activated. Activating the CTCSS tones: The.VOX.sensitivity.can.be.adjusted.in.3.different.levels..You.can.enable.VOX. 1..Turn.on.the.unit.. function.with.or.without.accessories.. 2..Select.the.desired.channel.by.pushing.the.MENU.button.and.the.▲▼.chan- The. fourth. level. activated. is. the. Vox. TalkBack:. if. one. radio. is. continuously.

  • Page 8: Vibra-Call Function

    ; use. . › Select.the.second.channel.to.monitor.by.pushing.▲▼.. the.▲▼ buttons to.disable.or.enable.this.feature.(on:.enables,.oF:disables); . › To.confirm.your.selection,.press.PTT.or.wait.for.5.seconds..The.display.will. Push.PTT to.confirm.or.wait.for.5.seconds. alternately.show.the.channel.in.use.and.the.second.channel.to.monitor.. CALL feature To.stop.the.function,.simply.press.MENU. MIDLAND G8E-BT.can.send.5.different.call.tones..To.send.this.audio.signal. When. the. transceiver. detects. a. transmission. on. one. of. the. two. channels,. to.other.users,.press the.CALL/ key. the.Dual.Watch.temporarily.pauses,.remains.tuned.for.5.seconds.on.the.cor- To.select.the.call.tones: responding.channel,.giving.the.user.a.chance.to.respond.to.a.call..After.this. . › Press.MENU,.until.the.display.shows.“Ca”.and.the.active.tone.code.

  • Page 9: Display Illumination

    Display illumination ! do not mix old and new batteries or batteries of different types or bat- teries which have been used in different manners. If.there.is.insufficient.light.to.read.the.display,.press.briefly.BT.and.the.dis- play. illumination. will. activate. for. about. 5. seconds.. Every. time. the. MENU is. WARRANTY pressed,.the.display.will.automatically.light.up.

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS the.product.for.any.other.use.than.for.intended.use.of.the.product. The.warranty.is.not.enforceable.if.the.product.has.been.opened,.modi- fied.or.repaired.by.anyone.other.than.the.authorized.service.centre;.if.it. Channels............. 8.+.16.preprogrammed..PMR446 is.repaired.using.unauthorized.spare.parts.or.if.the.serial.number.has. Frequency.range..........446.00625.÷.446.09375MHz. been.removed,.erased,.defaced,.altered.or.is.illegible. Channel.spacing................12.5.KHz The.warranty.is.not.enforceable.if.the.product.has.been.exposed.to.moi- Power.supply................6+/-.10%.Vdc sture,.to.dampness.or.to.extreme.thermal.or.environmental.conditions. Temperature...............from.-20°.to.+55°C or.to.corrosion,.to.oxidation,.to.spillage.of.food.or.liquid.or.to.influence. Dimensions.(w/o.batteries)........58.(L)x.110.(H)x32.(D).mm from.chemical.products.. Weight.(w/o.batteries)................114gr Duty.cycle............TX.5%,.RX.5%,.stand-by.90% Transmitter Output.power..................500.mW Modulation....................FM Spurious.rejection..........within.European.legal.terms Receiver Sensitivity.@.12dB.Sinad..............0,35μV Adjacent.channel.rejection..............70dB Audio.output.power............
