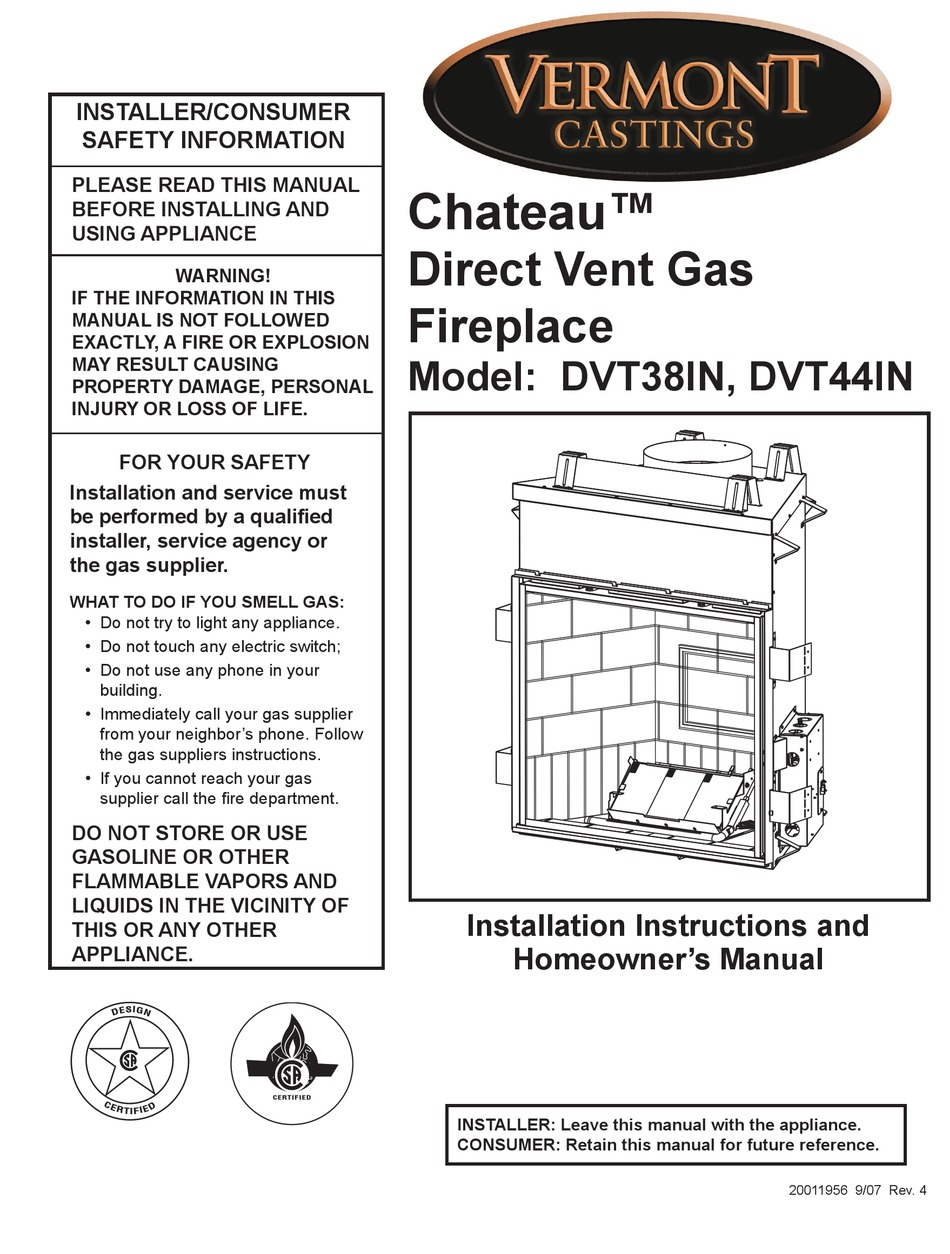

Chateau™
Direct Vent Gas
Fireplace
Model: DVT38IN, DVT44IN
C E RT I F I E D
Installation Instructions and
Homeowner's Manual
�����
�������� �����
����
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
20011956 9/07 Rev. 4
Advertisement
Table of Contents
Related Manuals for Vermont Castings DVT38IN
Summary of Contents for Vermont Castings DVT38IN
- Page 1 LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. C E RT I F I E D Chateau™ Direct Vent Gas Fireplace Model: DVT38IN, DVT44IN Installation Instructions and Homeowner’s Manual ����� �������� ����� ���� INSTALLER: Leave this manual with the appliance.
-
Page 2: Table Of Contents
Chateau™ Please read the installation & operating instructions before using this appliance. Thank you and congratulations on your purchase of a CFM Corporation fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. -
Page 3: Installation & Important Curing/Burning Instructions
fired appliances, and the products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. California Health & Safety Code Sec. 25249.6 Chateau™ DVT38IN / DVT44IN Certified To ANSI Z21.50b-2002/CSA 2.22b-2002 Vented Gas Fireplace IMPORTANT:... -
Page 4: Operating Instructions Fireplace Dimensions
54" (1372 mm) 3" (76 mm) Fig. 1 Fireplace specifications and framing dimensions for DVT38. 57���" (1464 mm) 3" (76 mm) Fig. 2 Fireplace specifications and framing dimensions for the DVT44. Fireplace Dimensions - DVT38IN 11���" Rough 17" (432mm) (298mm) Opening Depth 25���"... -
Page 5: Locating Your Fireplace
Locating Your Fireplace Fig. 3 Locate gas fireplace. A) Flat on wall B) Cross corner D) *Room divider E) *Flat on wall corner Y) 6” minimum NOTE (Fig. 3): ** Island (C) and Room Divider (D) installation is possible as long as the horizontal portion of the vent system (X) does not exceed 20’... -
Page 6: Hearth
Chateau™ Hearth A hearth is not mandatory but is recommended for aesthetic purposes. We recommend a noncombustible hearth which projects out 12” (305 mm) or more from the front of the fireplace. The hearth cannot exceed 1¹⁄₂” (38mm) in height from bottom of fireplace for ease of door accessibility. -
Page 7: Gas Specifications
Gas Specifications Model Fuel Control DVT38IN Natural Gas American Flame 46,000 DVT38IP Propane AF-4034 DVT44IN Natural Gas with DVT44IP Propane 7.5V DC Hi/Lo Gas Inlet and Manifold Pressures Natural Minimum Inlet Pressure 5.5” w.c. Maximum Inlet Pressure 14.0” w.c. Manifold Pressure 3.5”... -
Page 8: Electrical Junction Box
Chateau™ Electrical Junction Box The fireplace, when installed, must be elec- trically connected and grounded in accord- ance with local codes or, in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code or the national electrical code ANSI/NFPA No. 70 in the USA. - Page 9 Junction Box Main Module Fig. 10 Connect 120V AC electrical supply. 16. If you chose to install the optional back-up battery pack (No. DVTBBK), you must install a wall box within 15 feet (4.6 m) of the fireplace. Assemble the ������...
-
Page 10: Remote Control Transmitter Operating Instructions
Chateau™ Remote Control Transmitter Introduction This transmitter operating range is approximately 20 feet (6 m). The transmitter operates on one of 1,048,576 security codes that are programmed into the transmitter at the factory; this transmitter operates on radio frequencies with non- Transmitter ��... - Page 11 ����� ���� ��� Screen while de- Screen after 3 sec- pressing ON key ond default Screen while de- Screen after 3 sec- pressing OFF key ond default Screen whild de- Screen after 3 pressing OFF key second default ���� ���� Screen after de- Screen while de- pressing MODE key...
- Page 12 Chateau™ ��� ���� ���� ���� ���� ����� ���� ���� NOTE: If the appliance is already operating in the ON or THERMOSTATIC modes, engaging the “LOCK-OUT” will not cancel the operating mode. Engaging the “LOCK-OUT” prevents only the manual operation of the transmitter. If in the auto modes, the THERMOSTATIC operation will continue to operate normally.
- Page 13 Chateau™ Operational Notes: The Thermostatic feature on the transmitter operates the appliance whenever the ROOM TEMPERATURE varies a certain number of degrees from the SET TEMPERATURE. This variation is called the “SWING” or TEMPERATURE DIFFERENTIAL. The normal operating cycle of an appliance may be 2-4 times per hour depending on how well the room or home is insulated from the cold or drafts.
-
Page 14: General Venting
Fig. 11 DVT38/44 wiring diagram. Your fireplace is approved to be vented either through the side wall, or vertical through the roof. • Only CFM Corporation venting components spe- cifically approved and labelled for this fireplace may be used. •... -
Page 15: General Venting Information - Termination Location
2. The special venting system used on Direct Vent Fireplaces are certified as part of the appliance, with clearances tested and approved by the listing agency. 3. CFM Corporation assumes no responsibility for the improper performance of the appliance when the venting system does not meet these requirements. -
Page 16: Quick Reference For Fresh Air Restrictor Plate / Flue Baffle
Chateau™ Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Combustible 6" (152 mm) Noncombustible 2" (51 mm) Balcony - with no side wall Combustible & Noncombustible 12" (305 mm) *NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions specified for vinyl or non-vinyl siding and soffits. -
Page 17: General Information Assembling Vent Pipes
General Information Assembling Vent Pipes SK8 Venting Pipes Canadian Installations: The venting system must be installed in accordance with the current CSA-B149 .1 installation code. USA Installations: The venting system must conform with local codes and/ or the current National Fuel Gas code ANSI Z223.1/ NFPA 54. -
Page 18: Sidewall Applications
The primary purpose for the vent restrictor plate is to regain flame height under certain venting conditions as outlined below. The DVT38IN is shipped with the fresh air plate set- tings at #4 (this applies to both natural gas and propane) when using the horizontal starter vent kit SK8DVSK. -
Page 19: Sidewall Installation
• The maximum number of 45° elbows permitted per side wall installation is two (2). These elbows can be installed in either the vertical or horizontal run. (Fig. • For each 45° elbow installed in the horizontal run, the length of the horizontal run MUST be reduced by 18”... - Page 20 Chateau™ STEP 3 Slide the zero clearance sleeve through the wall and install the firestop on the inside surface of the wall. Secure with four (4) #8 sheet metal screws. STEP 4 Place fireplace into position. (Fig. 22) Measure the ver- tical height (X) required from the base of the flue collars to the center of the wall opening.
-
Page 21: Vertical Through-The-Roof Applications
Fig. 25 Secure termination to wall. Vertical Through-the-Roof Applications Use of Restrictor Plate for Vertical Venting Applications The primary purpose for the vent restrictor is to regain flame height under certain venting conditions as outlined below. NOTE: The joints of the inner pipe (flue pipe) must be taped with 550°F or higher temperature metal adhesive tape that meets the requirements of F.A.R. -
Page 22: Vertical Through-The-Roof Installation
Chateau™ Max. 20' (6 m) Max. Height 40' (12 m) Min. Height 20' (6 m) Pipe Straps Every 3’ (914mm) Fig. 28 Support straps for horizontal runs. • Up to two (2) 30° or 45° elbows may be used within the horizontal run. - Page 23 Attic Installation Ceiling Installation Fig. 30 Installing firestop spacer. FP593 SR/C Attic 11/20/97 Insulation Shield Base Flanges Ceiling Fig. 31 Attic shield installation. FP263 MBUF 5/9/96 20011956 Elbow Strap Nails (4) Firestop Spacer Joist Angled Strap Joist Fig. 32 Attach straps to a structural framing member. Firestop Spacer Nails (4) FP593...
-
Page 24: Chimney Components
Chateau™ Component Horizontal Starter Kit SK8 Chimney Sections SK8 Chimney Elbows Firestop Zero Clearance Sleeve Attic Insulation Shield Chimney Support Round Top Termination Round Top Termination - Extended Flashing Housing Extensions Chase Top Housing Chase Top Housing Horizontal Termination NOTE: The 24”-40” telescopic pipe is only intended for use with the SK8DVSK. * Factory unitized elbow Chimney Components Description... -
Page 25: Operating Instructions Glass Information
Glass Information Only glass approved by CFM Corporation should be used on this fireplace. • The use of any non-approved replacement glass will void all product warranties. • Care must be taken to avoid breakage of the glass. • Do not operate appliance with glass front removed, cracked or broken. -
Page 26: Ceramic Refractory Installation
Chateau™ Sheet Metal Screws To Remove DVT44IN (6³⁄₄” as Shown) Outer Ring, Cut Use tin snips to cut Here (6 Places) along slots to make 4¹⁄₂” (114mm) restrictor plate. (Refer to Page 12) DVT38 DVT38 Use tin snips to cut along Use tin snips to cut outer slots to make 4¹⁄₂”... -
Page 27: Log, Lava Rock And Ember Placement
Log Grate Burner Log Burner Overlay Log Grate Right Log Grate Left Fig. 40 DVT38IN log identification. 20011956 6. The rear refractory upper has a notch in the top side. Holding the refractory at an angle, slide the refrac- tory behind the side refractory installed. - Page 28 Chateau™ DVT44IN Logs Log Grate Burner Log Burner Overlay Log Grate Right Log Grate Left Fig. 41 DVT44IN log identification. 1. Position the Log Grate Burner. Remove the two (2) screws that attach the fettle to the burner. Place the log grate burner between the notch on the front of the burner housing behind the burner tube.
- Page 29 7. Position the Log Grate Right and Left. Position the right and left grate logs simultaneously on the grate in front of the burner housing by hold- ing the two logs with the narrower end toward the middle and the bark details toward the front.
- Page 30 Upper logs 3/05 12. Position the Log Front Middle Right. DVT38IN only. Hold the log with the pointed end toward the back and the wide end toward the front. Set the rectangular indentation located on the bottom of this log over the third right tine on the grate. Lay the pointed end of the log over the flat area located on...
- Page 31 Small Lava Rock Fig. 48 DVT38IN logset complete. Small Lava Rock Fig. 49 DVT44IN logset complete. 20011956 Volcanic Rock Ember Material ����� ����� ���� ���� Volcanic Rock Ember Material ����� ����� ���� ���� Chateau™ LG484 LG482...
-
Page 32: Flame Characteristics
Chateau™ Flame Characteristics It is important to periodically perform a visual check of the pilot and burner flames. Compare them to the illustrations below. (Figs. 50 & 51) If the flame patterns appear abnormal contact a qualified service provider for service and adjustment. DVT38 Figure 51 LG485... -
Page 33: Trim Installation
Trim Installation CAUTION: Allow fireplace to cool if it has been in operation. Trim components: Top frame assembly, bottom trim assembly, right and left trim assemblies. NOTE: Place trim pieces with magnets facing window frame. 1. Place bottom trim on the bottom of the window frame. -
Page 34: Lighting And Operating Instructions (Automatic Control System)
Chateau™ For Fireplaces equipped with American Flame Automatic Control System (IN or IP) Warning: If you do not follow these instructions exactly, a fire or explosion may result, causing property damage, personal injury and loss of life. For Your Safety, Read the Following Warnings A. -
Page 35: Troubleshooting
If erratic system behavior is observed that cannot be resolved by the methods outlined below, ensure that there is not a transmitter with batteries installed that may be interfering. If a transmitter is packed with batteries installed, its buttons may be depressed sending a constant signal which can interfere with the transmission of desired signals. A transmitter with new batteries can have a range of over 100’... - Page 36 Chateau™ Troubleshooting American Flame Gas Control System • Main flame will not light • • • • Flame height adjustment will • not work/works backwards • • • Room temperature dis- played on handheld trans- mitter is not correct. (When using thermostatic transmitters only) Unit will not respond in •...
- Page 37 American Flame Gas Control System Error Codes Ignition Safety: Protection for Ignition System Error Code: One beep every one second Description of Fault: Warn users if the pilot is not successfully ignited in 60 seconds. How to Clear: Press OFF then ON buttons to re-attempt ignition. What to Check: •...
-
Page 38: Fuel Conversion
Chateau™ WARNING! This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all appli- cable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explo- sion or production of carbon monoxide may result causing property damage, personal injury or loss of life. - Page 39 Allen Wrench Index Tab Snap Ring Fig. 56 Remove pilot orifice. 10. Install the conversion orifice. 11. Reinstall pilot hood. Be sure to align hood with CO134 index tab. AF pilot orifice Converting the Gas Control Valve 3/07 The AF4000 electronic control valve is convertible from natural gas to propane gas by changing the minimum rate screw in the valve and by rotating a plastic knob located under a black cap on the top face of the valve.
- Page 40 Chateau™ Kit # Model Front 20011992 DVT38IP (.033”) 20012367 DVT44IP (.037”) Table 2 Air Shutter Settings Conversion to LP Burner Tube Model Air Shutter Setting DVT38IP Fully open DVT44IP Fully open Table 3 Valve Minimum Rate Screw Model Size DVT38IP #31 (.120”) DVT44IP No Shank Screw...
-
Page 41: Maintenance
Burner and Burner Compartment It is important to keep the burner and the burner compartment clean. At least once per year the logs and lava rock/ember material should be removed and the burner compartment vacuumed and wiped out. Remove and refit the logs as per the instructions in this manual. Always handle the logs with care as they are fragile and may also be hot if the fireplace has been in use. -
Page 42: Replacement Parts
11a,b 10a,b 9a,b 9a,b 10a,b 11a,b CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. DVT38IN, DVT44IN For Units: GFYN5Q0, GFYN500 1 DVT44 11956 DVT38/44 parts... - Page 43 DVT38IN, DVT44IN Ref. Description Log Set (Complete) Log Grate Right Log Front Left Log Front Middle Left Log Front Upper Right Log Front Right Log Rear Upper Middle Log Grate Left Log Rear Right Log Grate Burner Log Front Middle Right...
- Page 44 Chateau™ DVT38IN, DVT44IN Ref. Description 24” Wire Harness Pilot Assy 3way N/DV Top Convertible - IN Remote Control Battery Back-up Module Power Module (DC System Only) Glass Frame Assembly Glass Assembly Pressure Test Adaptor Outer Pipe Aluminum Foil Tape Plate, Restrictor...
-
Page 45: Accessories
All Models: DVTBBK Follow instructions provided with the kit or on Page 9 for installation. 20011956 Accessories Ceramic Refractory Kits Ceramic refractory panels are available in kit form for the DVT38IN and DVT44. Fireplace DVT38IN DVT38IN DVT38IN DVT44IN DVT44IN DVT44IN Follow instructions on Page 21 for installation. - Page 46 Chateau™ 20011956...
-
Page 47: Warranty
All Vermont Castings brand gas stoves, gas inserts, and gas fireplaces installed in the United States of America or Canada. LIMITED LIFETIME WARRANTY CFM Corporation (hereinafter referred to as CFM) warrants that all cast iron parts, the combustion chamber, ceramic burner, and heat exchanger of every Vermont Castings gas product will be free of... -
Page 48: Energuide
Efficiency Ratings Model EnerGuide Ratings Fireplace Efficiency (%) DVT38IN 48.2 DVT38IP 48.2 DVT44IN DVT44IP CFM Corporation 410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 800-668-5323 • www.cfmcorp.com...
