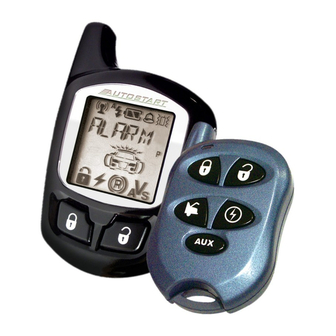

AS-6870TW-FM
Once the battery is weak, the LCD remote will display a battery low voltage
icon and a "L-BAT" indication with 2 beeps to warn the user to charge it.
INDUSTRY CANADA USER NOTICE:
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to
this equipment. Such modifications could void the user's authority to operate the equipment.
Doc#: 091125
Rev:1.3
T W O - W A Y L C D A U T O M A T I C / M A N U A L
T R A N S M I S S I O N R E M O T E S T A R T E R
W I T H F U L L A L A R M S Y S T E M
User Guide
It is the responsibility of the vehicle operator to ensure their vehicle
is parked in a safe and responsible manner.
1.
a) Manual transmission: When leaving the vehicle, it is the user's
responsibility to ensure that the gearshift lever is in the NEUTRAL
position and the parking brake is engaged in order to avoid accidents
upon remote starting.
b) Automatic transmission: When leaving the vehicle, it is the user's
responsibility to ensure that the gearshift lever is in "Park" in order to
avoid accidents upon remote starting.
(Note: Make sure that the automatic vehicle cannot start in "Drive".)
2. It is the user's responsibility to ensure that the remote starter is disabled
or put into valet mode before servicing.
Battery Low Voltage Warning
© 2009
WARNING !
- 2W-FM-LCD-CMB-HD -
-SS-
Assembled in Canada
Advertisement
Table of Contents
Related Manuals for Directed Electronics AS-6870TW-FM
Summary of Contents for Directed Electronics AS-6870TW-FM
- Page 1 T R A N S M I S S I O N R E M O T E S T A R T E R W I T H F U L L A L A R M S Y S T E M AS-6870TW-FM User Guide...
-
Page 2: Table Of Contents
Table of Contents GOVERNMENT REGULATIONS........................... 3 INTRODUCTION..............................3 VEHICLE PRESETS............................... 3 & H ........................... 3 EATER EATED EATS & H ......................3 INDSHIELD IPERS ADIO EADLIGHTS USING THE TRANSMITTER..........................4 LCD R ............................ 4 EMOTE UNCTIONS LCD T ......................5 RANSMITTER BASIC CONFIRMATIONS ................................ -
Page 3: Government Regulations
Government regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Using The Transmitter
. Leaving the headlight switch on certain types of vehicles could cause them to remain even after remote starter shut down, resulting in a dead battery. Using the Transmitter Your remote starter is equipped with a 6-button, multi-channel, 2-way remote control. It can operate two independent vehicles equipped with identical remote starters (see Multi-car operation section on page- 20). -
Page 5: Lcd Transmitter Basic Confirmations
Side view: Function Button: . Turns ON the backlight . Allows access to Multi- level functions . Enters Programming mode Charger port: the battery charger plugs into this port. LCD Transmitter basic confirmations Function Button pressed Icon / text Sound Instructions /description Lock 1 beep Lock and arm the system / LOCK... -
Page 6: Charging The Battery
• To browse the MENU while the backlight is ON: Press the for at least 1 second and release. The backlight should turn ON. Within 3seconds, press the button for 2 seconds to access the various functions. Charging the Battery • Plug in the USB charger. •... - Page 7 Remote’s advanced functions and MENU table: Display Description Parking meter countdown This version of the countdown feature is particularly useful for keeping track of parking meter time: the user may quickly set up the countdown using the Parking . The transmitter will beep 6 times, 5min before the Parking countdown reaches Menu 0 and beeps 6 times once the countdown expires.
- Page 8 module. Through Advanced Options, first press to select MENU, then: Choose TSTART and press Set the time at which you want to remote start the vehicle. First set the hour, and press . Then set the minutes and press Choose ON and wait. A flashing “T” and will appear on the screen to confirm activation.
-
Page 9: Remote Starting Your Vehicle
Keypad lock Note: In order for this feature to work, “Secure function” must be set to ON. KEYLOC If there is no activity within the programmed time, the keypad will automatically lock (13) after 5 seconds, 10 seconds or 20 seconds. Press for about 1sec to unlock the transmitter’s keypad. -
Page 10: Remote Starting
5. Exit the vehicle and close all doors, hood and trunk. 6. Press for approx. 1 second either: • to lock the doors and shut down the engine; • to unlock the doors and shut down the engine; • to shut down the engine without affecting the doors. 7. -
Page 11: Intrusion Alert Via Remote
The siren will chirp twice. The LED on the antenna will remain OFF. Intrusion alert via remote The remote will beep or vibrate for about 60 seconds when an intrusion from door, hood, trunk, shock or ignition is detected. At the same time, the LCD remote will display “ ”... -
Page 12: Remote Trunk Release
Remote Trunk Release If your system was installed with the Remote Trunk Release option, you can open your trunk by pressing the button until the remote displays the text “TRUNK” on the screen. In addition, this will also disarm the alarm. Idle Mode Convenience feature: Idle Mode allows you to keep the engine running and the doors locked while you stop, for example, at a convenience store or for a short delivery. - Page 13 To put the system into Combo Valet mode using the TRANSMITTER: Press the buttons simultaneously until the icon will appear on your LCD remote The LED on the antenna will come ON solid to indicate that the vehicle has successfully entered Combo valet. To put the system into Combo Valet mode using the PUSH BUTTON SWITCH : Insert the ignition key into the ignition switch.
-
Page 14: Panic Mode
Once the selection is done, press Choose ON, then press and hold until; (1) The icon appears to confirm Combo Valet activation. (2) The icon appears to confirm Valet start activation. (3) The icon appears To confirm Valet Alarm activation 5) To put the system out of Combo valet, Valet Start or Valet Alarm via ... -
Page 15: Extended Run Time
• Start the engine by remote. • Turn the ignition key to the IGNITION ON (RUN) position. • Through advance function remote’s menu (page-6), select L-01. Press and hold the button until the icon will disappear on the display. To verify whether the system is in cold weather mode: icon should appear on your remote display. -
Page 16: Temperature Request (Ifacc-Temp -101 Installed )
Temperature Request (If ACCTemp101 installed) The user can request the temperature in the vehicle if a Temperature Sensor Module (ACC-Temp- 101) is installed: • Through advance function remote’s menu (page-6), select L-01. • Immediately press the button and hold it until the temperature is displayed on the LCD screen. -
Page 17: Advanced Features: Installation-Programmable Options
Advanced Features: Installationprogrammable Options The remote starter was designed with flexibility and OEM integration in mind. With its program- mable options, this unit can single-handedly control nearly any electrical system in your vehicle. Caution: The programming of your system should be left to a professional. Changing any one of the settings may affect the operation of your remote starter. -
Page 18: Engine Run Time
Swap start: If this feature is enabled; Through advance function remote’s menu (page-6), select L-01. Press to remote start the vehicle. The Aux 2 output can be activated by pressing the button. Engine Run Time If you have a gas engine, your remote starter can be programmed to run the engine for 3, 15, or 25 minutes (15 minutes by default). -
Page 19: Arming
The system can alternatively be set to: (must be configured by the installer) • Warning Mode (no chirp during lock/unlock – unless one of the doors, the hood or the trunk is open. In this case there will be 3 chirp when is pressed. -
Page 20: Multi - Car Operation
Multicar Operation This option allows the owner of two vehicles, both equipped with the same remote starter model, to control both systems independently with a single remote control. To control the second vehicle: Press simultaneously:........LOCK Press simultaneously:........UNLOCK Press simultaneously: ............START Press simultaneously: .......... -
Page 21: Troubleshooting Transmitting Range
FBPRO setting 3 FBPRO setting 4 FBPRO FBPRO Features Levels Features Levels setting setting Multi car operation Basic features Basic features Multicar operation MENU MENU MENU MENU FBPRO setting 5 FBPRO Features Levels setting Multi car operation Basic features MENU MENU Example: If the multi-level features is set to FBPRO setting 3, the basic features can be access as follow:... -
Page 22: Diagnostics - Parking Light Flash Table
Diagnostics – Parking Light Flash Table Parking lights flashes Description • Doors locked. • Trunk released. • Start signal received from the remote. • Runtime has expired • Doors unlocked 2 fast • Valet mode is deactivated • 2 slow Shutdown by remote • Shutdown by brake 4 fast •...
