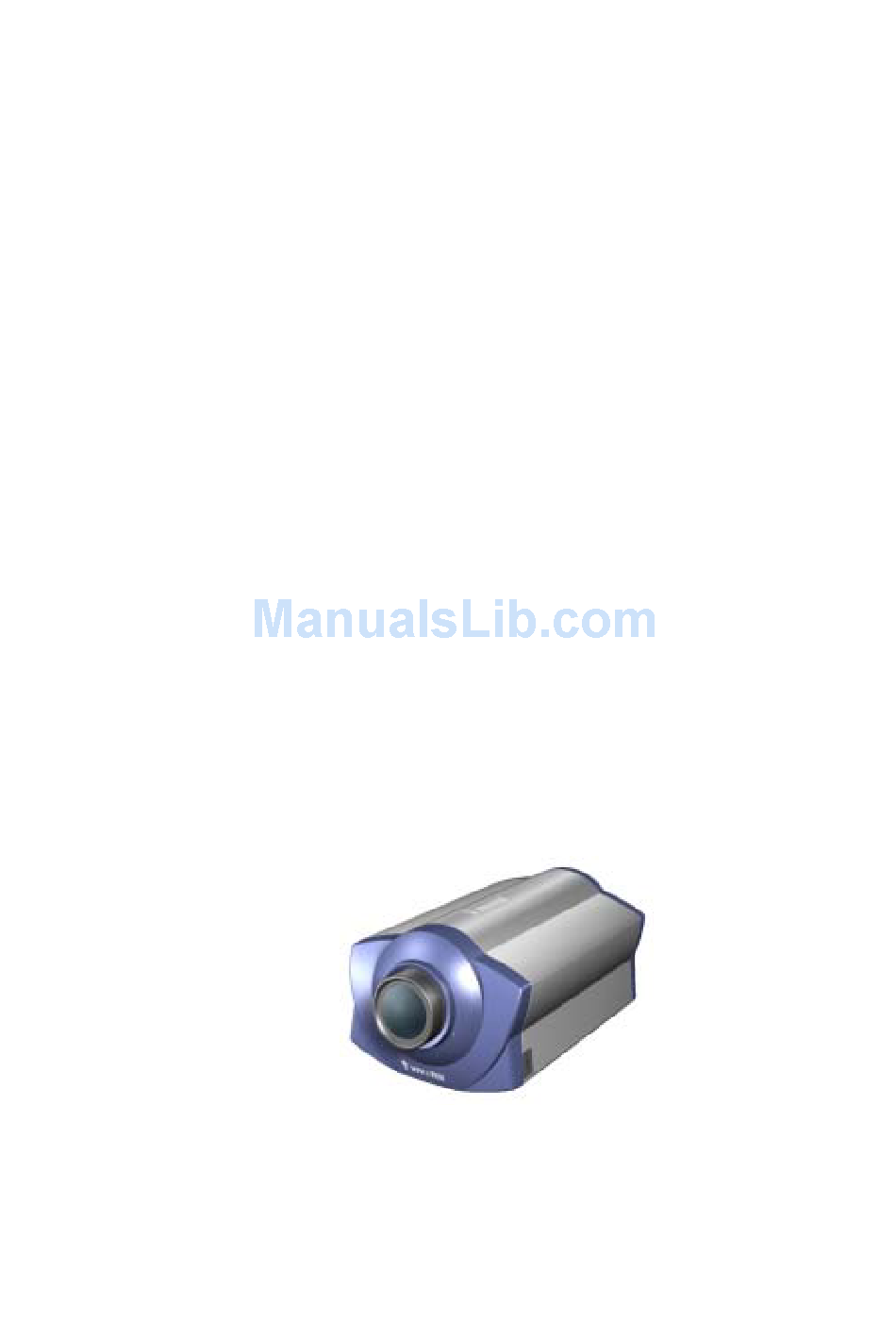

  • Page 1 NetworKam IP3111/IP3121 User's Manual...

  • Page 2: Before You Use

    To make the best usage of NetworKam, review "Advanced functions" to get creative ideas. To those professional developers, "URL Commands of NetworKam" will be a very helpful reference. Those paragraphs preceding by should be fully understood and cautioned. Ignoring the warnings may result in serious hazards. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 3: Table Of Contents

    Cable connection ... 13 Power on... 14 Software configuration... 15 Easy way with installer program ... 15 Manual way with existing programs ... 20 First access to NetworKam ... 21 Modem Environment... 23 Hardware installation ... 23 www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 4 One-shot fast configuration via FTP ... 60 Advanced functions... 68 Viewing system log ... 68 Viewing system parameters ... 68 Restore factory default settings ... 68 Uploading snapshots periodically to an external FTP server ... 69 www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 5 Restart system... 75 Page URL ... 76 System resource URL... 77 General format of command URL... 77 System configuration URL... 77 Security configuration URL ... 78 Network configuration URL... 78 Video configuration URL ... 79 www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 6 Camera custom command configuration URL ... 81 Modem configuration URL ... 82 Application configuration URL... 82 Homepage layout configuration URL ... 83 Appendix... 84 A. POST procedure ... 84 B. Frequently asked questions ... 85 C. Technical specifications ... 88 www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 7: Package Contents

    Package Contents NetworKam IP3111/IP3121 Power adapter Null modem cable I/O terminal block connector www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 8 Wrench Installation and document CD Quick installation guide Warranty card www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 9: Physical Description

    This RS232 serial port can connect with a modem or included null modem cable to utilize dial-up network when Ethernet is not available. If NetworKam operates with Ethernet interface, administrators may use this port to control custom Pan-Tilt device. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 10: General I/O Terminal Block

    The relay switch can be used to turn on or off external devices. INPUT (Max. 50mA, 12VDC) INPUT (short with NC at initial state) OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC) (inverting) (non-inverting) www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 11: Status Leds

    NetworKam will try the interface of PPP with null modem. Network Interface Condition Ethernet before installed after installed during camera control PPP with modem after POST PPP with null modem before connected after connected LED2 (Heartbeat) LED3 (Status) flash flash Flash flash flash www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 12: Restore Button

    The pin assignment of the auto iris lens connector is as follows: VIDEO Drive DC Drive Pin 1 Power source Damp- Pin 2 Video signal Damp+ Pin 3 Not used Driver+ Pin 4 Ground, Shield Driver- www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 13: How To Install

    In the following content, "user" refers to those who can access NetworKam and "administrator" means the supervisor who has the root password to configure NetworKam in addition to general access. Administrators should carefully read this manual, especially during installation. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 14: Ethernet Environment

    Shut down all the peripheral devices prior to connection. Connect the supplied cables from NetworKam to related devices according to the following steps. Note that the power adaptor must be kept unplugged until other cables are firmly connected. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 15: Power On

    Refer to the configuration section for further information. Connect the power jack of the power adapter to NetworKam prior to plugging the utility end into the utility power socket. It will reduce accidental electric surge shock. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 16: Software Configuration

    IP address will be displayed instead. In that case, it may be 0.0.0.0 for a brand new unit. When multiple units are mounted, there may be several entries shown in the window. Administrators may click on each entry with "Assigned" field labeled "No" to install sequentially. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 17 If the administrator wants to fix the IP address of the unit, check the option "Use this IP whenever system boots" to skip future installation procedures. Otherwise the unit will need installation whenever it is restarted. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 18 If the IP is not taken by another network device in the network, the Installer program will continue with the setup. Otherwise another message window will warn that the assigned IP conflicts. In this case, administrators should ask the network supervisor for a vacant IP address. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 19 After successful notification, administrators may keep the address information for user’s request. After clicking on , the "Assigned" field will be labeled "Yes". Administrators may click directly to access the newly installed server in the default browser. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 20 IP from DHCP service and assign it with name in the domain name service. During NetworKam installation, assign the ready IP address. After successful installation, users may access the NetworKam by the given name. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 21: Manual Way With Existing Programs

    NetworKam has accepted the assigned IP address and is ready for access. The first several ping requests may fail during the self-configuration period of NetworKam. Since the accurate grammar of ARP and PING depends on the operating system, refer to its related help manual. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 22: First Access To Networkam

    IP address is already reserved for this NetworKam. Clearing this option will skip the installation procedure during the next power-up and use www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 23 If the install option stays checked, NetworKam will perform the installation procedure every time the system boots up. Details about configurations are described in the "How to Use" section. Related figures are attached for easy reference. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 24: Modem Environment

    In the following content, dial-in connection denotes a passive NetworKam waiting for a phone call to establish a point-to-point connection. Dial-out connection denotes an active NetworKam to dial out to the other end of a dial-up server or any Internet service provider, abbreviated as ISP, to request a point-to-point connection. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 25: Cable Connection

    NetworKam should be turned on after all peripherals are turned on and ready. Connect the power jack of the power adapter to NetworKam prior to plugging the utility end into a utility power outlet. It will reduce accidental electric surge shock. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 26: Software Configuration

    For the first time, users should connect the included null modem cable between the COM port of NetworKam and any COM port of the PC for initial setup. Install a new modem Open the control panel and double click the modems icon. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 27 Check "Don't detect my modem..." item and click on to install a new modem. From (Standard Modem Type) choose the Standard 33600 bps Modem and click on www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 28 Choose the serial port that the included null modem cable is attached to and click on . The null modem is now ready for use. If no Dial-Up adapter exists in the system, Windows will automatically prompt to install. Press continue. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 29: Setup A New Connection

    Setup a new connection After the 33600 bps modem is installed, open the dialup network folder in Windows to build a new connection. Select the device as the newly installed standard 33600 bps modem and click on www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 30 Just enter arbitrary digits as phone number and click on . The phone number used here is not important. After clicking on , this new connection will display in the Dial-up Networking folder and will be used for null modem connections. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 31 Right-click on the newly setup connection icon for properties. In the first General page, clear "Use area code and Dialing Properties" option and click on www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 32 Select 115200 as the speed and click on On the second page, only check "Enable software compression" and "TCP/IP" while leaving others blank. Keep other settings as default values and click on . Now the connection is ready for null modem connection. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 33 After connection is established successfully, go to the next section, "First access to NetworKam". If an error message indicates a hardware error while connecting for the first time, especially in a Windows 2000 environment, try again to recovery the possible detection failure. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 34: First Access To Networkam

    Note that the new password will also be used in the next dialup. To make NetworKam successfully work in dial-in and dial-out modes, follow the procedures below for www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 35 If dial-out configuration is activated, NetworKam will dial out to send a system startup log to test and drop the call after the pre-configured period. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 36: How To Use

    Open your web browser and connect to NetworKam just like a general web site and the audio and video will present on demand. Make sure the web address of the target NetworKam is accurate. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 37: Authentication

    In the figure below, the foreground is the login window and the background shows the message when authentication fails. The user may check the option to save the password for future convenience. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 38 Users may click on to install the plug-in. If the web browser does not allow the user to install, check the Internet security option to lower security levels or contact network supervisors. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 39: Primary User's Capability

    There might be some windows enclosed by red lines shown in the image as soon as motion is detected in the related windows. Click on the configuration link to the right of the image window to enter the configuration page. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 40: Pan/Tilt Positioning Device Control

    They should be pre-configured by administrators with reference to the instruction manual of the PT positioning devices. <url> http://<NetworKam> <NetworKam> is the domain name or pure IP address of NetworKam. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 41: Client Setting

    But some packets may be lost and decoding error will happen. If you select TCP protocol, packet loss isn’t occurred and decoder will run normally. But the www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 42 When using modem as the network connection, NetworKam will not send the audio automatically, and send video only because the low bandwidth environment doesn’t meet the requirement for both. In the Client setting page, protocol option will be set as Http protocol. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 43: System Configuration

    Administrators may type the URL below the figure to directly enter the configuration page. If administrators also want to set certain options through the URL, read the section on advanced usage for reference. <url> http://<NetworKam>/setup/config.html <NetworKam> is the domain name or original IP address of NetworKam. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 44: System Parameters

    If some specific timeserver is assigned, type it in the text box. Domain name or IP address format is acceptable as long as DNS server is available. Do not forget to set the "Time Zone" offset for local settings. It only affects the hour in NTP method. Click on to validate changes. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 45: User Group Administration

    Since only administrators can change a user's password, confirmation for a user's password is not necessary. To delete a user, pull down the user list to find the user name to be deleted and press www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 46: Network Settings

    NetworKam can automatically operate normally after restarting in case of losing power. This option is ignored in the PPP connection. Administrators may modify the network settings to fit into existing networks. Some broadband service www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 47 “Control Channel Port”, “Audio Channel Port” and “Video Channel Port” which are used in media transmission can also be changed. Administrators should have enough acknowledge before changing the default port. If the NetworKam works in variation or low bandwidth (comparing with video bandwidth) environment, www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 48 Administrators should notice that the IP address, subnet mask, default router and DNS servers will be cleared when the network interface is switched to the other. Refer to the related section of Ethernet or modem for software installation. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 49: Video Codec Parameters

    Three options are available including half, half×2 and normal. Half×2 consumes the same bandwidth as half but is the same size as normal. Of course the image is not as good as normal. Half×2 is especially suited to low bandwidth environments like a dial-up network. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 50 IP3111/IP3121 uses MPEG4 codec compression for best streaming solution. The compressed video data is far less than JPEG in normal cases but it still depends on the level of difference between every two sequential images. There are three dependent parameters provided for adjustment. "Maximum Frame Rate"...
  • Page 51 When the image is O.K., press to memorize the image settings or to recall the original settings. If parameters are changed without saving, they will be used until the next system startup. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 52: Motion Detection

    , a graphic bar will go up or down depending on the image variation. A green bar means the image variation is under monitoring level and a red bar means the image variation is over monitoring level. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 53 The following figure shows the screen when is clicked. The monitoring windows will be marked by red squares. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 54: Camera Positioning Device Configuration

    The "Baud rate (bps)" of the serial port is up to 115200 bps. The commands in "Control settings" should be edited in ASCII format. NetworKam will interpret the ASCII format command to binary string. For instance, “012000ABCD” will be sent out of the COM port www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 55 "Display string" is for those texts on command buttons and should be less than 8 characters. To enter more commands or commands other than pan and tilt, a flexible URL is provided for customized interface. See the “Clear data path for proprietary commands” section in Advanced functions for details. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 56: Modem And Dialup Settings

    Administrators should choose an appropriate "Dial Method" according to the local POTS environment. An incorrect dialing prefix may cause NetworKam to fail when dialing out. "Redial attempts" means how many times NetworKam should try to connect to each ISP. Setting the value in "Disconnect after www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 57 When using modem as the network connection, NetworKam will mute the audio automatically, and send video only because the low bandwidth environment doesn’t meet the requirement for both. In the Client setting page, protocol option will be set as Http protocol. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 58: Application

    The remote folder of snapshot files for FTP can be configured on the network page. The snapshot period is between "Snapshot begin" and "Snapshot end" and it will repeat everyday. The snapshot interval is set in "Snapshot every seconds". www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 59 "Trigger action" settings. The application settings should be carefully examined to operate accurately. If administrators are not sure of the digital output status before configuring applications, "Reset output" can be used to return the digital output to the default “Normal Close” state. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 60: Homepage Layout Settings

    Administrators also can give the system logo a "logo link" to refer to another web site. The "font color" and "background color" can be chosen from sixteen colors to achieve the best visual effect. See "Customizing homepage images" section in "Advanced functions" for how to replace images. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 61: One-Shot Fast Configuration Via Ftp

    ******* sample file ********** NetworKam Initial Configuration File [SYSTEM] <reset system> <host name> NetworKam <serial number> Reset system after reading CONFIG.INI or NO String shorter than 40 characters www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 62 (19) (20) Read only string Read only string year/month/date. Read only string hour/minute/second. Read only string From 12 to -12 Read only string String shorter than 15 characters The followings are as same as above www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 63 3 for maroon, 4 for olive, 5 for navy, 6 for purple, 7 for gray, 8 for yellow, 9 for lime, 10 for aqua, 11 for fuchsia, 12 for silver, 13 for red, 14 for blue, 15 for teal www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 64 8 characters(some language will use double bytes) no longer than 8 characters(some language will use double bytes) or NO obsolete Read only string Standard IP format Standard IP format Standard IP format www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 65 Standard IP format or string shorter than 40 characters String shorter than 15 characters String shorter than 15 characters String shorter than 40 characters Standard IP format or string shorter than 40 characters String shorter than 15 characters www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 66 String shorter than 15 characters among 5 and -5 among 5 and -5 among 5 and -5 among 5 and -5 YES for fix bit rate, NO for fix quality 1200k, 1000k, 768k, 512k, 384k, 256k, 128k, 64k www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 67 1, 2, 3 representing half, halfx2, normal or NO or RS485 String shorter than 80 characters String shorter than 80 characters String shorter than 80 characters String shorter than 80 characters String shorter than 80 characters www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 68 String shorter than 80 characters String shorter than 80 characters for none, 1 for sequential mode, 8 for event mode, 9 for both 0 for FTP, 1 for email or NO 24 hours format 24 hours format www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 69: Advanced Functions

    After confirmation, the system will restart and require the installer program to setup the network. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 70: Ftp

    The followings are the referenced file names and size limitations. Object Logo logo.gif Background back.gif Link icon btn_text.gif File name Logo and background share 8000 bytes Logo and background share 8000 bytes 2000 bytes Maximal size www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 71: Viewing System Log

    NetworKam is able to keep the most up-to-date software. Customers are allowed to download the updated binary codes upon receiving additional license from Vivotek and consequently upload it to NetworKam via FTP. This function is open to administrators only. The updated system code may be in compressed format and have name coded with version.
  • Page 72 If power fails during the software upgrade, the program in the memory of NetworKam may be destroyed permanently. If NetworKam cannot restart properly, ask the dealer for technical service. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 73: Telnet

    DI changes to H, terminal will display only DI=H Stop information dumping Typing "stop" will cease dumping debug information and digital input status. Query status of digital inputs Typing "diquery" will display the status of digital input once. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 74: Set Digital Outputs

    Restore factory default settings Typing "clear" will make NetworKam restore factory settings but not restart. To validate new settings, type "reset" to make the system restart. Reset system Typing "reset" will make NetworKam perform a software reset. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 75: Url Commands Of Networkam

    Clear data mode serial port driver This URL applies to the attached serial port device including supported PTZ cameras or non-supported custom cameras. Note the serial port settings of custom cameras must be correctly defined in advance. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 76: Restore Factory Default Settings

    ASCII coded hexadecimal value, e.g., 0x41, 0x42, 0x43 read from COM port will show in returned homepage as 414243 instead of ABC. Restore factory default settings /setup/restore.cgi NetworKam will automatically restart after restoring factory default configurations. Restart system /setup/reset.cgi Restart NetworKam without warning. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 77: Page Url

    Referenced URL /client.html /setup/config.html /setup/system.html /setup/security.html /setup/network.html /setup/video.html /setup/image.html /setup/camera.html /setup/modem.html /setup/command.html /setup/custom.html /setup/app.html /setup/layout.html /setup/logfile.html /setup/parafile.html /setup/factory.html www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 78: System Resource Url

    NTP server to synchronize directly adjust date and time year, month and date separated by slash hour, minute and second separated by colon NTP server time zone, 8 means GMT +8:00 www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 79: Security Configuration Url

    DNS server secondary DNS server primary SMTP server secondary SMTP server HTTP port Control Channel port Video Channel port Audio Channel port enable the low bandwidth environment disable the low bandwidth environment www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 80: Video Configuration Url

    128K bps set bit rate to 256K bps set bit rate to 384K bps set bit rate to 512K bps set bit rate to 768K bps set bit rate to 1000K bps www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 81: Image Quality Configuration Url

    DESCRIPTION adjust brightness of image adjust contrast of image adjust hue of image adjust saturation of image not save the parameters recall the original settings save the parameters www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 82: Camera Configuration Url

    1 of COM button name of custom command 2 of COM button name of custom command 3 of COM button name of custom command 4 of COM button name of custom command 5 of COM www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 83: Modem Configuration Url

    DESCRIPTION event mode application sequential mode application upload snapshots by email upload snapshots by FTP FTP file with date and time suffix seconds delay to detect next event www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 84: Homepage Layout Configuration Url

    DESCRIPTION hide logo use default logo use image from URL hide background image use default background use image from URL color index for font color index for background www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 85: Appendix

    Ethernet interface failure includes not only components on board but also Ethernet cable and the devices of the opposite end. Possible failed component U1(TM1300) U6(RTL8139C) U6(RTL8139C), U7, U8 U22(M5823) U19(16C1550CJ), P2 Failed function Video decoder PCI bridge of TM1300 Ethernet controller Ethernet interface* Real-time clock COM interface www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 86: Frequently Asked Questions

    A. In a modem environment, it is because the bandwidth of PPP connection is far less than Ethernet. If the difference of the timestamp is not stable, adjust the UART FIFO lower in both receiving and transmitting www.vivotek.com T: 886-2-22404099...
  • Page 87 NetworKam from unauthorized access. You may also change the HTTP port to non-public number. You can check the system log to examine any abnormal activities and trace the origins. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 88 Q. I try to connect my black-and-white and color cameras with NetworKam but the image is not good. A. Although NetworKam allows users to choose color or black-and-white images for each camera, hybrid camera types may increase video processing time and reduce system performance. www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...

  • Page 89: Technical Specifications

    15 digits password protection Optional Software Record and play pictures on PC hard disk I/O ports monitoring feature LED Indicator Status indicators Network link indicator Power 12V DC, 1.2A external power supply 6-15V DC, min. 15W www.vivotek.com T: 886-2-22404099 F: 886-2-22404097...
  • Page 90 Vivotek Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Vivotek Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

This manual is also suitable for:
