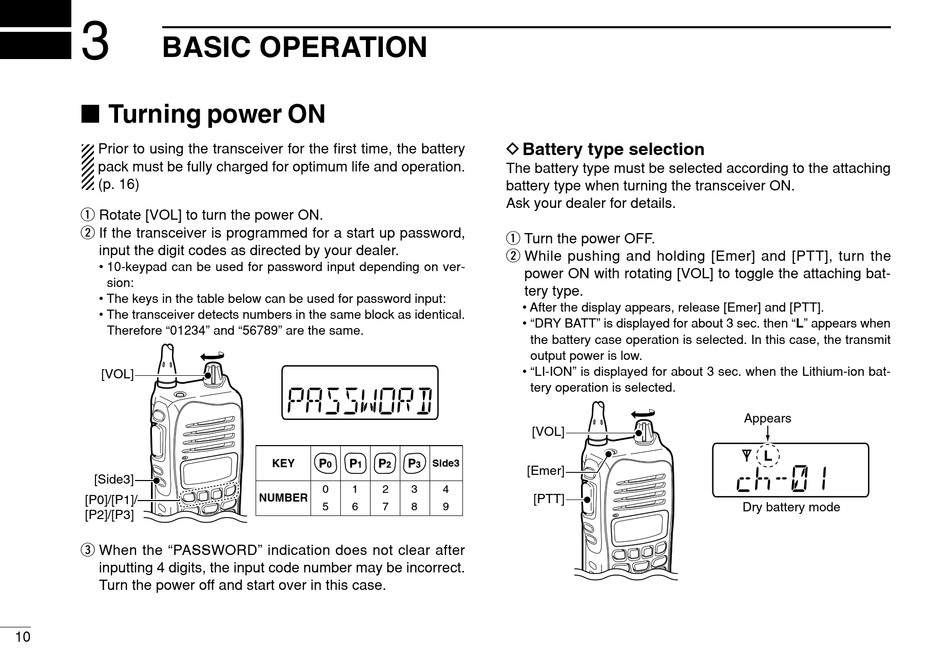

BASIC OPERATION

I Turning power ON

Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(p. 16)
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad can be used for password input depending on ver-
sion:
• The keys in the table below can be used for password input:
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
[VOL]
[Side3]
[P0]/[P1]/
[P2]/[P3]
e When the "PASSWORD" indication does not clear after
inputting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
10
KEY Side3
0 1 2 3
NUMBER
5 6 7 8
D Battery type selection
The battery type must be selected according to the attaching
battery type when turning the transceiver ON.
Ask your dealer for details.
q Turn the power OFF.
w While pushing and holding [Emer] and [PTT], turn the
power ON with rotating [VOL] to toggle the attaching bat-
tery type.
• After the display appears, release [Emer] and [PTT].
• "DRY BATT" is displayed for about 3 sec. then "L" appears when
the battery case operation is selected. In this case, the transmit
output power is low.
• "LI-ION" is displayed for about 3 sec. when the Lithium-ion bat-
tery operation is selected.
[VOL]
[Emer]
4
[PTT]
9
Appears
Dry battery mode
