3.1 SITE SELECTION
These guidelines are based upon fire
testing of the generator enclosure and
the manufacturer's requirement for air
flow for proper operation. Local codes
may be different and more restrictive
than what is described here.
The generator can be placed under decks or structures as long as all clearances are met and local building codes are followed.

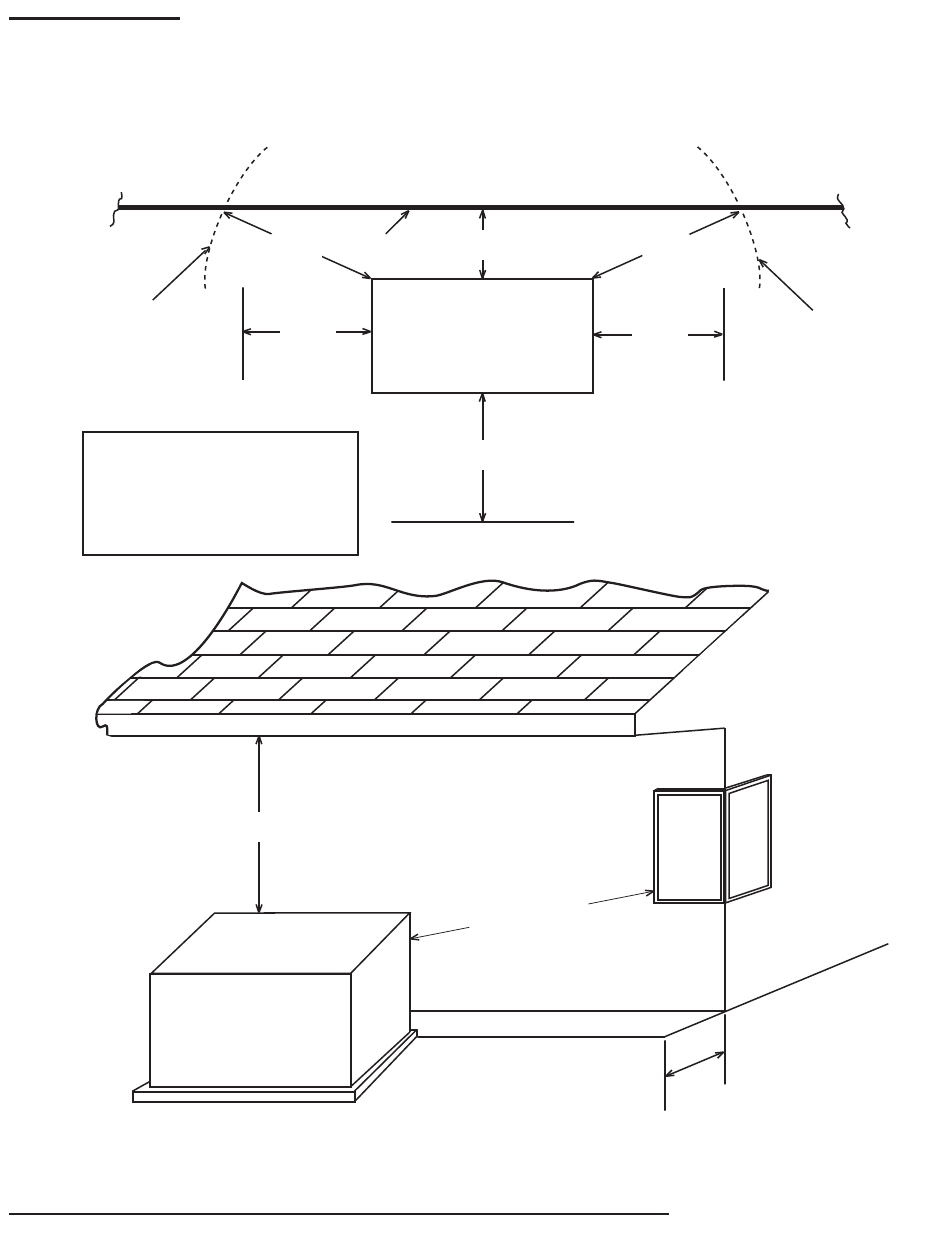

Figure 3.1 – Installation Guidelines
10
No operable windows or openings in the wall permitted
within 5 ft (1.52 m) from any point of the generator.
Existing Wall
60 in (1524 mm)
36 in
(914 mm)
60 in (1524 mm)
Minimum
Generator
18 in (457 mm)
Minimum Distance
Top of Generator
Clearance from the ends and front of the generator
must be 36 in (914 mm). This would include shrubs,
bushes or trees. Clearance at the top should be a
36 in
minimum of 60 in (1524 mm) from any structure,
(914 mm)
overhang or projections from the wall. The generator
should not be placed under a deck or other structure
that is closed in and would limit or constrain air flow.
60 in (1524 mm)
Recommended
Minimum From Ends
NOTE:
60 in (1524 mm)
Clearance from operable
36 in
windows, doors or any
openings in the wall.
(914 mm)
NOTE:
Removable fence panels for servicing cannot be
placed less than 18 in (457 mm) in front of the
generator.
18 in
(457 mm)
Minimum
