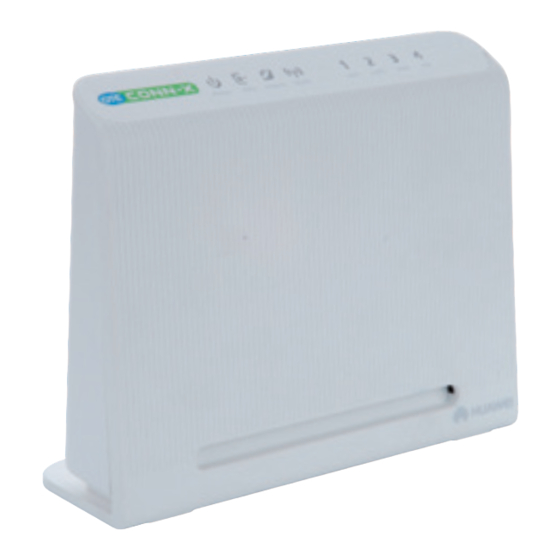

- Page 1 HUAWEI HG530 Home Gateway User Guide HUAWEI TECHNOLOGIES CO., LTD.
- Page 2 User Guide Issue Date 2010-03-23 Part Number 202168 Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office or company headquarters. Huawei Technologies Co., Ltd. Address: Huawei Industrial Base Bantian, Longgang...
- Page 3 Thus the descriptions herein may not exactly match the product or its accessories you purchase. Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation.
-
Page 4: Table Of Contents
3.2 Accessing the Network Through the PPP Dial-Up Software on Your Computer ......................9 4 Configuring the Wireless Network Connection........10 5 Configuring the HG530 ................12 5.1 Changing the Administrator Password Used for Logging In to the Web-Based Configuration Utility ..............12 5.2 Enabling or Disabling the Wireless Network Function ......13... -
Page 5: Warnings And Precautions
1 Warnings and Precautions Thank you for purchasing the HUAWEI HG530 Home Gateway (hereinafter referred to as the HG530). To use the device properly and safely, read these warnings and precautions carefully and strictly observe them during operation. Unless otherwise specified, the term "device"... - Page 6 During thunderstorms, power off the device, and then remove all the cables connected to it to prevent it from getting damaged due to lightning strikes. Precautions for Using Wireless Devices When using the device, ensure that the antenna of the device is at least 20 cm away from all persons.
- Page 7 Maintenance If the device is not used for a long time, power it off, and then remove all the cables connected to it. If any exception occurs, for example, if the device emits any smoke or unusual sound or smell, stop using the device immediately, power it off, remove all the cables connected to it, and then contact an authorized service center.
- Page 8 този уред съответства на основните изисквания и другите разпоредби на Директива 1999/5/EC. Česky: Huawei Technologies Co., Ltd., tímto prohlašuje, že toto zařízení je ve shodě se základními požadavky a dalšími souvisejícími opatřeními směrnice 1999/5/EC. Dansk: Huawei Technologies Co., Ltd. erklærer hermed at denne enhed er i overensstemmelse med de obligatoriske krav og andre relevante bestemmelser i direktiv 1999/5/EF.
- Page 9 Gaeilge: Fograíonn Huawei Technologies Co., Ltd leis seo go bhfuil an fheiste seo i gcomhlíonadh leis na fíor-riachtanais agus na forálacha eile maidir le Treoir 1999/5/AE. Italiano: Col presente documento, Huawei Technologies Co., Ltd. dichiara che questo dispositivo è conforme ai requisiti essenziali e alle altre disposizioni applicabili della Direttiva 1999/5/CE.
- Page 10 Warning: Changes or modifications made to this device not expressly approved by Huawei Technologies Co., Ltd. may void the FCC authorization to operate this device. After the HG530 is used for a certain period of time, the cover will be heated, which will not affect the function of the HG530.
-
Page 11: Getting Started
Through Embedded PPP Dial-Up Software on the HG530 If you select this method for accessing the network, the HG530 starts to set up a dial-up connection automatically after the startup. You can access the network after you power on your computer. You do not need to install any special dial-up software on your computer or perform dial-up operations on your computer. -
Page 12: Computer
For details, refer to the procedure for enabling the embedded dial-up function described in Step 2 in s ection 3.1 "Accessing the Network Through the Embedded PPP Dial-Up Software on the HG530" Note that Bridge is selected from the Mode d rop-down combo box. -
Page 13: The Hg530
6. Enter an access password in the Pre-Shared Key text box. 7. Click Submit to save the settings. Step 2 Press the WPS button of the HG530 to enable the HG530 to enter the WPS negotiation state. - Page 14 PC within two minutes, and then wait for a moment (typically 10s and at most 120s). The WPS indicator of the HG530 becomes on from the blinking state, indicating that the HG530 is connected to your PC through the WLAN.
-
Page 15: Configuring The Hg530
After the password is verified, Connected appears on the icon of the wireless network in the wireless network list, which indicates that the computer is connected to the HG530 through a wireless connection. 8. Close the Wireless Network Connection dialog box. 9. In the Wireless Network Connection Properties dialog box, click OK. -
Page 16: Enabling Or Disabling The Wireless Network Function
You can quickly enable or disable the wireless network function by pressing the WLAN button on the HG530. To enable the wireless network function, press and hold the WLAN button for over one second, and then release the button. You can disable the wireless network function in the same way. -
Page 17: Changing The Ip Address Used For Logging In To The Web-Based Configuration Utility
Internet Explorer, and then enter the new IP address in the address bar. Ensure that the IP address of the computer is in the same network segment as that of the HG530 so that the computer can access the Web-based configuration utility. - Page 18 You can quickly restore the default settings of the HG530 by pressing the Reset button on the rear panel. To restore the default settings, press and hold the Reset button for over six econds after the HG530 is powered on, and then release the button. In addition, you can r...
-
Page 19: Faqs
To restore the default settings, press and hold the Reset button on the rear panel for over six seconds after the HG530 is powered on, and then release the button. What can I do if I cannot access the Internet through the terminal? Step 1 Check whether the Power indicator on the terminal is solid on. - Page 20 is properly connected. Remove and then insert the network cable or replace the network cable when necessary. If the LAN indicator is still off, contact an authorized maintenance center. Step 4 Check whether the driver for the network adapter is properly installed. Take a computer that runs Windows XP as an example.
- Page 21 Step 8 Try to access multiple Web sites to check whether the terminal can access these Web sites. If the terminal still cannot access Web sites, contact your network service provider. What can I do if Web pages often cannot be displayed during Web page browsing and can be displayed after the terminal is restarted? Step 1 Ensure that the terminal and other devices, such as telephones or fax...
-
Page 22: Appendix
Data is being transmitted. The HG530 works in routing mode. The WAN connection is set up. No data is being transmitted. The HG530 works in bridge mode or in routing mode. No WAN connection is set up. WLAN Blinking The wireless network function is enabled. -
Page 23: Interfaces And Buttons
WPS button, which is used to enable the WPS negotiation function. Power button, which is used to power on or off the HG530. Power interface, which is used to connect the HG530 to the power adapter. Reset button, which is used to restore the factory settings of the HG530. -
Page 24: Default Settings
7.3 Default Settings Parameter Setting IP address of the LAN interface 192.168.1.1 Subnet mask of the LAN interface 255.255.255.0 User name used for logging in to the admin Web-based configuration utility Password used for logging in to the admin Web-based configuration utility DHCP server function Enable Wireless network function... - Page 25 Item Specification DSL transmission G.dmt Maximum downlink rate: 8 Mbit/s rates T1.413 Maximum uplink rate: 896 kbit/s G.992.5 (ADSL2+) Maximum downlink rate: 24 Mbit/s Maximum uplink rate: 1024 kbit/s Wireless 802.11b 1 Mbit/s, 2 Mbit/s, 5.5 Mbit/s, and 11 transmission rates Mbit/s 802.11g 6 Mbit/s, 9 Mbit/s, 12 Mbit/s, 18...
- Page 26 HUAWEI TECHNOLOGIES CO., LTD. Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China www.huawei.com Part Number: 202168...
