Gigabyte AORUS CV27Q User Manual

Tactical gaming monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

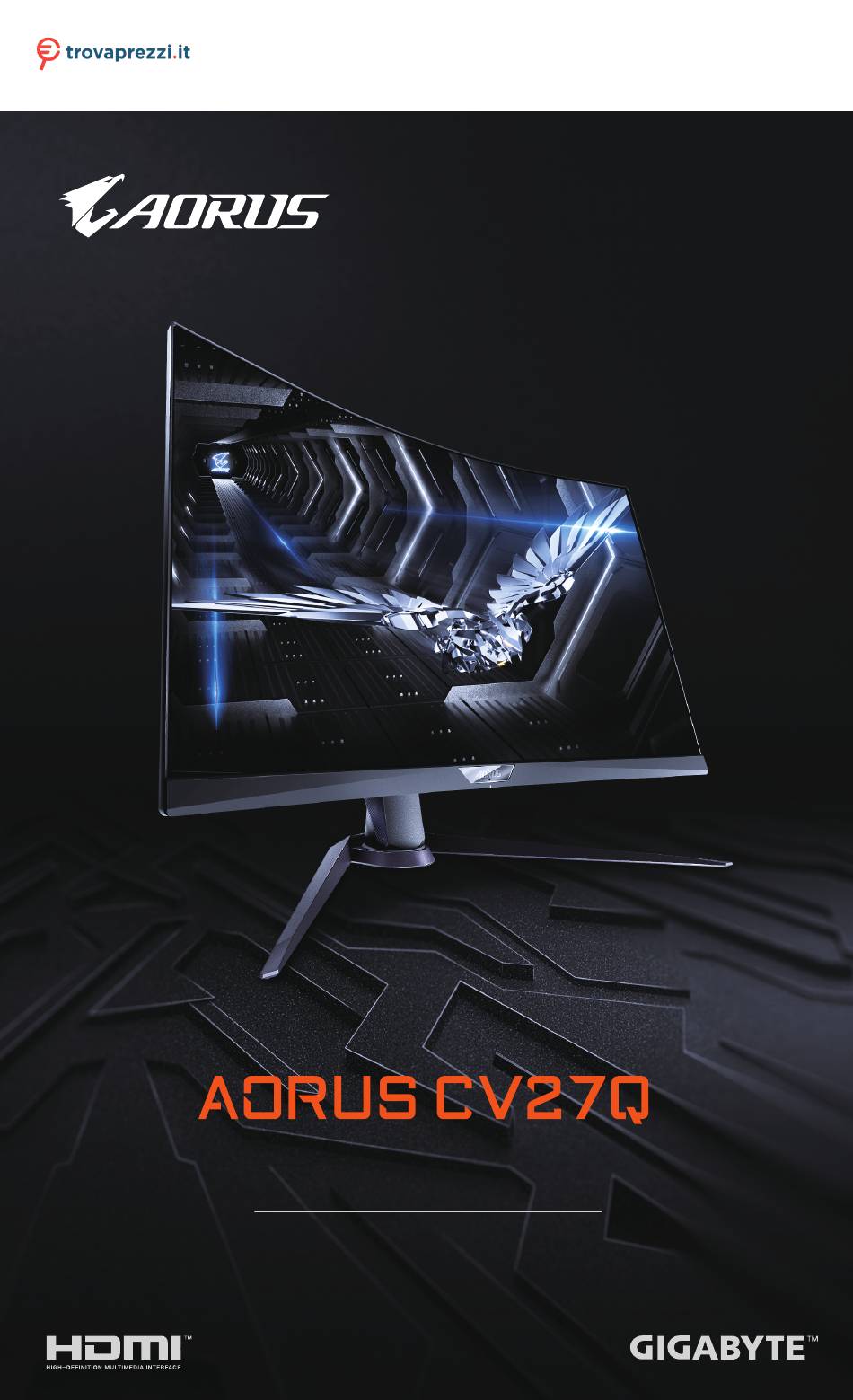

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
Gigabyte AORUS
CV27Q
o cerca il tuo prodotto tra le
migliori offerte di Monitor
TACTICAL
GAMING MONITOR
USER GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte AORUS CV27Q

Summary of Contents for Gigabyte AORUS CV27Q

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Gigabyte AORUS CV27Q o cerca il tuo prodotto tra le migliori offerte di Monitor TACTICAL GAMING MONITOR USER GUIDE...
  • Page 2 GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE’s prior written permission.

  • Page 3: Safety Information

    Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: LCD monitor Trade Name: GIGABYTE Model Number: AORUS CV27Q Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...
  • Page 4 European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr , PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement.
  • Page 5 LCD Monitor User’s Manual WEEE Symbol Statement The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
  • Page 6 LCD Monitor User’s Manual CE declaração de conformidade Este produto com a marcação CE estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/UE. A conformidade com estas diretivas é verificada utilizando as normas europeias harmonizadas.
  • Page 7 LCD Monitor User’s Manual China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时， 请遵守国家废弃电器电子产品回收处理相关法律法规，将其交给当地具有 国家认可的回收处理资质的厂商进行回收处理。 环保使用期限 Environment-friendly Use Period 此标识指期限（十年），电子电气产品中含有的有害物质不会 发生外泄或突变、电子电气产品用户正常使用该电子电气产品 不会对环境造成严重 污染或对其人身、财产造成严重损害的 期限。 产品中有害物质的名称及含量: 有害物质 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 部件名称 (Pb) (Hg) (Cd) (PBB) (PBDE) 印刷电路板及其电 ○ ○ ○ ○ ○...
  • Page 8 LCD Monitor User’s Manual 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking AORUS CV27Q 液晶顯示器 設備名稱: ，型號 (型式): Equipment name: Type designation (Type): 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 多溴聯苯 多溴二苯醚 鎘 六價鉻...

  • Page 9: Safety Precautions

    LCD Monitor User’s Manual Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 10: Table Of Contents

    Quick Menu ........................26 Configure the Device Settings .................. 31 Appendices ..........................41 Specifications ........................41 Supported Timing List ....................42 Troubleshooting ......................43 Basic Care .......................... 44 Notes on USB Charging ....................44 GIGABYTE Service Information ................. 44 - 10 -...

  • Page 11: Introduction

    LCD Monitor User’s Manual INTRODUCTION Unpacking Open the upper cover of the packaging box. Then observe the unpacking label attached on the inner cover. Making sure the box is in the correct orientation, carefully lay the box on the stable surface. Open the inner cover.
  • Page 12 LCD Monitor User’s Manual Remove the items from the upper EPS foam. Remove the upper EPS foam. Then you can remove the monitor and stand from the lower EPS foam. - 12 -...

  • Page 13: Package Contents

    Monitor Monitor Base Stand Power Cable HDMI Cable USB Cable Multilingual Installation Guide AORUS CV27Q DP Cable Quick Start Guide Warranty Card Note: Please keep the packaging box and packing materials for future transportation of the monitor. - 13 -...

  • Page 14: Product Overview

    LCD Monitor User’s Manual Product Overview Front View Power LED Control button - 14 -...
  • Page 15 LCD Monitor User’s Manual Rear View HDMI-1 HDMI-2 USB 3.0 AC IN jack HDMI ports (x2) Kensington lock DisplayPort Headphone jack USB upstream port Microphone jack USB 3.0 ports (x2) - 15 -...

  • Page 16: Getting Started

    LCD Monitor User’s Manual GETTING STARTED Installing the Monitor Base Place the monitor on the lower EPS foam, with the screen facing down. Align and slide the hooks of the stand into the mounting slots on the rear of the screen. Align the monitor base with the two guide pins underneath the stand.
  • Page 17 LCD Monitor User’s Manual Rotate the monitor base counter clockwise to lock it in place. Then tighten the screw to secure the base. Lift the monitor to an upright position and place it on a table. - 17 -...

  • Page 18: Adjusting The Viewing Angle

    LCD Monitor User’s Manual Adjusting the Viewing Angle Note: Hold the monitor base so that the screen does not topple when you make the adjustment. Adjusting the Tilt Angle Tilt the screen forward or backward to the desired viewing angle (-5˚...
  • Page 19 LCD Monitor User’s Manual Adjusting the Screen Height Lower or raise the screen to the desired height (0 to 130mm). 130 mm - 19 -...

  • Page 20: Installing A Wall-Mount Bracket (Optional)

    LCD Monitor User’s Manual Installing a Wall-Mount Bracket (Optional) Use only the 100 x 100 mm wall mount kit recommended by the manufacturer. Place the monitor on the lower EPS foam, with the screen facing down. Push the locking clips inward to detach the stand from the monitor. Pull down the stand slightly to disengage the hooks.
  • Page 21 LCD Monitor User’s Manual Attach the mounting bracket to the mounting holes at the rear of the monitor. Then use the screws to secure the bracket in place. 100 mm 100 mm Note: To mount the monitor on the wall, refer to the installation guide that is included in the wall-mount bracket kit.

  • Page 22: Making Connections

    LCD Monitor User’s Manual Making Connections HDMI-1 HDMI-2 USB 3.0 Keyboard Mouse & USB disk drive Computer Power outlet Computer Headphone Microphone Power cable DisplayPort cable Headphone cable USB (A-Male to B-Male) cable Microphone cable USB cable HDMI cable - 22 -...

  • Page 23: Using The Device

    LCD Monitor User’s Manual USING THE DEVICE Turning the Power On/Off Power On Connect one end of the power cable to the AC IN jack at the rear of the monitor. Connect other end of the the power cable to a power outlet. Control Press the button to turn on the monitor.

  • Page 24: User Comfort Recommendations

    LCD Monitor User’s Manual User Comfort Recommendations The following are some tips for comfortable viewing of your monitor: • Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20” to 30”). • A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.

  • Page 25: Selecting The Input Source

    LCD Monitor User’s Manual Selecting the Input Source Control Move the button right ) to enter the Input menu. Input Control Move the button up/ down ( ) to select the desired HDMI 1 input source. Then press the HDMI2 Control button to confirm.

  • Page 26: Operations

    LCD Monitor User’s Manual OPERATIONS Quick Menu Hot Key Control By default, the button has been assigned with the specific function. Note: To change the preset hot key function, refer to the “Quick Switch” section on page 38. To access the hot key function, do the following: Control ) to enter the Black Equalizer • Move the...
  • Page 27 LCD Monitor User’s Manual Control ) to enter the Picture Mode • Move the button down ( menu. Control Move the button up/down ( ) to select the Picture Mode desired option and press the Control button to confirm. Standard AORUS RTS/RPG Movie...
  • Page 28 LCD Monitor User’s Manual Function Key Guide Control button to display the Main menu. Press the Settings SETTING Dashboard Game Assist DASHBOARD EXIT GAME ASSIST Exit Power Off POWER OFF Control Then use the button to select the desired function and configure the related settings.
  • Page 29 LCD Monitor User’s Manual Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen. CPU Temperature CPU Frequency CPU Fan Speed CPU Usage Rate GPU Temperature GPU Frequency...
  • Page 30 LCD Monitor User’s Manual • AORUS Info: Configure the FPS (First Person Shooting) game related settings. √ Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF. √ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.

  • Page 31: Configure The Device Settings

    Balance 60 HZ Picture Mode Standard LCD Monitor User’s Manual Configure the Device Settings When the Main menu appears on the screen, move the Control button tion ) to enter the Settings menu. up ( Note: Use the Control button to navigate through the menu and make adjustments.
  • Page 32 LCD Monitor User’s Manual Item Description Black Adjust the brightness of the black areas. Equalizer Super Sharpen the low resolution images. Resolution Display Mode Select the aspect ratio of the screen. • Full: Scale the input image to fill the screen. Ideal for 16:9 aspect images.
  • Page 33 LCD Monitor User’s Manual Picture Configure the image related settings. Brightness Contrast Sharpness Gamma Color Temp. Gamma 3 Normal Picture Mode Standard Gaming Standard Brightness Picture AORUS Contrast Display Color Vibrance PIP/PBP RTS/RPG Sharpness System Movie Gamma Save Settings Reader Color Temp.
  • Page 34 LCD Monitor User’s Manual Item Description Color Temp. Select the color temperature. Note: Select User Define to customize the color temperature by adjusting the red (R), green (G), or blue (B) level according to your preference. Low Blue Light Reduce the amount of blue light exposure from the screen.
  • Page 35 LCD Monitor User’s Manual Display Configure the display screen related settings. Brightness Contrast Sharpness Gamma Color Temp. Gamma 3 Normal Picture Mode Standard Gaming Input HDMI 1 Picture HDMI RGB PC Range HDMI 2 Display Overscan DisplayPort PIP/PBP System Save Settings Reset All Exit Move/Adjust...
  • Page 36 LCD Monitor User’s Manual PIP/PBP Configure the multi-picture related settings. Brightness Contrast Sharpness Gamma Color Temp. Gamma 3 Normal Picture Mode Standard Gaming Picture Display PIP/PBP System Save Settings Reset All Exit Move/Adjust Enter/Confirm Item Description Disable the PIP/PBP function. Split the screen into 2 parts (main window and inset window).
  • Page 37 LCD Monitor User’s Manual System Configure the system related settings. Brightness Contrast Sharpness Gamma Color Temp. Gamma 3 Normal Picture Mode Standard Gaming Language English Picture RGB LED Display Headphone PIP/PBP OSD Setting Deutsch System Quick Switch Р Save Settings Other Settings Français Reset All...
  • Page 38 LCD Monitor User’s Manual Item Description Quick Switch Assign the function of the hot keys. Available options: Aim Stabilizer, Black Equalizer, Low Blue Light, Volume, Input, Contrast, Brightness, and Picture Mode. The default setting of the hot keys as below: D Up ( ): Black Equalizer D Down (...
  • Page 39 LCD Monitor User’s Manual Item Description Other Settings • DisplayPort Ver.: Set the DisplayPort version to 1.1, 1.2, or 1.4 +HDR. (continue) Note: • To enable the HDR effect for the DP port, you may need to set the DP1.4 and enable the 8-bit color output in your graphics card.
  • Page 40 LCD Monitor User’s Manual Save Settings Set the personalized OSD configurations for Setting1, Setting2, or Setting3. Brightness Contrast Sharpness Gamma Color Temp. Gamma 3 Normal Picture Mode Standard Gaming Setting1 Save Picture Setting2 Load Display Setting3 PIP/PBP System Save Settings Reset All Exit Move/Adjust...

  • Page 41: Appendices

    LCD Monitor User’s Manual APPENDICES Specifications Item Specifications Panel Size 27-inch Aspect Ratio 16:9 Resolution 2560 x 1440 Refresh Rate 165Hz LED Life 30000 hours (min.) Pixel Pitch 0.3114 x 0.3114 Response Time 1ms (MPRT) Brightness 350nits (typ.) / 400nits (HDR) Contrast Ratio 3000:1 (typ.) Dynamic Contrast Ratio 12M:1 (typ.)

  • Page 42: Supported Timing List

    LCD Monitor User’s Manual Supported Timing List Timing List HDMI 2.0 Display Port 1.4 640x480@60Hz √ √ 640x480@75Hz √ √ 720x480@60Hz √ √ 720x576P@50Hz √ √ 800x600@60Hz √ √ 800x600@75Hz √ √ 1024x768@60Hz √ √ 1280x720@60Hz √ √ 1280x720@100Hz √ √...

  • Page 43: Troubleshooting

    LCD Monitor User’s Manual Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connected to the power source and the monitor. • Check the cable and plug to make sure they are not broken. • Make sure the monitor is turned on. No image appears • Make sure the monitor and the computer on the screen...

  • Page 44: Basic Care

    When the Hub is connected to a PC, these devices cannot be charged using the USB cable. Vendor Device PID/VID Apple IPad PID_129A/VID_05AC Samsung Galaxy Tab2 10.1 PID_6860/VID_04E8 Samsung GALAXY TabPro PID_6860/VID_04E8 GIGABYTE Service Information More service information, please visit GIGABYTE official website: https://www.gigabyte.com/ - 44 -...
