Summary of Contents for VTech ErisTerminal VSP885G

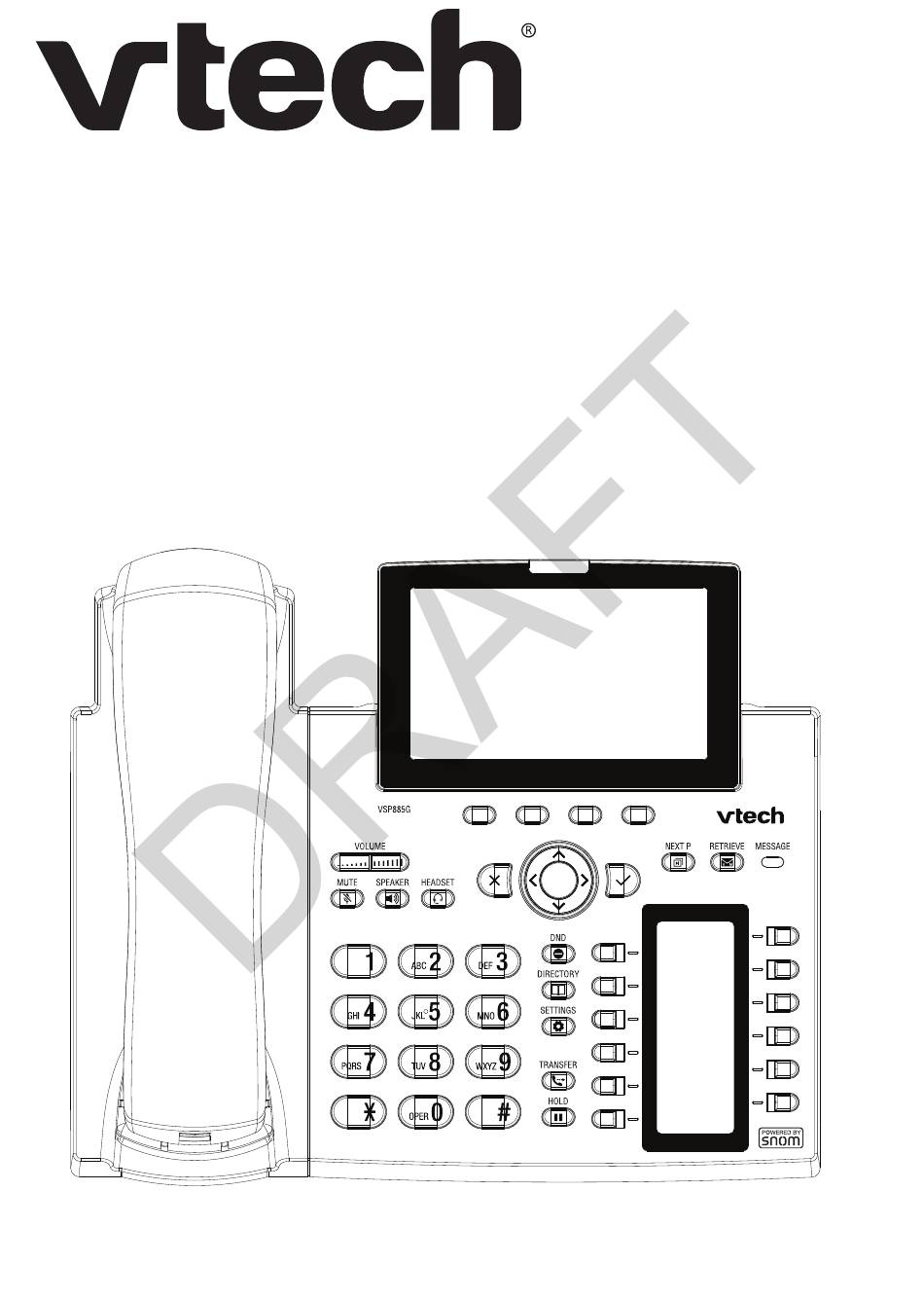

- Page 1 ErisTerminal SIP Deskset ® VSP885G Quick Start Guide VSP885G AW...
-
Page 2: Important Safety Information
Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:... - Page 3 12. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the telephone base or handset other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is subsequently used.
- Page 4 19. Use only the power cord indicated in this manual. Power adapter rating: 5 Vdc @ 2 A 20. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. 21. In wall mounting position, make sure to mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate.
- Page 5 14. Débranchez cet appareil de la prise de courant et communiquez avec le département de service à la clientèle de VTech dans les cas suivants: A. Lorsque le cordon d’alimentation est endommagé ou écorché.
- Page 6 remettre l’appareil à son état de fonctionnement normal. E. Si l’appareil a été échappé ou son boîtier, endommagé. F. Si le produit affiche une nette diminution de sa performance. 15. Évitez d’utiliser un téléphone (autre qu’un sans fil) pendant un orage. Les éclairs peuvent être à...
- Page 7 FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 8 Industry Canada This Class A digital apparatus complies with Canadian requirements: CAN ICES-3 (A)/NMB-3(A). Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 9: About This Guide
This quick start guide provides a reference for the external features of the phone and basic installation instructions. Please refer to the VSP885G Deskset User Guide for complete installation and operation instructions. You can download the guide from businessphones.vtech.com For customer service or product information, visit our website at businessphones.vtech.com 1 (888) 370-2006... - Page 10 Quick Reference Guide External Features and Controls CALL LED AUDIO Blinking fast: Incoming call CONTROL KEYS Steady light: Busy SCREEN FUNCTION KEYS MWI KEY & LED NAVIGATION KEYS PROGRAMMABLE KEYS P1-P12 DEDICATED, ALPHANUMERIC CUSTOMIZABLE KEYPAD VSP885G AW Rosalyn Chun / 23 Nov 2017 / V4 FUNCTION KEYS...
-
Page 11: Deskset Installation
Provisioning Manual, available at You can power the phone using a compatible VTech AC power adapter or using Power over Ethernet (PoE) from your network. (The phone requires PoE Class 3.) If you are not using PoE, install the phone near a power outlet not controlled by a wall switch. - Page 12 2. Tilt the footstand towards you and insert the snap-fits on the shorter ends into the holes marked (Fig. 1 and 2). 3. Place the cables (Ethernet, etc.) in the cable slots of the footstand (Fig. 3). To wall mount the phone, see the VSP885G User Guide.
-
Page 13: Connecting The Phone
The phone can be operated with Power over Ethernet (PoE) provided via the network cable or, if PoE is not available in your network, with the separately available 5V DC VTech power adapter VSP-PWR2000. • Plug the Ethernet (network) cable into the RJ45 connector labeled “NET”, and plug the other end into the network side to establish a data link. - Page 14 IMPORTANT INFORMATION 1. Use only a compatible VTech power adapter. To order a power adapter, visit businessphones.vtech.com 1 (888) 370-2006 our website at or call 2. The power adapter is intended to be correctly oriented in a vertical or floor mount position.
-
Page 15: Maintenance
Maintenance Taking care of your telephone • Your telephone base contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Place the corded handset down gently. • Save the original packing materials to protect your telephone base if you ever need to ship it. -
Page 16: Technical Specifications
32–104 °F (0–40 °C) AC adapter output voltage 5.0 Vdc @ 2 A AC adapter model number a. Phihong model #: PSM10R-050 (VTech #: VSP-PWR2000) b. Tenpao model #: S018BAM0500200 (VTech #: VSP-PWR2000) c. SIL model #: SSA-050200US (VTech #: VSP-PWR2000) - Page 20 VTECH COMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc., Beaverton, Oregon 97008. VTech is a registered trademark of VTech Holdings Limited. Copyright © 2018 for VTECH COMMUNICATIONS LTD. All rights reserved.
