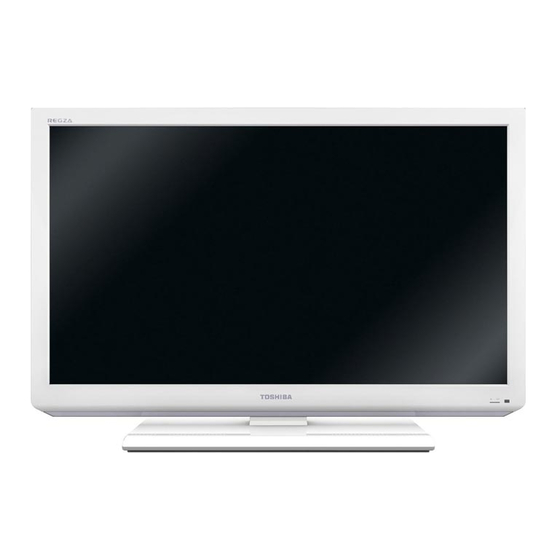

- Page 1 SERVICE MANUAL LCD TV/DVD COMBINATION 26DL834R Ver. 1.00 Updating history Currently there are no updates available. Please check back at a later time for any future updates.
- Page 2 LASER BEAM PRECAUTION CLASS 2 Visible and Invisible Laser Radiation from the Drive Mecha Unit when the Power Supply is turned ON. Do not stare into the beam.
-
Page 3: Firmware Updating Procedure
FIRMWARE UPDATING PROCEDURE CAUTION: Whenever replacing the Main PCB with new one, update the firmware to the latest version according to the correct destination. 1. Please copy the files to a USB device (root directory). mb61_en.bin mboot.bin usb_auto_update.txt 2. Turn off the TV power by switching off On/Off Switch or unplugging AC plug. 3. - Page 4 DVD FIRMWARE UPDATE FROM CD 1. First you should write DVD Firmware into a CD. 2. Put the CD into DVD loader of TV. 3. The TV will detect the firmware automatically. 4. As soon as it detects, you will see below items on the screen. Upgrade File Detected Upgrade ? Press Play To Start...
-
Page 5: Parts List
Currently there are no updates available. Please check back at a later time for any future updates. Location Parts No. Description E200 75026356 PC BOARD ASSY, MAIN, 26DL834R, 20568365 E250 75025751 POWER MODULE, 26DL833B, 20553706 E270 75026226 PC BOARD ASSY, LED, 19EL833F, 20569207... - Page 6 LED-IR BOARD PANEL PANEL 1 GND 2 LED 2 3 LED 1 4 IR_IN 5 5V_STBY CN137 PL200 PL201 1 N.C. 1 NC 1 GND 1 24V 2 GND 2 NC 2 GND 2 24V 3 N.C. 3 24V_VCC 3 NC 3 24V 4 N.C.
- Page 7 26DL833B LG LC260EXN-SDA3 10071248 26DL833F LG LC260EXN-SDA3 10071637 26DL833G LG LC260EXN-SDA3 10072739 26DL833N LG LC260EXN-SDA3 10072740 26DL833R LG LC260EXN-SDA3 10072742 26DL833R(SKD) LG LC260EXN-SDA3 10072900 26DL834B LG LC260EXN-SDA3 10071726 26DL834F LG LC260EXN-SDA3 10071736 26DL834G LG LC260EXN-SDA3 10073487 26DL834R(SKD) LG LC260EXN-SDA3 10072901...
