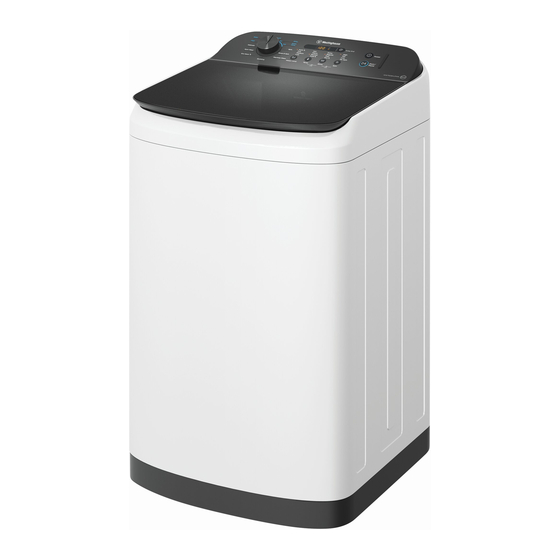

- Page 1 TOP-LOAD WASHING MACHINE WWT6084J5WA WWT7084J5WA...
- Page 2 Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Westinghouse manufacturer’s warranty provided with your product. Products must be used, installed and operated in accordance with this manual.
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION ..4 7. CARE AND CLEANING ....25 1.1 Conditions Of Use ..... 4 7.1 What To Do After You Have 1.2 Child Safety ....... 5 Finished Your Washing.... 25 1.3 General Safety ......6 7.2 Cleaning The Lint Filter ... 25 1.4 Installation ......... -
Page 4: Safety Information
/ www.westinghouse.co.nz SAFETY INFORMATION 1.1 Conditions Of Use This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environment; farm houses; by clients in hotels, motels, and other residential type environment;... -
Page 5: Child Safety
1.2 Child Safety This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach. -
Page 6: General Safety
/ www.westinghouse.co.nz 1.3 General Safety It is dangerous to alter the specifications or attempt to modify this product in anyway. Do not use your washing machine to wash articles with whale bones, material without hems or torn material. Always unplug the appliance and turn off the water supply after use, clean and maintenance. -
Page 7: Use
Make sure that the drainage is working Never pull the power supply cable to properly. remove the plug from the socket, always take hold of the plug itself. May cause electric shock! if the machine is not connected to an earthed/ground system. -
Page 8: Product Description
/ www.westinghouse.co.nz 2. PRODUCT DESCRIPTION 2.1 Parts Control Panel Cabinet Front Feet Levelling Adjustable : Right & Left Water Inlet Hose Old inlet hose should be discharged if any and use the inlet hose provided with machine. Mains Cable... - Page 9 Detergent/Bleach Dispenser (see page 17) Bleach Dispenser (option) Fabric Softener Dispenser Frame Filter Lint Filter Lint Filter (see page 25) Agitator...
-
Page 10: Product Features
/ www.westinghouse.co.nz 2.2 Product Features Auto sensing water level Power Failure Recovery Auto sensing is a feature where the When there is power failure while the machine washer fills automatically with water to is washing or rinsing or spinning. The machine just the right level for your clothes load. -
Page 11: Control Panel
3. CONTROL PANEL 3.1 Control Panel Description Soak Program knob Display Water Level button Delay End button Temp button Soak option ** Rinse button Child safety lock option ** Spin button Power button Start/Pause button two combination buttons, press and hold these two buttons about 3 seconds... -
Page 12: Program Chart
Clothes Load depends on the Water level selected. For the best washing result, do not exceed the load weight over the suggestion as in the table above. Maximum capacity depended on the model of the Washing Machine. Model : WWT6084J5WA 6 kg WWT7084J5WA... -
Page 13: Program Options Compatibility
3.3 Program Options Compatibility Option Water Level Temp Rinse Spin Delay Soak Program Extra Dirty 120 Dirty 90 Full Load 60 Daily 45 Fast 20 Delicate Gym Ware Eco Save Bedding Machine Clean Rinse & Spin Spin Remark Default option Available select option... -
Page 14: Options
/ www.westinghouse.co.nz 3.4 Options Water Level Button If you have a cold water connection ONLY and the hot inlet valve is Choose the water level by pressing “Water capped off (refer installation Level” button. instructions) you must select Cold washes only. - Page 15 For example, if the program duration of Note: your selected program is 3.20 hours and Compare this with Regular rinse where you define the “Delay End” time to 6 much more water is used. hours. This means your wash program will finish in 6 hours.
-
Page 16: Settings
/ www.westinghouse.co.nz 3.5 Settings Enabling/Disabling End-Of-Wash Child Safety Lock ( ) Option Buzzer Your appliance is provided with CHILD SAFETY LOCK which permits you to leave This setting permits you to either enable the appliance unsupervised with the door... -
Page 17: Daily Use
4. DAILY USE 4.1 Starting Your Washing 4.3 Add The Detergent / Bleach Machine Powder / Liquid Detergent / Connect the mains plug to the mains Bleach socket. 1. Pull the dispenser drawer forward out 2. Turn the water tap on. from its position. -
Page 18: Add Fabric Softener
/ www.westinghouse.co.nz 4.5 Adding Bleach (Option) 2. Mix detergent in one litre of water. 3. Add the pre-mixed detergent to the Bleaching of clothes can help to remove wash load. stains, heavy soiling and to kill bacteria. NOTE: When you use the... -
Page 19: Setting A Program
This delay is a drain out period to ensure 4.6 Setting a Program the bowl is empty of water, which is necessary before spin commences. Even Press Power ( , turn the program selector to the required though you may have only put wet clothes program. -
Page 20: At The End Of The Program
/ www.westinghouse.co.nz 4.11 At The End Of The Program The appliance stops automatically. The display will show “ ” and flashing with 3 consecutive long beeps. Press the Power button to turn off the machine. Remove the laundry from the appliance. -
Page 21: Washing Hints
5. WASHING HINTS These Washing Instructions are of a Never wash whites and coloureds general nature and you should get good together. Whites may lose their wash results by following them. “whiteness” in the wash. However, due to the variables of fabric New coloured items may run in the first wash;... -
Page 22: Pre-Treatment Sprays And Stain Removers
/ www.westinghouse.co.nz 5.2 Pre-treatment Sprays And Quantity of detergent to be Stain Removers used The type and quantity of detergent will WARNING! depend on the type of fabric, load size, degree of soiling and hardness of the Pre-treatment sprays and stain remover water used. - Page 23 Mould stains: treat with bleach, rinse well (whites and fast coloureds only). Grass: soap lightly and treat with bleach (whites and fast coloureds only). Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain. Lipstick: moisten with acetone (*) as above, then treat stains with methylated spirits.
-
Page 24: International Wash Code Symbols
/ www.westinghouse.co.nz ENGLISH 6. INTERNATIONAL WASH CODE SYMBOLS These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic Max. wash Max. wash Max. wash Max. wash DO NOT temperature... -
Page 25: Care And Cleaning
7. CARE AND CLEANING Your washing machine will give you long Unclip the filter bag from the column. and trouble-free service, if you follow the instructions in this section. These instructions show you how to care for your washing machine. 7.1 What To Do After You Have Squeeze tabs together and... -
Page 26: Cleaning The Drawer Recess
/ www.westinghouse.co.nz 7.4 Cleaning The Drawer To do this proceed as follows: Recess Remove dispenser drawer from its places. Having removed the drawer, use a small Pull out the dispenser drawer until it brush to clean the recess, ensuring that... -
Page 27: Cleaning Your Washing Machine
Important: Remove the inlet hose behind the appliance. Never use solvents, alcohol, aerosol cleaners, spray pack cleaners, glass cleaners, metal polishes, caustic materials, scourers or general household cleaners on or near the top panel and lid, control panel or other parts of your washing machine. -
Page 28: Troubleshooting
/ www.westinghouse.co.nz ENGLISH 8. TROUBLESHOOTING 8.1 Possible Failures You will have to pay even when your washing machine is under warranty. DO NOT call for service until you have Before you call for service, check the checked the points listed below. - Page 29 Problem Display Possible Causes What to do Code Check detergent use and Not enough or no detergent. rewash clothes. Clothes still dirty Remove some clothes and Too many clothes on load. after wash rewash. program. Incorrect wash program. Reselect program and rewash.
-
Page 30: Troubleshooting Fault Displays
/ www.westinghouse.co.nz 8.2 Troubleshooting Fault Displays Fault information and a guide for when you should call for service. If you have a problem with your washing machine and before you call service, make sure you have followed ALL of the instructions that may remedy the problem. You will find instructions in the “Troubleshooting”... - Page 31 Display Description Possible fault Code Motor system - Motor defective problems - Motor Wiring or Motor Control board defective - Overload condition UI -MB communication - Wiring defective, or UI, MB board defective error Power supply frequency - Wrong or disturbed Power Supply line. E E H H 0 0 out of limits - Main board defective...
-
Page 32: Yellowing Or Greying Clothes
/ www.westinghouse.co.nz 8.3 Yellowing Or Greying Clothes Problem Possible causes What to do Incorrect wash times and ONLY use low sudsing, using insufficient detergent front load washer which can cause redeposit- detergent in this machine, ing of detergent on clothes. -
Page 33: Technical Data
Bedding 4 kg Machine Clean No Load Rinse & Spin Spin Spin speed (Maximum / Minimum) 800 rpm / 550 rpm 1) Maximum capacity depended on the model of the Washing Machine. Model : WWT6084J5WA 6 kg WWT7084J5WA 7 kg... -
Page 34: Installation
/ www.westinghouse.co.nz 10. INSTALLATION 10.1 Unpacking Lift the machine out of the packaging base. Use gloves. Cut the plastic packing and remove plastic wrap from the washing machine. Tilt the washing machine a little from back side and insert the Bottom... -
Page 35: Positioning
Open the lid. Remove the polystyrene piece from top panel and all the items from the washing tub. 8. Pull up the appliance in vertical position. Open the washing machine lid. Remove the top polystyrene. Install polystyrene piece to the top panel again. -
Page 36: Water Inlet
/ www.westinghouse.co.nz Tilt the washer a little to adjust the right Turn the taps on and check that there are front leg. no leaks from the connections. Turn off the water taps and move the washing machine into its final position. -
Page 37: Electrical Connection
10.5 Electrical Connection This machine is designed to operate on a 220 - 240 V, single-phase, 50 Hz supply. “An incorrect power supply may void your warranty.” Insert / Check that your domestic electrical installation can take the maximum Shift load required (2.0 kW), also taking into account any other appliances in use. -
Page 38: Environment Concerns
/ www.westinghouse.co.nz 11. ENVIRONMENT CONCERNS 11.1 Packaging Materials For more detailed information about recycling of this product, please contact The materials marked with the your local city office, your household symbol are recyclable. waste disposal service or the shop where >PE<=polyethylene... - Page 39 NOTE...
