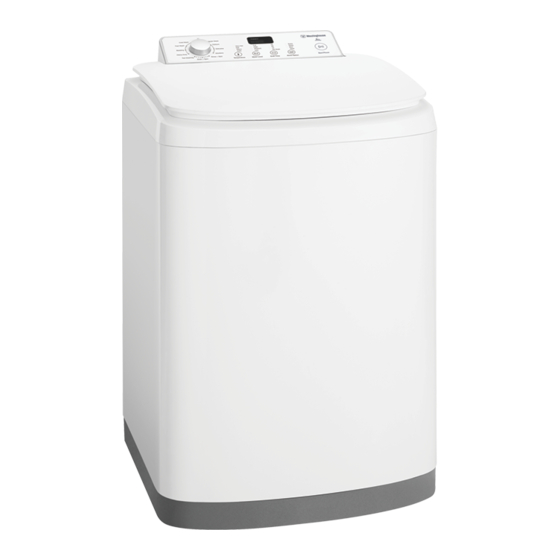

- Page 1 Washing Machine Model: WWT6040...
-
Page 2: Table Of Contents
CONTENTS SAFETY INFORMATION ................. 2 PRODUCT DESCRIPTION ................5 CONTROL PANEL ..................7 WASHING INSTRUCTIONS ................13 DAILY USE ....................15 CARING FOR YOUR WASHING MACHINE ........... 19 HELPFUL HINTS IN DEALING WITH WASHING PROBLEMS ....... 22 A GUIDE TO STAIN REMOVAL .............. - Page 3 1.1 GENERAL SAFETY It is dangerous to alter the specifica- tions or attempt to modify this product in anyway. Do not use your washing machine to wash articles with whale bones, material without hems or torn material. Always unplug the appliance and turn off the water supply after use, clean and maintenance.
- Page 4 Never pull the power supply cable Any plumbing work required to to remove the plug from the socket, install this appliance should be always take hold of the plug itself. carried out by a qualified plumber. Any electrical work required to install this appliance should be carried out by a qualified electrician.
-
Page 5: Product Description
PRODUCT DESCRIPTION WASHING MACHINE PARTS FRONT VIEW BACK VIEW INSIDE VIEW PARTS LIST Control Panel Cabinet Levelling Adjustable Front Feet Water Inlet Hose - RED fittings (Hot Water) - BLUE fittings (Cold Water) Mains Cable Outlet Hose/Drain Hose (See installation instructions sheet to fit &... - Page 6 PRODUCT FEATURES To rectify the out of balance condition, open the lid and wait until the machine stops spinning, then redistribute the 1) Wash operation clothes evenly in the space between the The agitator & bowl rotates while it is filled agitator and wall of the wash bowl.
-
Page 7: Control Panel
After the machine has started, the entire To change the “beeping” selection, wash option button will be disabled and proceed as follows: the display will show “ ” and flashing If you want to DISABLE the “beeping” with three short beeps to indicate the sound, when the washing machine in button is disabled (except Start/Pause Stand-By-Mode (after 7 seconds... - Page 8 You can adjust the flow rate of the PROGRAM SELECTOR water supplies to adjust the Warm KNOB temperature. All rinse water Turn the Program Selector knob to temperatures are cold. choose the wash program you Always check your label for the want.
- Page 9 WATER LEVEL BUTTON Choose the water level by pressing Water Level button. Use only the amount of water you need for the wash load. Water Water level description Clothes Load (kg) Level The machine will fill the Full amount of water for Full 4 to 6.0 your FULL load.
- Page 10 RINSE OPTION BUTTON The machine will go through a series of maximum six pulses spray and Pressing the Rinse Option button to short spin cycles in this manner, choose the rinse type for your wash depending on program selection, load. For most washes the machine followed by a final long spin that automatically selects “Deep”...
- Page 11 If an option which is not compatible DISPLAY with the set wash program is The display shows the following selected, the display will show information: “ ” and flashing with 3 consecutive short beeps Machine In Pause Mode START/PAUSE BUTTON To start the selected program, You can tell when your washing press the “Start/Pause”...
- Page 12 YOUR PROGRAM GUIDE Options Temperature Water Level Soak Time Rinse Option Program Description To reset a program and X X X X X X X X X X X X X X X X to switch off the machine. For normally soiled cotton Regular load at rated load ...
-
Page 13: Washing Instructions
WASHING INSTRUCTIONS These Washing Instructions are of a Lint collectors Lint producers general nature and you should get good wash results by following them. - Corduroy - Towels - Synthetics - Nappies However, due to the variables of fabric - Permanent - Chenille/ types, soil levels, detergent types and press fabrics... - Page 14 Wash bras, pantyhose and other Don’t use the wrong type of detergent. You must use a low sudsing detergent delicates in a mesh laundry bag, which you can purchase from designed for front load washing your supermarket. machines or high efficiency top loaders, such as Cold Power for Front Loaders and High Efficiency Top Loaders or detergents labelled “Matic”.
-
Page 15: Daily Use
DAILY USE STARTING YOUR WASHING The load should contain only three or four large items, for MACHINE example sheets. The rest of the Connect the mains plug to the load should be small items. A mains socket. mixed load of large and small items will wash cleaner than a Turn the water tap on. - Page 16 ADDING BLEACH ADD FABRIC SOFTENER Bleaching of clothes can help to remove stains, heavy soiling and to kill bacteria. Oxygen Type This is generally a powder type bleach. Mix the required quantity with water and pour down the bleach hole in the top panel during the fill when there is some water in the washbowl.
- Page 17 Allow the machine to agitate for NOTE: a few minutes, then let it stand for the required time Different functions can be by pressing Start/Pause combined which is dependent button to pause the on the program selected. machine. When these buttons are pressed, the corresponding When soaking bleach reached pilot lights come on.
- Page 18 INTERRUPTION OF A 5.10 CHANGING THE OPTIONS PROGRAM It is possible to change only some option after the program has If you have started your wash and started. you wish to stop it for some reason, Press the Start/Pause button to press the Start/Pause button to enter PAUSE mode.
-
Page 19: Caring For Your Washing Machine
CARING FOR YOUR WASHING MACHINE Your washing machine will give you long Unclip the filter bag from the and trouble-free service, if you follow column. the instructions in this section. These instructions show you how to care for your washing machine. WHAT TO DO AFTER YOU HAVE FINISHED YOUR Squeeze tabs... - Page 20 CLEANING YOUR WASHING CLEANING STAINS IN THE MACHINE WASHBOWL To clean the inside and outside of Stains in the wash bowl can be your washing machine you should: caused by: Wipe the surface with a mild metal objects such as bobby dishwashing detergent and pins, dressmaking pins and nails;...
- Page 21 AVOIDING BUILD UP OF UNDISSOLVED DETERGENTS If you only wash with cold water, undissolved detergent and body oils will build up in the washing machine. This build-up can cause spotting on your clothes. To avoid this build-up : do not use too much fabric softener with cold water;...
-
Page 22: Helpful Hints In Dealing With Washing Problems
HELPFUL HINTS IN DEALING WITH WASHING PROBLEMS RESIDUES ON WASHED Use another program as below, which has been designed to ITEMS minimise residual particles (they Some detergents have ingredients are in order of increasing benefit which do not fully dissolve and as a and will help you choose the best consequence, may leave white program for your wash load.) - Page 23 WARNING! CAUTION! Pre-treatment sprays and stain Do no use dry cleaning fluids or removers can damage plastic solvents near your washing components on your washing machine. These fluids will damage machine. your washing machine and may cause an explosion. YELLOWING OR GREYING CLOTHES Problem Possible causes What to do...
-
Page 24: A Guide To Stain Removal
A GUIDE TO STAIN REMOVAL Stain White Cottons And Linens Washable Coloured Fabrics Ball Point Spong with methylated spirit. Same as for whites - use oxygen type Pen Ink Bleach if required. bleach. Rinse as soon as possible under Same as for whites - use oxygen type Beetroot cold water. - Page 25 Stain White Cottons And Linens Washable Coloured Fabrics Soak/rinse in lukewarm water Same as for whites. Check for colour until a majority of the colour is fastness before applying solvent. removed. Sponge with solvent to Curries break down any remaining fats and oils then wash.
-
Page 26: Trouble Shooting
TROUBLE SHOOTING DO NOT call for service until you have checked the points listed below. If you call for service and there is nothing wrong with your washing machine, you will have to pay for the service call. You will have to pay even when your washing machine is under warranty. Before you call for service, check the points in the table below. - Page 27 Problem Display Possible Causes What to do Code Check detergent use and Not enough or no detergent. rewash clothes. Clothes still Remove some clothes and dirty after Too many clothes in load. rewash. wash program. Incorrect wash program or Reselect program or temperature selected.
- Page 28 TROUBLESHOOTING FAULT DISPLAYS Fault information and a guide for when you should call for service. If you have a problem with your washing machine and before you call service, make sure you have followed ALL of the instructions that may remedy the problem. You will find instructions in the ‘Troubleshooting’...
-
Page 29: Environment Concerns
ENVIRONMENT CONCERNS Ecological hints Packaging materials The materials marked with the To save water, energy and to help protect the environment, we symbol are recyclable. recommend that you follow these tips: >PE<=polyethylene Normally soiled laundry may be >PS<=polystyrene washed without prewashing in order >PP<=polypropylene to save detergent, water and time (the environment is protected too!). - Page 30 NOTE...
