PRACTICES
1. GENERAL ...................................................................... 1
2. INSTALLATION ............................................................. 2
3. TESTING ........................................................................ 4
4. SPECIFICATIONS ......................................................... 5
5. MAINTENANCE ............................................................. 5
6. WARRANTY AND CUSTOMER SERVICE ................... 5
Figure 1. BR1/10 U-BR1TE ................................................ 1
Figure 2. BR1/10 LIU and BCU .......................................... 2
Tables
U-BR1TE ............................................................ 2
Table B. BR1/10 BCU Indicators ...................................... 2
Table D. Switch Functions ................................................ 3
Table E. BR1/10 U-BR1TE Specifications ........................ 6
1. GENERAL
This practice provides installation and maintenance
procedures for the ADTRAN
is an illustration of the BR1/10 U-BR1TE.
Revision History
Revision to this practice adds a Specification Table,
incorporates a new CLEI Code, changes Figure 2, and
corrects typographical errors.
Features
BR1/10 U-BR1TE, part number 1150077L1, features
include:
Features an ISDN 2B1Q interface that meets all
Layer 1 requirements as specified in ANSI T1.601-
1992.
Provides 18 kft nominal range on mixed gauge wire.
Operates in 3 DS0 format according to TR-NWT-
000397.
Supports ADTRAN 4:1 Time Division Multiplexer
(TDM) format.
Features performance monitoring of the Layer 1
facilities as specified in TR-NWT-000397 and TR-
TSY-000829.
Provides a distinctive metallic DC test signature, as
specified in TR-NWT-000397, to identify the unit
as either a line unit LT or line unit NT.
61150.077L1-5B
Trademarks: Any brand names and product names included in this document are trademarks, registered trademarks, or trade names
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
BR1/10 U-BR1TE
ISDN 2B1Q INTERFACE
INSTALLATION AND MAINTENANCE
BR1/10 U-BR1TE. Figure 1
®
Section 61150077L1-5, Issue 1
of their respective holders.
S1
STATUS
LED

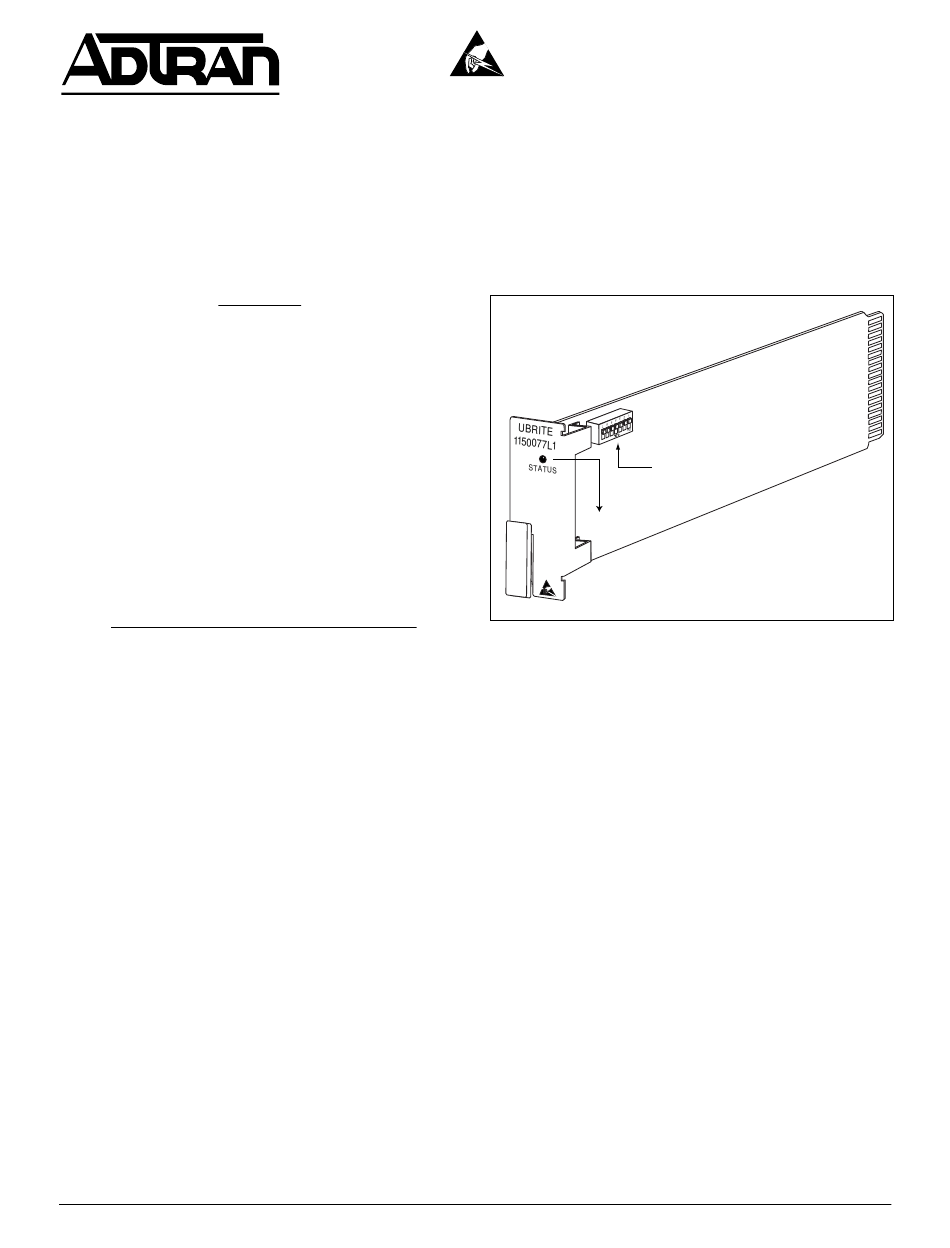

Figure 1. BR1/10 U-BR1TE
Responds to B1, B2 and 2B+D loopbacks through
the embedded operations channel ( eoc ).
Operates with BR1/10 LIU and BCU to provide local
access to test each channel unit.
General Description
The BR 1/10 U-BR1TE is a line card that plugs into a single
channel slot of an ADTRAN BR1/10, and provides the
interface between the Digital Subscriber Line (DSL) to the
customer's location and the T1 carrier facility.
The BR1/10 and BR 1/10 U-BR1TE have been designed
to provide a maximum concentration for 2B+D Basic Rate
ISDN (BRI). The BR1/10 and BR 1/10 U-BR1TE are used
in both central office terminal (COT) and a remote terminal
(RT) applications.
The BR1/10 Channel Bank will
interoperate with other channel bank systems that are
WECO
D4 compatible, such as SLC-96 and SLC-5
®
systems.
The BR1/10 and BR 1/10 U-BR1TE operate in the TR-
NWT-000397 3-DS0 mode allowing up to eight individual
BR1TE cards for each T1 carrier facility. In the 8 DSL mode
the BR1/10 is compatible with channel bank systems
equipped with TR-NWT-000397 compliant ISDN channel
unit, such as the ADTRAN D4 U-BR1TE II, and the
ADTRAN SLC-5 U-BR1TE.
Section 61150.077L1-5B
Issue 1, March 1997
CLEI Code # D4CIA2T2_ _
1
