ADTRAN U-BR1TE III W/PWR Installation & Maintenance

PRACTICES
CONTENTS
1. GENERAL ........................................................................... 1
2. INSTALLATION ................................................................ 2
3. TESTING ............................................................................. 6
4. WARRANTY AND CUSTOMER SERVICE ................... 8
FIGURES
Figure 1. ADTRAN U-BR1TE III W/PWR ................................ 1
Figure 2. Connector Pin Assignments ......................................... 2
Figure 3. Time Slot Assignments for 2B+D Service
in SLC Mode I w/ D1D Counting ............................. 2
Figure 5. Position Switch Settings at Network
Locations .................................................................... 5
Figure 4. SW1, SW3, and SW4 Labeling ................................... 5
TABLES
Table A. Channel Slots that CANNOT Contain
BR1TE Cards ............................................................... 3
Table B. SW1, SW3, and SW4 Option Settings ...................... 4
Table C. Rotary Switch Options .................................................. 6
Table D. LED Indicators .............................................................. 6
1. GENERAL
This practice provides installation and maintenance

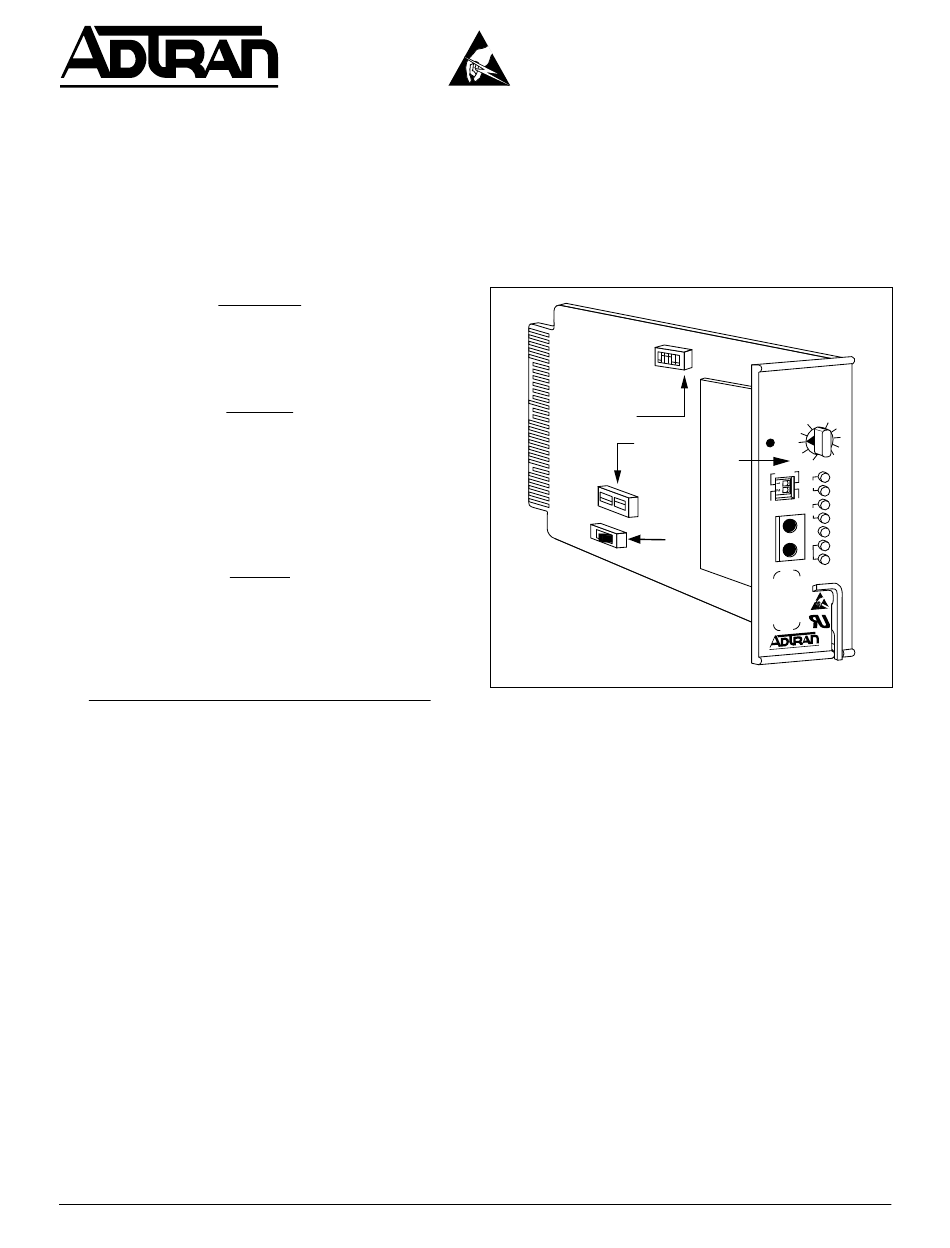

information for the ADTRAN U-BR1TE III w/PWR. Figure
1 is an illustration of the U-BR1TE III w/PWR.
The U-BR1TE III w/PWR is a line card for use in a WECO
compatible D4 and an AT&T SLC-96 channel bank. The
U-BR1TE III w/PWR incorporates the functionality of a
standard U-BR1TE III and the ADTRAN U-Repeater
Powering Module which will simplify the installation of
ADTRAN U-Repeaters when deployed from a Digital
Loop Carrier (DLC) facility.
The U-BR1TE III w/PWR allows transport of Basic Rate
ISDN over T1 carrier facilities and provides an ISDN
2B1Q U-interface that will supply span power for one of
two modes of operation. In one mode of operation, the
U-BR1TE III w/PWR supplies a constant 43 mA to span
power an ADTRAN ISDN U-Repeater II or U-Repeater
III. The other mode of operation allows the U-BR1TE III
w/PWR to provide a constant -120 VDC to span power
an ADTRAN I-NIU.
Trademarks: Any brand names and product names included in this document are
61103.020L4-5A
trademarks, registered trademarks, or trade names of their respective holders.
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
MODEL U-BR1TE III W/PWR
ISDN 2B1Q INTERFACE
INSTALLATION/MAINTENANCE
The U-BR1TE III w/PWR
Section 61103.020L4-5, Issue 1
SW1
SW3
SW4

Figure 1. ADTRAN U-BR1TE III W/PWR

automatically determines the appropriate mode of
operation, without requiring an option selection.
While the span powering mode is intended to be used in
an Adjacent-to-Customer location, such as a remote
central office or remote terminal, the U-BR1TE III w/
PWR may also be configured for Adjacent-to-Switch
(COT) and Tandem Office applications. Clear channel
capability (B8ZS) is not required of the T1 facility if zero
byte substitution is enabled. The U-BR1TE III w/PWR
plugs into a single slot of the D4 and the SLC-96 channel
bank, and typically requires three time slots for transport
of 2B+D information. Block error rate performance over
the T1 facility is monitored and is available to the
network. The U-BR1TE III w/PWR provides for up to
eight hours of performance history for both the T1 carrier
and the U-interfaces.
Revision History
This is the first issue of this practice. Revisions to
subsequent practices will be summarized in this
paragraph.
Section 61103.020L4-5A
Issue 1, March 1997
CLEI Code # D4CIAWT2 _ _
U B R 1 T E II I
R
D 4 -U B R 1 P W
11 03 02 0L 4
CR TX
LP BK
LP TX
AD 6
TE ST
NT 1
AD 5
AD 1
AD 4
AD 2
SW2 SW2
AD 3
B2
B1
SY NC
LP
CR C
PT RN
NO RM
SY NC
CR
OU T Rx
CR C
L
O AC T
G
TE ST
I
C
ER R
IN Tx
1
