Sony XM-GTX6040 Specifications

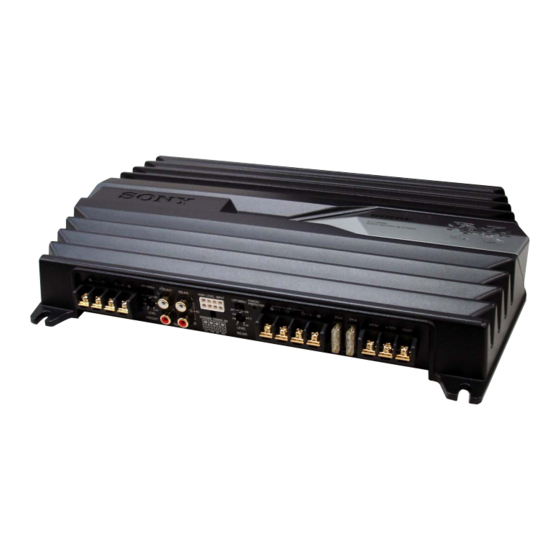

XM-GTX6040
The XM-GTX6040 amplifier afford incredible installation flexibility and
packs quite a punch. GTX amplifiers offer tremendous value including
convenience features such as: modern cosmetics, variable cross-overs,
multiple channel configurations and singe-side electrical connections to
suit almost any application.
Rated Power 4 Ohm Stereo
60W x 4 RMS (20Hz-20kHz, 1% THD+N, 4 Ohm, 14.4V)
Maximum Power 4 Ohm Stereo
This unit has a maximum output power of 110W per channel at 4 Ohm.
Rated Power 2 Ohm Stereo
70W x 4 RMS (20Hz-20kHz, 1% THD+N, at 2 Ohm, 14.4V)
Maximum Power 2 Ohm Stereo
This unit has a maximum output power of 150W per channel at 2 Ohm.
Rated Power 3-channel Mode
60W x 2 RMS + 130W x 1 (20Hz-20kHz, 1% HD+N, 4 Ohms, 14.4V)
High Level Input
Direct connection (High Level Input)can be made with the speaker output of your car audio unit
if it is not equipped with RCA line output. High Level Sensing power on feature allows the unit to
be activated without the need for remote connection.
Internal Crossover
Built in selectable 12 dB/Oct 80Hz HPF for front and 18dB/Oct 80Hz LPF for rear.
Specifications
Amplifier Section
Max power output
Power Ad Hoc
Speaker Impedance
Audio
Band
Circuit System
Frequency Response
Harmonic Distortion
Impedance
Input Level
Noise Level
Power Supply
Audio Features
Level Control
Inputs and Outputs
Audio In
1
600W max power
60W per channel at 4 Ohms from 20Hz-20kHz with 1% THD
2-8 Ohm stereo
4-8 Ohms mono
Low Pass Filter: 80 HZ, -18dB/oct
High Pass Filter: 80 HZ, -12dB/oct
OTL Output Transformerless Circuit
Pulse Power Supply
5-50kHz (+0/-3 dB)
0.05% or less (at 1 kHz, 4 ohm)
2-8 Ohms Stereo,
4-8 Ohms Mono
0.3 - 6.0V (RCA input)
2.8 - 12.0V (High Level Input)
93 dBA
OTL Output Transformerless Circuit
Pulse Power Supply
High Level Input: 2.8 - 12V
RCA Pin Jacks, High Level Input Connector
4/3 Channel GTX Series Amplifier
