Pyle PLTVD7IN PLTVD7IN Owner's Manual

Pyle PLTVD7IN PLTVD7IN Owner's Manual

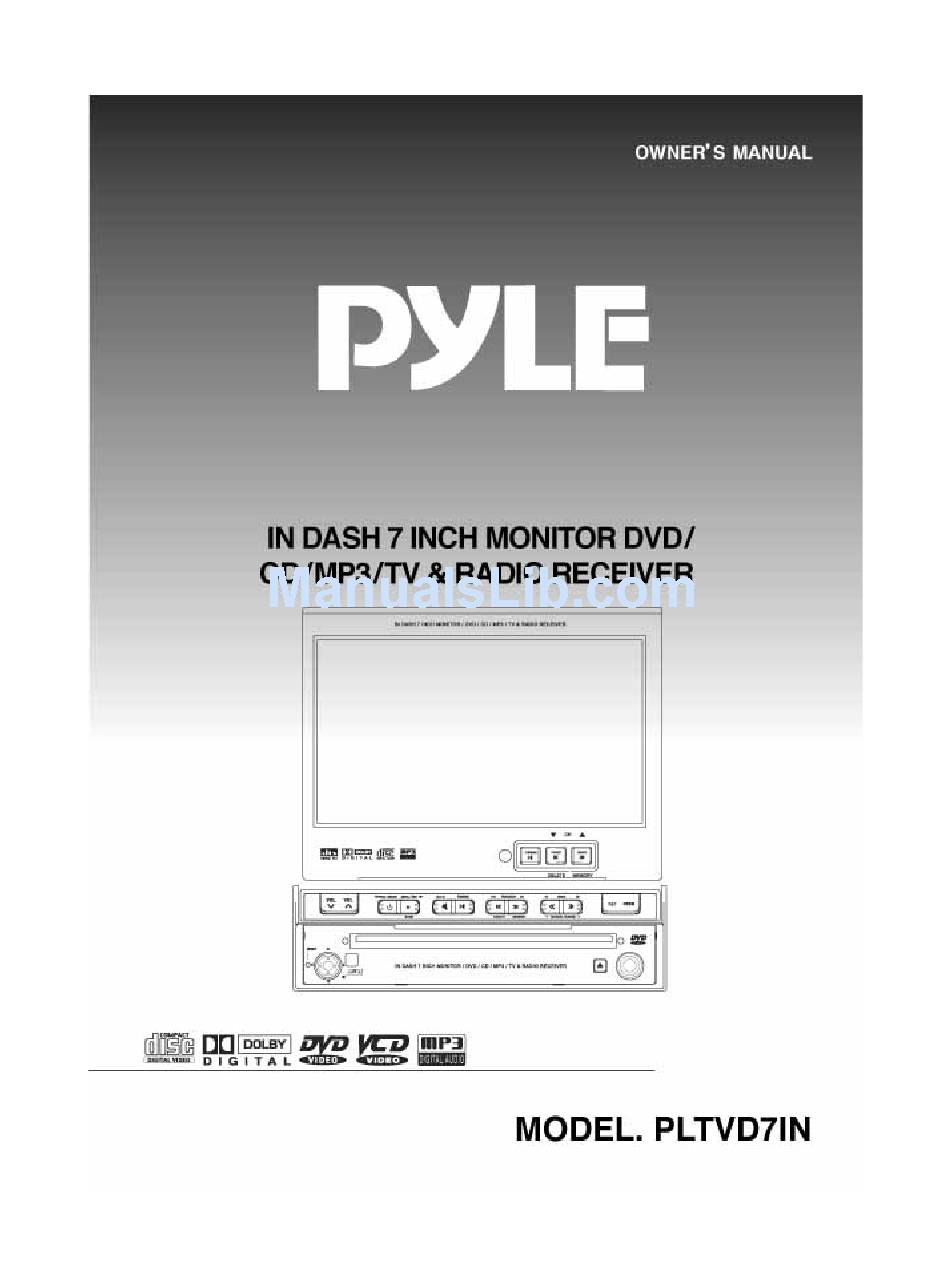

In dash 7 inch monitor dvd/cd/mp3/tv & radio receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Pyle PLTVD7IN PLTVD7IN

Summary of Contents for Pyle PLTVD7IN PLTVD7IN

  • Page 2 Any changes or modifications in construction of this device which is not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment. Warning : Do not watch TV while vehicle in Motion it Can be Hazardous...
  • Page 3 Safety precaution WARNING For your safety, the driver should not watch the TV or operate the controls while driving. Please note that watching and operating the TV while driving are prohibited by law in some countries. Also, while driving, keep the volume to a level at which external sounds can be heard.

  • Page 4: Table Of Contents

    CONTENTS Safety Precaution (p4) About CDs (p5) Introduction (p6) 1. Region Number ... (p6) 2. Control Parts ... (p6) 2-1. With Display Closed ... (p7) 2-2. With Display Opened ... (p8) 3. Head unit Rear Panel ... (p9) 4. Battery ... (p10) 5.

  • Page 5: Safety Precaution (P4)

    Safety precaution The marking of products using lasers (Except for some areas) CLASS 1 LASER PRODUCT NOTE If you experience problems during installation, consult your PYLE dealer. If the unit fails to operate properly, press the Reset button. The unit returns to factory setting when the Reset button is pressed.
  • Page 6 Safety precaution Cleaning the Faceplate terminals If the terminals on the unit or faceplate get dirty, wipe them with a dry, soft cloth. Cleaning the Unit If the front panel of this unit is stained, wipe it with a dry soft cloth such as s silicon cloth. If the front panel is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, and then wipe neutral detergent off.

  • Page 7: About Cds (P5)

    About CDs Handling CDs Don t touch the recording surface of the CD-R and CD-RW are easier to damage than a normal music CD. Use a CD-R or a CD-RW after reading the caution items on the package etc. Don t stick tape etc. on the CD. Also, don t use a CD with tape stuck on it.

  • Page 8: Introduction (P6)

    INTRODUCTION Notice. “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation 1. Region Number This DVD Player is designed for use in Region 1 (North America). If a disc is identified as Region 0 it will work on any DVD Player. 2.
  • Page 9 WITH THE DISPLAY CLOSED Volume Up/Down Use this button to increase/decrease the volume. Tilt Use this button to adjust the angle of the TFT LCD panel in 3 steps and every time this button is pressed with being held for about 2 second or longer, the TFT LCD panel moves backward with 2 steps &...

  • Page 10: With Display Opened

    Track / CH Up/ Down - Use this button to tune to a station to be stored in the radio / TV mode . 1) Track up key with pressing over 2 seconds should be Radio Frequency or TV Channel memory. 2) Track down key with pressing over 2 seconds should delete Radio Frequency or TV Channel to be momorized.

  • Page 12: Battery

    4. BATTERY Preparing & Using The Remote Control The remote control should be pointed at the remote sensor in order for the Unit Monitor to function correctly. Distance: Maximum of 16 feet from the front of the remote sensor. Angle: Approximately 30 from center.

  • Page 13: Remote Control Key

    INTRODUCTION 5. Remote Control Key Power/Mode Mute Open /Close Volume Up/Down AF / TA (RDS Function) PTY/ REG (RDS Function) Track (P.Seek/CH) Up / Down Band (OSD ON / OFF) Menu Enter Set Up DVD Menu Slow Disc (Seek/Manual) Up / Down Tilt / Navi (Navigation Function) Rear Monitor NTSC/PAL(DVD ONLY)

  • Page 14: Connecting To Power & Multi Channel Av Control Unit System (P12)

    Connecting to Power & Multi Channel AV Control Unit System 1. Connecting to Power System The illustration below is showing power system connection. Please also refer to the owner s and installation manuals supplied with the associated equipment. If it doesn t have corrected connection, it may cause unexpected damage.
  • Page 15 Connecting to Power & Multi Channel AV Control Unit System 2. RT BOX 16P CONNECTOR WIRING DIAGRAM...

  • Page 16: Connecting To Multi Channel Av Control Unit System

    Connecting to Power & Multi Channel AV Control Unit System 3. Connecting to Multi Channel AV Control Unit System The Illustration below is just possible examples with our Multi Channel AV Control Unit System only. The exact connection method will vary depending on the specific components selected for a particular installation.

  • Page 17: Connecting Dvd/ Cd Changer Control System

    Connecting to Power & Multi Channel AV Control Unit System 4. Connecting to DVD Changer Control System Don’t use AV2 Audio L / R input of RT Box when DVD Changer is Connected. You can just use only AV2 Video input of RT Box from DVD Changer Video output.

  • Page 18: Connecting To Multi Channel Av Control Unit System With Additional 6Ch Amplifier

    Connecting to Power & Multi Channel AV Control Unit System 5. Connecting to Multi Channel AV Control Unit System with Additional 6CH Amplifier The Illustration below is just possible examples for our Multi Channel AV Control Unit System with Additional 6CH Amplifier. The exact connection method will vary depending on the specific components selected for a particular installation.

  • Page 19: Power On/Off

    BASIC O O PERATION POWER ON/OFF 1. POWER ON 1) Press POWER button to turn the power on and the monitor will be automatically positioned vertically when the monitor is opened. 2. You can also turn the power on by pressing the OPEN button.

  • Page 20: Audio Control

    3. Use key and place cursor (Yellow bar) on the item you want to adjust (Ex. Contrast) and press ENTER key as picture above. 4. Press key to adjust the level of the selected item as picture below. 5. Press ENTER key at least for 2 seconds to return to the previous menu.

  • Page 21: Pre Adjust (Color System)

    8. Do the same process as above to adjust Volume. 9. Press ENTER key at least for 2 seconds on current screen to return to the previous screen. Press Menu key about 1 second to turn MENU off directly. PRE ADJUST - (COLOR SYSTEM) 1.

  • Page 22: Pre Adjust (Adjust Radio System)

    5. E a c h t i m e y o u p r e s s E N T E R k e y , Field/Standard should be changed at the same time as below. U.S.A / M-->CCIR1/ BG-->CCIR2 / BG --> Ireland/II’-->Australia/BG-->China/BG -->O.I.R.T/DK-->France/BG * When no key is pressed for 5 seconds,...
  • Page 23 2. Use Key and place cursor (Yellow Bar) on Sound Mix and press ENTER key. 3. Use key and place cursor (Yellow bar) on Sub woofer and press ENTER key as picture below. 4. Each time you press ENTER key, Sub Woofer changes as below.

  • Page 24: Pre Adjust (Adjust Rear Ccd)

    14. Press ENTER key at least 2 seconds on current screen to return to the previous screen. Press Menu key about 1 second to turn MENU off directly. When no key is pressed for 5 seconds, the menu will disappear. PRE ADJUST - (ADJUST REAR CCD- FOR REAR VIEW CAMERA) 1 .

  • Page 25: Auto Tilt System

    * When no key is pressed for 5 seconds, the menu will disappear. RDS (Radio Data System) 1. Press MENU key until the monitor displays following picture. 2. Use Key and place cursor (Yellow Bar) on RDS and press ENTER key. 3.

  • Page 26: Tuning (Tv-Auto Search)

    TUNING (TV-AUTO SEARCH) 1. After adjust TV system(Field/Standard) on Pre-Adjust, Press P.S/BSM to search TV channels. * ‘Searching’ will be blinking as it searches TV channels and channel number is changing as it searches TV channels. 2. W h e n A u t o - S e a r c h i s c o m p l e t e d , memorized channels will be shown on the screen and cursor will be placed on the first channel as below.
  • Page 27 Regional mode off : The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented. REG of individual segment is turned off together with displaying "REG OFF" on numeric display for a few seconds. When regional mode is off, the radio may switch from a national program station to a local variant of that program, or from a...

  • Page 28: Dvd Video Player Operation (P26)

    DVD VIDEO PLAYER OPERATION 1. CHANGING DVD SYSTEM SETTING Press SET UP button and then, there should be shown 5 categories as Language, Video, Audio, More Audio and Parental. 1) Language As shown above, Language for OSD can be changed to English, French, Japanese, Korean and Spanish.

  • Page 29: Basic Playback

    2. BASIC PLAYBACK Preparation Insert a disc into the center of the insertion slot with the label side faced up. The disc plays automatically after loading. Note: Never insert foreign objects into the disc insertion slot. If the disc is not inserted easily, there may be an other disc in the mechanism or the unit may require service.
  • Page 30 1) POWER /MODE Use this button to turn on/off. For Turn - off, hold this button about 2 seconds or longer. Each time This button is pressed, its source should be changed to AV1 RADIO 2) OPEN /CLOSE Use this button to open/close the TFT LCD Panel.
  • Page 31 5) CHANGING SUBTITLE LANGUAGE (S -TITLE) It is possible to change the subtitle language to a different language from the selected one. This operation works only with discs on which multiple subtitle languages are recorded. Press S-TITLE button for 3 seconds or longer during playback.
  • Page 32 8) REPEAT (SET UP) To repeat viewing or listening, press REPEAT during playback. Each time this button is pressed, the TV Screen changes as below. Repeat Chapter Repeat Title Off.(DVD Title) / Repeat One Shuffle Off.(Audio CD Title) 9) A-B REPEAT R e p e a t i n g s e c t i o n s b e t w e e n t w o specific points (A-B repeat).
  • Page 33 For further information, also refer to any instructions that may have been packaged with the disc you are playing. After playback When the unit is not in use, remove the disc and turn off the power by pressing the POWER button. (Do not remove the disc if you plan to use the LAST MEMORY function explained on the next page).
  • Page 34 3. LAST MEMORY - PICKING UP WHERE YOU LEFT OFF & OTHERS This unit is equipped with a LAST MEMORY function which lets you resume viewing of a movie from the point where you left off. You must press only PLAY button, not Power button in case the power has been turned off (and stand by power) NOTE...
  • Page 35 4) ANGLE Some DVDs may contain scenes which have been shot simultaneously from number of different angles. For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.) 5) SLOW DISC Press and hold this button during playback.

  • Page 36: Am /Fm Radio Operation (P34)

    AM/FM RADIO OPERATION 1. BAND (AM / FM) Each time this button is pressed, the band will be changed to FM1 2. PRESET SCAN / BSM Following your desired band selection, press P.S/BSM button about 2 seconds or longer, and then tuner will search until stations of sufficient strength have been found and will store them in sequence.

  • Page 37: Tv Operation (P35)

    TV OPERATION 1. PRESET SCAN / BSM Firstly, select the desired station and press the PS/BSM button shortly. And then, Tuner will now search until stations of sufficient strength have been found and will store them into TFT LCD automatically in sequence. 2.

  • Page 38: Installation (P36~37)

    INSTALLATION PRECAUTIONS Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater or where it would be subject to dust, dirt or excessive vibration.
  • Page 39 Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction. For example, the source may skip. 1. Align the holes in the unit with the vehicle mounting bracket and secure the unit with the accessory screws.

  • Page 40: Specifications (P38)

    SPECIFICATIONS FM TUNER Frequency Range: 87.50 MHz to 108.0 MHz Usable Sensitivity: 9 dBf 50dB Quieting Sensitivity: 15 dBf Alternate Channel Selectivity: 70 dB Stereo Separation (1 kHz): 30 dB Frequency Response ( 3 dB): 30Hz to 15 kHz AM TUNER Frequency Range: 530kHz to 1710kHz Usable Sensitivity: 25 dBuV TV TUNER...
  • Page 41 WARNING DO NOT HOLD THE LCD SCREEN PANEL WHILE IT IS OPENING OR CLOSING UNTIL IT IS COMPLETELY OPENED OR CLOSED. OTHERWISE, THE MOTORIZED MECHANISM WILL BE DAMAGED. BEFORE WORKING THE UNIT, READ THE OWNER S MANUAL CAREFULLY AND FOLLOW UP THE INSTRUCTIONS IN IT.
