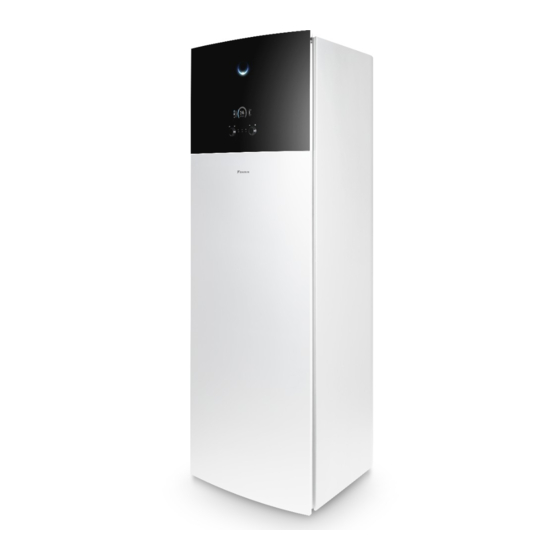

- Page 1 User reference guide Daikin Altherma 3 H F+W EABH16DF6V(7) EAVX16S18DA9W(7) EABH16DF9W(7) EAVX16S23DA9W(7) EABX16DF6V(7) EABX16DF9W(7) EAVH16SU18DA6V(7) EAVH16SU23DA6V(7) EAVH16S18DA6V(7) EAVH16S23DA6V(7) EAVH16S18DA9W(7) EAVH16S23DA9W(7) EAVX16S18DA6V(7) EAVX16S23DA6V(7)
-
Page 2: Table Of Contents
Symptom: The water at the tap is too cold........................53 Symptom: Heat pump failure ............................53 Symptom: The system is making gurgling noises after commissioning................. 54 User reference guide EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 3 Table of contents 8 Relocation Overview: Relocation ..............................55 9 Disposal 10 Glossary EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 4: About This Document
Format: Paper (in the box of the indoor unit) + Digital files on http:// www.daikineurope.com/support-and-manuals/product-information/ Latest revisions of the supplied documentation may be available on the regional Daikin website or via your installer. The original documentation is written in English. All other languages are translations. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) -
Page 5: Meaning Of Warnings And Symbols
DANGER: RISK OF EXPLOSION Indicates a situation that could result in explosion. WARNING Indicates a situation that could result in death or serious injury. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 6 Example: " 1–3 Figure title" means "Figure 3 in chapter 1". Indicates a table title or a reference to it. Example: " 1–3 Table title" means "Table 3 in chapter 1". EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 7: User Safety Instructions
Do NOT place any objects containing water on the unit. CAUTION ▪ Do NOT place any objects or equipment on top of the unit. ▪ Do NOT sit, climb or stand on the unit. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 8: Instructions For Safe Operation
Do NOT use cleaning materials or means to accelerate the defrosting process other than those recommended by the manufacturer. ▪ Be aware that the refrigerant inside the system is odourless. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 9 Reason: Refrigerant might leak into the water circuit, and subsequently into the room when you purge air from the heat emitters or collectors. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 10: About The System
Radiators, heat pump convectors, or fan coil units INFORMATION The indoor unit and the domestic hot water tank (if installed) can be separated or integrated depending on the indoor unit type. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 11: Operation
Dials and buttons You use the dials and buttons: ▪ To navigate through the screens, menus and settings of the LCD screen ▪ To set values EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 12: Possible Screens: Overview
: Press the right dial. Confirm your choice and go to the next menu item. 4.2 Possible screens: Overview The most common screens are as follows: EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 13: Home Screen
Go to the main menu screen. Enable/disable breadcrumbs. Item Description The temperatures are shown in circles. If the circle is grey, the corresponding operation (example: space heating) is currently not active. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 14 ▪ : Fancoil unit ▪ : Radiator g2 Leaving water temperature setpoint g3 Room thermostat type: ▪ : Daikin user interface used as room thermostat ▪ : External control ▪ Hidden: Leaving water temperature control g4 Measured room temperature Additional...
-
Page 15: Main Menu Screen
You cannot change the mode on heating only models. Restriction: Only displayed if a domestic hot Tank water tank is present. Set the domestic hot water tank temperature. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 16: Setpoint Screen
Go through the list of the submenu. Go to the submenu. Adjust and automatically apply the desired temperature. Item Description Minimum temperature limit Fixed by the unit Restricted by the installer EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 17: Detailed Screen With Values
Room temperature control a Room temperature control ON b Room temperature control OFF EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 18: To Turn On Or Off
Water pipe freeze prevention. Even if you turn OFF space heating/cooling operation ([C.2]: Operation > Space heating/cooling), water pipe freeze prevention –if enabled– will remain active. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 19: Space Heating/Cooling Control
You have to tell the system which operation mode to use. To determine if a heating/cooling heat pump model is installed 1 Go to [4]: Space heating/cooling. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 20 ▪ Cooling only: Restricted 4 Confirm the changes. Example: Changeover restrictions When Restriction During cold season. Heating only Example: October, November, December, January, February and March. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 21: Determining Which Temperature Control You Are Using
During room temperature control, you can use the room temperature setpoint screen to read out and adjust the desired room temperature. 1 Go to [1]: Room. Room EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 22: To Change The Desired Leaving Water Temperature
You can use the leaving water temperature setpoint screen to read out and adjust the desired leaving water temperature. 1 Go to [2]: Main zone or [3]: Additional zone. Main zone Additional zone EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 23: Domestic Hot Water Control
4 hours starting from the scheduled start-up of disinfection. If the booster heater is restricted during disinfection, this function will NOT be successful and the applicable warning AH will be generated. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 24: Reheat Mode
In reheat mode the DHW tank continuously heats up to the temperature shown on the home screen (example: 50°C) when the temperature drops below a certain value. 60°C 50°C 40°C 15°C 00:00 07:00 14:00 21:00 DHW tank temperature t Time EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 25: Scheduled Mode
(example: 45°C). This ensures that a minimum amount of hot water is available at all times. Example: EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 26: To Change The Domestic Hot Water Temperature
1 Go to [5.1]: Tank > Powerful operation 2 Turn powerful operation Off or On. Usage example: You immediately need more hot water You are in the following situation: EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 27: Advanced Usage
The Advanced user pin code is 1234. Additional menu items for the user are now visible. Advanced user 1234 User pin code The User pin code is 0000. User 0000 EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 28: Using Quiet Mode
Then you can do the following: 1 Go to [7.4.1]: User settings > Quiet > Activation. 2 Select Most quiet. Advantage: The outdoor unit runs in its most quiet level. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 29: Using Holiday Mode
1 Go to [8]: Information. Possible read-out information In menu… You can read out… [8.1] Energy data Produced energy, consumed electricity, and consumed gas [8.2] Malfunction history Malfunction history EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 30: To Configure Time And Date
▪ Schedule only present. ▪ Schedule + reheat [5.4] Reheat The software uses this preset value if setpoint the DHW tank mode is Schedule + reheat. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 31: Setting The Energy Prices
2 Select the correct electricity price. 3 Confirm the changes. 4 Repeat this for all three electricity prices. — INFORMATION Price value ranging from 0.00~990 valuta/kWh (with 2 significant values). EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 32 Data Price/kWh Gas price 4.08 Electricity price 12.49 Renewable heat incentive per kWh Calculation of the gas price Gas price=Actual gas price+(Incentive/kWh×0.9) Gas price=4.08+(5×0.9) Gas price=8.58 EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 33: Using And Programming Schedules
2 Select the name of the current schedule. User defined 1 3 Select Select. Delete Rename Select 4 Select the schedule that you currently want to use. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 34 Off: When the system is NOT allowed to heat additional zone in heating up the additional zone. mode. ▪ On: When the system is allowed to heat up the additional zone. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
- Page 35 Possible actions: You can use the following system-defined preset values: ▪ Quiet ▪ More quiet ▪ Most quiet "About quiet mode" [ 28]. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 36: Schedule Screen: Example
5 Program the schedule for Saturday and copy it to Sunday. 6 Give the schedule a name. To go to the schedule 1 Go to [1.1]: Room > Schedule. 2 Set scheduling to Yes. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 37 Delete Edit Copy 3 Select OK to confirm. To program the schedule for Monday 1 Select Monday. User defined 1 2 Select Edit. Delete Edit Copy EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
- Page 38 1 Select Monday. User defined 1 2 Select Copy. Delete Edit Copy Result: Next to the copied day, "C" is displayed. 3 Select Tuesday. User defined 1 EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
- Page 39 8:00 21°C 23:00 18°C --:-- 4 Confirm the changes. 5 Select Saturday. 6 Select Copy. 7 Select Sunday. 8 Select Paste. Result: User defined 1 EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 40: Weather-Dependent Curve
Because it reacts more quickly, it prevents high rises and drops of the indoor temperature and water temperature at tap points. Advantage Weather-dependent operation reduces energy consumption. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 41: 2-Points Curve
See "4.8.4 Using weather-dependent curves" [ 43]. 4.8.2 2-points curve Define the weather-dependent curve with these two setpoints: ▪ Setpoint (X1, Y2) ▪ Setpoint (X2, Y1) Example EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 42: Slope-Offset Curve
Examples Weather-dependent curve when slope is selected: Weather-dependent curve when offset is selected: EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 43: Using Weather-Dependent Curves
Viewing which type is selected is also possible via: ▪ [3.C] Additional zone > WD curve type ▪ [5.E] Tank > WD curve type Restriction: Only available to installers. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 44 At cold outdoor temperatures … temperatures … Cold ↑ — ↑ — ↓ — ↓ — Cold — ↑ — ↑ Cold Cold ↑ ↑ ↑ ↑ EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
- Page 45 At cold outdoor temperatures … temperatures … Cold ↓ ↑ ↓ ↑ — ↓ — ↓ Cold ↑ ↓ ↑ ↓ ↓ ↓ ↓ ↓ "4.8.2 2-points curve" [ 41]. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 46: Menu Structure: Overview User Settings
(*) Only applicable for reversible models, or heating only models + conversion kit INFORMATION Depending on the selected installer settings and unit type, settings will be visible/ invisible. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 47: Installer Settings: Tables To Be Filled In By Installer
Comfort setpoint [5.2] Eco setpoint [5.3] Reheat setpoint [5.4] 4.10.2 Settings menu Setting Fill in… Main zone Thermostat type [2.A] Additional zone (if applicable) Thermostat type [3.A] EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 48 Operation Setting Fill in… Information Dealer information [8.3] EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
-
Page 49: Energy Saving Tips
Program to turn ON the domestic hot water pump ONLY during periods of the day when instant hot water is necessary. Example: In the morning and evening. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 50: Maintenance And Service
Do NOT use the unit until a service person confirms that the part from which the refrigerant leaked has been repaired. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 51: To Find The Contact/Helpdesk Number
Maintenance and service 6.2 To find the contact/helpdesk number 1 Go to [8.3]: Information > Dealer information. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 52: Troubleshooting
"4.7.1 Using preset values" [ 30]. ▪ Adjust room temperature schedule. See "4.7.3 Using and programming schedules" [ 33] and "4.7.4 Schedule screen: Example" [ 36]. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 53: Symptom: The Water At The Tap Is Too Cold
When auto emergency is set to Manual and a heat pump failure occurs, the domestic hot water and space heating operation will stop and need to be recovered manually via the user interface. To recover operation manually, go to EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... -
Page 54: Symptom: The System Is Making Gurgling Noises After Commissioning
If yes, make sure that the room where you want to purge air is sufficiently ventilated. Reason: Refrigerant might leak into the water circuit, and subsequently into the room when you purge air from the heat emitters or collectors. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09... - Page 55 8 Relocation 8.1 Overview: Relocation If you want to relocate parts of your system, contact your installer. You can find the contact/helpdesk number via the user interface. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
- Page 56 Do NOT try to dismantle the system yourself: dismantling of the system, treatment of the refrigerant, oil and other parts MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery. EABH/X16DF6V(7)+9W(7) + EAVH/X16S(U)18+23DA6V(7)+9W(7) User reference guide Daikin Altherma 3 H F+W 4P556071-1C – 2021.09...
- Page 57 Optional equipment Equipment made or approved by Daikin that can be combined with the product according to the instructions in the accompanying documentation. Field supply Equipment NOT made by Daikin that can be combined with the product according to the instructions in the accompanying documentation.
- Page 60 4P556071-1C 2021.09 Verantwortung für Energie und Umwelt...
