CHAPTER 4.
R239(W)

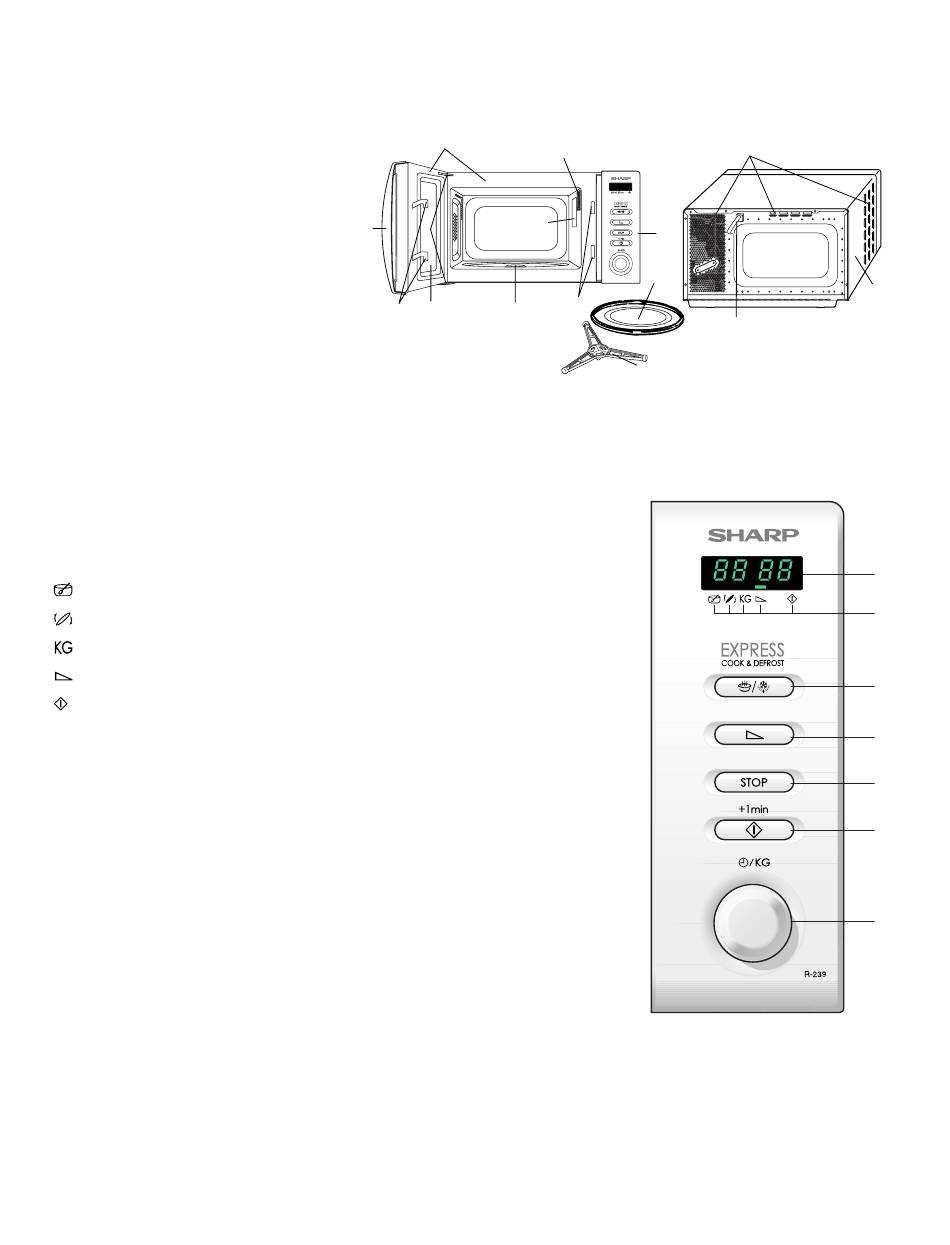

APPEARANCE VIEW

[1] OVEN

1. Ventilation openings
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals sealing surfaces
7. Coupling
8. Control panel
9. Waveguide cover
10. Power supply cord
11. Turntable
12. Roller stay
13. Outer case cabinet
14. Door opening handle

[2] TOUCH CONTROL PANEL

1. Digital Display
2. Indicators
The appropriate indicator will flash or light up, just above each symbol according to the instruction.
When an indicator is flashing, do the necessary operation.
Stir
Turn over
Weight
Microwave power level
Cooking in progress
3. EXPRESS COOK & DEFROST button
Press to select one of the 12 automatic programmes.
4. MICROWAVE POWER LEVEL button
5. STOP button
6. START/+1min button
7. TIMER/WEIGHT knob
NOTE: Some one-touch cooking features such as "START/+1 min" are disabled after three
minutes when the oven is not in use. These features are automatically enabled when
the door is opened and closed or the STOP button is pressed.
Service Manual
6
14 3
5
7
4
4 – 1
2
9
8
11
4
12
R239(W)
1
13
10
1
2
3
4
5
6
7
