Appearance View - Sharp R-22AM Service Manual

R-22AM
R-23AM
R - 2 3 A T
OVEN

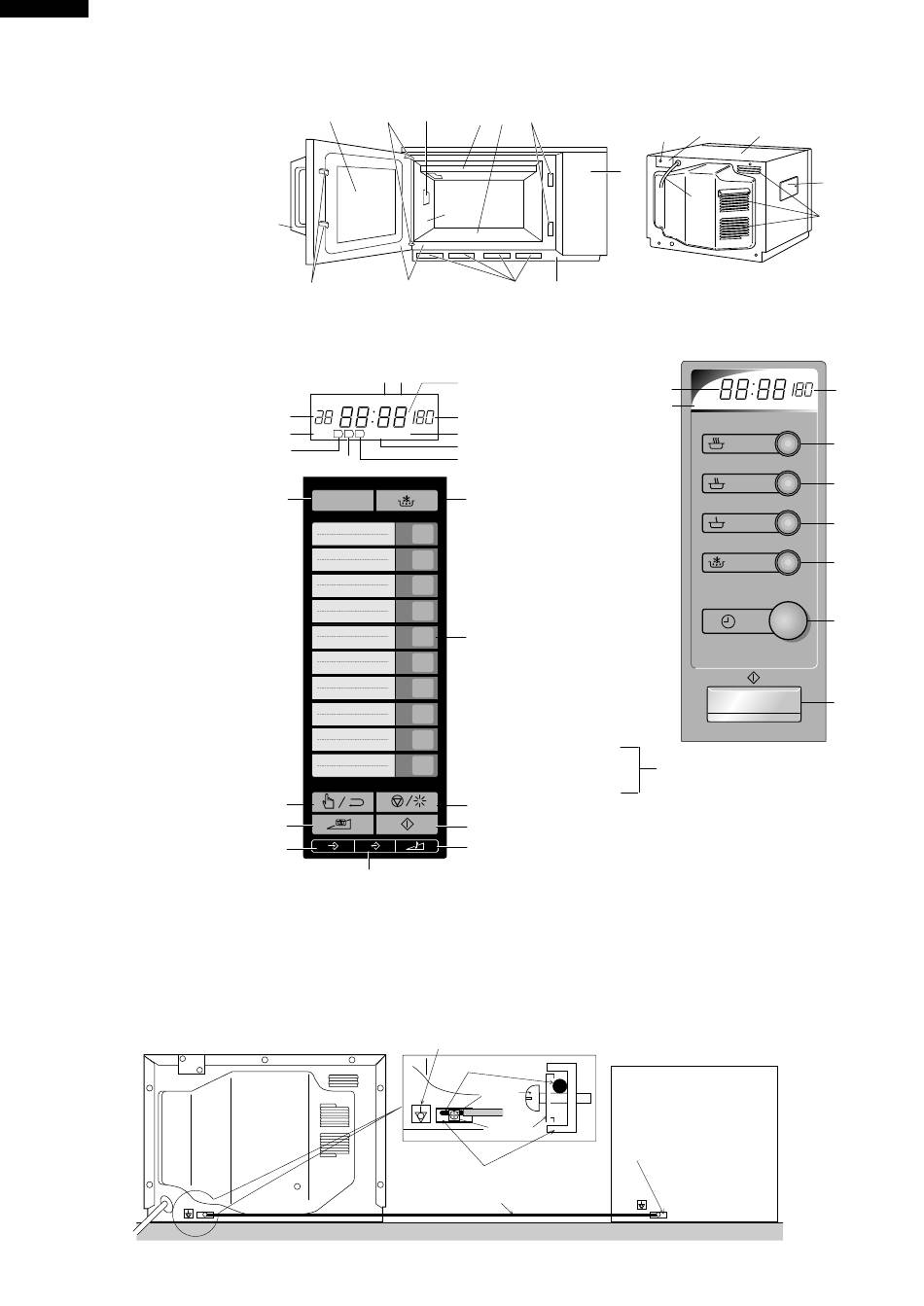

1. Control panel
2. Hole for safety door latches
3. Ceramic floor
4. Splash cover
5. Oven light
6. Air intake filter
7. Air intake openings
8. Oven cavity
9. Door seals and sealing surfaces
10. Door hinges
11. Oven door with see-through window
12. Door safety latches
13. Door handle.
14. Outer cabinet
15. Removable cover over oven light bulb
16. Air vent openings
17. Power supply cord
18 Mounting plate
19 Screw for mounting plate
DISPLAY AND INDICATORS
for R-23AT
Check indicators after the oven
starts to confirm the oven is oper-
ating as desired.
1. Cook indicator
This indicator shows cooking in
progress.
2. Memory number indicator
3. Defrost indicator
4. Check mode indicator
5. Power level display
6. Digital display
7. Filter indicator
8. Double quantity mode indicator
9. 3rd. stage indicator
10. 2nd. stage indicator
11. 1st. stage indicator
OPERATING KEYS
12. DOUBLE QUANTITY key
13. DEFROST key
14. NUMBER keys
15. MANUAL/ REPEAT key
16. STOP/CLEAR key
17. POWER SLEVEL key
18. START key
19. SET key
20. VOLUME key
21. CHECK key
When this commercial microwave oven is installed near other commercial electrical appliances, connect a lead wire to
each equivalent potential terminal with equipotential marking between them (insert a lead wire between a washer and
an earth angle, and screw them), as shown in Fig. A-1, to make sure that they are at equivalent potential.
If any lead wire is not connected between them, when person touch them he/she will get a electric shock.
