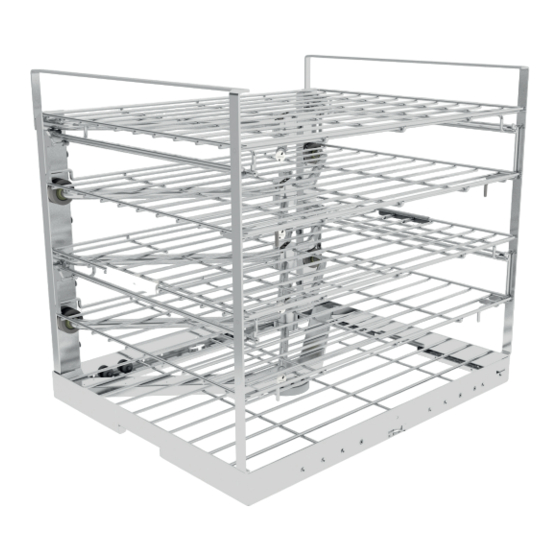

Rack for instruments WD 290/390
Loading Manual

Advertisement

Table of Contents
loading

Related Manuals for BELIMED WD 290

Summary of Contents for BELIMED WD 290

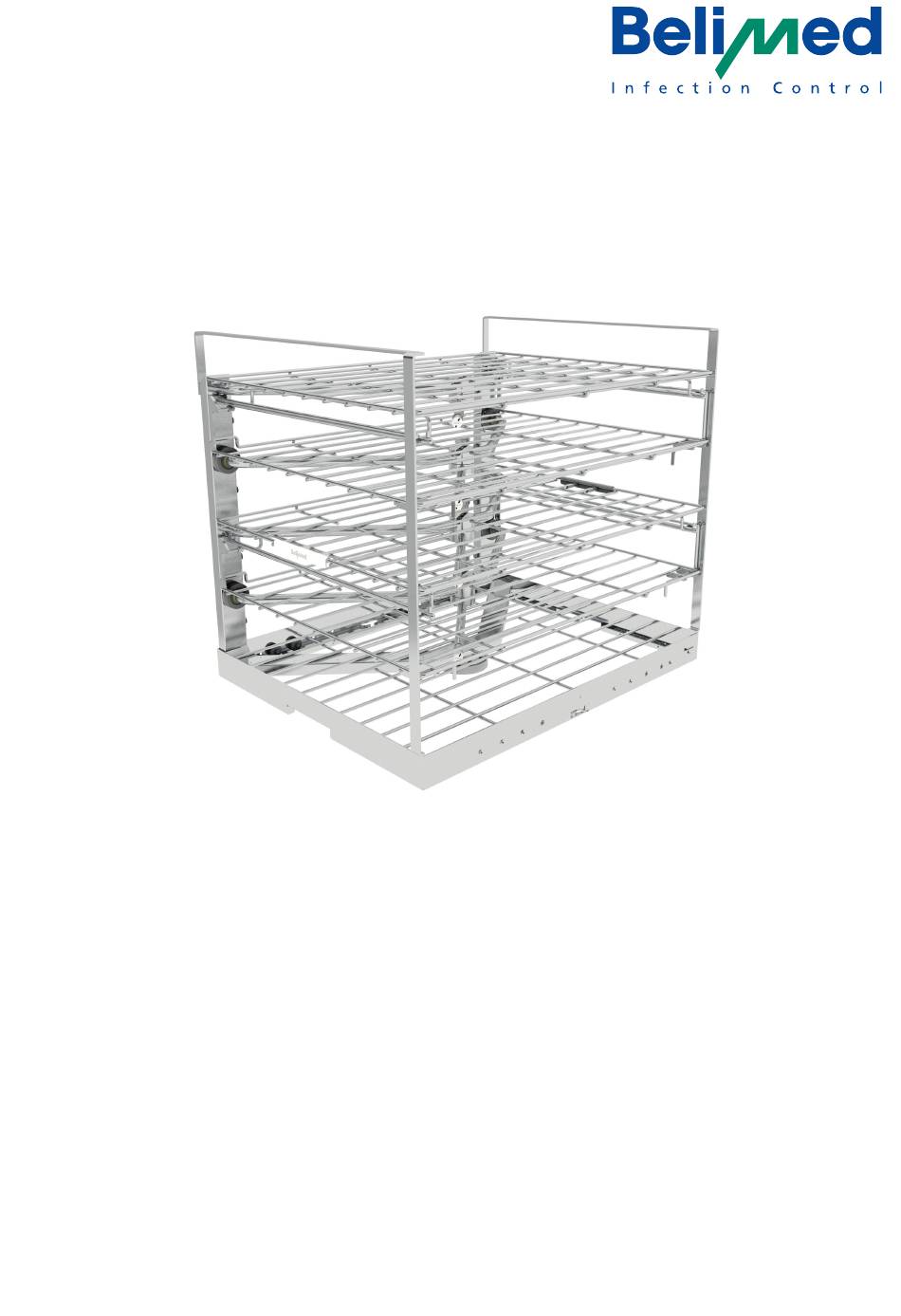

  • Page 1 Rack for instruments WD 290/390 Loading Manual...
  • Page 2 These instructions apply to: Product Rack Instrument Rack WD 290/390 Material 110-2075 Document | Version 1005-9416 | 03 Language EN-US English Month | Year 12 | 2020 Copyright 2020 © Belimed AG...

  • Page 3: Table Of Contents

    Rack for instruments WD 290/390 | © Belimed Content Introduction Purpose of these instructions ....... 4 Target group .

  • Page 4: Introduction Purpose Of These Instructions

    This manual, including all parts thereof, are protected by copyright law. Utilization of any kind, wheth- er for duplication, translation, or processing in other media, is not permissible without the consent of Belimed AG. The content of this manual must not be used for commercial purposes. Symbols and notices used The following symbols and notices are used to indicate precautionary measures for handling and for occupational safety that are important to avoid harm to health and life.
  • Page 5 Rack for instruments WD 290/390 | © Belimed Introduction CAUTION Indicates hazard with low risk If the hazard is not avoided, it will lead to minor or moderate injury. Possible consequences of the hazard.  Work steps to avoid the hazard.

  • Page 6: Safety Instructions

    Rack for instruments WD 290/390 | © Belimed Safety instructions Declaration of conformity With the EC Declaration of Conformity and the CE mark, Belimed AG affirms that this product com- plies with the essential health and safety requirements. General safety instructions The machine and accessories may only be operated in faultless condition, which is why the following safety instructions must be complied with to avoid risks to patients and operators.

  • Page 7: Intended Use

    Defective components must only be replaced by original spare parts from Belimed. Only if original spare parts are used can it be ensured that the spare parts meet safety requirements. If spare parts are used that neither originate from Belimed AG, nor have not been approved by Belimed AG, the warranty is rendered void.

  • Page 8: Summary Of The Safety Instructions

    Safety instructions Rack for instruments WD 290/390 | © Belimed Summary of the safety instructions Summary of all safety instructions for safe operation of the product. Safety instructions are listed in all places where hazards may arise.  Always follow the safety instructions! ...
  • Page 9 Rack for instruments WD 290/390 | © Belimed Safety instructions WARNING Risk of infection Obstruction of the wash arm rotations or insufficient water pressure lead to an inadequate cleaning result, entailing infection hazard.  Check rotation of the wash arms.
  • Page 10 Safety instructions Rack for instruments WD 290/390 | © Belimed WARNING Risk of infection Missing, damaged, or soiled end caps lead to a loss of water pressure and an inadequate cleaning result, entailing an infection hazard.  Before each start of program, check the correct seating of the end caps.
  • Page 11  Store the centering pin safely during inspection and cleaning work. CAUTION Risk of infection due to wash arm clogging The loading heights are maximum values specified by Belimed AG. Overloaded standard sieve trays obstruct the wash arm rotations. This leads to an inadequate cleaning result, entailing an infection hazard.

  • Page 12: Description

    Rack for instruments WD 290/390 | © Belimed Description Rack with fixed levels Instrument rack with fixed levels are available in 6 versions: Fig. 3-1 Instrument rack 1 level Fig. 3-2 Instrument rack 2 levels Fig. 3-3 Instrument rack 3 levels...
  • Page 13 Rack for instruments WD 290/390 | © Belimed Description Fig. 3-4 Instrument rack 4 levels Fig. 3-5 Instrument rack 5 levels 13 | 42...
  • Page 14 Description Rack for instruments WD 290/390 | © Belimed Fig. 3-6 Instrument rack 6 levels 14 | 42...

  • Page 15: Maximum Loading Height Per Level

    Maximum loading height per level CAUTION Risk of infection due to wash arm clogging The loading heights are maximum values specified by Belimed AG. Overloaded standard sieve trays obstruct the wash arm rotations. This leads to an inadequate cleaning result, entailing an infection hazard.
  • Page 16 Rack for instruments WD 290/390 | © Belimed CAUTION Risk of infection due to wash arm clogging The loading heights are maximum values specified by Belimed AG. Overloaded standard sieve trays obstruct the wash arm rotations. This leads to an inadequate cleaning result, entailing an infection hazard.

  • Page 17: Racks With Removable Levels

    Rack for instruments WD 290/390 | © Belimed Description Racks with removable levels Instrument racks with removable levels are available in 2 versions: Fig. 3-9 Instrument racks with 4 levels with removable levels 1 Removable levels Fig. 3-10 Instrument racks with 5 levels with removable levels...

  • Page 18: Maximum Loading Height Per Level

    Maximum loading height per level CAUTION Risk of infection due to wash arm clogging The loading heights are maximum values specified by Belimed AG. Overloaded standard sieve trays obstruct the wash arm rotations. This leads to an inadequate cleaning result, entailing an infection hazard.
  • Page 19 Description CAUTION Risk of infection due to wash arm clogging The loading heights are maximum values specified by Belimed AG. Overloaded standard sieve trays obstruct the wash arm rotations. This leads to an inadequate cleaning result, entailing an infection hazard.

  • Page 20: Options

    Description Rack for instruments WD 290/390 | © Belimed Fig. 3-13 Rack 5 levels with removable levels 1 Chamber roof 2 Loading height 205 mm 3 Loading height 70 mm 4 Removable levels Options 3.3.1 WRC (Wash arm Rotation Control) Activation of option by Belimed-Service This option can only be activated by Belimed-Service.

  • Page 21: Rfid (Radio Frequency Identification)

    Rack for instruments WD 290/390 | © Belimed Description Only use WRC with fixed levels If the option with removable levels is used, the rack loses its adaptable flexibility.  Use the fixed programmed configuration for the option. Using the WRC (option), the rotation of the wash arms is monitored. A WRC magnet is attached to the end of the wash arm for the monitoring.

  • Page 22: Transport Cart

    Description Rack for instruments WD 290/390 | © Belimed Fig. 3-15 Rack with RFID transponder 1 RFID transponder  Access information using the scanner on the machine. – Manual reading with scanners and magnets is no longer required. Transport cart The transport cart is used for transporting the racks and for manual loading and unloading of the washing chamber and the transport system.
  • Page 23 Rack for instruments WD 290/390 | © Belimed Description Fig. 3-16 Transport cart 1 Bow-type handle 2 Unlocking lever 3 Drip tray 4 Storage space for 1 rack 5 Lockable castor with brake 6 Roller 7 Transport cart lock 8 Rack locking device...
  • Page 24 Description Rack for instruments WD 290/390 | © Belimed NOTICE Risk of damage Rack, transport cart, and transport system are coordinated with one another. Damage can occur if the wrong transport carts or transport systems are used.  For transporting the racks, use the appropriate transport cart or appropriate transport system.

  • Page 25: Operation

    Rack for instruments WD 290/390 | © Belimed Operation Removing levels CAUTION Injury due to heavy levels Levels are heavy and may fall down. There is a risk of damage to persons and property.  Firmly hold the levels with both hands.

  • Page 26: Inserting Levels

    Operation Rack for instruments WD 290/390 | © Belimed Fig. 4-1 Removing a level 1 Guide rail 2 Docking device for removable levels 3 Bottom guide roller 4 Stopper 5 Top guide roller 6 Unlocking lever (1× each on left and right) Removing a level ...
  • Page 27 Rack for instruments WD 290/390 | © Belimed Operation CAUTION Risk of injury due to rack levels When withdrawing or inserting the levels, fingers can get stuck between rack and level.  Only hold the levels at the front when withdrawing and inserting them.

  • Page 28: Loading

    Operation Rack for instruments WD 290/390 | © Belimed  Insert the level via the guide rail up to the docking device 2. – The unlocking level latches audibly in place. Exchangeable levels  Insert levels as needed. – The levels all have the same structure.
  • Page 29 Rack for instruments WD 290/390 | © Belimed Operation CAUTION Damage and injury hazard The rack can fall down if it is not adequately secured on the transport cart or if it is withdrawn from the machine without due care.
  • Page 30 Operation Rack for instruments WD 290/390 | © Belimed Fig. 4-3 Loading example for standard sieve trays 1 Standard sieve tray Standard sieve trays 1 can be loaded onto the rack from all sides. Up to 3 standard sieve trays 1 per level can be loaded onto the rack.
  • Page 31 Rack for instruments WD 290/390 | © Belimed Operation NOTICE Risk of damage to the rack If the maximum loading weight is exceeded, the rack may be damaged.  Do not exceed the permitted loading weight for the rack, including the wash items and screens, of 125 kg.

  • Page 32: Maintenance And Cleaning Work

    Rack for instruments WD 290/390 | © Belimed Maintenance and cleaning work WARNING Risk of infection due to residues Residual contamination can lead to infections.  Wear the required personal protective equipment, e.g., protective goggles, protective gloves, etc., while performing inspection and cleaning work.

  • Page 33: Wash Arms

    Rack for instruments WD 290/390 | © Belimed Maintenance and cleaning work Wash arms NOTICE Risk of damage The wash arm can fall onto the level in uncontrolled manner when it is removed.  Hold wash arm with one hand when removing it.

  • Page 34: Slide Bearings

    Maintenance and cleaning work Rack for instruments WD 290/390 | © Belimed CAUTION Loss of small parts The centering pin is necessary to ensure an optimal cleaning result.  Store the centering pin safely during inspection and cleaning work. Cleaning the wash arm ...

  • Page 35: End Caps

     Replace damaged or worn end caps promptly. NOTICE Risk of damage Unsuitable spare parts can cause damage to the product.  Only use original spare parts from Belimed AG as specified in the spare parts catalog. 35 | 42...
  • Page 36 Maintenance and cleaning work Rack for instruments WD 290/390 | © Belimed CAUTION Loss of small parts The end cap and cotter pin are necessary in order to ensure an optimal cleaning result.  Store the end cap and cotter pin safely during inspection and cleaning work.
  • Page 37 Rack for instruments WD 290/390 | © Belimed Maintenance and cleaning work Fig. 5-4 Withdrawing the end cap and the spacer ring 2 End cap  Withdraw the end cap 2 from the end of the wash arm. Cleaning the end cap and cotter pin ...

  • Page 38: Silicone Flaps

    Maintenance and cleaning work Rack for instruments WD 290/390 | © Belimed Fig. 5-6 Inserting the cotter pin and turning it to fasten it  Insert the cotter pin into the wash arm from below.  Make sure that the end of the cotter pin protrudes slightly from the upper hole of the wash arm.
  • Page 39 Rack for instruments WD 290/390 | © Belimed Maintenance and cleaning work NOTICE Risk of damage The bayonet catch and silicone flap may be damaged if they are replaced with tools. If the bayonet catch and/or the silicone flap are damaged, leakproof capability is no longer ensured.
  • Page 40 Fig. 5-9 Locking the bayonet catch – The bayonet catch is locked. NOTICE Risk of damage Unsuitable spare parts can cause damage to the product.  Only use original spare parts from Belimed AG as specified in the spare parts catalog. 40 | 42...

  • Page 41: Disposal

    Rack for instruments WD 290/390 | © Belimed Disposal DANGER Risk of infection due to contaminated racks The rack can be contaminated by the last work processes.  Wear personal protective equipment, e.g., protective gloves.  Disinfect the entire rack before disposal.
  • Page 42 Belimed AG | Grienbachstrasse 11 | 6300 Zug | Switzerland | +41 41 449 78 88 | +41 41 449 78 89 | www.belimed.com...
