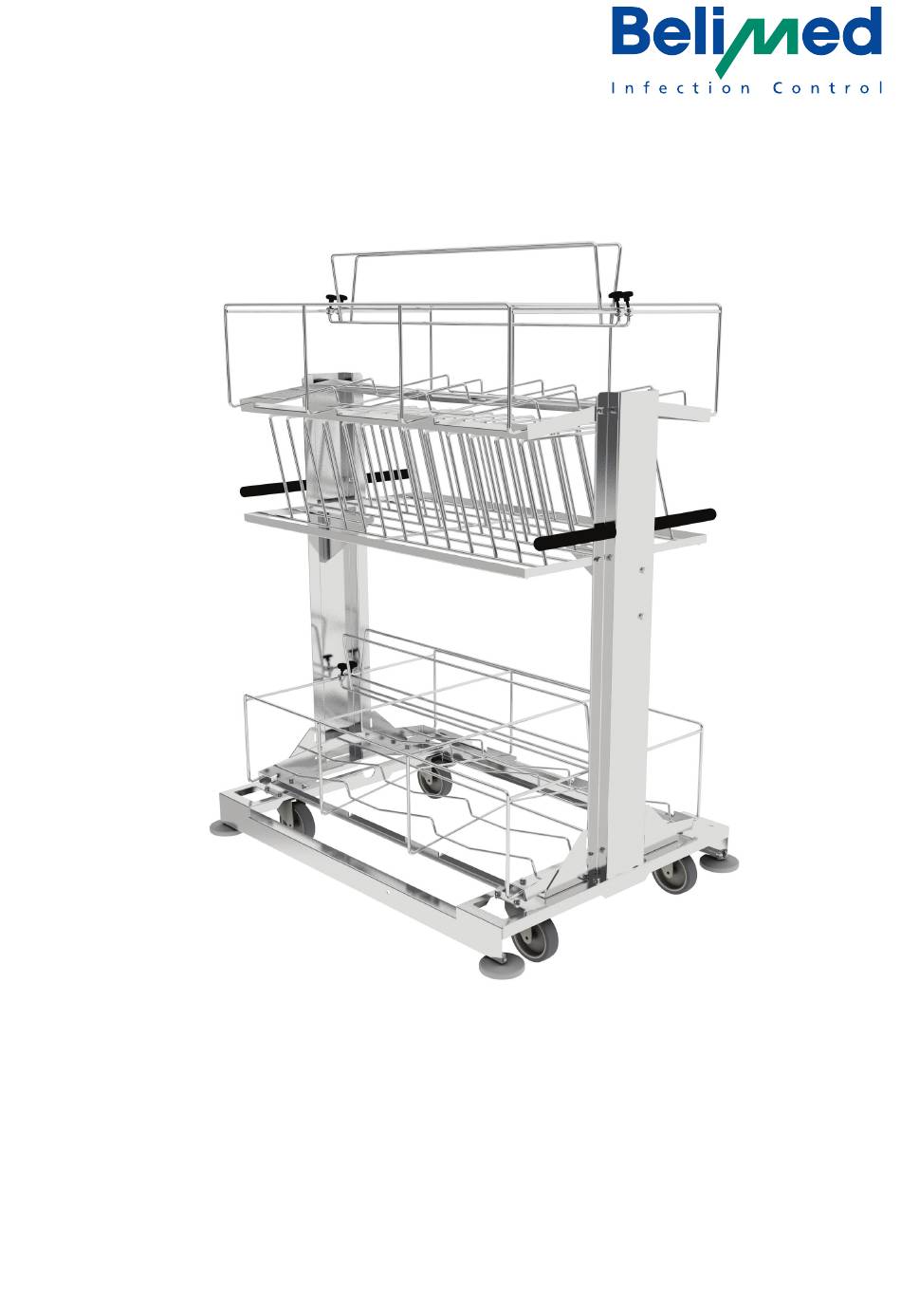

- Page 1 Rack Rack for containers WD 750 Loading Manual...
- Page 2 These instructions apply to: Product Rack Rack for containers WD 750 Material 1051929 Document | Version 90098002 | 00 Language EN-US English Month | Year 12 | 2020 Copyright 2020 © Belimed AG...
-
Page 3: Table Of Contents
Rack Rack for containers WD 750 | © Belimed Content Introduction Purpose of these instructions ....... 4 Target group . -
Page 4: Introduction Purpose Of These Instructions
This manual, including all parts thereof, are protected by copyright law. Utilization of any kind, wheth- er for duplication, translation, or processing in other media, is not permissible without the consent of Belimed AG. The content of this manual must not be used for commercial purposes. Symbols and notices used The following symbols and notices are used to indicate precautionary measures for handling and for occupational safety that are important to avoid harm to health and life. - Page 5 Rack Rack for containers WD 750 | © Belimed Introduction CAUTION Indicates hazard with low risk If the hazard is not avoided, it will lead to minor or moderate injury. Possible consequences of the hazard. Work steps to avoid the hazard.
-
Page 6: Safety Instructions
Do not perform any unauthorized repairs, changes, or manipulation in or on the product. Intended use The rack is intended only for use with the WD 750 machines. The rack is only intended and approved for the applications specified in this Loading Manual, namely for the cleaning and disinfection of:... -
Page 7: Warranty
Defective components must only be replaced by original spare parts from Belimed. Only if original spare parts are used can it be ensured that the spare parts meet safety requirements. If spare parts are used that neither originate from Belimed AG, nor have not been approved by Belimed AG, the warranty is rendered void. -
Page 8: Summary Of The Safety Instructions
Wear the required personal protective equipment, e.g., protective goggles, protective gloves, etc., while performing inspection and cleaning work. WARNING Risk of infection due to irregular maintenance For safe and reliable operation, regular maintenance by Belimed-Service is required. Have regular maintenance work carried out by Belimed-Service. 8 | 16... -
Page 9: Description

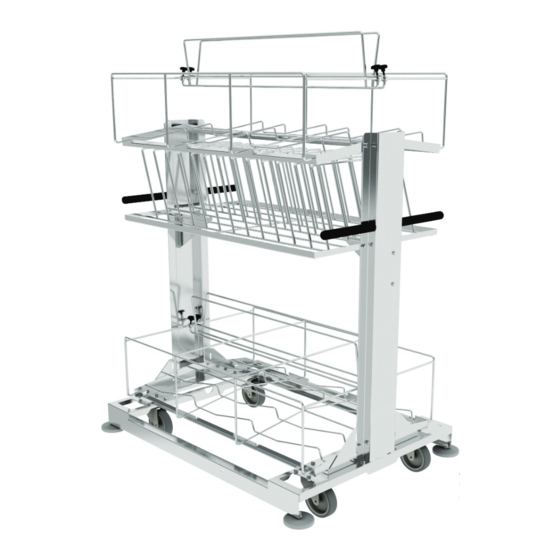

Rack Rack for containers WD 750 | © Belimed Description Fig. 3-1 Example of rack 1 Stopper 2 Star knob screw 3 Mounting bracket 4 Rack 9 | 16... -
Page 10: Loading
Follow local work instructions. WARNING Risk of infection due to irregular maintenance For safe and reliable operation, regular maintenance by Belimed-Service is required. Have regular maintenance work carried out by Belimed-Service. NOTICE Risk of damage due to incorrect loading and unloading Incorrect loading and unloading of the machine can lead to damage. - Page 11 Rack Rack for containers WD 750 | © Belimed Loading Fig. 4-1 Example of rack loaded with sterilization containers 1 Trough, 12 units 2 Cover, 12 units 3 Rack 4 Star knob screw 5 Stopper Loading the lower level Slightly turn the 4 star knob screws 4.
- Page 12 Loading Rack Rack for containers WD 750 | © Belimed Loading the upper level Slightly turn the 4 star knob screws 4. Loosen the 2 star knob screws 4 on each of the left and right sides. Push the stopper 5 into the middle of the rack.
-
Page 13: Cleaning Performance
Rack Rack for containers WD 750 | © Belimed Cleaning performance WARNING Risk of infection due to residues Residual contamination can lead to infections. Wear the required personal protective equipment, e.g., protective goggles, protective gloves, etc., while performing inspection and cleaning work. - Page 14 Cleaning performance Rack Rack for containers WD 750 | © Belimed Turn the main switch to the ‹0–OFF› position. Check all spray nozzle holes, lateral spray nozzles, and base spray nozzles for soiling. If necessary, clean the nozzle holes with a needle.
-
Page 15: Disposal
Rack Rack for containers WD 750 | © Belimed Disposal DANGER Risk of infection due to contaminated racks The rack may be contaminated by the last work processes. Wear personal protective equipment, e.g., protective gloves. Disinfect the entire rack before disposal. - Page 16 Belimed AG | Grienbachstrasse 11 | 6300 Zug | Switzerland | +41 41 449 78 88 | +41 41 449 78 89 | www.belimed.com...
