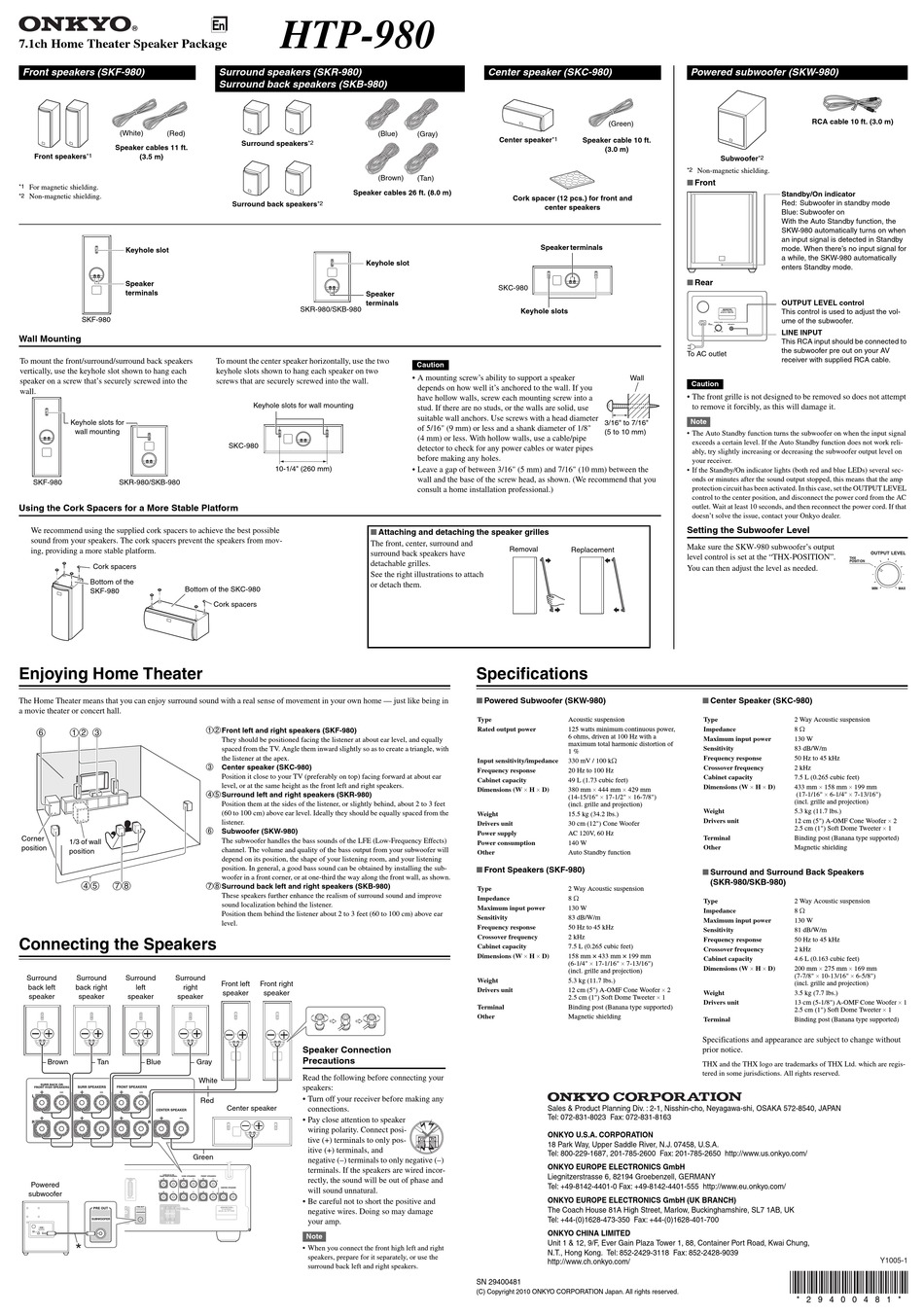

Onkyo HTP-980 Instruction Manual

7.1ch Home Theater Speaker Package
Front speakers (SKF-980)
(White) (Red)
Speaker cables 11 ft.
Front speakers *1 (3.5 m)
*1 For magnetic shielding.
*2 Non-magnetic shielding.
Keyhole slot
Speaker
terminals
SKF-980
Wall Mounting
To mount the front/surround/surround back speakers
vertically, use the keyhole slot shown to hang each
speaker on a screw that's securely screwed into the
wall.
Keyhole slots for
wall mounting
SKF-980 SKR-980/SKB-980
Using the Cork Spacers for a More Stable Platform
We recommend using the supplied cork spacers to achieve the best possible
sound from your speakers. The cork spacers prevent the speakers from mov-
ing, providing a more stable platform.
Cork spacers
Bottom of the
Bottom of the SKC-980
SKF-980
Enjoying Home Theater
The Home Theater means that you can enjoy surround sound with a real sense of movement in your own home — just like being in
a movie theater or concert hall.
f ab c
Corner
1/3 of wall
position
position
de gh

Connecting the Speakers

Surround Surround Surround Surround
back left back right left right
speaker speaker speaker speaker
Brown Tan Blue
Green
Powered
subwoofer
E HTP-980
n
Surround speakers (SKR-980)
Surround back speakers (SKB-980)
Surround speakers *2
Speaker cables 26 ft. (8.0 m)
Surround back speakers *2
Keyhole slot
Speaker
terminals
SKR-980/SKB-980
To mount the center speaker horizontally, use the two
keyhole slots shown to hang each speaker on two
screws that are securely screwed into the wall.
Keyhole slots for wall mounting
SKC-980
10-1/4" (260 mm)
■
The front, center, surround and
surround back speakers have
detachable grilles.
See the right illustrations to attach
or detach them.
Cork spacers
ab Front left and right speakers (SKF-980)
They should be positioned facing the listener at about ear level, and equally
spaced from the TV. Angle them inward slightly so as to create a triangle, with
the listener at the apex.
c Center speaker (SKC-980)
Position it close to your TV (preferably on top) facing forward at about ear
level, or at the same height as the front left and right speakers.
de Surround left and right speakers (SKR-980)
Position them at the sides of the listener, or slightly behind, about 2 to 3 feet
(60 to 100 cm) above ear level. Ideally they should be equally spaced from the
listener.
f
Subwoofer (SKW-980)
The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects)
channel. The volume and quality of the bass output from your subwoofer will
depend on its position, the shape of your listening room, and your listening
position. In general, a good bass sound can be obtained by installing the sub-
woofer in a front corner, or at one-third the way along the front wall, as shown.
gh Surround back left and right speakers (SKB-980)
These speakers further enhance the realism of surround sound and improve
sound localization behind the listener.
Position them behind the listener about 2 to 3 feet (60 to 100 cm) above ear
level.
Front left Front right
speaker speaker
Speaker Connection
Precautions
Gray
Read the following before connecting your
White
speakers:
• Turn off your receiver before making any
Red
Center speaker
connections.
• Pay close attention to speaker
wiring polarity. Connect posi-
tive (+) terminals to only pos-
itive (+) terminals, and
negative (–) terminals to only negative (–)
terminals. If the speakers are wired incor-
rectly, the sound will be out of phase and
will sound unnatural.
• Be careful not to short the positive and
negative wires. Doing so may damage
your amp.
Note
• When you connect the front high left and right
speakers, prepare for it separately, or use the
surround back left and right speakers.
Center speaker (SKC-980)
(Blue) (Gray)
Center speaker *1
(Brown) (Tan)
Cork spacer (12 pcs.) for front and
center speakers
Speaker terminals
SKC-980
Keyhole slots
Caution
• A mounting screw's ability to support a speaker
depends on how well it's anchored to the wall. If you
have hollow walls, screw each mounting screw into a
stud. If there are no studs, or the walls are solid, use
suitable wall anchors. Use screws with a head diameter
of 5/16" (9 mm) or less and a shank diameter of 1/8"
(4 mm) or less. With hollow walls, use a cable/pipe
detector to check for any power cables or water pipes
before making any holes.
• Leave a gap of between 3/16" (5 mm) and 7/16" (10 mm) between the
wall and the base of the screw head, as shown. (We recommend that you
consult a home installation professional.)
Attaching and detaching the speaker grilles
Removal

Specifications

■
Powered Subwoofer (SKW-980)
Type
Rated output power
Input sensitivity/impedance
Frequency response
Cabinet capacity
Dimensions (W × H × D)
Weight
Drivers unit
Power supply
Power consumption
Other
■
Front Speakers (SKF-980)
Type
Impedance
Maximum input power
Sensitivity
Frequency response
Crossover frequency
Cabinet capacity
Dimensions (W × H × D)
Weight
Drivers unit
Terminal
Other
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8023 Fax: 072-831-8163
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: 800-229-1687, 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/
ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH)
The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK
Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700
ONKYO CHINA LIMITED
Unit 1 & 12, 9/F, Ever Gain Plaza Tower 1, 88, Container Port Road, Kwai Chung,
N.T., Hong Kong. Tel: 852-2429-3118 Fax: 852-2428-9039
http://www.ch.onkyo.com/
SN 29400481
(C) Copyright 2010 ONKYO CORPORATION Japan. All rights reserved.
Powered subwoofer (SKW-980)
(Green)
Speaker cable 10 ft.
(3.0 m)
Subwoofer
*2
Non-magnetic shielding.
■
Front
■
Rear
To AC outlet
Wall
Caution
• The front grille is not designed to be removed so does not attempt
to remove it forcibly, as this will damage it.
Note
3/16" to 7/16"
(5 to 10 mm)
• The Auto Standby function turns the subwoofer on when the input signal
exceeds a certain level. If the Auto Standby function does not work reli-
ably, try slightly increasing or decreasing the subwoofer output level on
your receiver.
• If the Standby/On indicator lights (both red and blue LEDs) several sec-
onds or minutes after the sound output stopped, this means that the amp
protection circuit has been activated. In this case, set the OUTPUT LEVEL
control to the center position, and disconnect the power cord from the AC
outlet. Wait at least 10 seconds, and then reconnect the power cord. If that
doesn't solve the issue, contact your Onkyo dealer.
Setting the Subwoofer Level
Make sure the SKW-980 subwoofer's output
Replacement
level control is set at the "THX-POSITION".
You can then adjust the level as needed.
■
Center Speaker (SKC-980)
Acoustic suspension Type
125 watts minimum continuous power, Impedance
6 ohms, driven at 100 Hz with a
Maximum input power
maximum total harmonic distortion of
Sensitivity
1 %
Frequency response
330 mV / 100 kΩ
Crossover frequency
20 Hz to 100 Hz
Cabinet capacity
49 L (1.73 cubic feet)
Dimensions (W × H × D)
380 mm × 444 mm × 429 mm
(14-15/16" × 17-1/2" × 16-7/8")
(incl. grille and projection)
Weight
15.5 kg (34.2 lbs.)
Drivers unit
30 cm (12") Cone Woofer
AC 120V, 60 Hz
Terminal
140 W
Other
Auto Standby function
■
Surround and Surround Back Speakers
(SKR-980/SKB-980)
2 Way Acoustic suspension
8 Ω
Type
130 W
Impedance
83 dB/W/m
Maximum input power
50 Hz to 45 kHz
Sensitivity
2 kHz
Frequency response
7.5 L (0.265 cubic feet)
Crossover frequency
158 mm × 433 mm × 199 mm
Cabinet capacity
(6-1/4" × 17-1/16" × 7-13/16")
Dimensions (W × H × D)
(incl. grille and projection)
5.3 kg (11.7 lbs.)
12 cm (5") A-OMF Cone Woofer × 2
Weight
2.5 cm (1") Soft Dome Tweeter × 1
Drivers unit
Binding post (Banana type supported)
Magnetic shielding
Terminal
Specifications and appearance are subject to change without
prior notice.
THX and the THX logo are trademarks of THX Ltd. which are regis-
tered in some jurisdictions. All rights reserved.
RCA cable 10 ft. (3.0 m)
*2
Standby/On indicator
Red: Subwoofer in standby mode
Blue: Subwoofer on
With the Auto Standby function, the
SKW-980 automatically turns on when
an input signal is detected in Standby
mode. When there's no input signal for
a while, the SKW-980 automatically
enters Standby mode.
OUTPUT LEVEL control
This control is used to adjust the vol-
ume of the subwoofer.
LINE INPUT
This RCA input should be connected to
the subwoofer pre out on your AV
receiver with supplied RCA cable.
2 Way Acoustic suspension
8 Ω
130 W
83 dB/W/m
50 Hz to 45 kHz
2 kHz
7.5 L (0.265 cubic feet)
433 mm × 158 mm × 199 mm
(17-1/16" × 6-1/4" × 7-13/16")
(incl. grille and projection)
5.3 kg (11.7 lbs.)
12 cm (5") A-OMF Cone Woofer × 2
2.5 cm (1") Soft Dome Tweeter × 1
Binding post (Banana type supported)
Magnetic shielding
2 Way Acoustic suspension
8 Ω
130 W
81 dB/W/m
50 Hz to 45 kHz
2 kHz
4.6 L (0.163 cubic feet)
200 mm × 275 mm × 169 mm
(7-7/8" × 10-13/16" × 6-5/8")
(incl. grille and projection)
3.5 kg (7.7 lbs.)
13 cm (5-1/8") A-OMF Cone Woofer × 1
2.5 cm (1") Soft Dome Tweeter × 1
Binding post (Banana type supported)
Y1005-1
* 2 9 4 0 0 4 8 1 *
