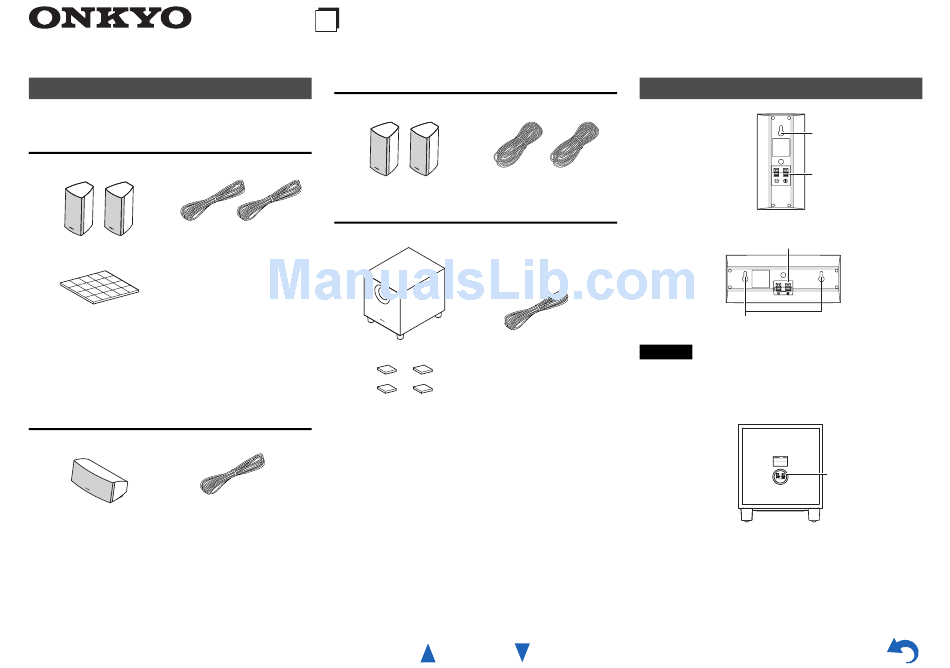

5.1ch Home Theater Speaker Package
Supplied Accessories
Make sure you have the following accessories.
Front speaker (SKF-391)
(White)
Front speakers
Speaker cables 10 ft. (3.0 m)
20 rubber stoppers
*1
(For Front/Center/
Surround speakers)
*1
Configuration of the rubber stoppers may be different from the
figure, such as being 2 sheets instead of 1 sheet, but the total
number will be same.
Center speaker (SKC-391/SKC-391C)
Center speaker
Speaker cable 10 ft. (3.0 m)
SKC-391
(North American and Brazilian)
SKC-391C (Asian)
HTP-391
E
n
Surround speaker (SKR-391)
Surround speakers
Subwoofer (SKW-391)
(Red)
Subwoofer
4 floor pads
(Green)
(Blue)
(Gray)
Speaker cables 26 ft. (8.0 m)
(Purple)
Speaker cable 10 ft. (3.0 m)
En-1
Part Names
Keyhole slot
Speaker terminals
SKF-391/SKR-391
Speaker terminals
SKC-391/
SKC-391C
Keyhole slots
Caution
• The front grilles are not designed to be removed so do not
attempt to remove them forcibly, as this will damage
them.
SKW-391
Speaker terminals
