VICTOR COMPANY OF JAPAN, LIMITED
®
is a registered trademark owned by VICTOR COMPANY OF JAPAN, LTD.
®
is a registered trademark in Japan, the U.S.A., the U.K. and many other countries.
© 2004 VICTOR COMPANY OF JAPAN, LIMITED

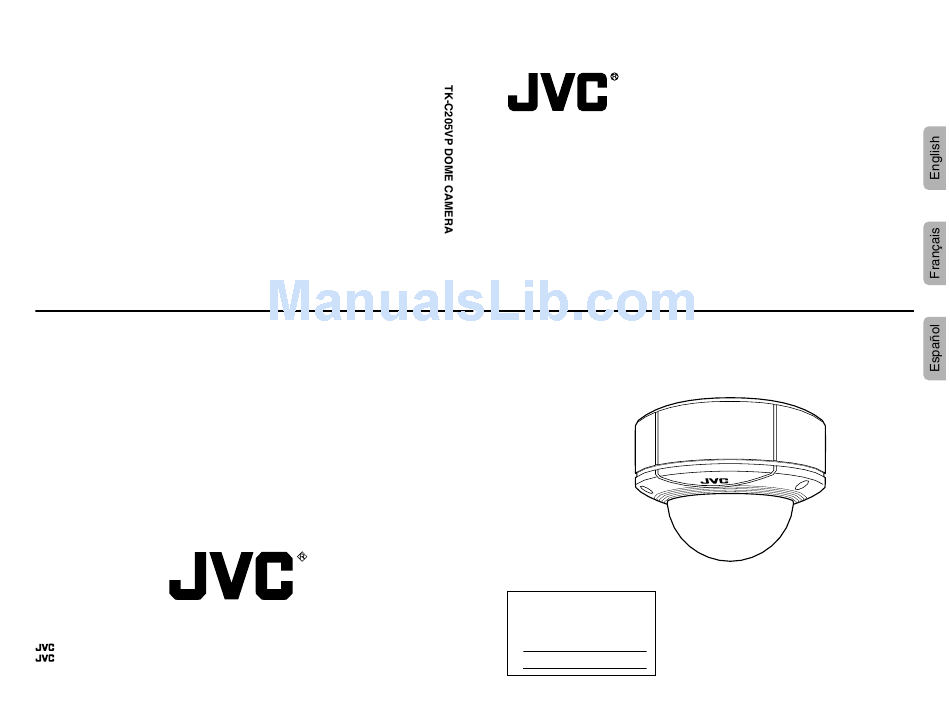

DOME CAMERA
CAMÉRA À DÔME
CÁMARA DOMO
TK-C205VP
For Customer Use:
Enter below the Serial No. which is
located on the body. Retain this
information for future reference.
Model No.
Printed in Thailand
Serial No.
LWT0153
MANUEL D'INSTRUCTIONS
TK-C205VP
INSTRUCTIONS
INSTRUCCIONES
LWT0153

Advertisement

Table of Contents
loading

Related Manuals for JVC TK-C205VP

Summary of Contents for JVC TK-C205VP

  • Page 1 Japan, the U.S.A., the U.K. and many other countries. © 2004 VICTOR COMPANY OF JAPAN, LIMITED DOME CAMERA CAMÉRA À DÔME CÁMARA DOMO TK-C205VP For Customer Use: Enter below the Serial No. which is located on the body. Retain this information for future reference.

  • Page 2: Important Safeguards

    These are general IMPORTANT SAFEGUARDS and certain items may not apply to all appliances. IMPORTANT SAFEGUARDS 1. Read all of these instructions. 2. Save these instructions for later use. 3. All warnings on the product and in the operating instructions should be adhered to. 4.

  • Page 3: Table Of Contents

    ● Consult the dealer or an experienced radio/TV EXPOSE THIS APPLIANCE TO RAIN technician for help. OR MOISTURE. CAUTION CHANGES APPROVED BY JVC COULD VOID USER’S AVERTISSEMENT: AUTHORITY TO OPERATE THE EQUIPMENT. POUR EVITER LES RISQUES D’INCENDIE OU D’ELECTRO- THIS DEVICE COMPLIES WITH PART 15 OF CUTION, NE PAS EXPOSER THE FCC RULES.
  • Page 4 Features The unit can be installed directly outdoors since the dust/drip-proof structure (IP66) is unaffected by rain. The unit including the dome cover is designed for outdoor and indoor areas that are subject to vandalism. The camera uses a high-resolution 380,000 pixel (U type) / 440,000 pixel (E type), high-sensitivity CCD to realize high picture quality with horizontal resolution...

  • Page 5: Names And Operations Of Parts Camera Unit

    Names and Operations of Parts Camera unit MONITOR terminal (RCA pin) For connecting a monitor when determin- ing camera angle, etc. (High impedance) Horizontal lock screw When adjusting the camera angles of horizontal rotation, this screw is loosened for adjustment and tightened to maintain the angle.

  • Page 6: Main Unit Bottom/Side/Top

    Names and Operations of Parts Main unit bottom/side/top bottom side 121mm ") Safety cable installation screw Conduit hole Install the safety cable using this screw. Hole for installation to conduit hole pipe and wiring. CAUTION Conduit plug & hole (side) Be sure to attach the safety cable.

  • Page 7: Mounting The Base To The Ceiling

    • Always replace the silica gel when recon- Lug plate necting/resetting during repair or mainte- nance. When replacing, use: JVC parts No. LW40500-001A • When performing installation under rain- Silica gel ing conditions, take caution as not to al- low rain to enter inside the unit.

  • Page 8: Connect The Cables To The Base

    Connect the Cables to the Base Video signal cables Connect the coaxial cables to the coaxial cable processing terminal. Note Use the RG-59 or RG-6 video signal cable (coaxial cable). The RG-11 cannot be used. • Perform the process shown on the left diagram (above illustration) for the coaxial cable tip before connecting.

  • Page 9: Adjusting The Camera Angle

    Installation and connection Adjusting the Camera Angle Camera angle, zoom and focus are adjusted. Horizontal rotation (adjustable range: 350°) Horizontal Lock screw Loosen the horizontal LOCK screw. Variable range 350˚ Holding the both tilt lock screws, rotate horizontally. Tighten the horizontal LOCK screw. LENS CENTER Vertical rotation...

  • Page 10: When The Dome Camera Cannot Be Installed To The Ceiling

    Installation and connection When the Dome camera cannot be installed to the Ceiling When installation cannot be made to the ceiling, use the conduit hole on the main unit side to install to the pipe. Follow steps 1 ~ 5 of Mounting the Base to the Ceiling.

  • Page 11: Others

    Others About White-spot correction As a general characteristic unique to CCD, white spots may appear on the screen when operating under high temperature. In order to reduce this phenomenon, this unit is equipped with a white-spot correction feature. Usage FOCUS ADJ. Remove the dome cover.
  • Page 12 Influence from devices that easily emit noise (power pumps, air conditioners, lighting, etc.) and dielectric effects from lightning can be reduced by insulating the base. Remarque pour l’installation English Italiano 安装时的注意事项 Français LWT0178 (TK-C205VP) 中文...
