- Page 2 • This wired controller is applicable to various models. Some specific functions are unavailable for the mini/multi split units and will not be covered in this manual. • Before operating the unit, please read this manual carefully and keep it for future reference.
-
Page 3: Table Of Contents
Contents 1 Display ............................ 4 1.1 Appearance and LCD Icons ..................... 4 1.2 Instructions for Display Symbols ..................5 2 Buttons ........................... 6 2.1 Button Graphics ........................ 6 2.2 Function Identification and Instructions ................6 3 Operation Instructions ......................6 3.1 Menu Structure ......................... -
Page 4: Display

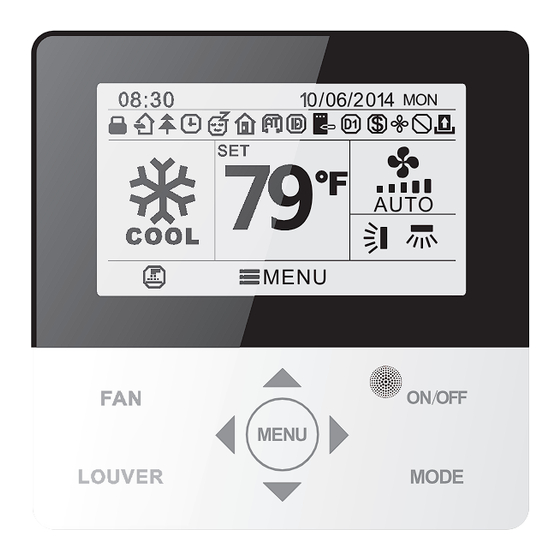

Mini / Multi-Split Programmable Controller 1 Display 1.1 Appearance and LCD Icons Fig. 1 Appearance of the programmable controller... -
Page 5: Instructions For Display Symbols
Mini / Multi-Split Programmable Controller 1.2 Instructions for Display Symbols Symbols Instructions Up and down louver function Left and right louver function Outdoor air function (not available on these units) Sleep function Auto mode Cooling mode Dry mode Fan mode... -
Page 6: Buttons
Mini / Multi-Split Programmable Controller 2 Buttons 2.1 Button Graphics Fig. 2 Button Graphics 2.2 Function Identification and Instructions Button Name Button Functiion Set low, medium, high, turbo and auto fan speeds ▲ 1. Set temperature 2. Set parameter ▼... - Page 7 Mini / Multi-Split Programmable Controller Main Menu Search menu Unit status Error information Timer menu Once Daily Weekly Two week Timer on Timer off Function menu Fresh air Sleep Health Holiday Memory Energy Save Auxiliary heat Quiet Fahrenheit mode Exchange Air...
-
Page 8: Function Availability By Model
Mini / Multi-Split Programmable Controller 3.2 Function Availability by Model... -
Page 9: On/Off
Mini / Multi-Split Programmable Controller 3.3 On/Off When the wired control is on the main screen, press the ON/OFF button to turn on the unit. Press the ON/OFF button again to turn off the unit. The displays in both ON and OFF states are shown in Fig. -
Page 10: Louver Setting
Mini / Multi-Split Programmable Controller 3.7 Louver (Swing Angle) Setting By pressing the LOUVER button when the unit is on, the up & down louver icon is displayed. Press the LOUVER button to turn on or turn off the up & down louver function. -
Page 11: Function Menu
Mini / Multi-Split Programmable Controller 3.8 Function Menu Press the MENU (enter) button on main screen to enter the main menu. Press the ◀ ▶ “ ” or “ ” or “▼” or “▲” buttons to select the function setting screen. Press the MENU (enter) button to enter the user function setting screen. - Page 12 Mini / Multi-Split Programmable Controller 3.8.1 Fresh Air This function is currently unavailable. 3.8.2 Sleep After entering the user function screen, press the “▲” or “▼ ” button to select the ◀ ▶ SLEEP function and press the “ ” or “...
- Page 13 Mini / Multi-Split Programmable Controller 3.8.6 Memory After entering the user function menu, press the “▲” or “▼ ” button to select the ◀ ▶ MEMORY function and press the “ ” or “ ” button to turn on or turn off the MEMORY function.
-
Page 14: Unit Status
Mini / Multi-Split Programmable Controller 3.8.13 Exchange Air This function is currently unavailable. 3.9 Unit Status Press the MENU button to enter the main menu and select the SEARCH symbol to enter the Search menu. Then press the MENU button to enter the view function screen. -
Page 15: System Error View
Mini / Multi-Split Programmable Controller 3.10 System Error View When an error occurs in the unit, the error symbol will be displayed on the main screen of the wired controller to indicate there is a unit malfunction. When this occurs, you can enter the error view screen to determine the cause of the current error. -
Page 16: Error Codes
Mini / Multi-Split Programmable Controller Error Error Error Error Code Code Return air temperature sensor open/ Drive board communication error short circuited Evaporator temperature sensor Compressor overheating protection open/short circuited Indoor unit liquid valve temperature Indoor and outdoor units unmatched... -
Page 17: Timer Menu
Mini / Multi-Split Programmable Controller 3.11 Timer Menu The wired controller can set 6 types of timers: one-time clock timer, everyday schedule, one week schedule, two week schedule, countdown timer on and countdown timer off.Select the timer symbol after entering the main menu. Press the MENU button to enter the timer menu. - Page 18 Mini / Multi-Split Programmable Controller Fig. 12 ONCE clock timer Note: The ONCE timer function will be automatically canceled if the unit is manually turned on or off. 3.11.2 Daily Schedule With the DAILY schedule, eight individual time segments can be set per day.
- Page 19 Mini / Multi-Split Programmable Controller ◀ ▶ After entering the weekly schedule setting screen, press the “ ” or “ ” button to select the day to be set. Press the MENU button to enter the desired time ranges for ◀...
- Page 20 Mini / Multi-Split Programmable Controller 3.11.4 Two Week Schedule Using the TWO WEEK schedule, daily schedules may be programmed for up to two weeks. Within each day up to eight individual time segments can be set. The unit will execute corresponding timer settings over the course of the two week period.
- Page 21 Mini / Multi-Split Programmable Controller hours and the unit will turn back on four hours after the TIMER OFF function com- pletes. After entering the TIMER ON setting screen, press the“▲” or “▼” button to increase or decrease the timer time in 0.5 hour increments. Press the ON/OFF (back) button to return to the last screen.
-
Page 22: Clock Menu
Mini / Multi-Split Programmable Controller 3.12 Clock Menu 3.12.1 Clock Format Setting The clock format can be set to a 12-hour clock or a 24-hour clock display. Select the clock symbol on the menu screen, then press the MENU button to enter the clock ◀... -
Page 23: Lock Menu
Mini / Multi-Split Programmable Controller Fig. 19 Clock Setting 3.13 Lock Setting Select the lock symbol on the main menu screen, then press the MENU button to enter the LOCK screen. Press the “▲” or “▼” button to select the item to be ◀... -
Page 24: Installation Instructions
Mini / Multi-Split Programmable Controller Fig. 20 Lock Setting 4 Installation Instructions 4.1 Parts and Dimensions of Wired Controller unit：mm Fig. 21 Dimensions of wired controller Fig. 22 Parts of wired controller Panel of wired Mounting plate of Name Screw M4 × 25... -
Page 25: Installation Requirements
Mini / Multi-Split Programmable Controller 4.2 Installation Requirements 1. Do not install the wired controller in a damp place or in direct sunlight such as directly opposite a window. 2. Do not install the wired controller close to a high-temperature object or in a place where the wired controller is likely to be exposed to water spray. -
Page 26: Disassembly
Mini / Multi-Split Programmable Controller The specific installation steps are shown in Fig. 23: Note: To ensure good communication, use the factory-provided communication wiring, or equivalent. The recommended distance between the indoor unit and the controller is 25 feet (8m), but can be up to 65 feet (19.8m) 1.
