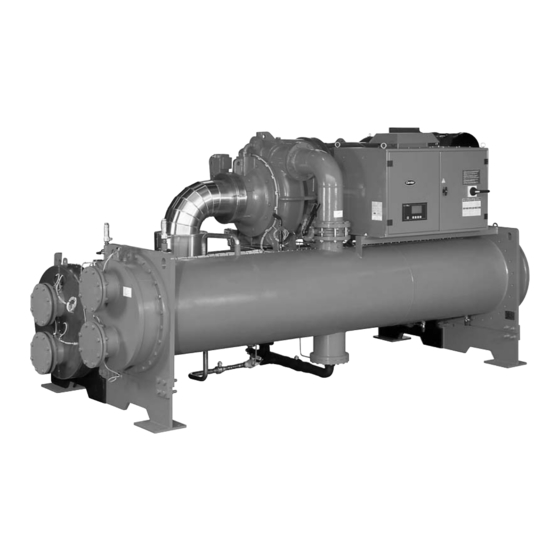

Carrier EVERGREEN 19XR Installation And Start-up Instructions Manual

Carrier refrigerator user manual.


Installation and Start-Up Instructions
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . 1
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
ABBREVIATIONS AND EXPLANATIONS . . . . . . . . . . 1
PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
CHILLER SOFTWARE VERSION
REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,2
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Equipment Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Step 1 — Identify Power Supply . . . . . . . . . . . . . . . . . . 2
Step 2 — Assemble Swing Arm . . . . . . . . . . . . . . . . . . 2
Step 3 — Attach Arm to Tube Sheet . . . . . . . . . . . . . . 2
Step 4 — Mount Display Screen on Arm
Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Step 5 — Connect Cable Between Display and
ICVC (International Chiller Visual Control) . . . . . . 4
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Start Touch Screen System . . . . . . . . . . . . . . . . . . . . . . 4
Start Carrier Network Manager . . . . . . . . . . . . . . . . . . . 5
Configure ComfortVIEW™ Software on Touch
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SAFETY CONSIDERATIONS
When installing this accessory, observe precautions in the
literature and on any labels attached to the equipment, and all
other safety precautions that may apply.
• Follow all safety codes.
• Use care in handling and installing this accessory.
WARNING
Electrical shock can cause personal injury and death. Shut
off all power to this equipment during installation. There
may be more than one disconnect switch. Tag all discon-
nect locations to alert others not to restore power until work
is completed.
INTRODUCTION
Carrier's new EverVu™ touch screen display allows a facil-
ity manager to monitor a chiller from a 15-in. color touch
screen display. The EverVu display screens allow easy naviga-
tion to determine data and chiller trends such as a chiller per-
formance trend, chilled water trend, condenser water trend and
power trend. The EverVu touch screen display is available for
Evergreen 19XR, 19XRV and 23XRV chillers and 32 Series
chiller retrofit packages. The display is provided with Comfort-
VIEW™ software preloaded.
Retrofit Compatibility —
be retrofitted to any existing Carrier Comfort Network
compatible chiller, though default screen sets may not be
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53190018-01
EVERVU™ Touch Screen Display for
EVERGREEN
Part No: 33CNTVIEW
The EverVu™ display can
®
(CCN)
Printed in U.S.A.
®
19XR,XRV, 23XRV Chillers
with PIC II or PIC III Controls
included for all chillers. The display may also be retrofitted to
competitor's chillers when the 32 Series retrofit panels are
applied.
ABBREVIATIONS AND EXPLANATIONS
Terms and abbreviations used in this manual include:
CCN (Carrier
— Carrier's proprietary communications
Comfort Network)
CCN bus
— 3-wire RS-485 network for CCN elements
CCN element
— Unique addressing scheme for devices
Network Manager — ComfortVIEW software system for
Workspace
— ComfortVIEW software for managing
Manager
PACKAGE CONTENTS
• Touch screen display screen with quick connect mount
• Swing arm for mounting (assembly required; see Swing
Arm Assembly Instructions)
• RS-232 to RS-485 converter from B&B Electronics
• ComfortVIEW software key (USB) (already installed in
back side of display screen)
• Several bags containing bolts and Allen style wrenches
• Touch computer power supply
• 6-ft or 25-ft Beldon power cable (25-ft cable will be
available for order)
• 25-ft coiled communication cable with RJ-14 connectors
• Swing Arm Assembly Instructions
CHILLER SOFTWARE VERSION REQUIRE-
The chiller software in the International Chiller Visual Con-
trol (ICVC) controller must match a version of chiller software
for which the EverVu workspace screens have been developed.
The EverVu display is supplied with databases to support the
chiller software versions listed in Table 1.
Table 1 — Chiller Software Version Requirements
EVERVU DATABASE
UNIT
19XR
19XR Version 09 Chiller
19XRV
19XRV Version 04 Chiller
23XRV
23XRV Version 02 Chiller
19DK Version 01 Chiller
32DK
(Build 0.016)
32XR
32XR Version 01 Chiller
Form 19/23-2SI
Pg 1
protocol
on a CCN network
managing network devices
viewspaces and trends within
workspaces for graphical representation
of a system
MENTS
CHILLER
SOFTWARE
VERSION
VERSION
CESR-131294-09
CESR-131350-04
CESR-131293-02
CESR-131458-01
CESR-131435-01
6-11
Replaces: 19/23-1SI

Summary of Contents

  • Page 1

    Start Touch Screen System ..... . 4 Start Carrier Network Manager ....5 Configure ComfortVIEW™...

  • Page 2: Installation, Equipment Needed, Step 1 — Identify Power Supply, Step 2 — Assemble Swing Arm

    If the chiller software is a later version than is supported by the EverVu display, a new EverVu database will need to be downloaded and imported into the EverVu display. Contact a Carrier Service office for assistance in importing the databases. INSTALLATION Equipment Needed •...

  • Page 3

    1. Slide the screen display onto the mounting bracket. (location shown in Fig. 3). a19-1892 Fig. 3 — Display Screen Mounting Location 2. Two hooks secure the display screen to the mounting bracket. Hold the display screen until verifying that the display screen is supported by the hooks on the mounting bracket before releasing.

  • Page 4: Step 5 — Connect Cable Between Display And Icvc (international Chiller Visual Control), Installation, Start-up

    ICVC version. Some older ver- sions need to be updated to work with the touch panel. Contact a Carrier Service office for assistance in downloading a new version, if required. NOTE: Besides being connected to the display, the chiller may be on a CCN network in the building.

  • Page 5: Start Carrier Network Manager, Screen

    To login, use the local administrative account and password. The username is “sa” and the password is “carrier”, both in lowercase (Fig. 10). The username and password are entered using the expandable keyboard. The keyboard can be displayed by tapping the small keypad icon.

  • Page 6

    Chiller software version can be found on ICVC, under “ICVC CONFIGURATION” or from the touch screen using Carrier Network Manager under “Device Con- figuration,” then “Controller ID.”...

  • Page 7

    16. Select the appropriate chiller type and version and press “OK.” Fig. 16 — Open Workspace 17. After the default workspace of the chiller version to be cloned is opened, select the “Run” tab at the top of the screen, then “Enter design mode” (Fig. 17). Fig.

  • Page 8

    22. The system will prompt to select the area and CCN ele- ment screens to clone. Select the area “Local Chiller” and element that was just added in Network Manager. Then press “OK” (Fig. 22). Fig. 22 — Select Element Definition 23.

  • Page 9

    38. As a last step, log out as administrator and log in as the lo- cal default operator. The user name for the local default operator is “Carrier” and the password field is left blank. 39. The old default screen will open first in Workspace Man- ager.

  • Page 10: Start-up

    43. As a final verification, power down, then power up and the default screen for the local operator should be dis- played after boot up. Fig. 29 — Configure as Default Workspace The EverVu™ touch screen display provides 17 indepen- dent user screens for most of the default graphical representa- tions.

  • Page 12

    Copyright 2011 Carrier Corporation Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Catalog No. 04-53190018-01 Printed in U.S.A. Form 19/23-2SI Pg 12 6-11 Replaces: 19/23-1SI...
